high resolution led matrix display module
high resolution led matrix display module
high resolution led matrix display module
high resolution led matrix display module
high resolution led matrix display module
high resolution led matrix display module
Model No: HOUKEM-19088-AR

KEM-19088 47.8*47.8mm red 8x8 led dot matrix display module

dot matrix display houkem is dot matrix led display professional manufacturer
minimum order :
1 piece
Country of Origin :
shenzhen or guangzhou
Quantity :
$0.58 - $0.70 / piece
add to cart
Contact Now
  • Application:display message
  • Color:red
  • Panel Size:47.8*47.8mm
  • Pixel Pitch:2
  • Place of Origin:Guangdong, China
  • Model Number:KEM-19088-AR
  • Brand Name:KEM
  • Emitting color:Super Red
  • Surface color:Black or gray
  • Expory color:Milky white diffused
  • Peakwave length:625-630nm (635-640nm)
  • Luminous intensity:50-90 mcd
  • Forward voltage:1.8-2.3v
  • Working current:20mA
  • Tube Chip Color:red,blue,white,yellow,green
  • Usage:outdoor or indoor
  • Screen Dimension:47.8*47.8mm
KEM-19088 47.8*47.8mm red 8x8 led dot matrix display module
Product Description
Part No.KEM-19088-A/BSREmittingcolorred/blue/amber/green/white/yellow
Polarity

Common anode

Common cathode

Epoxy colorwhite/blue/red/green/yellow
Current20mASurface colorBlack/gray/white

Quick Details for high density led dot matrix display:

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.

· Dimendion : 1.9mm / 3mm/ 3.7mm / 4.8mm /5mm

· Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB

· Face color : black / gray

· Surface dot type : epoxy diffusion / clear lens

· Polarity : common cathode / anode



Part Details of 4.8mm LED display high density led dot matrix display:

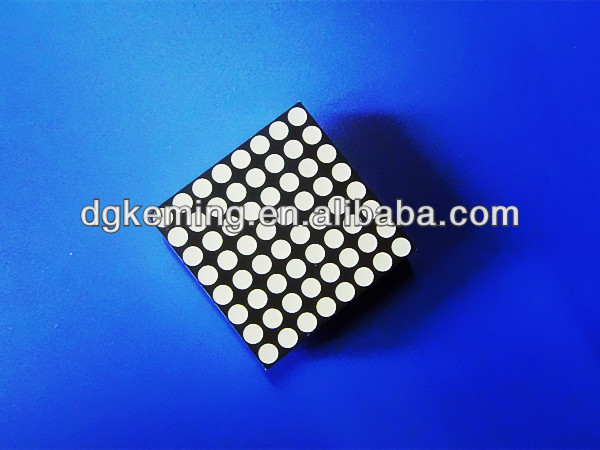

8x8 round dot led matrix

Part no.: KEM-19088-A/BSR

Array : 8x8 round dot led matrix

Dimendion: 47.8*47.8mm (Dia4.8mm)

Usage : Indoor or Outdoor

Emitting color : Super Red

Face color: Black or gray

Peakwave length : 620-625 nm (635-640nm)

Forward voltage : 1.8-2.3 V

Working current : 20mA

Polarity : Common Cathode or Anode

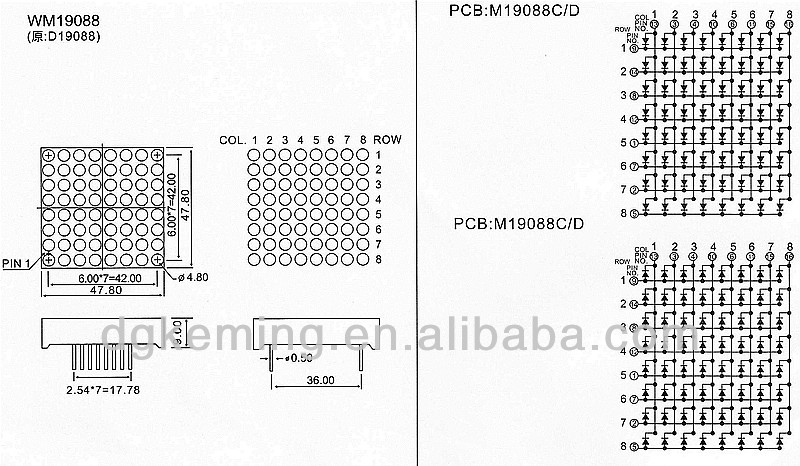

Part Drawing and Internal Circuit :

8x8 round dot led matrix Dia : 4.8mm / 47.8x47.8 mm

If the internal circuit can not meet your need, pls inform me for other choices.

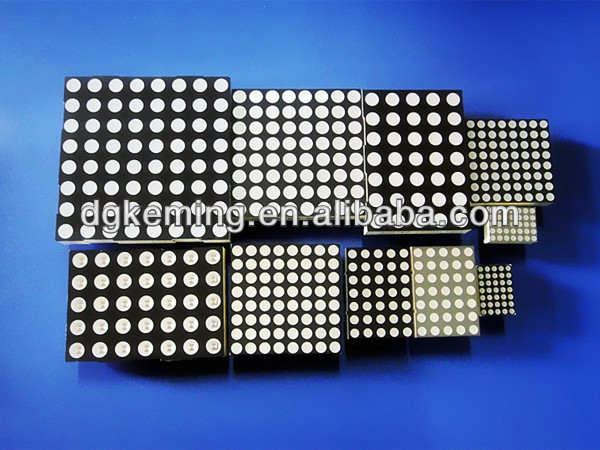

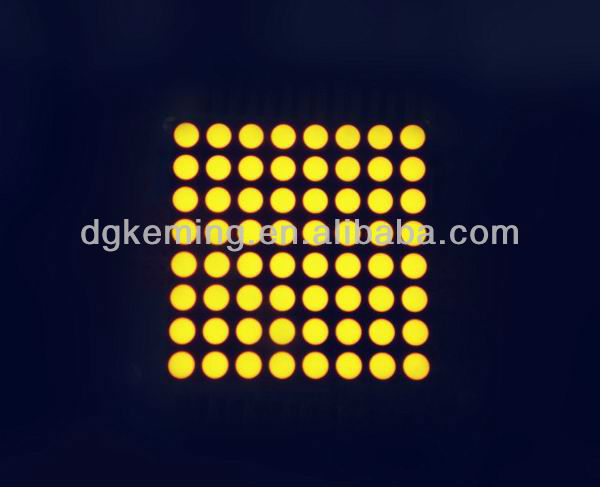

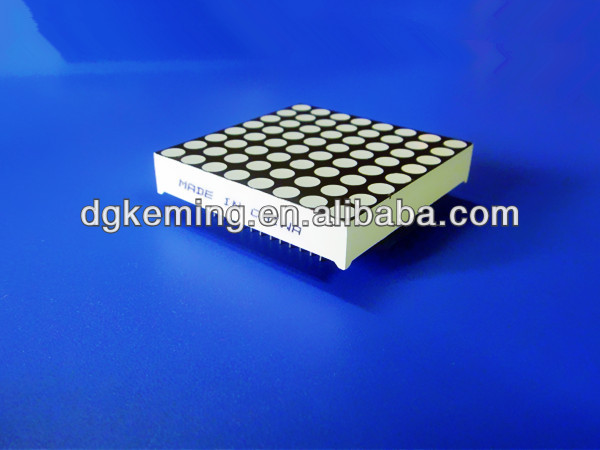

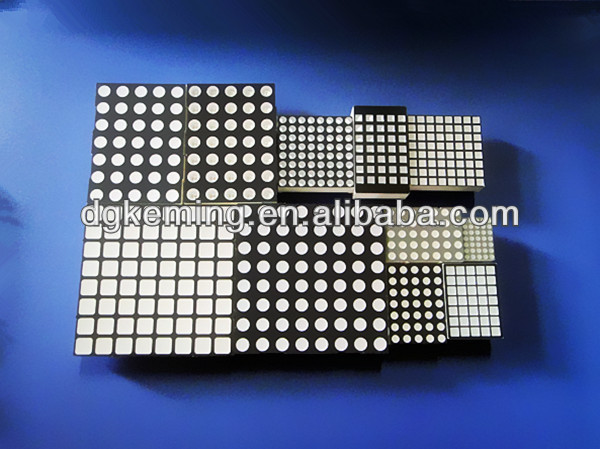

More Picture in Detail :

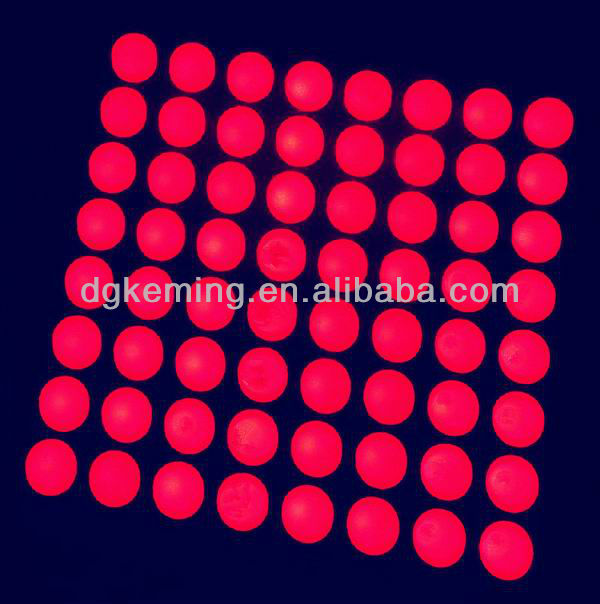

super red color

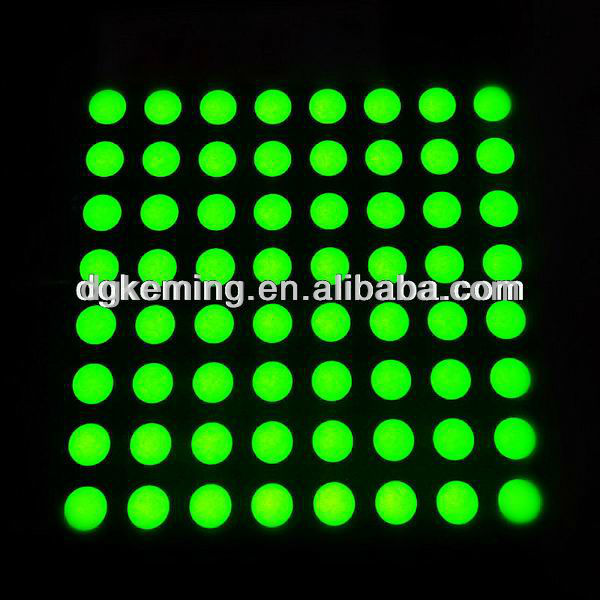

Super Green color

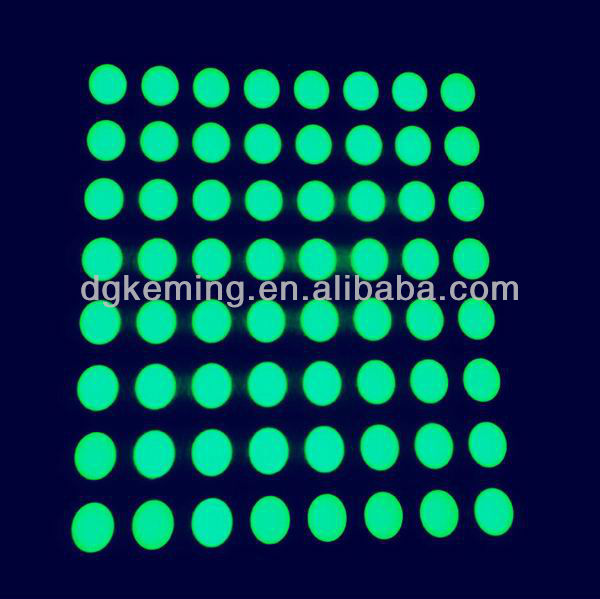

Parrot Green color

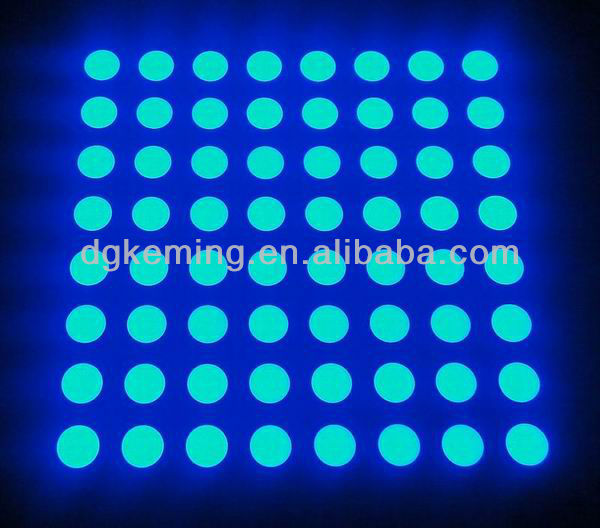

Blue color

BI COLOR & RGB :

Applications:

- Audio equipments or instrument panels.

- Home electronic appliances, air conditional controller.

- General use for digital indicators( led clock timer, led price tag, lift/elevator indicator & etc.).

- Multimedia products.
