Model No: houkem-15088-BSR
37.7*37.7mm 1.5 inch 8x8 led dot matrix display red
dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.56 - $0.58 / piece
- Application:Indoor, display message
- Color:red
- Panel Size:37.7*37.7mm
- Pixel Pitch:4.76mm
- Supplier Type:ODM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:kem-15088-BSR
- Brand Name:KEM
- use:advertising publish, welcome display
- Pixels:3.7mm
- Specification:Digital Poster
- Emitting color:red
- Face color:Black or Gray or red
- Polarity:Common Anode
- Working current:20mA
- Working voltage:2V
- OEM:Yes
- Manufature:China factory
- Certificate:RoHS CE
- Life span:2 years
- Product name:8x8 dot matrix
Products Description
1.5 inch 8x8 dot matrix red 3.7mm 8x8 led matrix display
Part No. | kem-15088-BSR | Dimension | 37.7*37.7*7.3mm | |||
Pixel | 3.7mm | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | super red | |||
Luminous intensity | 100-150mcd/chip | Polarity | Common anode | |||
If need other specifications, Please contact with our sales to get what you want. | ||||||

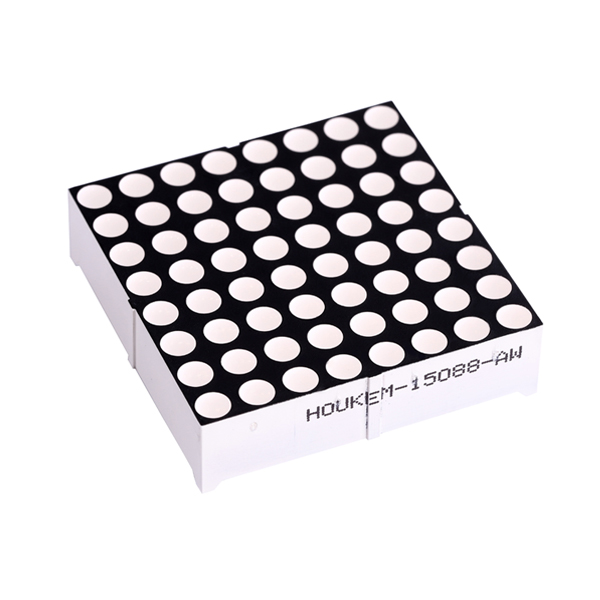

Details Images
Features:

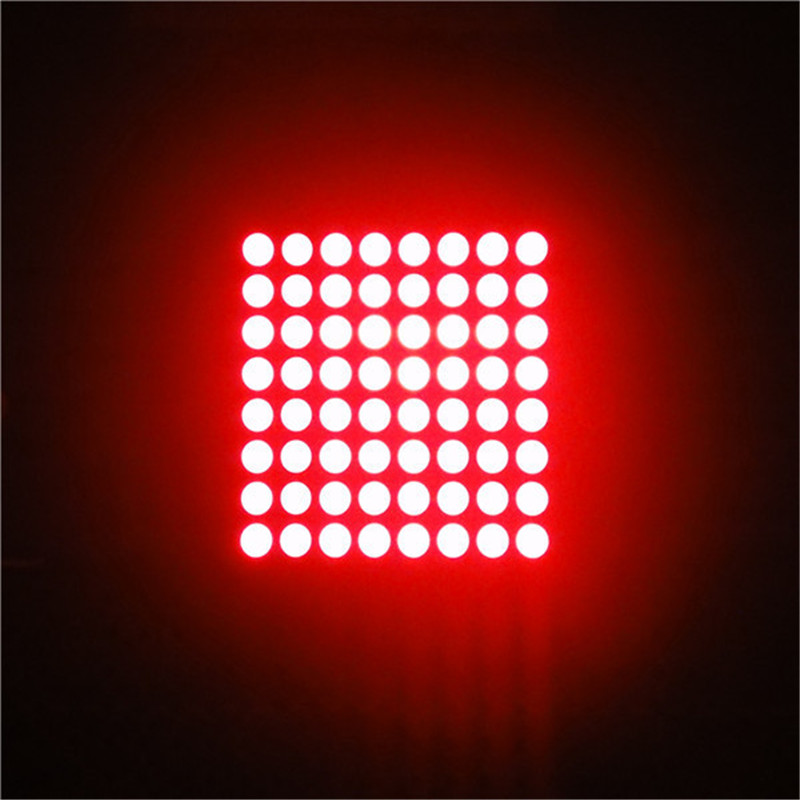

1.8x8 led matrix red
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

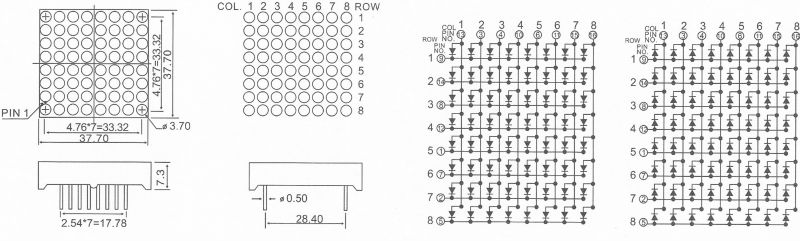

Dimension and Internal Circuit Diagram
Relative Products:
All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

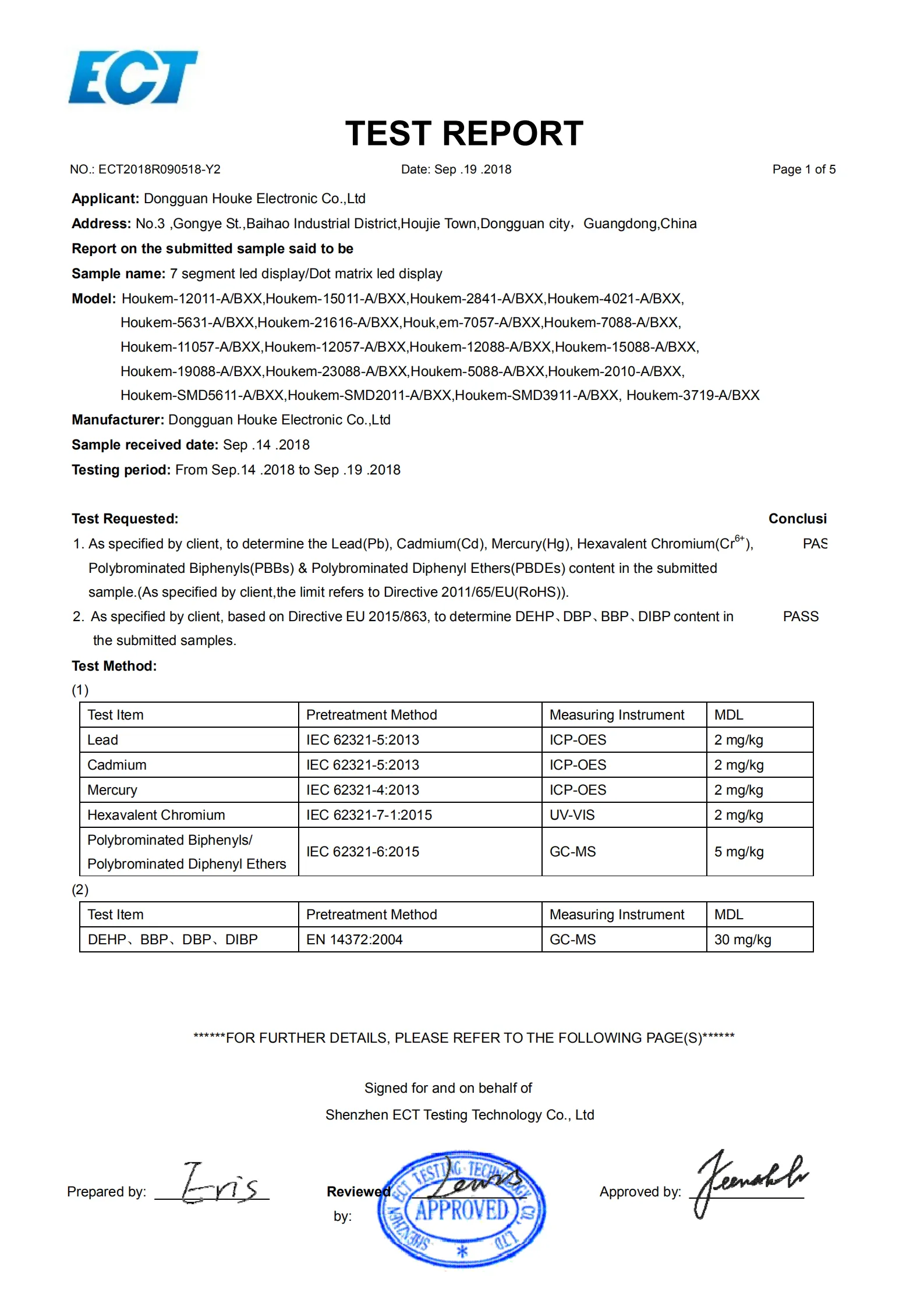

Certifications
