Model No: HOUKEM-15088-BSR

1.5 inch 8x8 dot matrix red round 3.7mm led matrix

dot matrix display houkem is led dot matrix display professional manufacturer

minimum order :

1 piece

Country of Origin :

shenzhen guangzhou

Quantity :

$0.55 - $1.00 / piece

add to cart

Contact Now

Application:Graphics, air conditioner, running machine
Color:super red
Panel Size:37.7*37.7mm
Place of Origin:China
Model Number:HOUKEM-15088-BSR
Brand Name:HOUKEM
Product name:8*8 dot matrix
Warranty:2Years
Luminous Intensity:110-130mcd
Forward Voltage:1.8-2.0V
PCB Polarity:common anode
operating temperature:-35 ~ +85 ℃
OEM:YES
Custom made:YES
Certificate:CE ROHS

Product Describtion

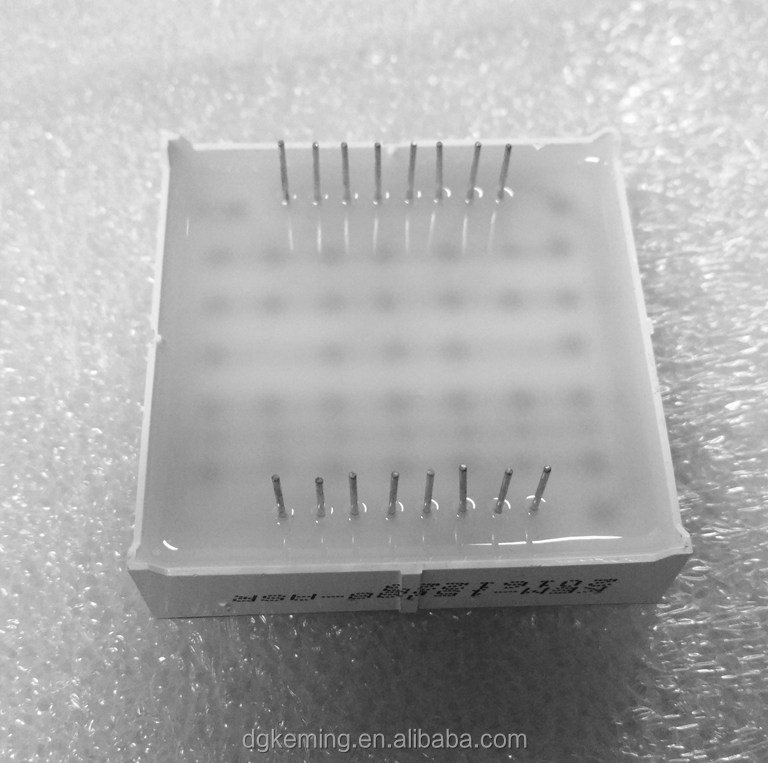

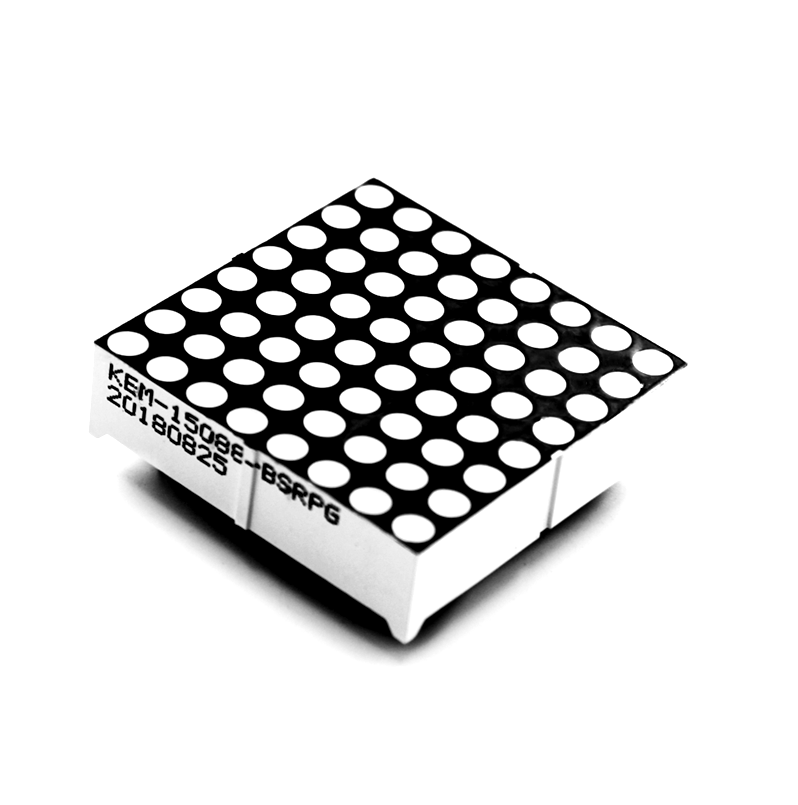

3.7mm round led Red 8x8 dot matrix 1.5inch

1,Low consumption 2, High brightness

Item No.	HOUKEM-15088-BSR
Dimension	37.737.77.3mm
Surface color	Black /Grey
epoxy color	WHITE
Emitting color	super red

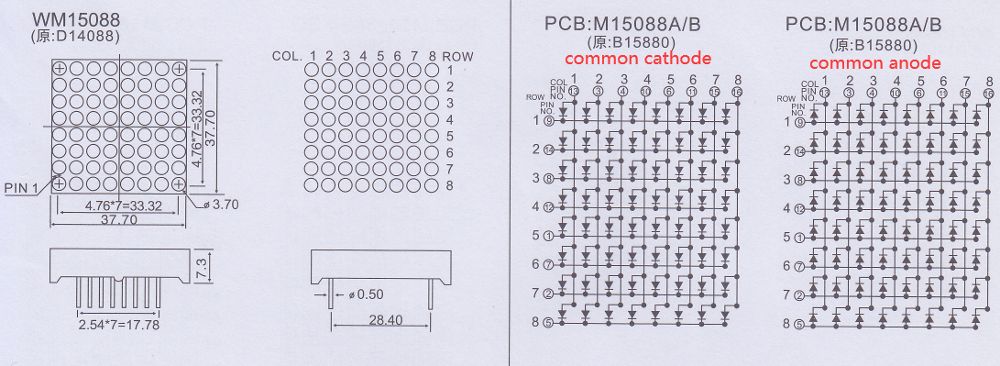

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.9	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.9	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF=10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.9	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.9	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
^White	^IF=10-15mA	^-	^-	^2.7	^2.9	¹⁸⁰	²⁰⁰

Two years quality warranty

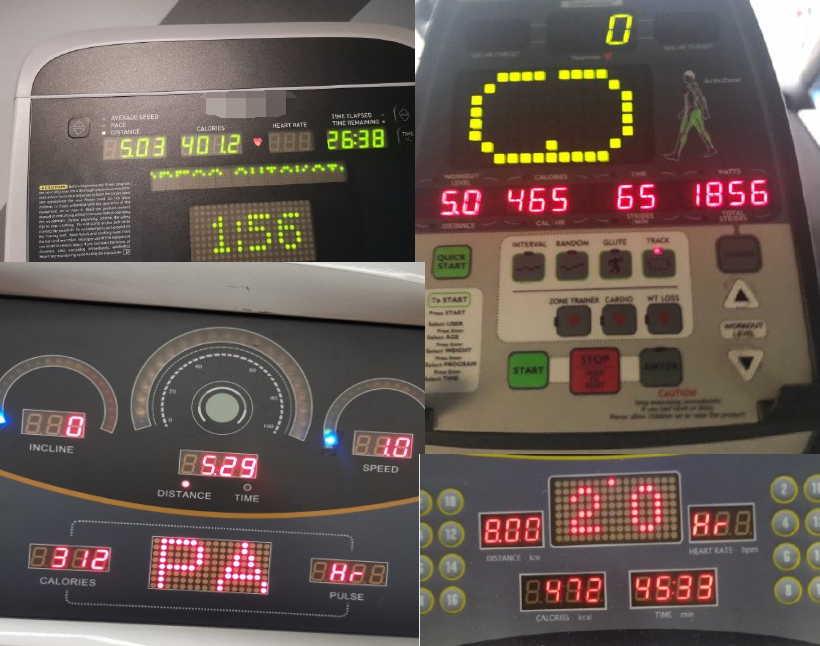

Application

Our Services

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39'', 0.54''

Led dot matrix: 57, 58, 88, 117, 16*16

3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

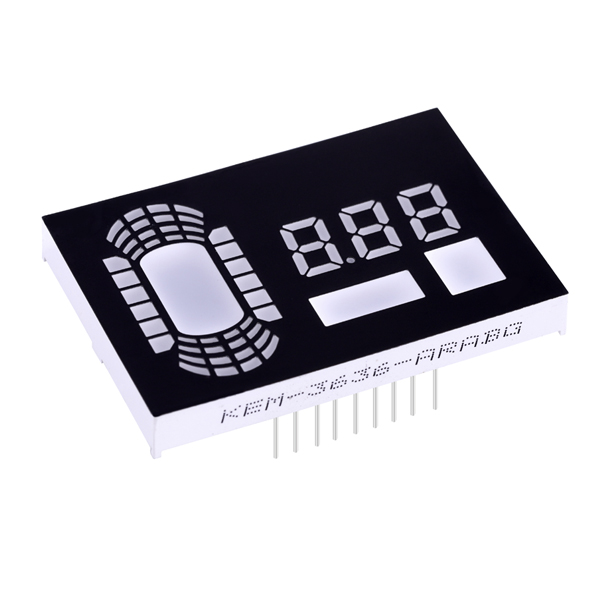

Custom 7 segment display are available

Packaging & Shipping

Contact us

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,

SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,

street light,and all LED lighting application solution, etc.

FAQ

1. How to proceed an order ?
A: Firstly let us know your requirements or application. Secondly We will quote the price according to your requirements or our suggestions.

Thirdly customer confirms the samples and make payment for formal order.
Fourthly We will start to arrange the production.

2. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
