Model NO.
KEM-12057-ASR
Price:
USD 0.10-1.00 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
SZ/GZ
Quantity:
  • Place of Origin:CN;GUA
  • Display Function:Graphics
  • Pixels:16mm
  • Usage:outdoor/indoor
  • Tube Chip Color:milky white or as emitting color
  • Brand Name:KEM
  • Model Number:KEM-12057-ASR
  • Screen Dimension:22.8*39.1*8mm


kem-12057-asr common cathode led super red 5x7 matrix display module


Contact us

Sales:Ellen Liu

Tel:+86755-85933616

MP:+8618825779357

Skype:ellen.liu770

QQ:1766570387

Wechat:ellen432555

Whatsapp:+8618825779357

Email:sales3.jpgdgkeming.com.cn

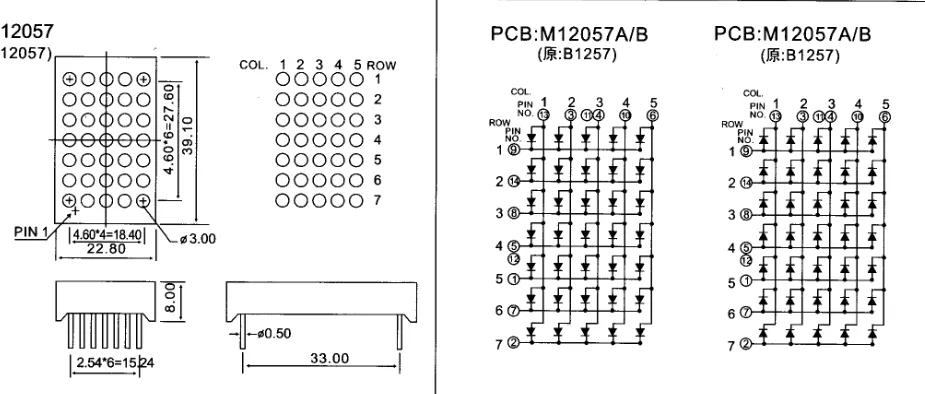

Dimension and Internal Curcuit of 3 mm dot matrix led display withe 16 pins :



 3 mm dot matrix led display withe 16 pins

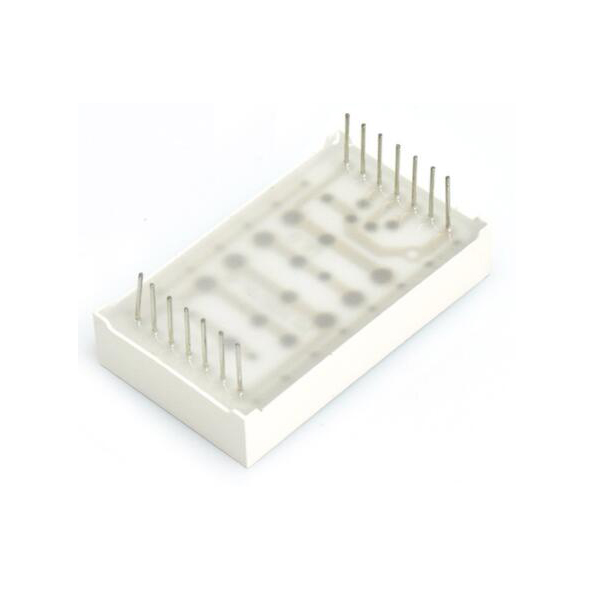

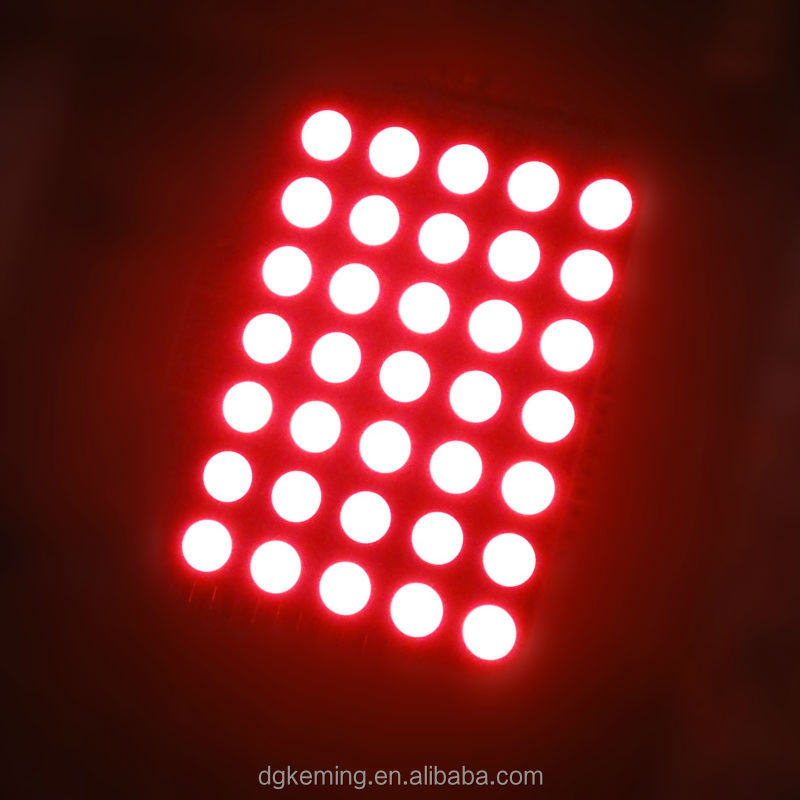

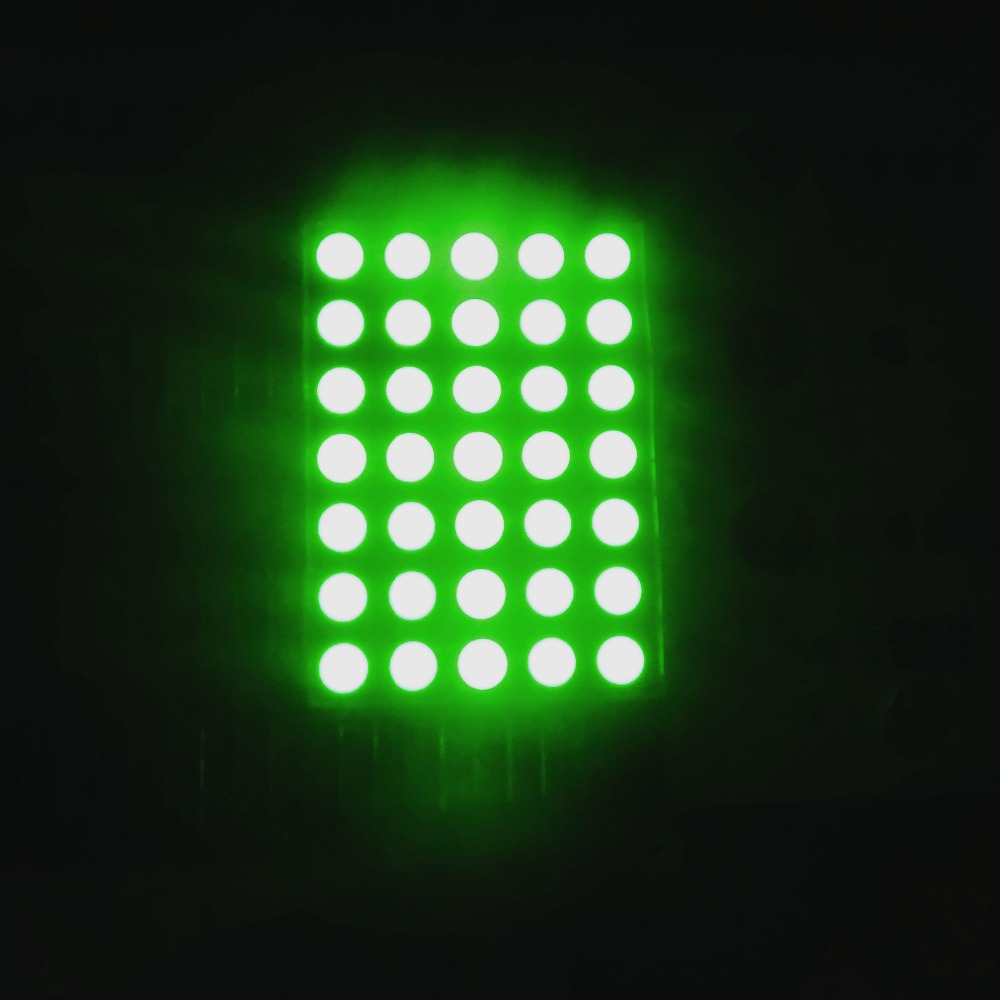

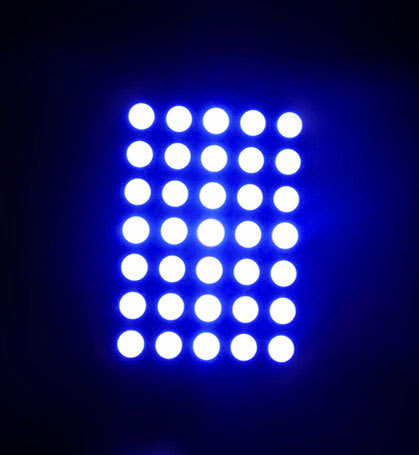

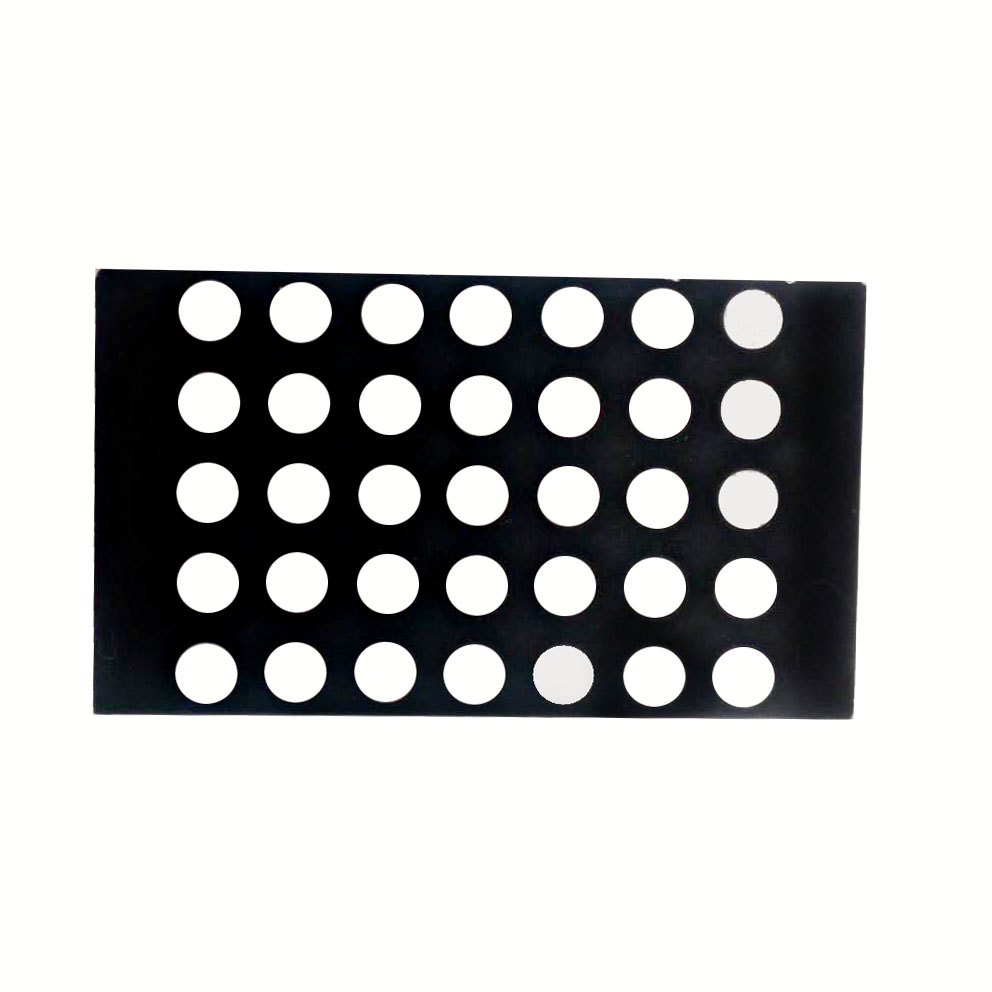

More Pictures

12057.1

12057.3





Packaging & Shipping

1.Packaging

HTB1H0BkGFXXXXasXXXXq6xXFXXXw.jpg_350x350

2.Shipping

Delivery02

Features :

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB .
  • Face color : black / gray .
  • Surface dot type : epoxy diffusion / clear lens .





Part details of 3 mm dot matrix led display withe 16 pins :



Model.

:KEM-12057A/B



Description

:22.8*39.1*8mm



Surface color

:Black / gray/red



Emitting color

: red,blue,green,white,yellow,amber



Wavelength

475-635 nm



Luminous intensity

50-200mcd



Voltage/ Current

1.8-3.3v  / 15-20mA



PCB Polarity

:Common Cathode or Common Anode



















































If the PCB curcuit can not meet your need, pls contact me for other choices.





3 mm dot matrix led display withe 16 pins

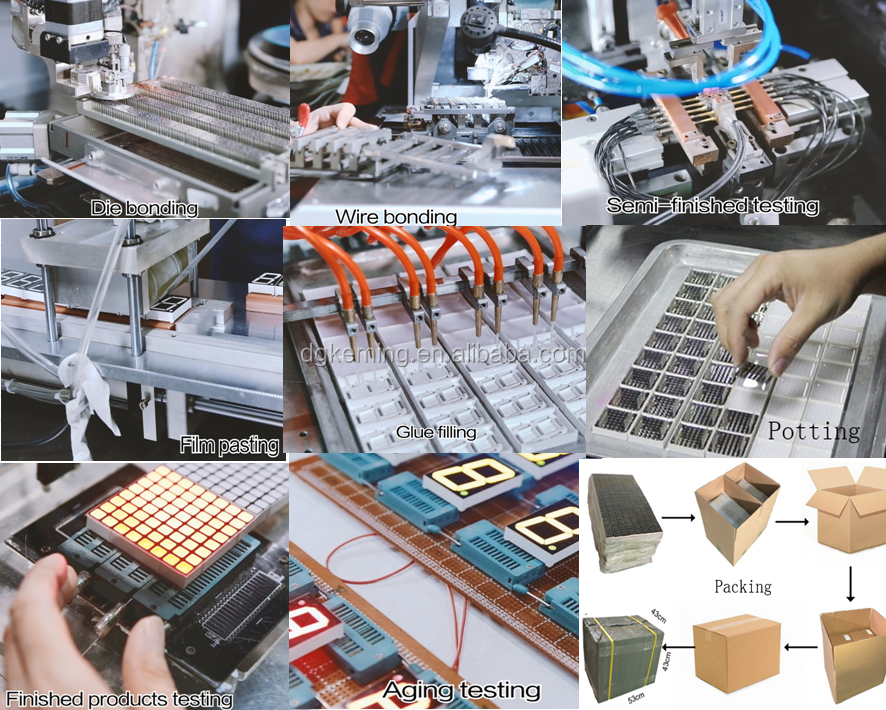

Our factory

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.
