Model NO.
HOUKEM-100011-BUR
Price:
USD 27.00-33.00 / pieces
Delivery:
FOB
Minimum order quantity:
50 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Pixels:25mm
  • Display Function:score board
  • Brand Name:HOUKEM
  • Model Number:HOUKEM-100011-BUR
  • Screen Dimension:180*280mm


Product Describtion
 business

 large anode  10 inch 7 segment LED display 1 digit ultra red color



1,Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly



Item No.KEMING-100011-BUR
Dimension180*280*25mm
Surface color  Black  /Grey
epoxy color white
Emitting color  ultra red

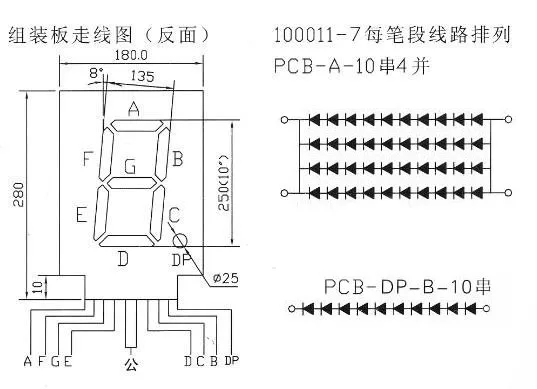

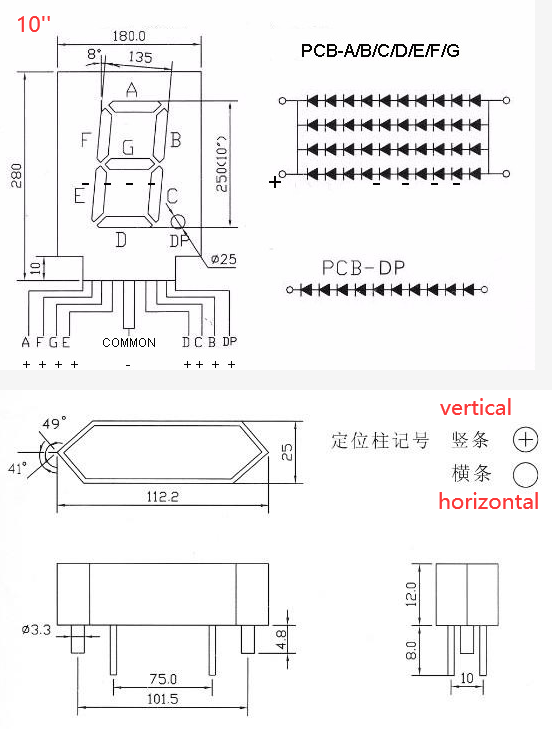

Package dimension & Internal circuit diagram



100011.2100011.1

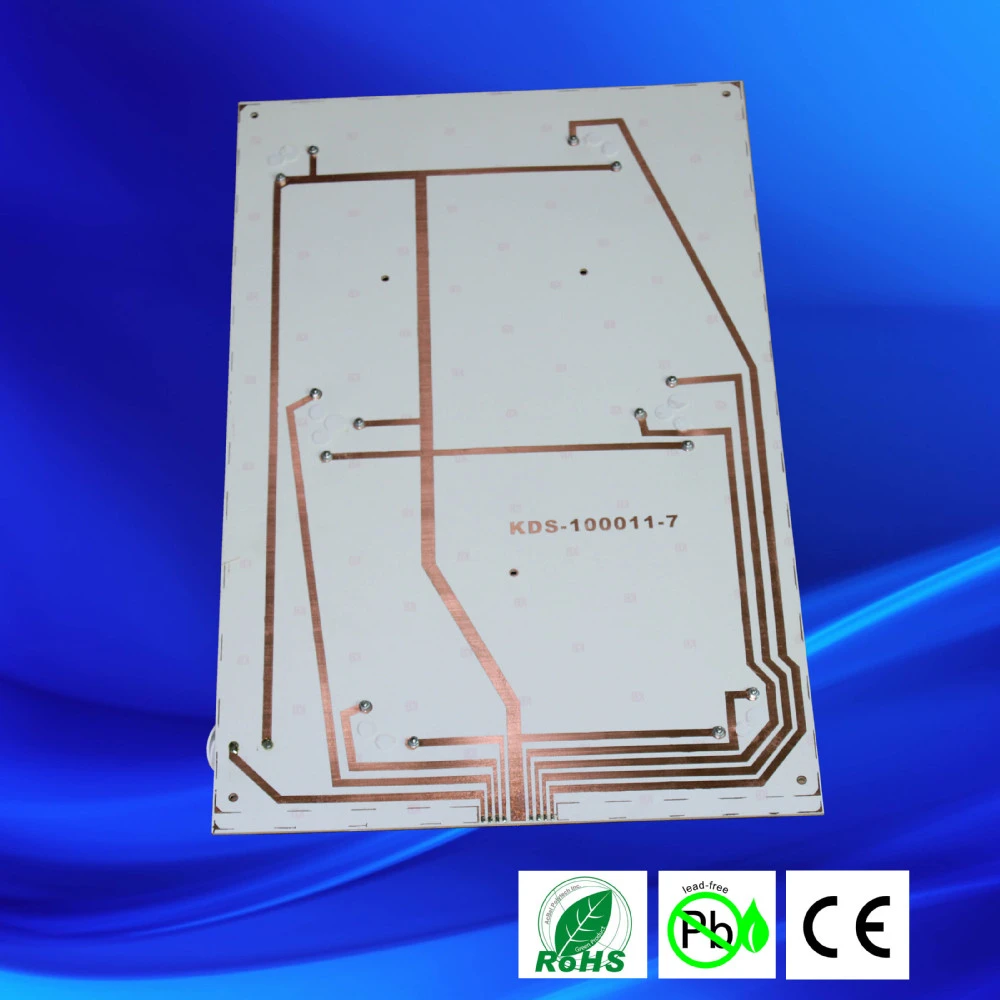

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

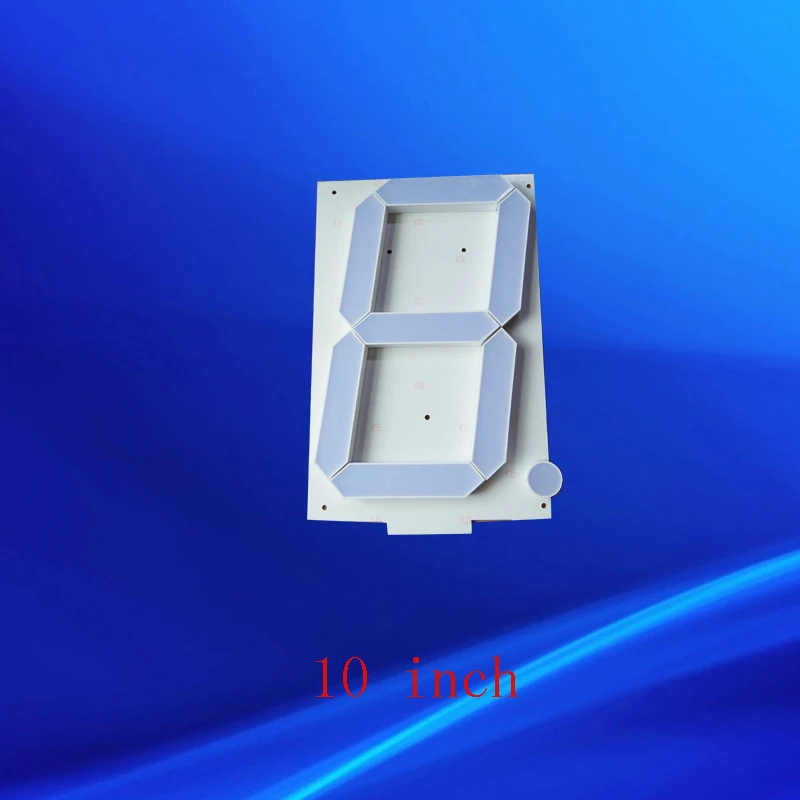

   10 inch 1 digit 7 segment led display

large size 7 segment led display 10inch



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.


Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led

warranty:



Two years quality warranty





Packaging & Shipping



packing & shipping

Contact us




Established in 2003, our factory is specialized in LED products, including 7 segment

LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar

graph arrays and LED directon indicator displays.etc.
