Thin LED Matrix Display 1.2 Inch 8x8
Thin LED Matrix Display 1.2 Inch 8x8 Module
HOUKEM Thin LED Matrix Display is a compact 8x8 LED matrix module designed for industrial equipment, indoor information displays, electronic control panels, and customized OEM applications. With a 3mm LED dot size, 32×32mm compact structure, and reliable performance, this LED display component provides an efficient solution for manufacturers requiring space-saving visual indicators.
As a professional LED display manufacturer, HOUKEM provides OEM and ODM services for customers worldwide, including customized LED matrix displays, different emitting colors, polarity options, and technical support based on project requirements.
Product Features of Thin LED Matrix Display

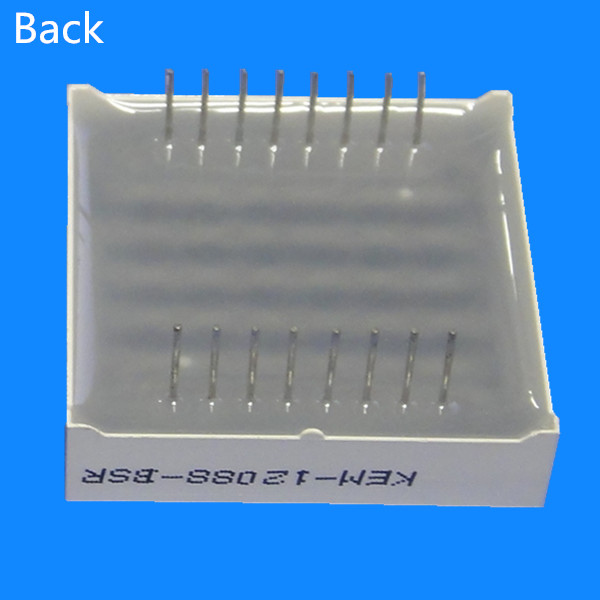

The HOUKEM-12088-BSR Thin LED Matrix Display adopts an 8×8 LED dot matrix structure with a compact 1.2 inch size. It is suitable for applications where installation space is limited but clear visual output is required.
Key features include:
8×8 LED matrix configuration for compact information display

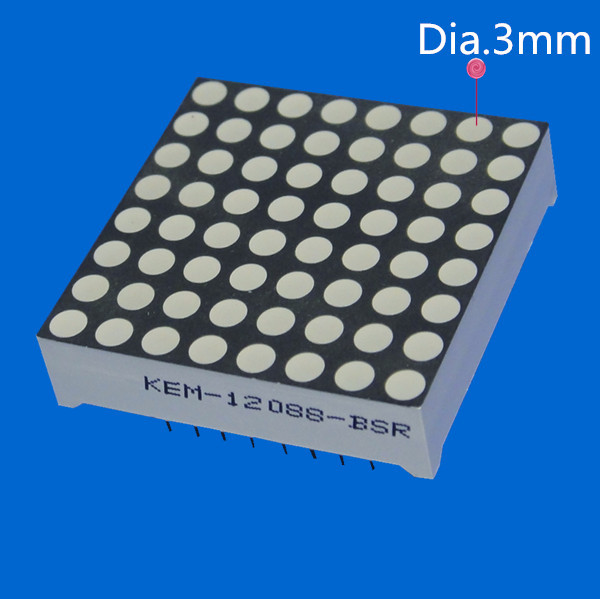

3.0mm LED dot diameter for clear and uniform light output
Thin 8mm module thickness for space-saving installation

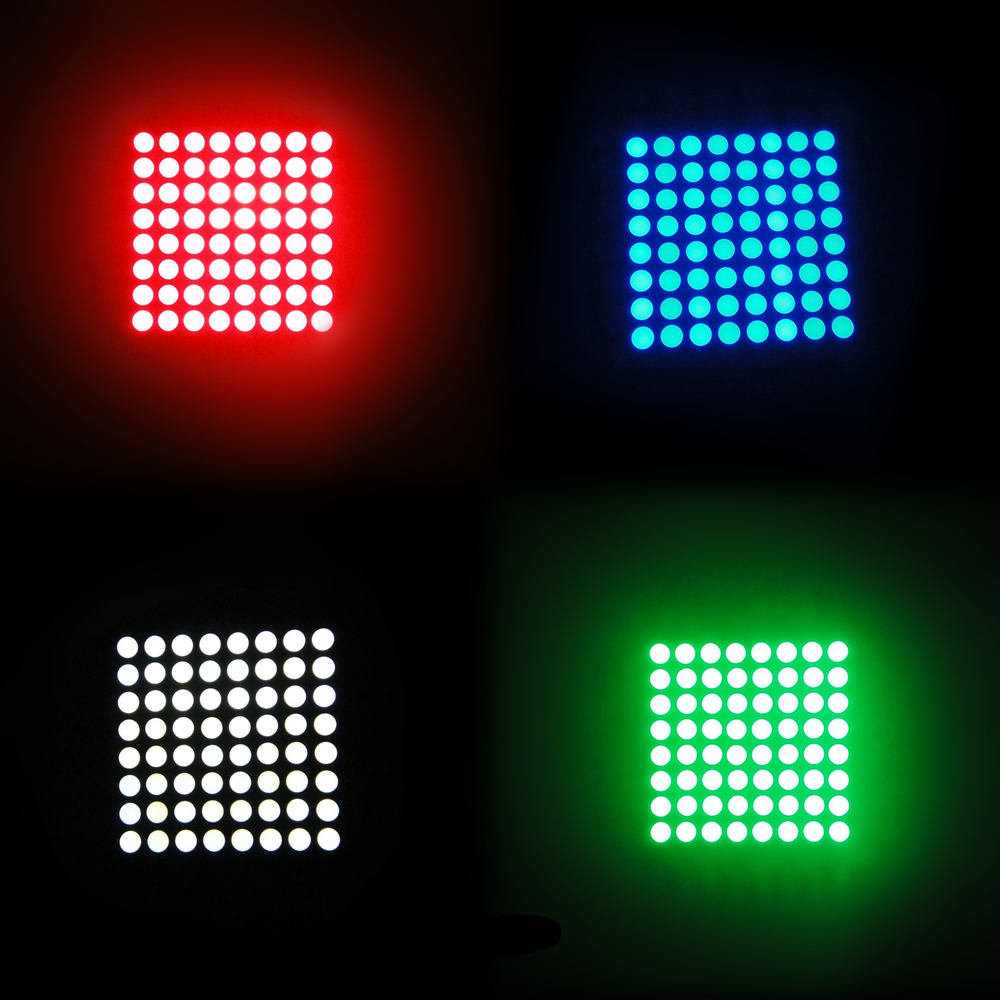

Available in red, green, blue, white, yellow, amber, and dual-color options
Common cathode and common anode polarity options available
Low power consumption with stable brightness performance
OEM customization support for different application requirements
CE, RoHS, and ISO9001 certified manufacturing process
The compact design makes this Thin LED Matrix Display ideal for equipment manufacturers looking for reliable LED display components that can be integrated into various electronic products.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | HOUKEM-12088-BSR |
| Product Type | Thin LED Matrix Display |
| LED Array | 8×8 |
| Dot Diameter | 3.0mm |
| Module Dimension | 32×32×8.0mm |
| Pixel Pitch | 2.54mm |
| Emitting Colors | Red, Green, Blue, White, Yellow, Amber, Dual Color |
| Surface Color | Black or Gray |
| Epoxy Color | Milky White / Clear |
| Luminous Intensity | 100-150mcd/chip |
| PCB Polarity | Common Cathode / Common Anode |
| Operating Temperature | Standard industrial operating conditions |
| Certificate | CE / RoHS / ISO9001 / REACH |
| Warranty | 2-3 Years |
Applications of 8x8 LED Matrix Module
The Thin LED Matrix Display is widely used in electronic products and industrial applications requiring compact visual communication.
Typical applications include:
Industrial Equipment Display
The module can be integrated into industrial machines, automation equipment, and control systems to display operating status, warnings, numbers, and simple graphics.
Indoor Information Display
With stable brightness and multiple color options, this 8x8 LED Matrix Display is suitable for indoor message boards, advertising equipment, and information display systems.
Elevator and Control Panel Display
The compact 32×32mm design allows easy installation in elevator panels, control interfaces, and electronic devices where space is limited.
Customized Electronic Products
HOUKEM supports OEM projects for manufacturers requiring customized LED matrix modules, including different colors, structures, and electrical specifications.
Why Choose HOUKEM Thin LED Matrix Display
HOUKEM has extensive experience in LED component manufacturing, development, and global supply. Our factory provides reliable LED display solutions for customers requiring consistent quality and professional technical support.
Advantages include:
Factory-direct supply with competitive pricing
Professional LED R&D and production capability
OEM and ODM customization services
Strict quality inspection before shipment
Datasheet and technical support available
Global shipping service from China to customer warehouses
Each LED matrix display is tested according to quality standards before delivery to ensure stable performance in customer applications.
FAQ About Thin LED Matrix Display
Q1: What is the main advantage of this Thin LED Matrix Display?
This module features a compact 8×8 structure and 8mm thickness, making it suitable for electronic products with limited installation space.
Q2: Can HOUKEM customize the LED matrix module?
Yes, HOUKEM provides OEM and ODM customization including LED color, polarity, dimensions, and electrical specifications.
Q3: What colors are available for the 8x8 LED Matrix Display?
The module supports red, green, blue, white, yellow, amber, and dual-color configurations based on customer requirements.
Q4: Is this LED matrix module suitable for industrial applications?
Yes, it is designed for industrial equipment, control panels, indoor displays, and other professional electronic applications.
Q5: Does HOUKEM provide samples before bulk orders?
Yes, sample orders are available for testing and quality verification before mass production.
Contact HOUKEM for OEM LED Matrix Solutions
If you are looking for a reliable Thin LED Matrix Display manufacturer, HOUKEM provides factory-direct LED matrix modules with customization options, technical support, and stable supply capability.
Contact our team today to discuss your LED display requirements and receive a professional solution for your application.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
Dimension and Internal Circuit Diagram:

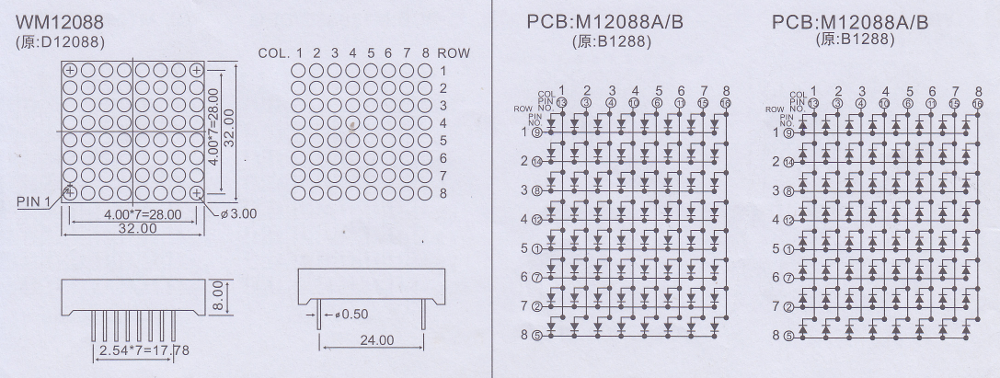

8x8 led matrix Single Color:

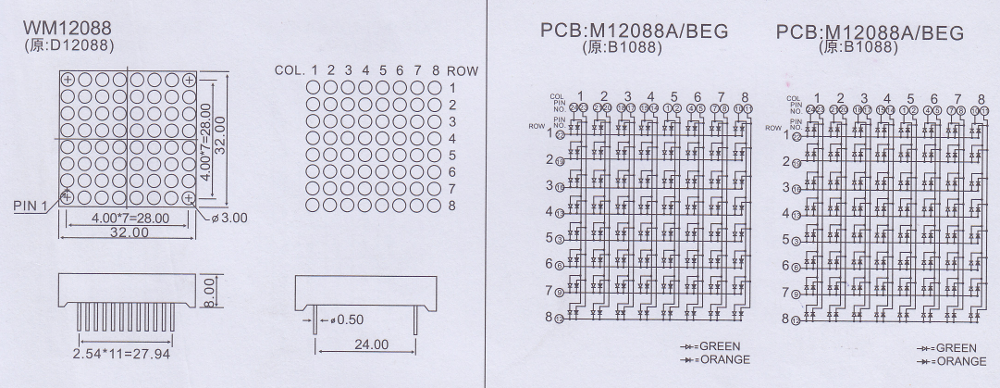

8x8 led matrix Dual Color:
