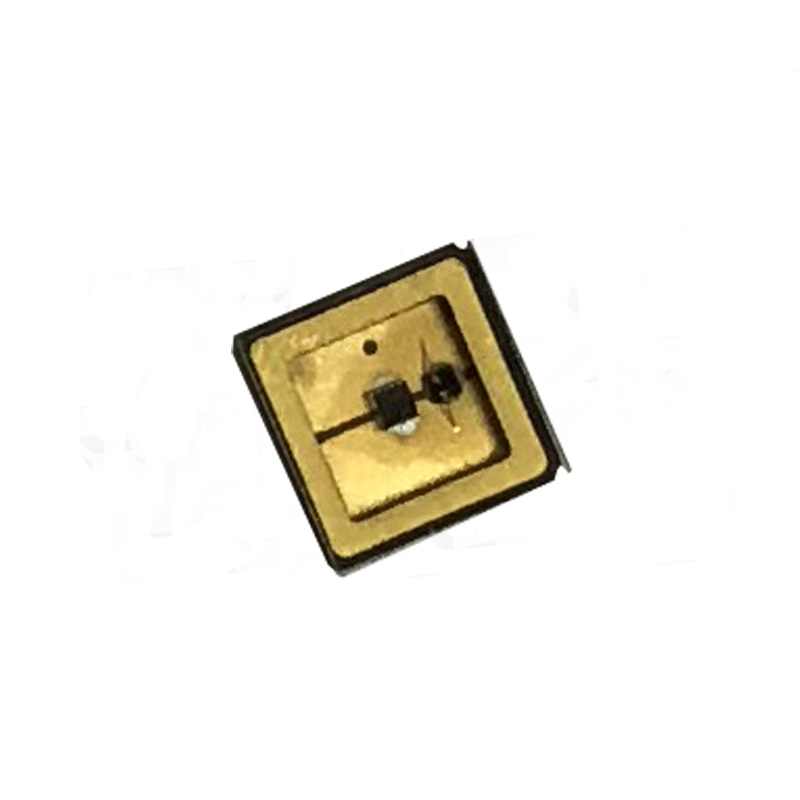

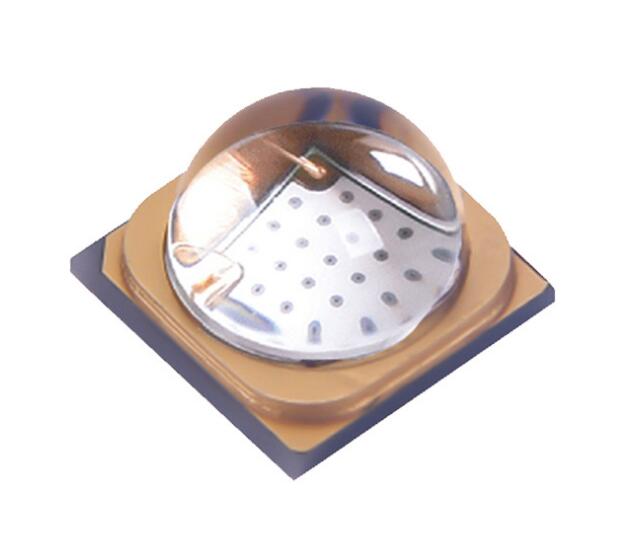

infrared led 1w 740nm 745nm ir led high power ir led 3535 smd 740 nm
- Input Voltage(V):DC 6V
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Chip Material:INGAN
- Emitting Color:red
- Power:1-3W
- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:1W ir LED 740nm 3535 smd
- Emitting Colour:red
- Forward Voltage:1.7-1.8v
- Lifespan:50000 Hours
- Application:medical treatment
- Warranty:2 Years
- Wave length:740-745nm
- warranty:2 Years
- Current:300-350mA
- Certification:ce, RoHS
| Item | High Power 1w 740nm IR LED 3535 |
| Power | 1w |
| Color | Red |
| Radiant flux | 150-170mw |
| Diode type | 3535 smd type |
| View Angle of the Lens | 60 degree or 120 degree |
| Wavelength | 740-745nm |
| Forward Current | 300-350mA |
| Forward Voltage | 1.7-1.8V |
| Certification | CE, RoHS |
| other wavelength | 255-1550nm are available.(uv, ir, green, white, red, yellow, blue led) |
We are the LED professional manufacturer, we off led products, high power 255nm to 1550nm LED, UVC led sterilizer light, COB LEDs,
SMD LEDs, street light LED, LED optical lens, 50w-1000w LED grow light, 10w-200w led flood light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
