HOUKEM UV LED 365nm 4W UVA 6565 smd led 700mw 365nm UV LED 60degree
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):60
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:3w
- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:4W UV LED 365nm
- Emitting Colour:puple
- Forward Voltage:3.2-3.6v
- Lifespan:50000 Hours
- Application:uv curing
- Warranty:2 Years
- Wave length:365-370nm
- warranty:2 Years
- Current:500-600mA
- Certification:ce, RoHS
| Item | High Power 4w UVA 365nm LED 6565 SMD |
| Power | 4w |
| Color | purple |

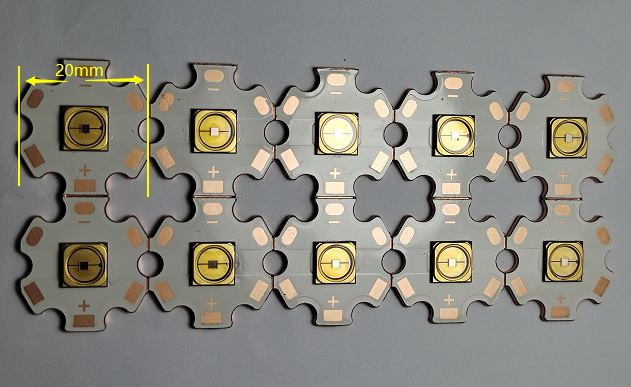

| Diode type | 6565 smd type(6.5*6.5mm) |

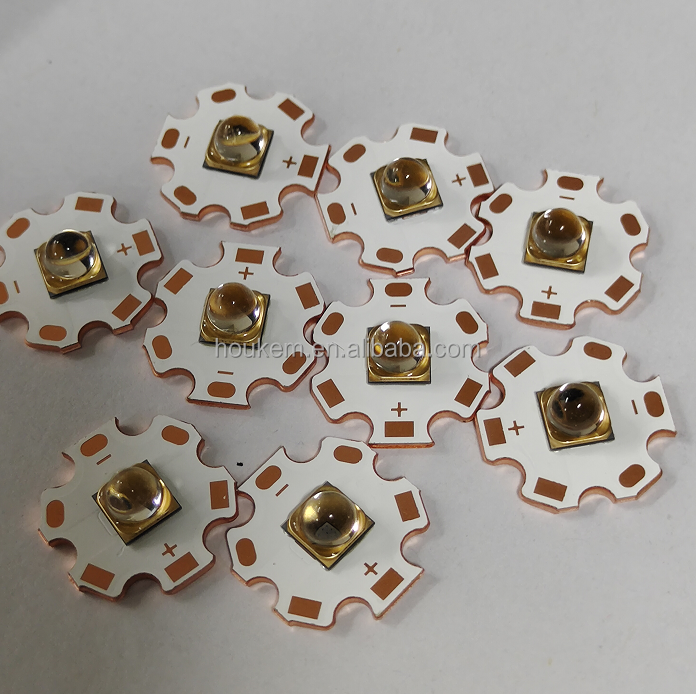

| star pcb board | red copper |
| View Angle of the Lens | 60 degree or 120degree |

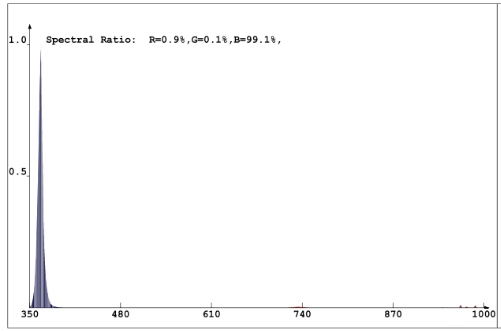

| Wavelength | 365-370nm |
| Forward Current | 600mA |
| other wavelength | 255nm-1550nm |
| Forward Voltage | 3.2-3.6v |
| Certification | CE, RoHS |
60degree
120degree
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life

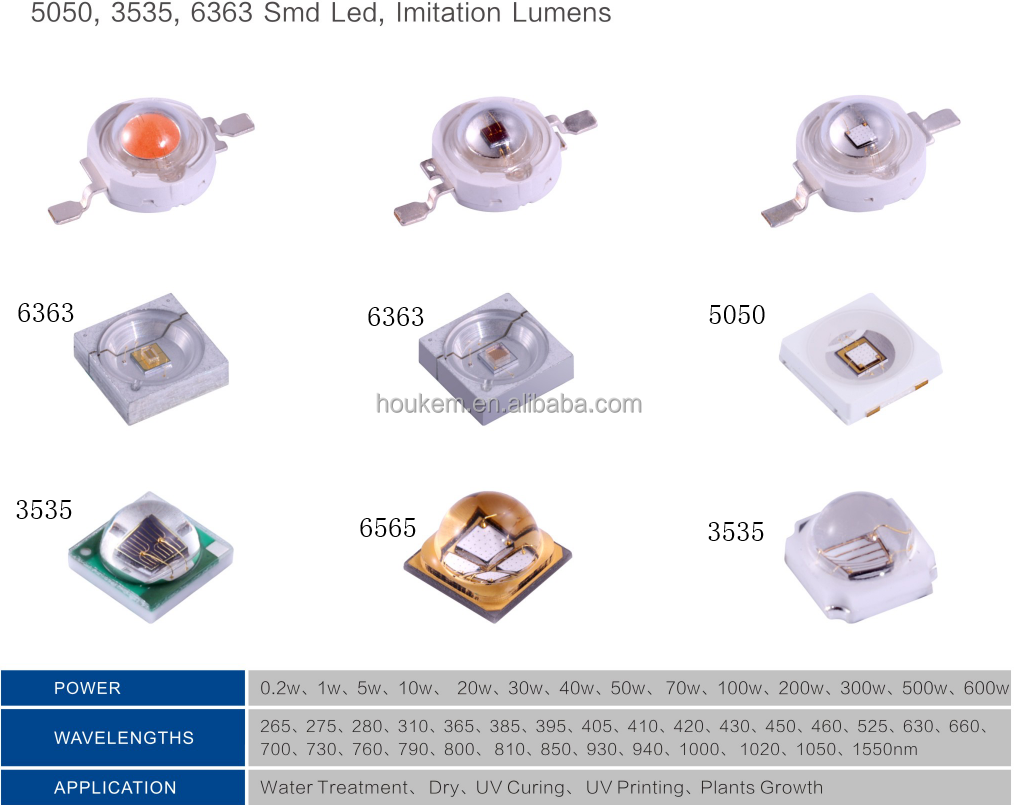

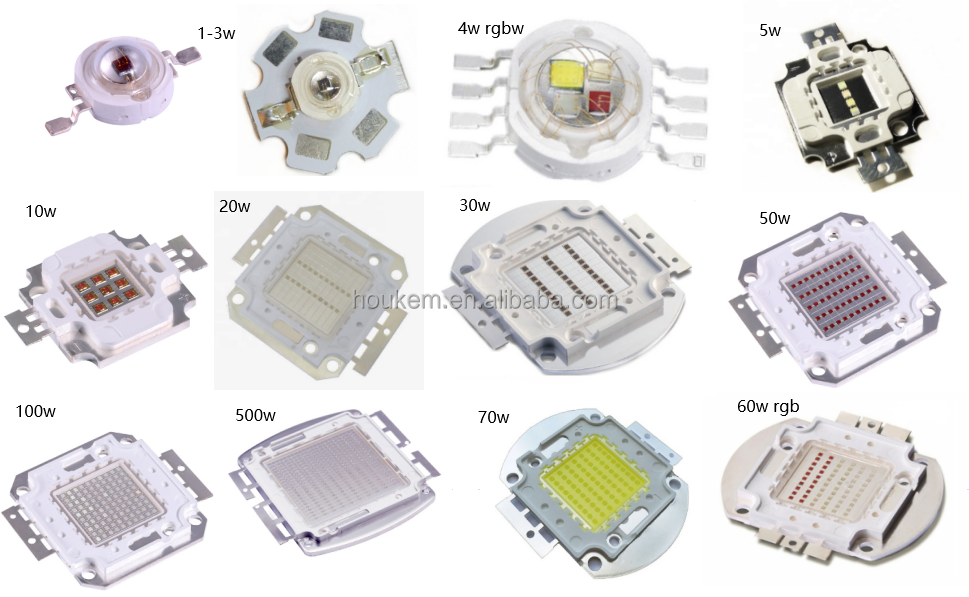

We are the LED professional manufacturer, we off led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, 50w-1000w LED grow light, 10w-200w led flood light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
