Model No: HOUKEM-7088-BRGB

HOUKEM-7088-BRGB 1.9mm mini RGB led matrix 8x8

led dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$4.50 - $6.00 / piece
add to cart
Contact Now
  • Application:Indoor, Graphics, air conditioner, running machine
  • Color:RGB
  • Panel Size:20*20mm
  • Pixel Pitch:2.5
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-7088-BRGB
  • Brand Name:HOUKEM
  • use:advertising publish, shopping mall, subway, Restaurant & Hotel Supplies
  • Pixels:2.5
  • Specification:--
  • Product name:RGB 8*8 dot matrix
  • Warranty:2Years
  • Luminous Intensity:110-130mcd
  • Forward Voltage:1.8-2.0V
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE/ROHS/ISO9001/REACH
  • Emitting color:RGB Color Changing
Product Describtion

RGB 8*8 dot matrix 1.9mm

1,Low consumption 2, High brightness

Part:HOUKEM-7088-BRGB

Dot

1.9mm

Plastic film color

Milky white(diffuse)

Dimension

20.94*20.94*3.2mm

Pin configuration

Common anode

Surface color

black

Emitting color

RGB

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

150

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

1.8

2.0

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.95

3.0

150

200

Ultra blue

IF=15mA

465-469

40

2.9

3.0

365

380

Pure green

IF=15mA

515-525

40

2.95

3.0

600

640

White

IF=15mA

-

-

2.8

2.9

200

220

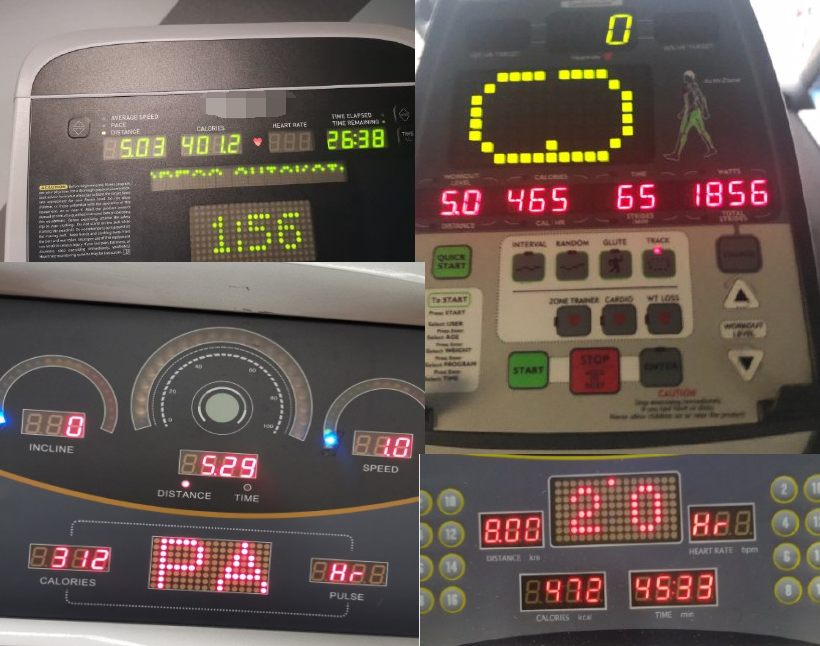

Application

Our Services

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

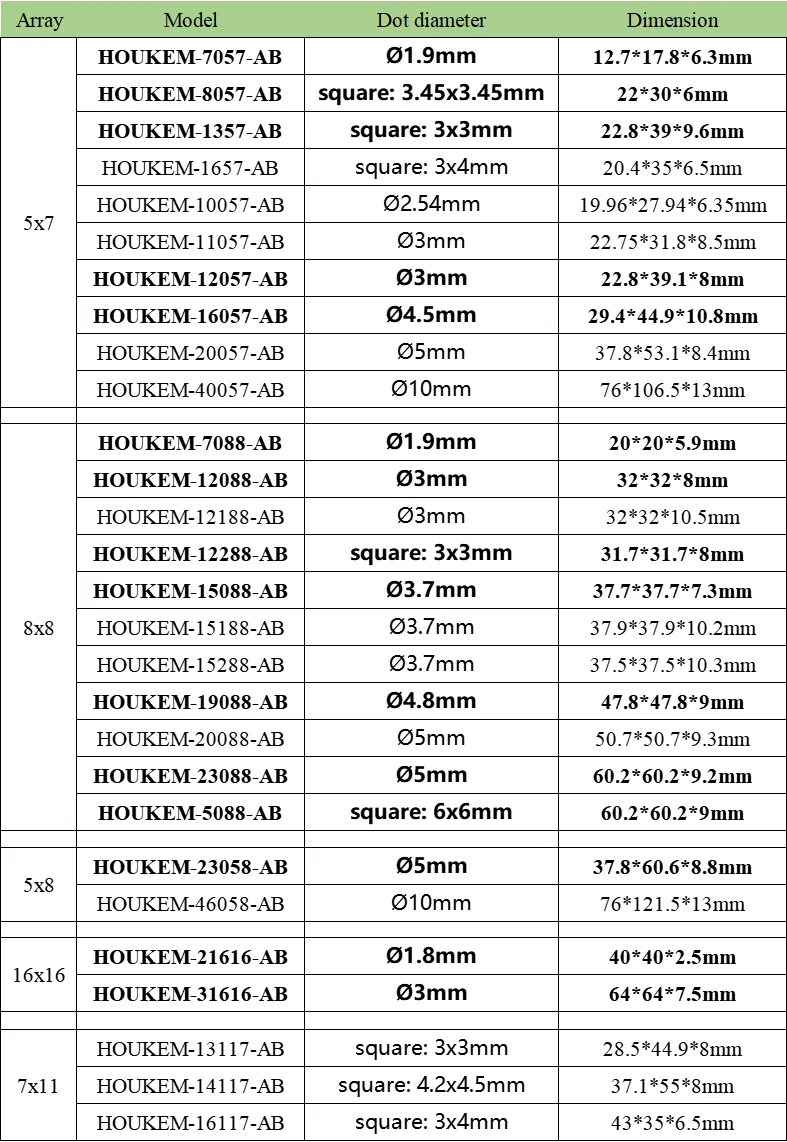

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16


3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

Custom 7 segment display are available
