Model No: HOUKEM-7088-ARGB

HOUKEM-7088-ARGB mini 1.9mm rgb led dot matrix display

led dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$4.50 - $6.00 / piece
add to cart
Contact Now

  • Application:Indoor, Graphics, air conditioner, running machine

  • Color:RGB

  • Panel Size:20.94*20.94mm

  • Pixel Pitch:2.5

  • Supplier Type:Original manufacturer, ODM, OEM

  • Media Available:datasheet, Photo

  • Place of Origin:Guangdong, China

  • Model Number:HOUKEM-7088-ARGB

  • Brand Name:HOUKEM

  • use:advertising publish, shopping mall, subway, Restaurant & Hotel Supplies

  • Pixels:2.5

  • Specification:--

  • Product name:1.9mm RGB 8*8 dot matrix

  • Warranty:2Years

  • Forward Voltage:1.8-2.0V

  • PCB Polarity:common cathode

  • operating temperature:-35 ~ +50 ℃

  • OEM:YES

  • Custom made:YES

  • Certificate:CE/ROHS/ISO9001/REACH

  • Emitting color:RGB Color Changing


    •



Product Describtion





RGB 8*8 dot matrix 1.9mm



1,Low consumption 2, High brightness



Part:HOUKEM-7088-ARGB


























Dot



1.9mm



Plastic film color



Milky white(diffuse)



Dimension



20.94*20.94*3.2mm



Pin configuration



Common cathode



Surface color



black



Emitting color



RGB

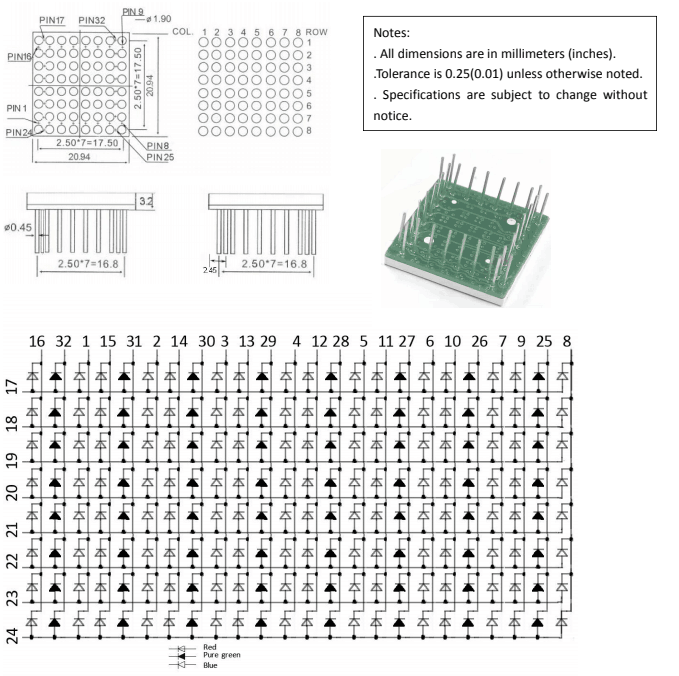

Package dimension & Internal circuit diagram





Note: If this PCB layout don't meet your requirements, please contact me for other choices.





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)



















































































































































Emitting Color





Test Condition



Wavelength(nm)



Forward Voltage(V)



Luminous Intensity (mcd)



(λp)



λ



Typ



Max



Typ



Max



Amber



IF=15mA



600-605



30



1.9



2.0



90



100



Super green



IF=15mA



565-575



30



1.9



2.0



48



55



Super red



IF=15mA



620-625



20



1.8



2.0



110



150



Ultra red 1



IF=15mA



620-625



20



1.8



2.0



200



210



Ultra red 2



IF=15mA



620-625



20



1.8



2.0



300



350



High red



IF=15mA



638-660



20



1.8



1.9



15



20



Yellow green



IF=15mA



570-580



30



1.9



2.0



43



50



Yellow



IF=15mA



580-600



35



1.9



2.0



70



80



Blue



IF=15mA



465-475



40



2.95



3.0



150



200



Ultra blue



IF=15mA



465-469



40



2.9



3.0



365



380



Pure green



IF=15mA



515-525



40



2.95



3.0



600



640



White



IF=15mA



-



-



2.8



2.9



180



200

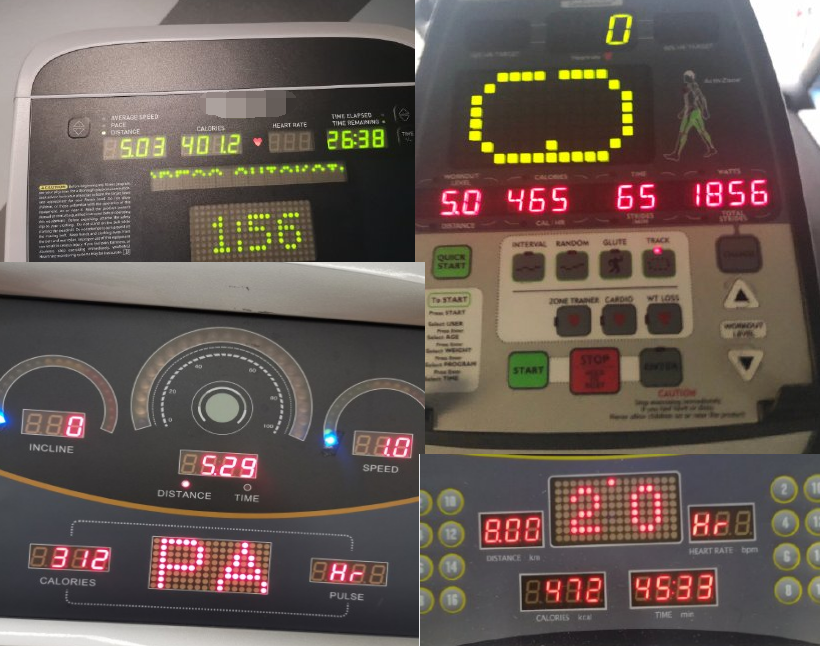

Application







Our Services



7 segment LED display






























1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''




Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16





3. Various colors: super red, ultra red, high red, yellow green, pure green,



super green, pure green, blue, yellow, white, amber, Bi-color, RGB.



Custom 7 segment display are available





Contact us


Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,

SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, and all LED lighting application solution, etc.
