16x16 3mm RGB LED Dot Matrix Display
16x16 RGB LED Matrix

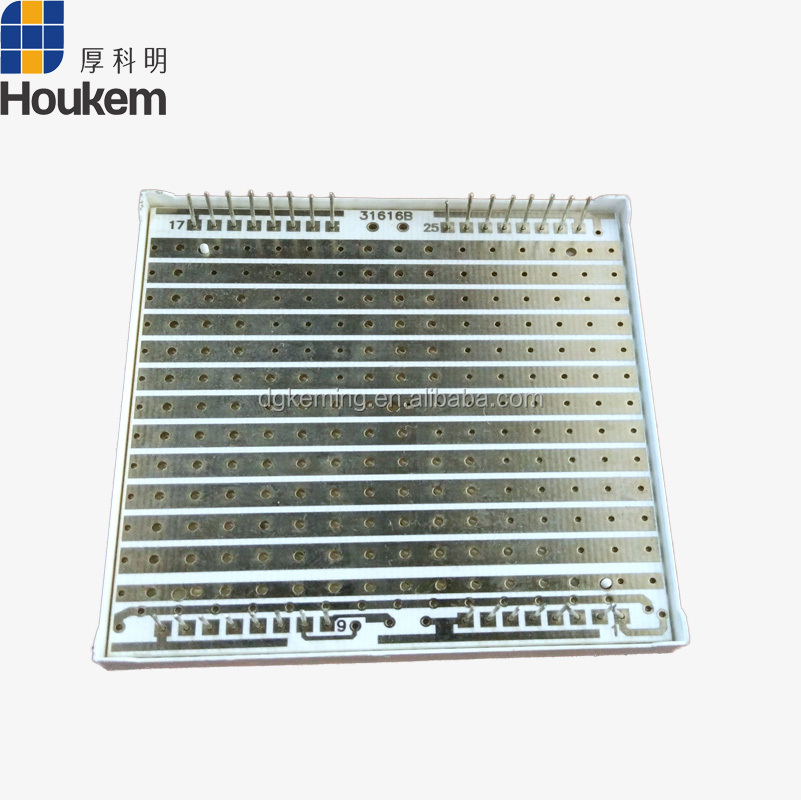

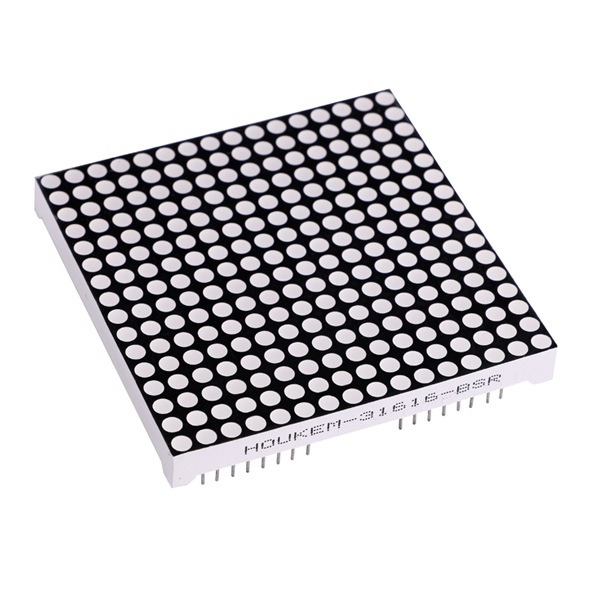

The HOUKEM-31616-BRGB is a 16x16 LED Matrix designed for indoor electronic display applications that require RGB color output in a compact format. With 256 LED pixels, 3 mm dot diameter, 64 × 64 × 7.5 mm overall dimensions, and common-anode row polarity, this RGB LED matrix is suitable for industrial equipment, electronic instruments, clocks, home appliances, and customized display systems.
Its RGB configuration supports red, green, and blue emission with specified wavelengths of 620–625 nm, 515–525 nm, and 465–475 nm. The display provides 200–300 mcd/chip luminous intensity and low current consumption for practical electronic display integration.
Key Specifications of the 16x16 LED Matrix
| Specification | Details |
|---|---|
| Part No. | HOUKEM-31616-BRGB |
| Display Type | 16x16 RGB LED Dot Matrix |
| Pixel / Dot Diameter | 3 mm |
| Panel Size | 64 × 64 mm |

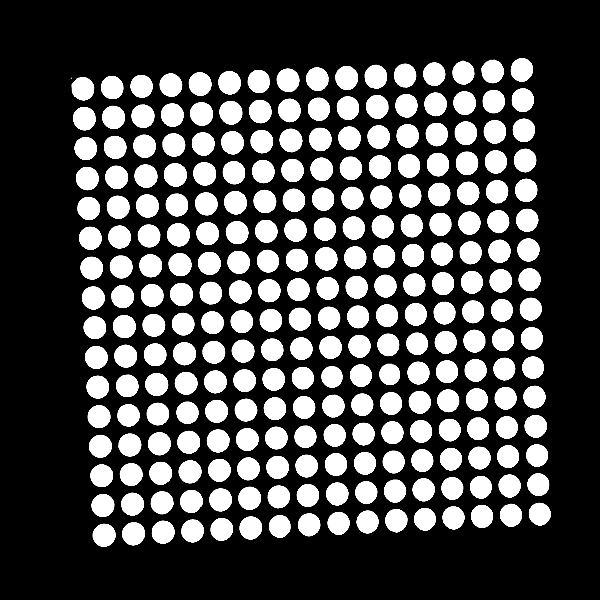

| Screen Dimension | 64 × 64 × 7.5 mm |
| Surface Color | Black / Grey |
| Epoxy Color | Milky White / Clear |
| Emitting Color | RGB |

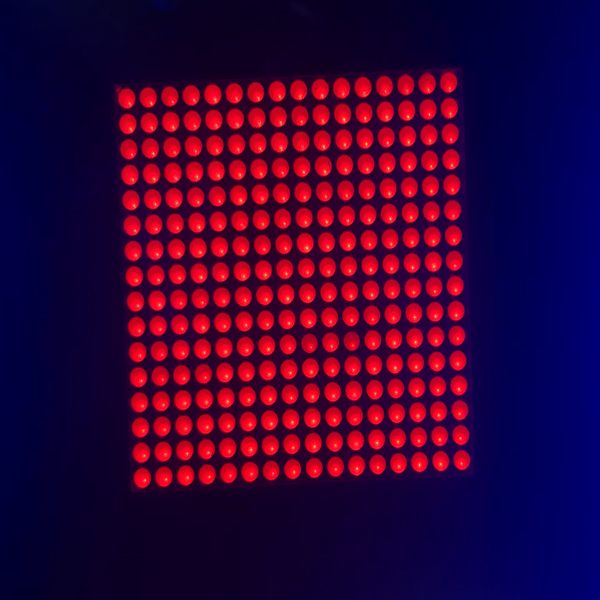

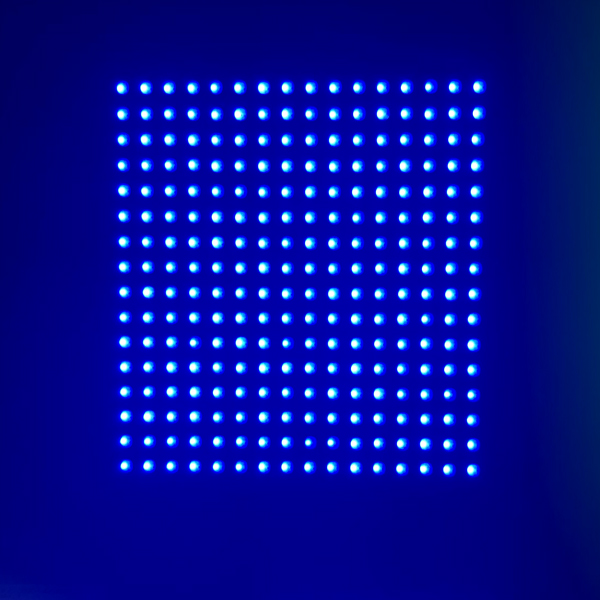

| Wavelength | Red: 620–625 nm; Green: 515–525 nm; Blue: 465–475 nm |
| Luminous Intensity | 200–300 mcd/chip |
| Polarity | Common anode on row |
| Voltage | 1.8–3 V |
| Light Source | Epistar |
| Warranty | 2 years |
| Certification | CE, RoHS |
| Supplier Type | Original Manufacturer, ODM |
The 16x16 dot matrix display is designed for uniform light output and compact electronic integration. If your project requires different specifications, colors, dimensions, or electrical characteristics, contact HOUKEM for technical confirmation and customization options.
RGB LED Matrix Color and Electrical Options
HOUKEM can supply different LED colors and related electrical specifications for customized display requirements.
| Color | Wavelength (nm) | Forward Voltage (V) | Forward Current (mA) | Luminous Intensity (mcd) | Peak Forward Current (mA) | Reverse Voltage (V) | Reverse Current (uA) |
|---|---|---|---|---|---|---|---|
| Super Red | 620–625 | 1.8–2.0 | 18 | 100–150 | 100 | 5 | 10 |
| High Red | 638–660 | 1.8–1.9 | 18 | 15–20 | 100 | 5 | 10 |
| Ultra Red | 620–625 | 2.0–2.1 | 18 | 200–300 | 100 | 5 | 10 |
| Super Green | 565–575 | 1.9–2.0 | 18 | 48–55 | 100 | 5 | 10 |
| Pure Green | 515–525 | 2.8–3.0 | 20 | 260–300 | 100 | 5 | 10 |
| White | — | 2.6–2.8 | 20 | 200–250 | 100 | 5 | 10 |
| Blue | 465–475 | 2.8–3.0 | 20 | 150–200 | 100 | 5 | 10 |
| Yellow | 580–600 | 1.9–2.0 | 18 | 70–80 | 100 | 5 | 10 |
| Amber | 600–605 | 1.9–2.0 | 18 | 100–110 | 100 | 5 | 10 |
Applications of the 16x16 Dot Matrix Display
This 16x16 RGB LED Matrix can be integrated into a wide range of indoor electronic products and equipment. Typical applications include industrial equipment displays, clock and timer displays, home appliance control panels, instrument panels, status indicators, welcome displays, and other customized electronic display systems.
For OEM and ODM projects, HOUKEM can discuss customized display requirements based on dimensions, color configuration, electrical specifications, and application conditions.
Related 7 Segment LED Display Sizes
HOUKEM also supplies 7 segment LED displays in different digit configurations and sizes.
| Type | Available Digit Heights |
|---|---|
| 1 Digit 7 Segment LED Display | 0.28"/ 0.3"/ 0.32"/ 0.36"/ 0.39"/ 0.4"/ 0.5"/ 0.52"/ 0.56"/ 0.8"/ 1.0"/ 1.2"/ 1.5"/ 1.8"/ 2.3"/ 3"/ 4"/ 5"/ 6"/ 7"/ 8"/ 10"/ 12"/ 16"/ 20" |
| 2 Digit 7 Segment LED Display | 0.25"/ 0.26"/ 0.28"/ 0.3"/ 0.36"/ 0.39"/ 0.4"/ 0.5"/ 0.52"/ 0.56"/ 0.8"/ 1.0"/ 1.2"/ 1.3"/ 1.5"/ 1.8"/ 2.3" |
| 3 Digit 7 Segment LED Display | 0.25"/ 0.28"/ 0.3"/ 0.36"/ 0.39"/ 0.4"/ 0.5"/ 0.52"/ 0.56"/ 0.8" |
| 4 Digit 7 Segment LED Display | 0.25"/ 0.28"/ 0.3"/ 0.36"/ 0.39"/ 0.4"/ 0.5"/ 0.52"/ 0.56"/ 0.8"/ 1.2" |
| 5 Digit 7 Segment LED Display | 0.28"/ 0.36"/ 0.39"/ 0.56" |
| 6 Digit 7 Segment LED Display | 0.3"/ 0.36" |
OEM, Quality and Supply Support

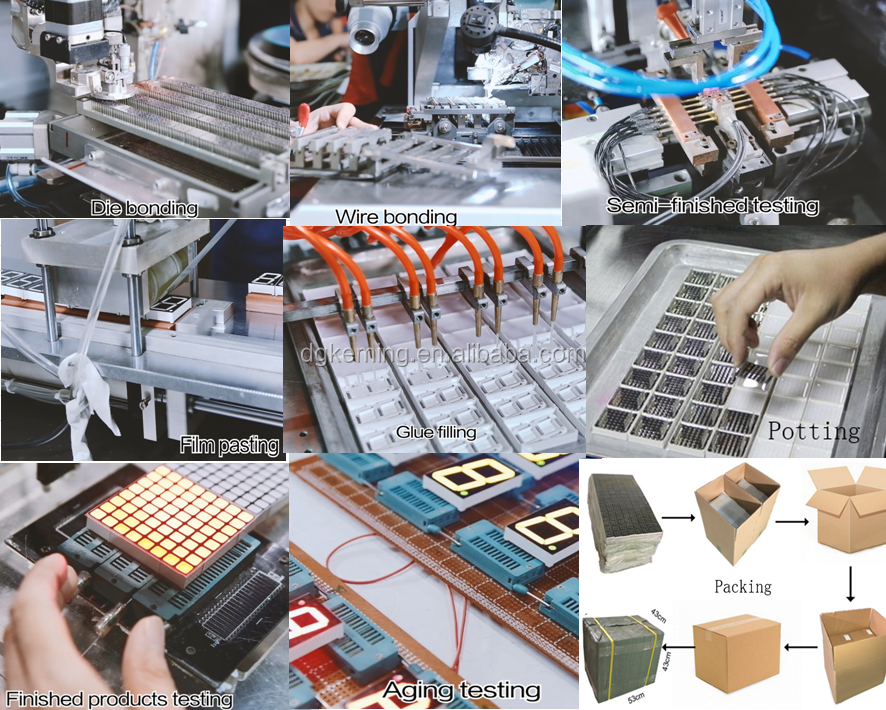

HOUKEM is an LED product manufacturer with experience in developing and supplying customized LED displays, 7 segment LED displays, dot matrix displays, UV LEDs, and IR LEDs. The company operates under an ISO 9001 quality system and provides factory-direct pricing, R&D support, OEM/ODM customization, pre-sales and after-sales service, and logistics assistance.
Sample orders are accepted, with stock samples generally available within 3–7 days. Mass production lead time is approximately 20–30 days. Products are CE and RoHS compliant and include a 2-year warranty. Quotation terms are EXW, with customized packaging available.
FAQ
Can I order samples before mass production?
Yes. HOUKEM accepts sample orders so buyers can verify specifications and display performance before production.
Can the RGB LED matrix be customized for OEM projects?
Yes. HOUKEM provides OEM and ODM support for customized LED display requirements, subject to technical specifications and MOQ.
What is the polarity of this 16x16 LED Matrix?
This model uses common-anode row polarity, which should be matched with the customer's driving circuit.
What is the production lead time?
Stock samples generally require 3–7 days, while mass production typically takes 20–30 days depending on the order requirements.
What quality and after-sales support are available?
The product is CE and RoHS compliant and comes with a 2-year warranty, with factory technical and after-sales support available.
Request a 16x16 RGB LED Matrix Quote
Send HOUKEM your required quantity, application, driving method, dimensions, and electrical specifications. Our engineering and sales teams can confirm compatibility, provide a datasheet, and recommend a suitable OEM or ODM solution for your project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
