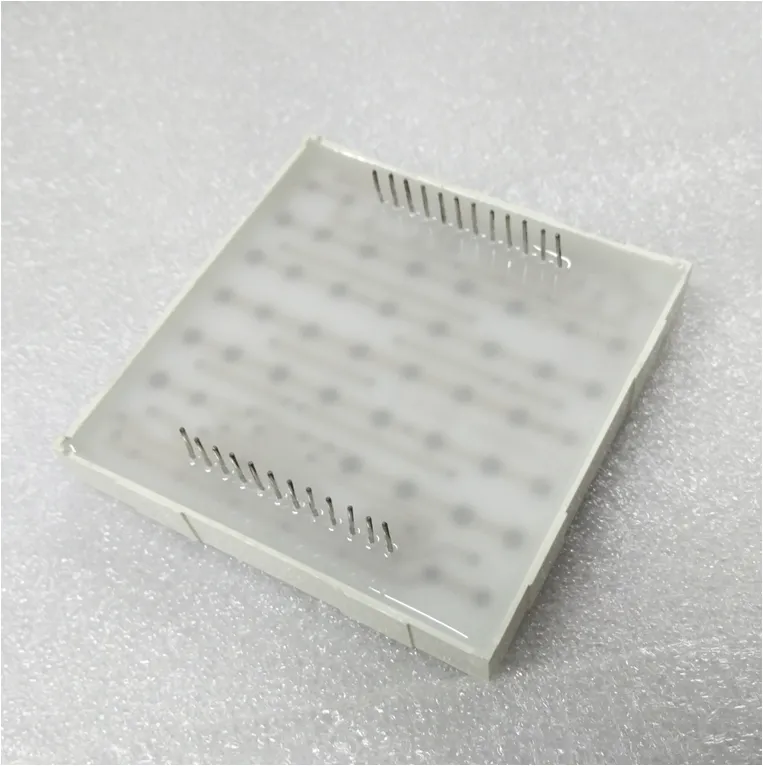

Houkem 2.3 Inch 5mm 8x8 Dot Matrix
5mm 8x8 Dot Matrix Display for OEM Applications

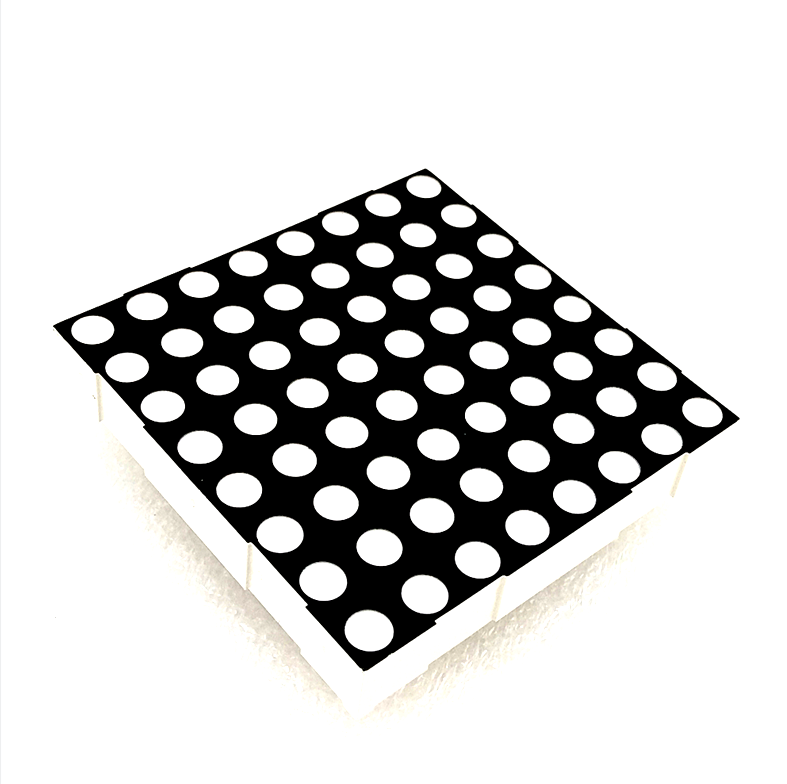

The Houkem-23088-BSR is a 2.3-inch 5mm 8x8 dot matrix display designed for electronic equipment, industrial controls, digital clocks, home appliances, and other embedded display applications. With 64 super-red LEDs, common-anode polarity, and a compact 60.2 × 60.2 mm format, this 8x8 LED dot matrix display provides a practical solution for manufacturers requiring reliable visual indicators and customized display components.
Product Specifications
The Houkem-23088-BSR combines a compact structure with clear LED output for integration into professional electronic products.
| Specification | Details |
|---|---|
| Part No. | Houkem-23088-BSR |
| Matrix | 8 × 8 |
| Pixel / Dot Size | 5.0 mm |
| Dimension | 60.2 × 60.2 × 9.2 mm |
| Panel Size | 60.2 × 60.2 mm |
| Emitting Color | Super Red |
| Wavelength | 630–635 nm |
| Surface Color | Black / Grey |
| Epoxy Color | Milky White / Clear |

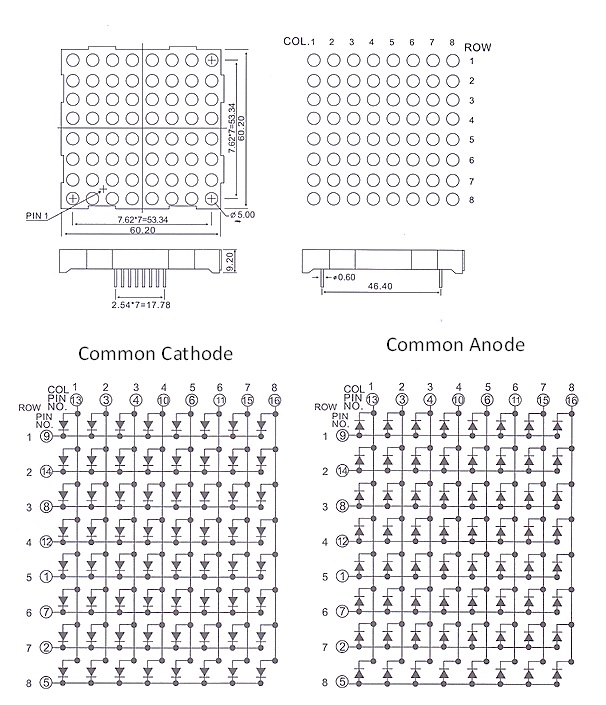

| Polarity | Common Anode |
| Luminous Intensity | 100–150 mcd/chip |
| Forward Voltage | 1.8–2.0 V |
| Forward Current | 18 mA |
| Peak Forward Current | 100 mA |
| Reverse Voltage | 5 V |
| Reverse Current | 10 μA |
| Dot Shape | Round |
| Place of Origin | Dongguan, Guangdong, China |
| Supplier Type | Original Manufacturer, OEM, ODM |
The5mm 8x8 dot matrix display uses an 8 × 8 LED array for displaying numbers, characters, symbols, indicators, and simple graphic information. Its common-anode configuration makes it suitable for integration with customer-designed electronic control circuits.
Important specification note: The 5.0 mm value refers to the LED dot diameter, while the listed pixel pitch is 7.62 mm. These are different dimensional specifications and should not be treated as the same value during product design.
Features and Benefits

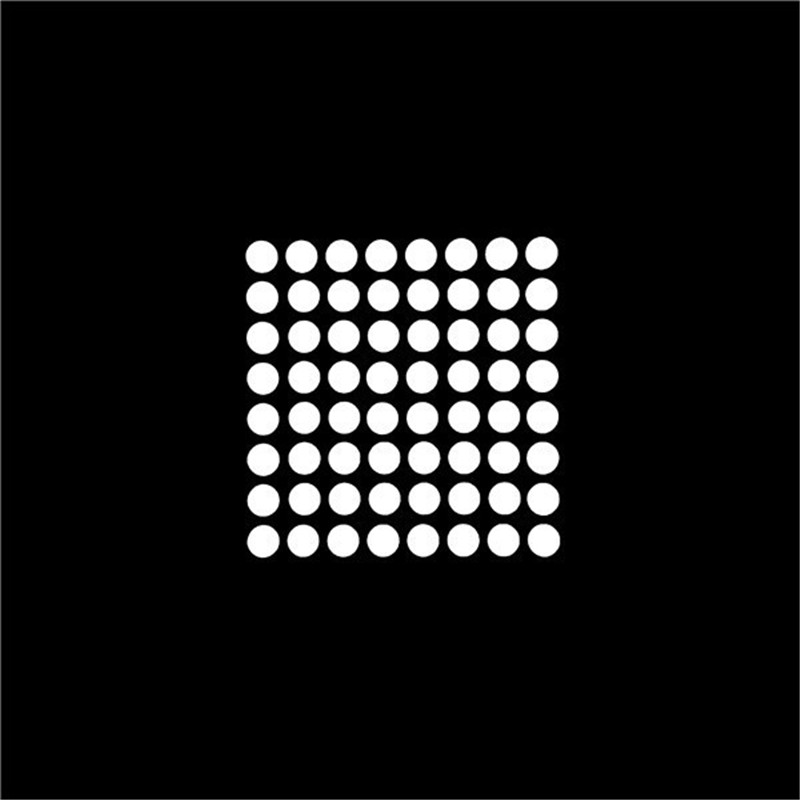

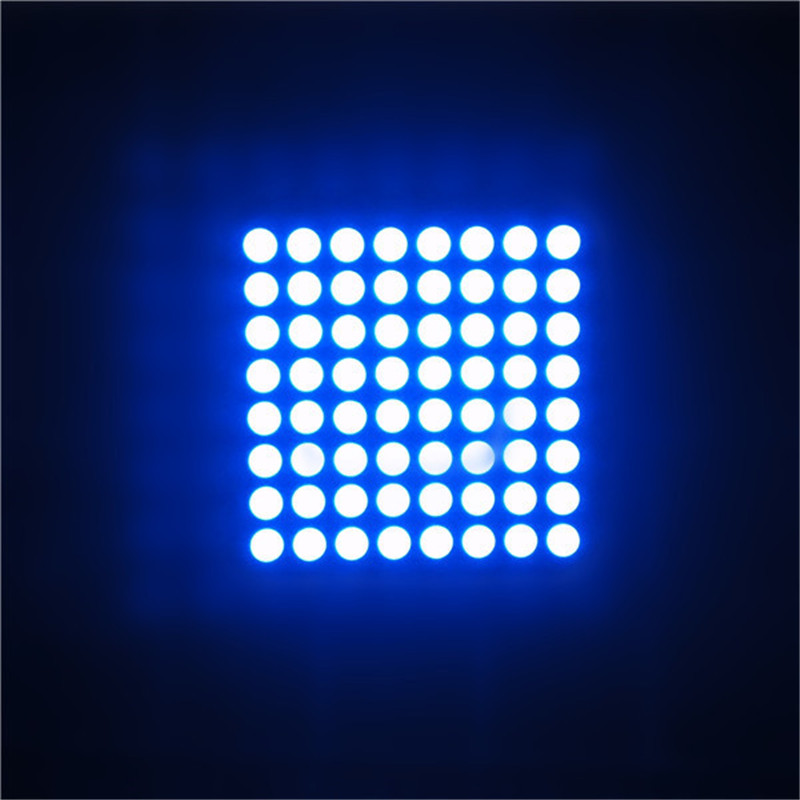

8 × 8 dot matrix with 5 mm round LED dots

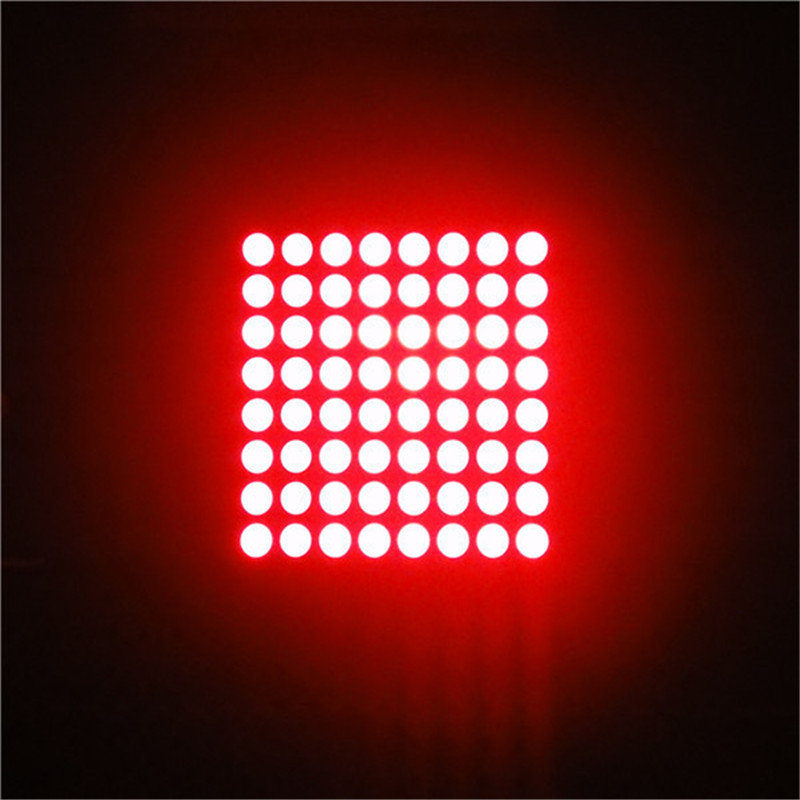

Super-red emitting color with 630–635 nm wavelength
Uniform glow for clear visual indication
Low current consumption
Common-anode configuration
Compact 60.2 × 60.2 × 9.2 mm construction
CE and RoHS compliant
Two-year warranty
OEM and ODM customization available
Sample orders supported for evaluation
For customers developing equipment with specific display requirements, Houkem can provide engineering support and customized LED display solutions. Houkem's product portfolio includes 5×7, 8×8, 7×11, and 16×16 dot matrix displays, together with customized LED display OEM/ODM services.
Electrical Characteristics by Color
Houkem can supply different LED colors and specifications according to project requirements.
| Color | Wavelength (nm) | Forward Voltage (V) | Forward Current (mA) | Luminous Intensity (mcd) | Peak Forward Current (mA) | Reverse Voltage (V) | Reverse Current (μA) |
|---|---|---|---|---|---|---|---|
| Super Red | 630–635 | 1.8–2.0 | 18 | 100–150 | 100 | 5 | 10 |
| High Red | 638–660 | 1.8–1.9 | 18 | 15–20 | 100 | 5 | 10 |
| Ultra Red | 620–625 | 2.0–2.1 | 18 | 200–300 | 100 | 5 | 10 |
| Super Green | 565–575 | 1.9–2.0 | 18 | 48–55 | 100 | 5 | 10 |
| Pure Green | 615–625 | 2.8–3.0 | 20 | 260–300 | 100 | 5 | 10 |
| White | / | 2.6–2.8 | 20 | 200–250 | 100 | 5 | 10 |
| Blue | 465–475 | 2.8–3.0 | 20 | 150–200 | 100 | 5 | 10 |
| Yellow | 580–600 | 1.9–2.0 | 18 | 70–80 | 100 | 5 | 10 |
| Amber | 600–605 | 1.9–2.0 | 18 | 100–110 | 100 | 5 | 10 |
Typical Applications
This2.3 inch 8x8 dot matrix display can be integrated into industrial equipment, electronic instruments, digital clocks, control panels, home appliances, retail equipment, and other embedded LED display systems.
Its 8 × 8 configuration is suitable when engineers need more flexible character or symbol presentation than a conventional 7-segment display.

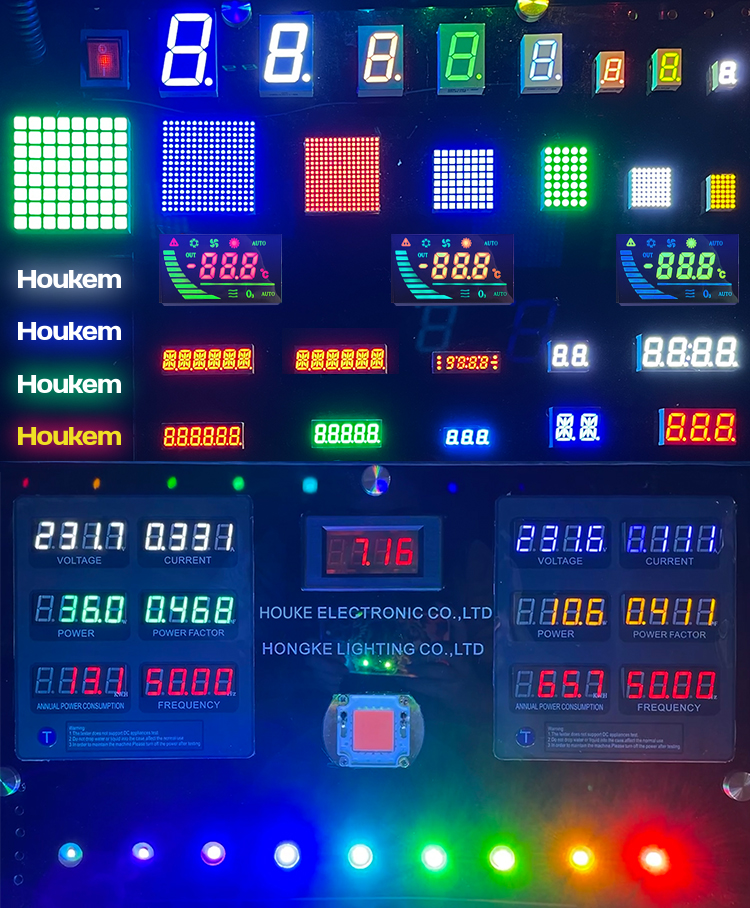

Related LED Display Options
Houkem also supplies 1- to 20-inch 7-segment LED displays in multiple digit configurations, including 1-digit, 2-digit, 3-digit, 4-digit, 5-digit, and 6-digit models. Customized LED displays are available for project-specific requirements.

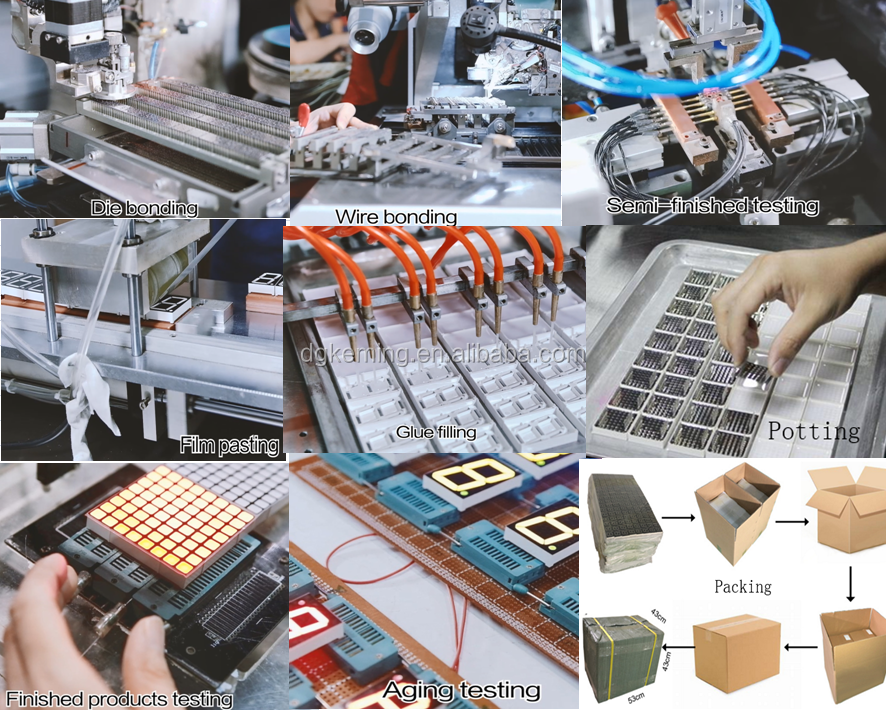

Quality, Manufacturing and Service
Houkem has more than 18 years of experience in LED product manufacturing, development, and sales, with ISO 9001 quality-system certification. The company provides customized LED displays, 7-segment LED/SMD displays, dot matrix products, UV LEDs, and IR LEDs.
Products are tested before shipment, while OEM/ODM customers can receive engineering support, factory-direct pricing, sample services, and logistics assistance. Houkem's official company profile also states that its products are exported to customers in the USA, Europe, Japan, Korea, and other markets.
FAQ
Q1: Is the 5mm size the pixel pitch of this LED matrix?
No. The 5mm specification refers to the LED dot diameter, while the pixel pitch is 7.62 mm.
Q2: Can Houkem customize the 8x8 dot matrix display for OEM projects?
Yes. Houkem supports OEM and ODM projects and can discuss customized display requirements with your engineering team.
Q3: Can I order samples before mass production?
Yes. Sample orders are accepted for product evaluation and quality testing before volume purchasing.
Q4: What is the standard production lead time?
Samples in stock can generally be supplied within 3–7 days, while mass production normally takes 20–30 days.
Q5: What quality assurance is provided for this LED display component?
The product is CE and RoHS compliant and is supplied with a two-year warranty.
Request a Quote for Your LED Display Project
Need a 5mm 8x8 dot matrix display for an industrial device, electronic instrument, control panel, or OEM product? Contact Houkem with your required quantity, color, polarity, dimensions, and application. Our engineering and sales teams can recommend a suitable configuration and provide samples, customization support, and factory-direct pricing.
