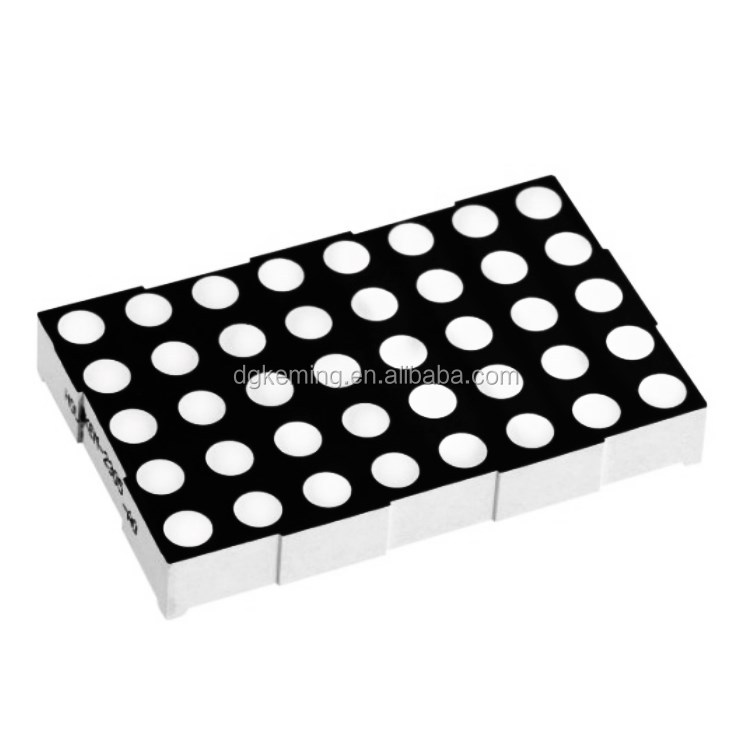

RGB led matrix 5x8
RGB led matrix 5x8
RGB led matrix 5x8
RGB led matrix 5x8
Model No: HOUKEM-23058-BRGB

HOUKEM-23058-ARGB big led matrix 5x8 RGB 5mm rgb led dot matrix display

dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$1.60 - $1.90 / piece
add to cart
Contact Now
  • Application:Indoor, Graphics, air conditioner, running machine
  • Color:RGB
  • Panel Size:37.8*60.8*.8mm
  • Pixel Pitch:2.54
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-23058-BRGB
  • Brand Name:HOUKEM
  • use:advertising publish, shopping mall, subway, Restaurant & Hotel Supplies
  • Pixels:2.54
  • Specification:--
  • Product name:5mm RGB 5*8 dot matrix
  • Warranty:2Years
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE/ROHS/ISO9001/REACH
  • Emitting color:RGB Color Changing
Product Describtion

5mm RGB 5*8 dot matrix 23058

1,Low consumption 2, High brightness

Part:HOUKEM-23058-BRGB

Dot

5mm

Plastic film color

Milky white(diffuse)

Dimension

37.8*60.8*.8mm

Pin configuration

Common anode

Surface color

black

Emitting color

RGB

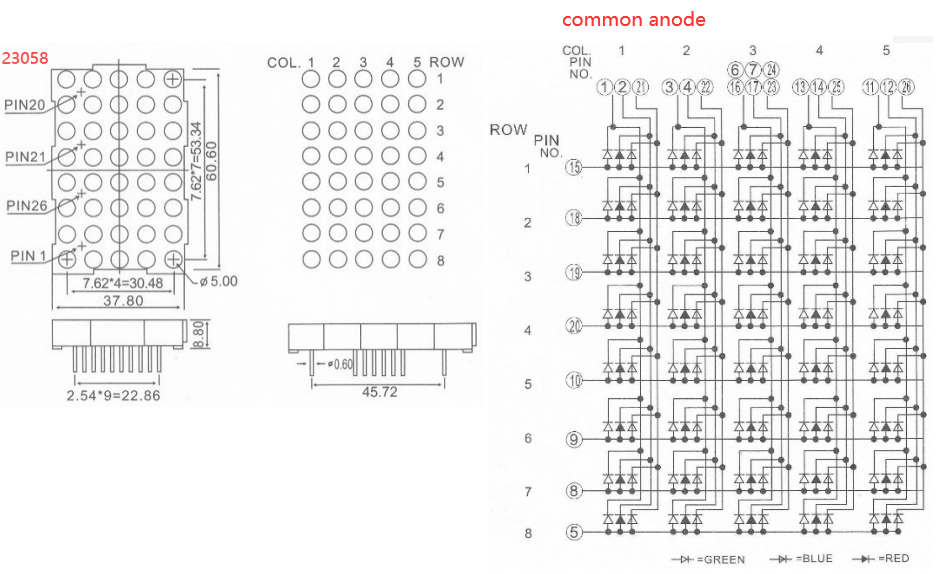

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

150

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

1.8

2.0

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.95

3.0

150

200

Ultra blue

IF=15mA

465-469

40

2.9

3.0

365

380

Pure green

IF=15mA

515-525

40

2.95

3.0

600

640

White

IF=15mA

-

-

2.8

2.9

180

200

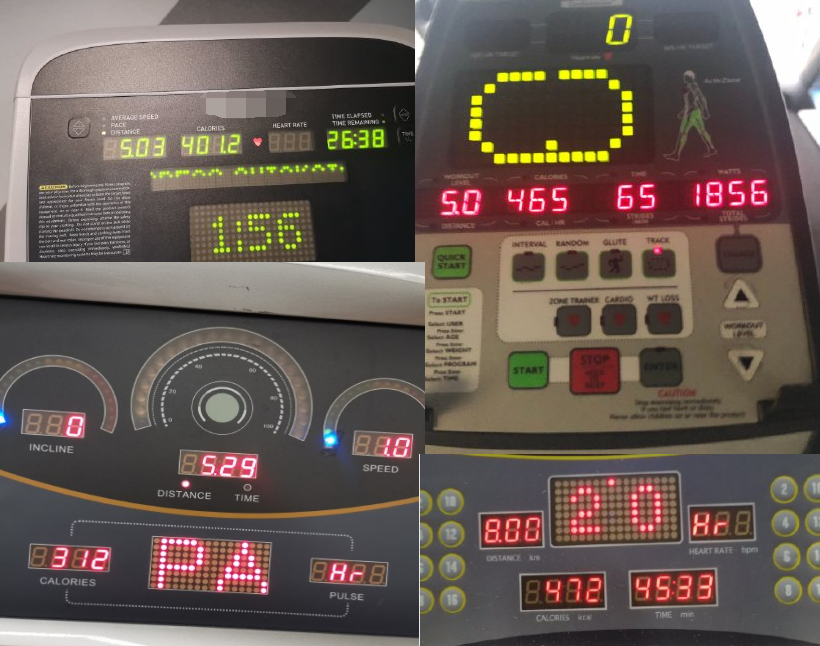

Application

Our Services

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''


Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16


3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

Custom 7 segment display are available

Contact us
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, and all LED lighting application solution, etc.
