Model No: houkem-20057-bY
houkem 20057 common cathode yellow 5x7 dot matrix 5mm led matrix
dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Country of Origin :
SZ/GZ
Quantity :
$0.50 - $1.00 / piece
- Application:Indoor
- Color:yellow
- Panel Size:37.8x53.1mm
- Pixel Pitch:7.62mm
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:houkem-20057-bY
- Brand Name:KEM
- use:retail store, subway
- Pixels:5mm
- Specification:Digital Poster
- Emitting color:yellow
- Face color:Black or Gray
- Working current:20mA
- Working voltage:1.8-3.3V
- OEM:Yes
- Manufature:China factory
- polarity:Commond Anode/Cathode
- Dimension:37.8x53.1mm
- product name:yellow 5x7 dot matrix
Products Description

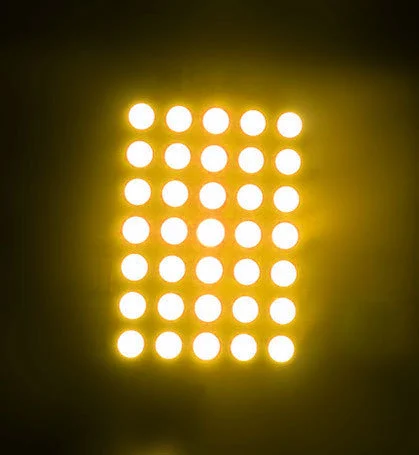

2 inch yellow 5x7 led matrix
Part No. | Houkem-20057-BY | Dimension | 37.8*53.1mm | |||
Dot array | 5x7 dot array | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | yellow | |||
Luminous intensity | 50-80mcd/chip | Polarity | Common anode | |||
If need other specifications, Please contact with our sales to get what you want. | ||||||
Details Images
Features:
1. 5x7 led matrix 5mm .
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

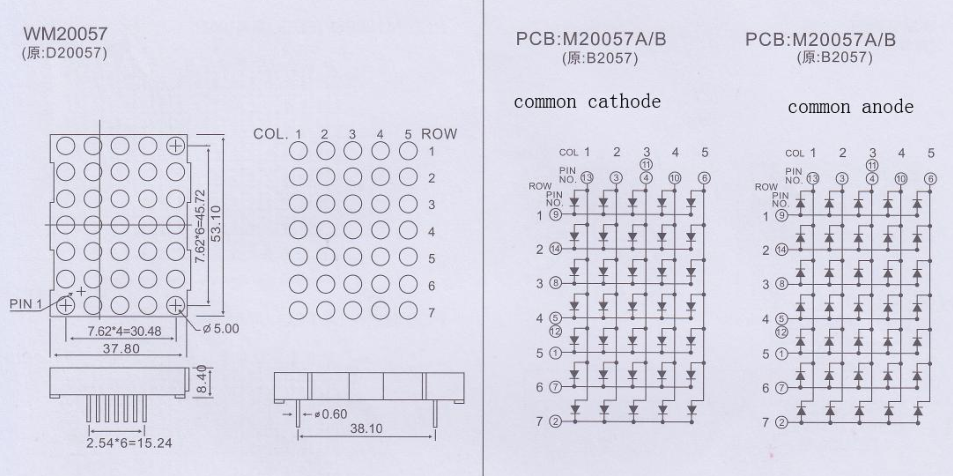

Dimension and Internal Circuit Diagram
Relative Products:
All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

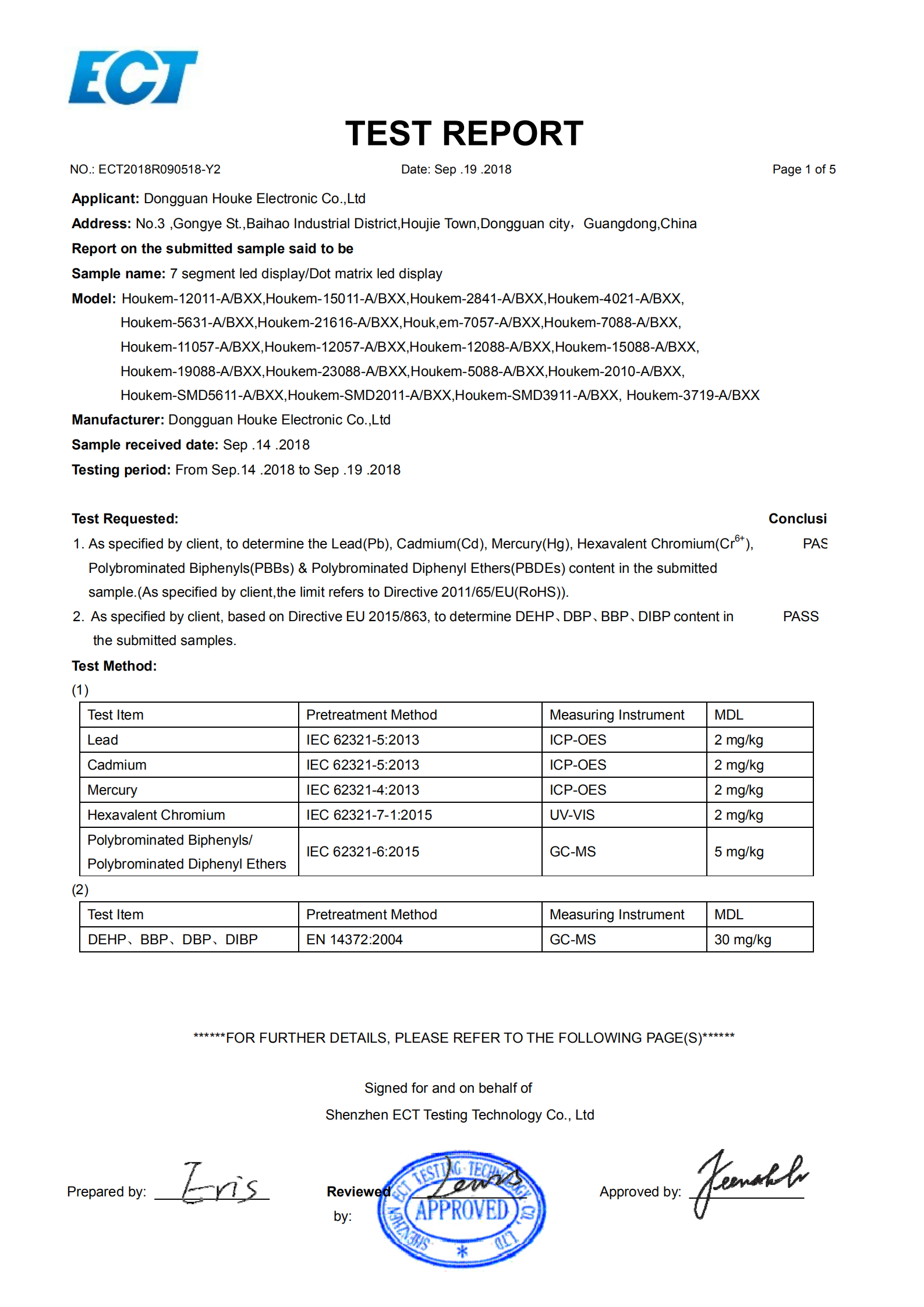

Certifications
