5x7 Blue LED Dot Matrix Display Module
High Quality 5x7 Blue LED Dot Matrix Display for Industrial Applications
HoukemBlue LED Dot Matrix Display is a high-performance 5x7 LED matrix module designed with 5mm LED dots, stable brightness output, and reliable long-term operation. This blue LED matrix module is widely used for industrial equipment, elevator displays, digital indicators, control panels, and customized electronic display solutions.
As a professional LED display manufacturer, Houkem provides OEM and ODM services, supporting customized specifications, colors, polarity options, and factory-direct supply for global customers.
Product Specifications of Blue LED Dot Matrix Display
The5x7 Blue LED Matrix Display uses high-quality LED chips and precise manufacturing technology to ensure consistent brightness, low power consumption, and excellent display performance.
| Item | Specification |
|---|---|
| Part No. | Houkem-20057-A/BB |
| Product Type | Blue LED Dot Matrix Display |
| Dot Configuration | 5x7 Matrix |
| Dot Diameter | 5mm |

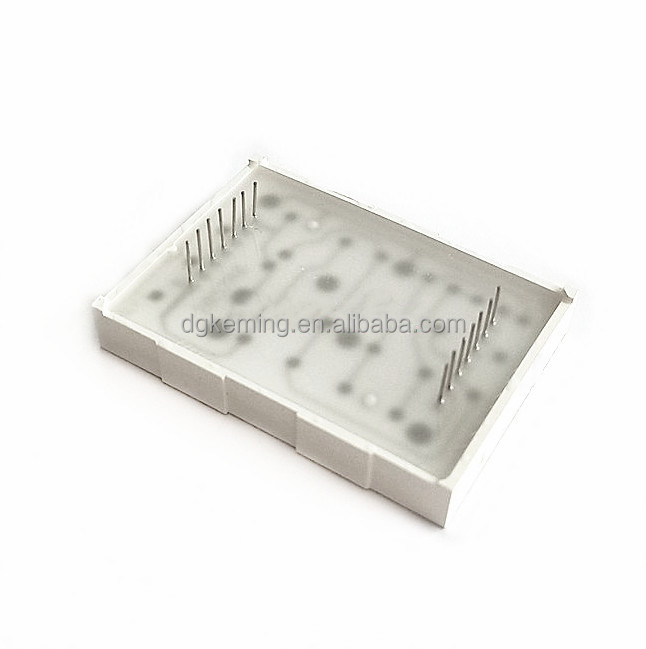

| Dimension | 37.8 × 53.1 × 8.4mm |
| Emitting Color | Blue |
| Surface Color | Black / Grey / White |
| Epoxy Color | Milky White / Clear |

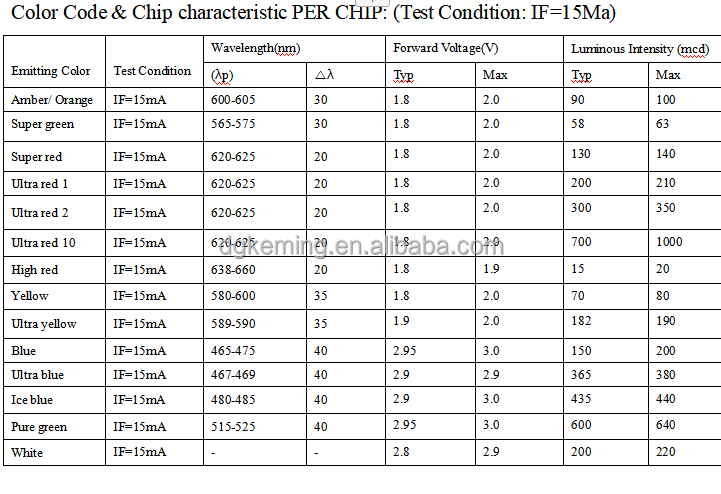

| Luminous Intensity | 200mcd/chip |

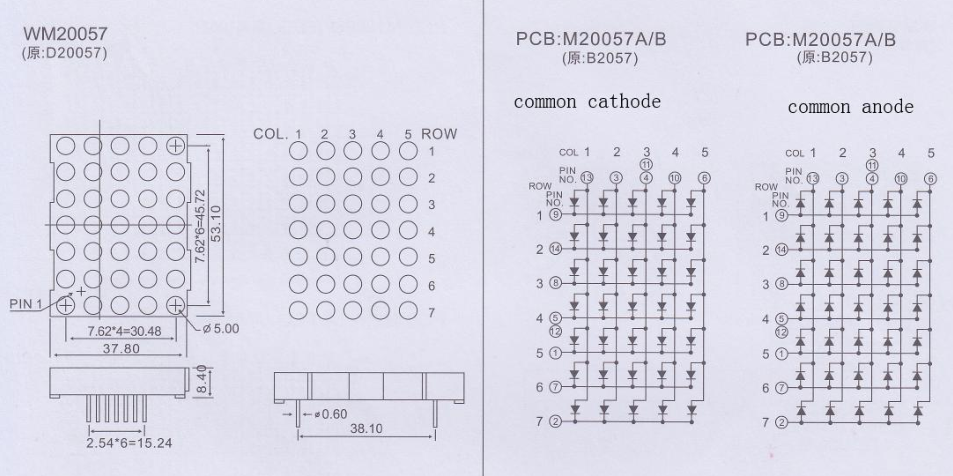

| Polarity | Common Cathode / Common Anode |
| Operating Temperature | -20 ~ +50℃ |
| Warranty | 2 Years |
| Certification | CE / REACH / ROHS / ISO9001 |
| OEM Service | Available |
| Customization | Supported |
The compact structure and flexible polarity options make this Blue LED Matrix Module suitable for various electronic display applications requiring clear graphics, text messages, and indicator functions.
Features of 5x7 Blue LED Matrix Module
High Brightness Blue LED Display
This 5x7 Blue LED Matrix Display provides stable luminous performance with 200mcd/chip brightness, ensuring clear visibility for indoor display applications.
Low Power Consumption
The optimized LED chip design helps reduce power consumption while maintaining excellent display brightness and reliability.
Flexible OEM Customization
Houkem supports customized solutions including:
- Different LED colors
- Common cathode or common anode options
- Customized dimensions
- Logo printing
- Special packaging requirements
Long Service Life
With professional LED manufacturing technology and strict quality control, the product delivers stable performance for long-term industrial applications.
Applications of Blue LED Dot Matrix Display
The Houkem Blue LED Dot Matrix Display is widely used in various electronic equipment and display systems.
Industrial Equipment Display
Suitable for:
- Industrial control panels
- Automation equipment
- Machine status indicators
- Electronic instruments
Elevator Display Systems
The 5x7 blue LED matrix module can be integrated into:
- Elevator floor indicators
- Direction displays
- Building information systems
Digital Display Equipment
Common applications include:
- Digital counters
- Electronic clocks
- Control systems
- Commercial display devices
Home Appliance and Consumer Electronics
Used for:
- Appliance control panels
- Smart devices
- Electronic indicators

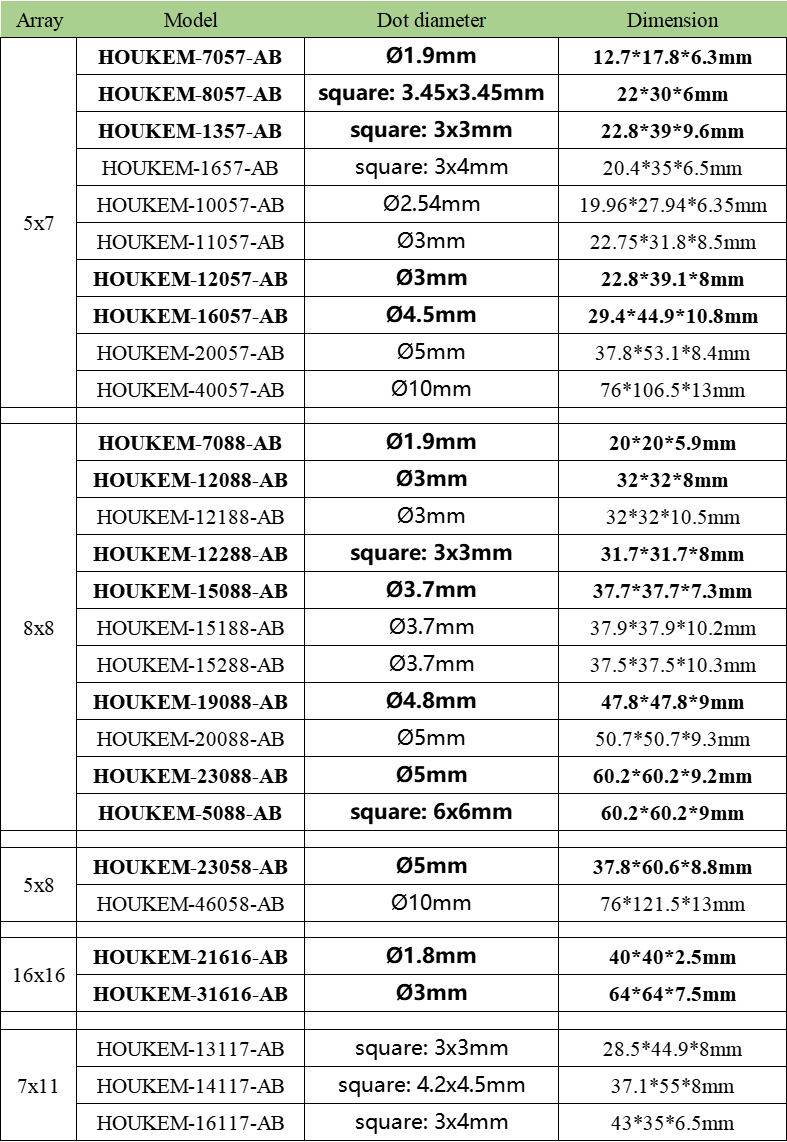

Available LED Matrix Display Solutions
Houkem provides a wide range of LED matrix display products, including:
- 5x7 LED Matrix Display
- 5x8 LED Matrix Display
- 8x8 LED Matrix Display
- 11x7 LED Matrix Display
- 16x16 LED Matrix Display
Different sizes, colors, and specifications can be customized according to customer requirements.
Why Choose Houkem Blue LED Matrix Module?
Established in 2003, Houkem specializes in LED display manufacturing, including:
- LED dot matrix displays
- 7 segment LED displays
- SMD LED products
- Customized LED solutions
With professional production equipment, experienced R&D capability, and strict quality management, Houkem provides reliable LED display solutions for customers worldwide.
Our products are exported to markets including the USA, Germany, Japan, Korea, and other regions.
We provide:
- Factory-direct pricing
- OEM & ODM customization
- Quality inspection before shipment
- Professional technical support
- Flexible shipping solutions
FAQ About Blue LED Dot Matrix Display
Q1: What is a Blue LED Dot Matrix Display used for?
A Blue LED Dot Matrix Display is mainly used for electronic text, graphic, indicator, and status displays in industrial equipment, elevators, clocks, and control systems.
It provides a flexible solution for customers needing compact LED display modules.
Q2: Can Houkem customize the 5x7 Blue LED Matrix module?
Yes, Houkem supports OEM and ODM customization including LED colors, dimensions, polarity, and packaging requirements.
Customized solutions are available for different electronic product designs.
Q3: What polarity options are available for this LED matrix display?
This 5x7 Blue LED Matrix supports both common cathode and common anode configurations.
Customers can select the suitable polarity according to their circuit design.
Q4: What certifications does this Blue LED Matrix Module have?
The product complies with CE, REACH, ROHS, and ISO9001 quality standards.
These certifications help ensure reliable quality for international B2B customers.
Q5: Does Houkem provide samples before bulk orders?
Yes, sample orders are available for quality testing and product verification.
Customers can test performance before starting mass production.
Request a Quote for Blue LED Dot Matrix Display
Looking for a reliable Blue LED Dot Matrix Display manufacturer?
Contact Houkem today for datasheets, samples, OEM customization, and factory-direct pricing for your LED display projects.
Get in touch with our sales team to discuss your customized LED matrix requirements.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
