8x8 Dot Matrix LED Display 3.7mm
8x8 Dot Matrix LED Display 3.7mm

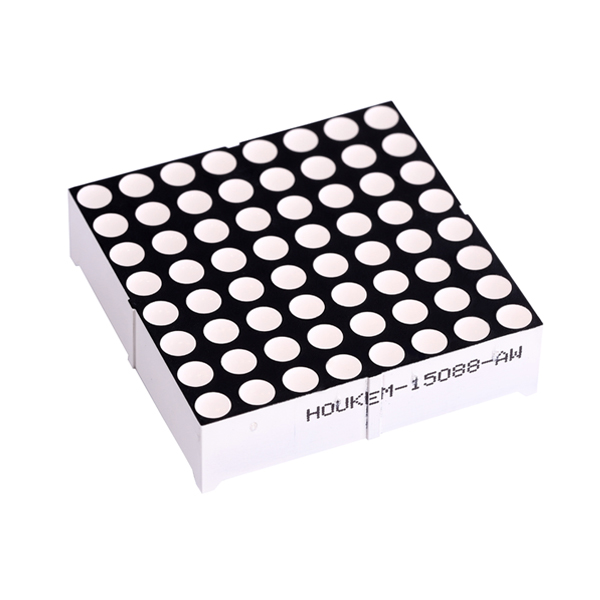

Houkem8x8 Dot Matrix LED Display features 3.7mm LED dots in a compact 37.9 × 37.9mm package for electronic equipment, industrial instruments, clocks, counters, home appliances, and message displays. The display supports white emission as well as multiple color options, with common anode or common cathode configurations available for OEM and custom applications.
Product Specifications
| Specification | Details |
|---|---|
| Part No. | Houkem-15088-AW |
| Dot Matrix | 8 × 8 |
| Dot Size | 3.7mm |

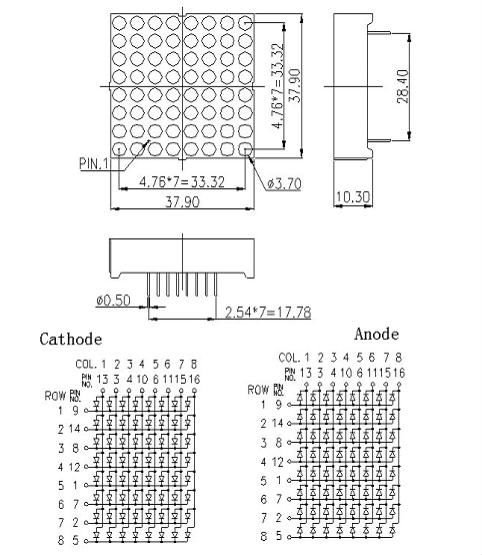

| Dimension | 37.9 × 37.9mm |
| Surface Color | Black / Grey |
| Epoxy Color | Milky White / Clear |
| Emitting Color | White |
| Available Colors | Red, Green, Yellow, Orange, Blue |
| Luminous Intensity | 250–300mcd/chip |

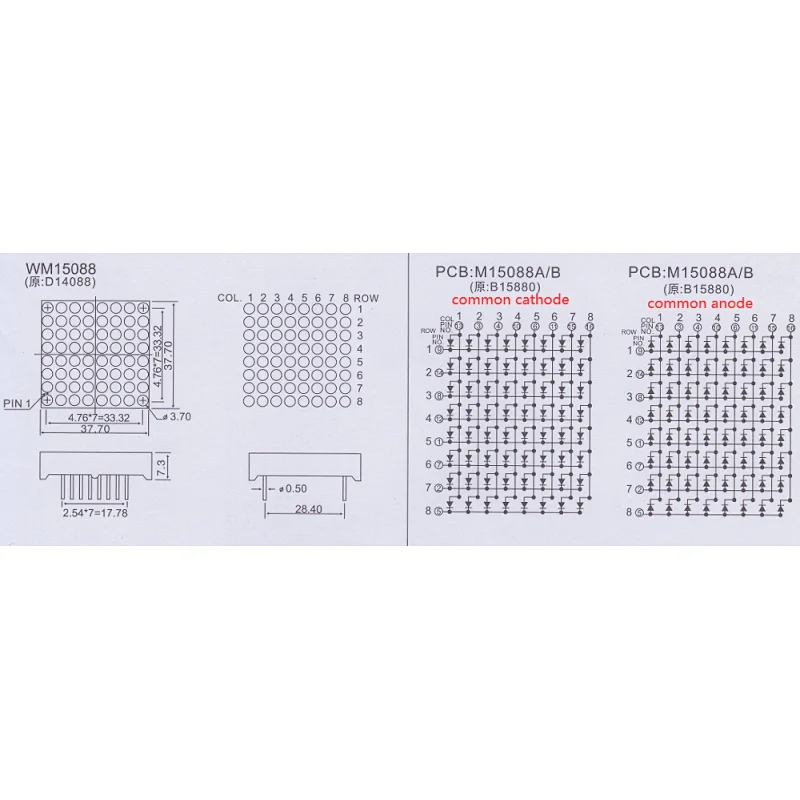

| Polarity | Common Anode / Common Cathode |
| Forward Voltage | See color-specific specifications below |
| Life Span | 50,000 hours |
| Warranty | 2 years |
| Certifications | RoHS & CE compliant |
| Supplier Type | Original manufacturer |
| Place of Origin | Guangdong, China |
| Brand | Houkem |

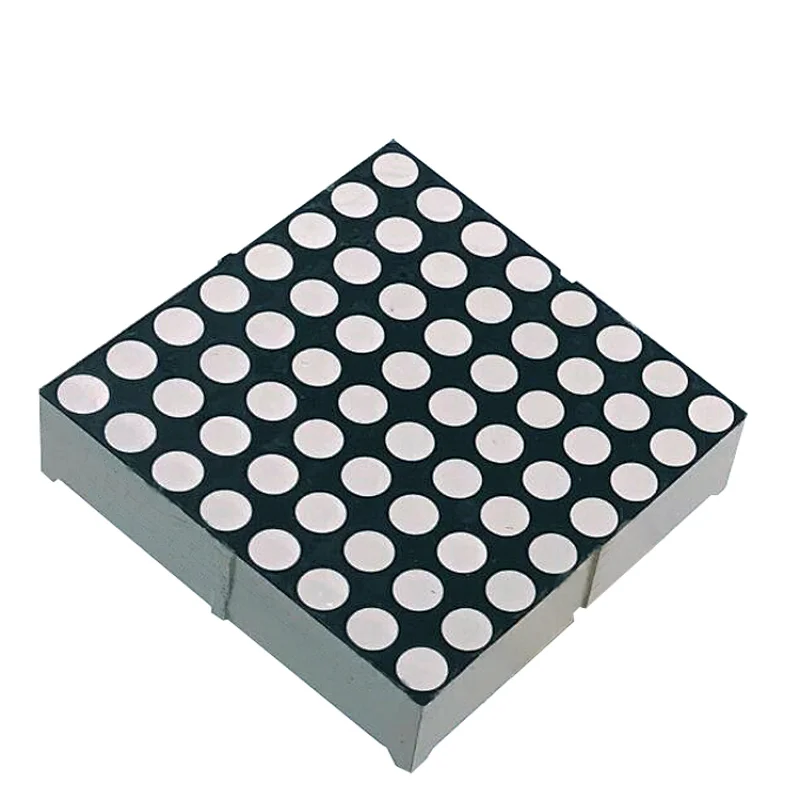

The compact 8×8 LED matrix contains individually controlled LED points that can be used to display numbers, letters, symbols, and simple graphics. Its uniform glow and low current consumption make it suitable for integration into professional electronic products.

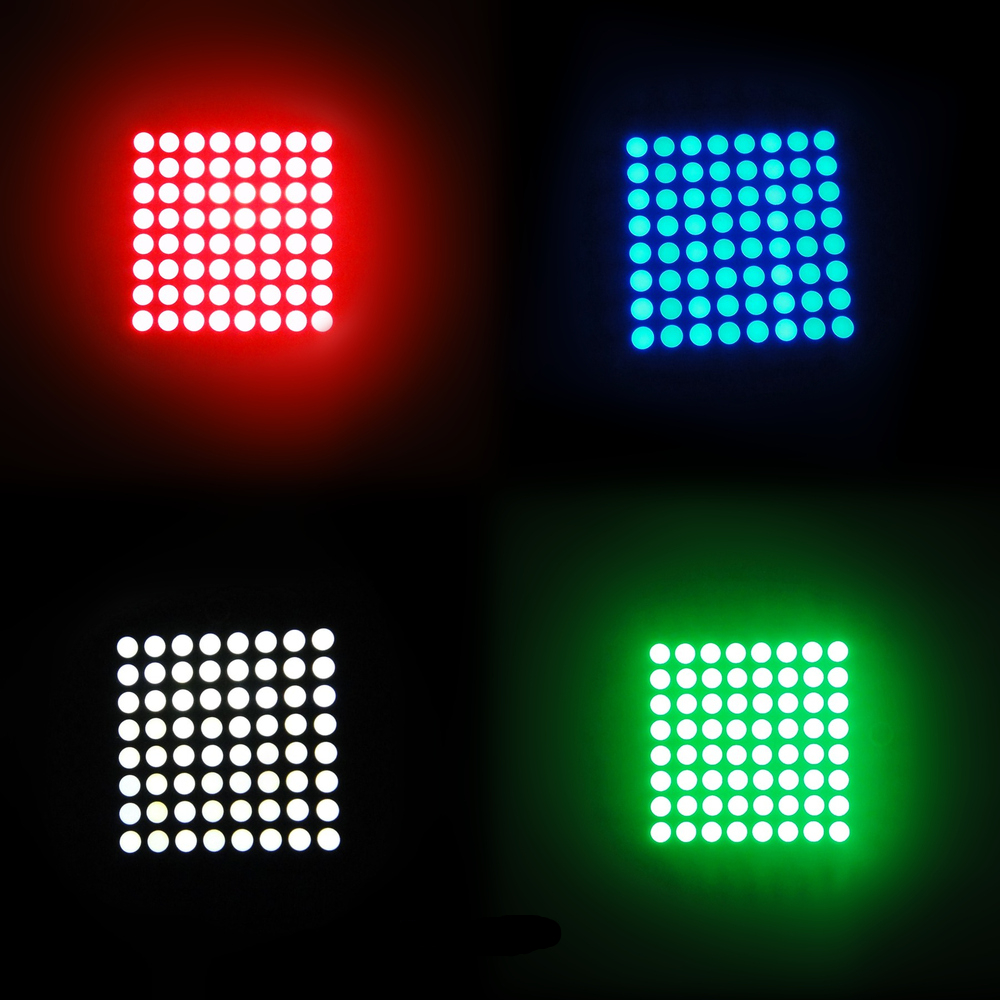

3.7mm 8x8 LED Matrix Display Options
Houkem can supply different LED colors and electrical configurations according to application requirements. The standard white version uses a milky white or clear epoxy option, while other colors are available for customized display requirements.
| LED Color | Wavelength (nm) | Forward Voltage (V) | Forward Current (mA) | Luminous Intensity (mcd) | Peak Forward Current (mA) | Reverse Voltage (V) | Reverse Current (uA) |
|---|---|---|---|---|---|---|---|
| Super Red | 630–635 | 1.8–2.0 | 18 | 100–150 | 100 | 5 | 10 |
| High Red | 638–660 | 1.8–1.9 | 18 | 15–20 | 100 | 5 | 10 |
| Ultra Red | 620–625 | 2.0–2.1 | 18 | 200–300 | 100 | 5 | 10 |
| Super Green | 565–575 | 1.9–2.0 | 18 | 48–55 | 100 | 5 | 10 |
| Pure Green | 615–625 | 2.8–3.0 | 20 | 260–300 | 100 | 5 | 10 |
| White | / | 2.6–2.8 | 20 | 200–250 | 100 | 5 | 10 |
| Blue | 465–475 | 2.8–3.0 | 20 | 150–200 | 100 | 5 | 10 |
| Yellow | 580–600 | 1.9–2.0 | 18 | 70–80 | 100 | 5 | 10 |
| Amber | 600–605 | 1.9–2.0 | 18 | 100–110 | 100 | 5 | 10 |
If your project requires other specifications, colors, dimensions, or circuit configurations, contact Houkem for available options and customization.
Applications for OEM Electronic Equipment
This8x8 Dot Matrix LED Display is designed for B2B electronic applications where compact size and flexible visual output are required.
- Industrial equipment and electronic instruments
- Digital counters and timers
- Clock and time display equipment
- Home appliance control panels
- Advertising and message displays
- Information and status indicators
- Custom electronic display equipment
For OEM projects, Houkem can provide different LED colors and common anode or common cathode configurations to match the electrical and mechanical requirements of the finished product.
Packaging, Delivery and Quality Control
Samples can be arranged for evaluation before mass production. Standard packaging includes a color box and carton, with customized packaging available according to customer requirements. Sample orders in stock typically require 3–7 days, while mass production normally requires 20–30 days, depending on order quantity and specifications.
Houkem operates its own R&D department and production facilities, with strict quality control and repeated testing before shipment. The company provides factory-direct pricing, technical support, OEM customization, and logistics services including door-to-door delivery from China to the customer's warehouse.
Frequently Asked Questions
Can I order samples before mass production?
Yes, sample orders are welcome for product evaluation and quality testing. This allows OEM buyers to verify the display before committing to a larger order.
Can the LED matrix display be customized?
Yes, Houkem supports customized colors, specifications, configurations, and logos according to project requirements. Customization is subject to the applicable MOQ.
What is the standard quotation term?
The standard quotation term is EXW. Other logistics arrangements can be discussed according to the order and destination.
What certifications and warranty are provided?
The products are CE and RoHS compliant and come with a 2-year warranty. Each product is tested twice before shipment to help ensure consistent quality.
Can Houkem provide logistics support for bulk orders?
Yes, Houkem can arrange express, air, LCL, and door-to-door logistics services. This helps B2B buyers simplify transportation from China to their warehouse.
Request an 8x8 Dot Matrix LED Display Quote
Looking for a reliable 8x8 Dot Matrix LED Display manufacturer for your electronic equipment or OEM project? Send Houkem your required color, dot size, circuit configuration, quantity, and application. Our team can provide product specifications, samples, pricing, customization options, and delivery information for your project.

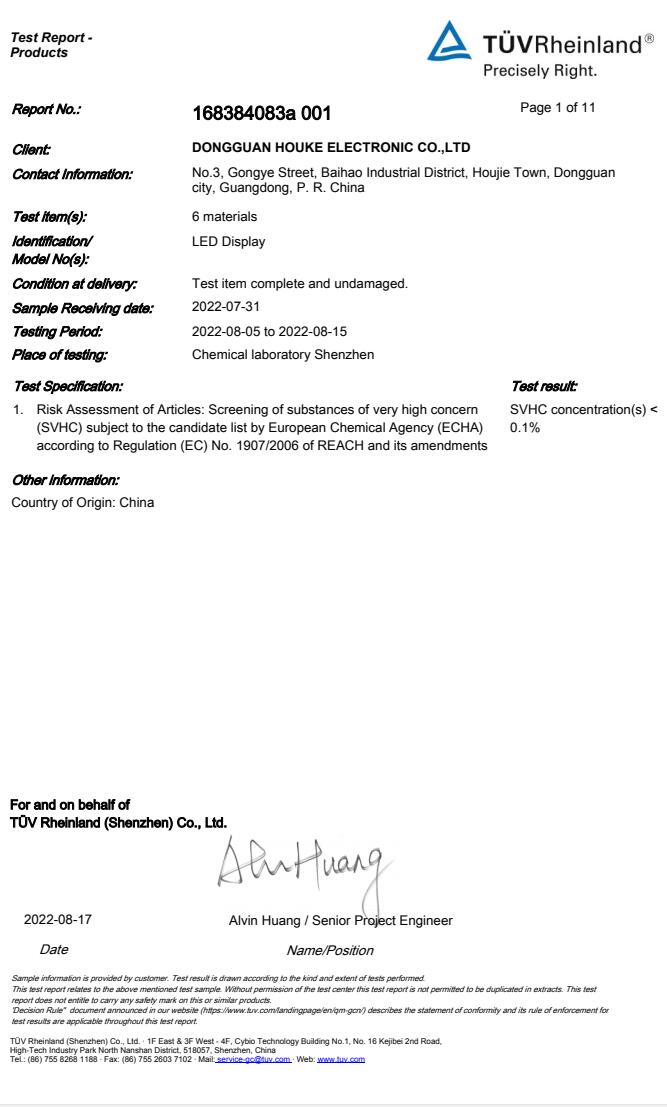

Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
