Model No: HOUKEM-15011-BRGB
Houkem-15011-BRGB 1.5 inch 7 segment led display RGB single digit full color digital 7 segment display 1.5''
1 digit 7 segment display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.90 - US $1.20 / piece
- Application:home appliance, digital counter, elevator, digital counter, time clock
- Color:rgb, rgb
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-15011-BRGB
- Brand Name:HOUKEM
- Type:LED
- Screen Dimension:30.6*44*9mm
- Product name:1.5'' 1 digit 7 segment display
- Warranty:2Years
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Life span:50000hours
- Certificate:CE ROHS
Product Describtion
Houkem-15011-BRGB 1.5inch 7 segment led display RGB single digit
Features:
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-15011-BRGB |
| Dimension | 30.6*44*9mm |
| digit height | 1.5'' (38.1mm) |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | red, green, blue |

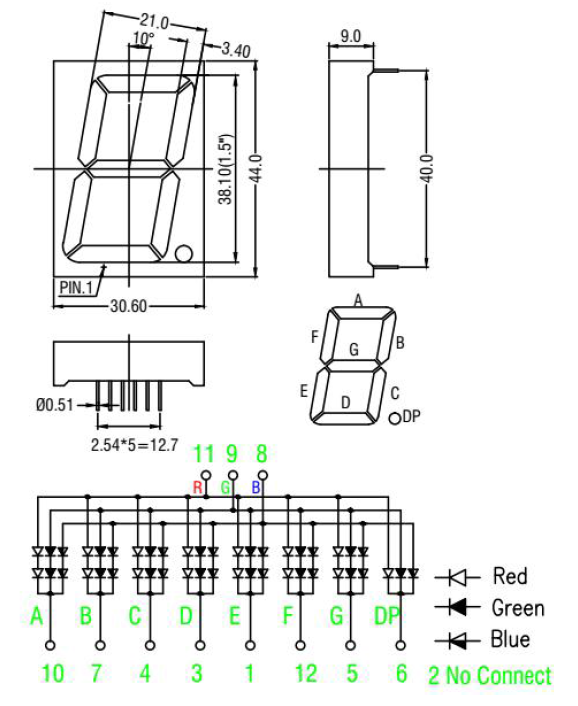

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=18Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 625-640 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.9 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.9 | 3.0 | 600 | 640 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Two years quality warranty
Our Services

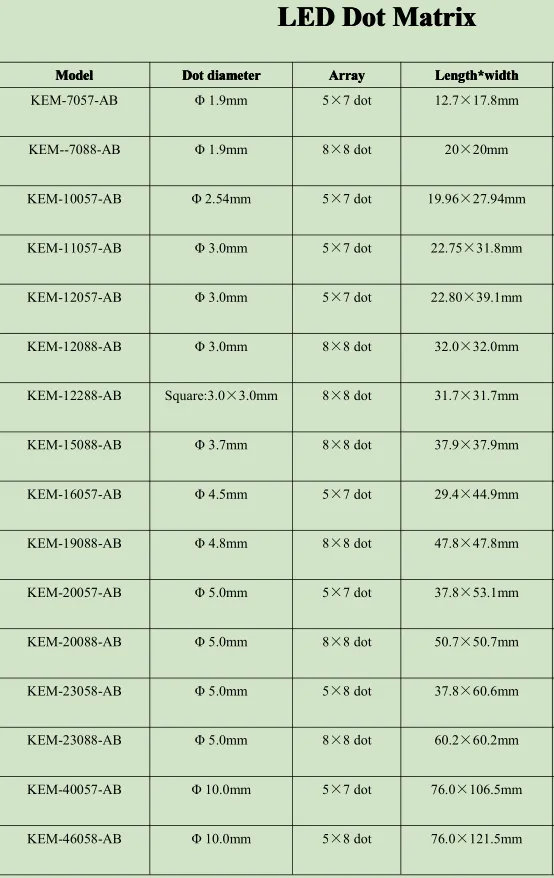

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.56'' |
| 6 digit | 0.3'', 0.36'' |
14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'' |
| 6 digit | 0.4'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available
Packaging & Shipping
Certifications
Contact us
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 265nm to 1550nm LED arrays,COB LEDs, SMD LEDs, and all LED lighting application solution, etc.
