HOUKEM-13117-BW white led square 7x11 dot matrix display 28.5*44.9*8mm

Model NO.
HOUKEM-13117-BW
Price:
USD 2.66-2.70
Minimum order quantity:
2000
Quantity:
  • Place of Origin:CN;GUA
  • Color:WHITE
  • Panel Size:28.5*44.9*8mm
  • Model Number:HOUKEM-13117-BW
  • Brand Name:HOUKEM
Product Describtion

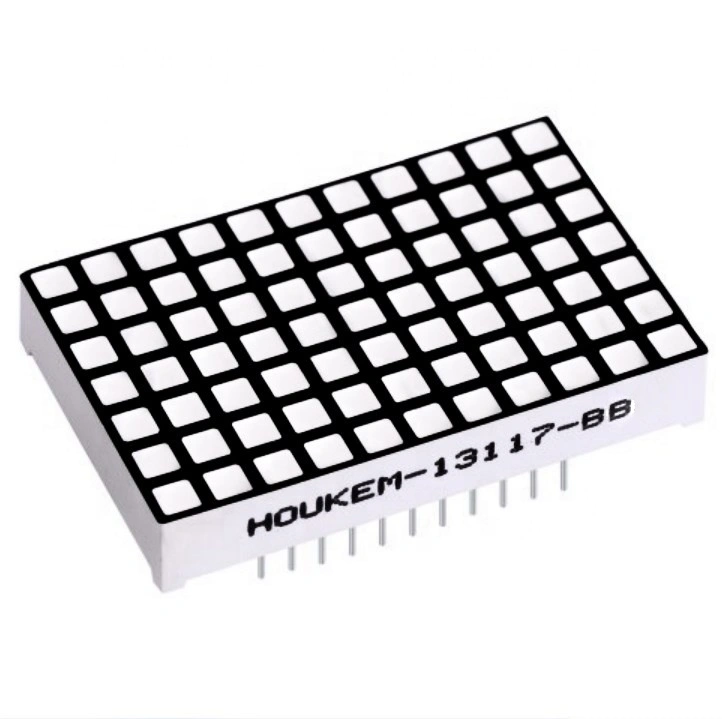

 White 7x11 led square dot matrix display



Features:

1, Low consumption

2, High brightness



HOUKEM-13117-AW--------Common cathode(CC)

HOUKEM-13117-BW-------common anode(CA)



Product details:

Item No.HOUKEM-13117-BW
Dimension28.5*44.9*8mm
dot3*3mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color white

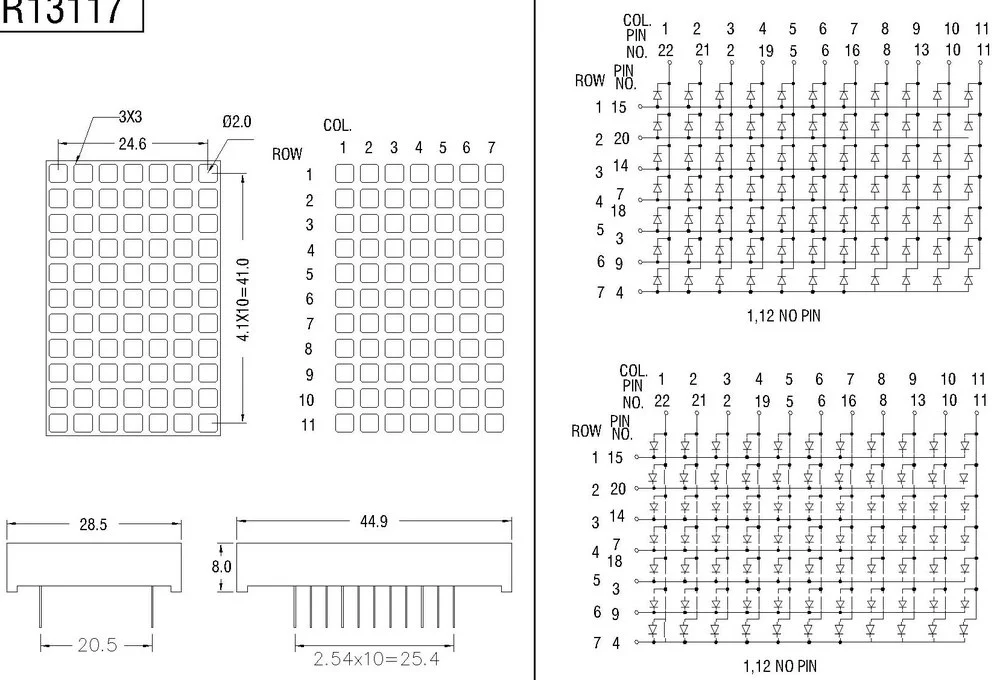

Package dimension & Internal circuit diagram

HOUKEM-13117



13117







HOUKEM-14117

14117square

HOUKEM-16117





16117





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200









Two years quality warranty


13117.3



Our Services

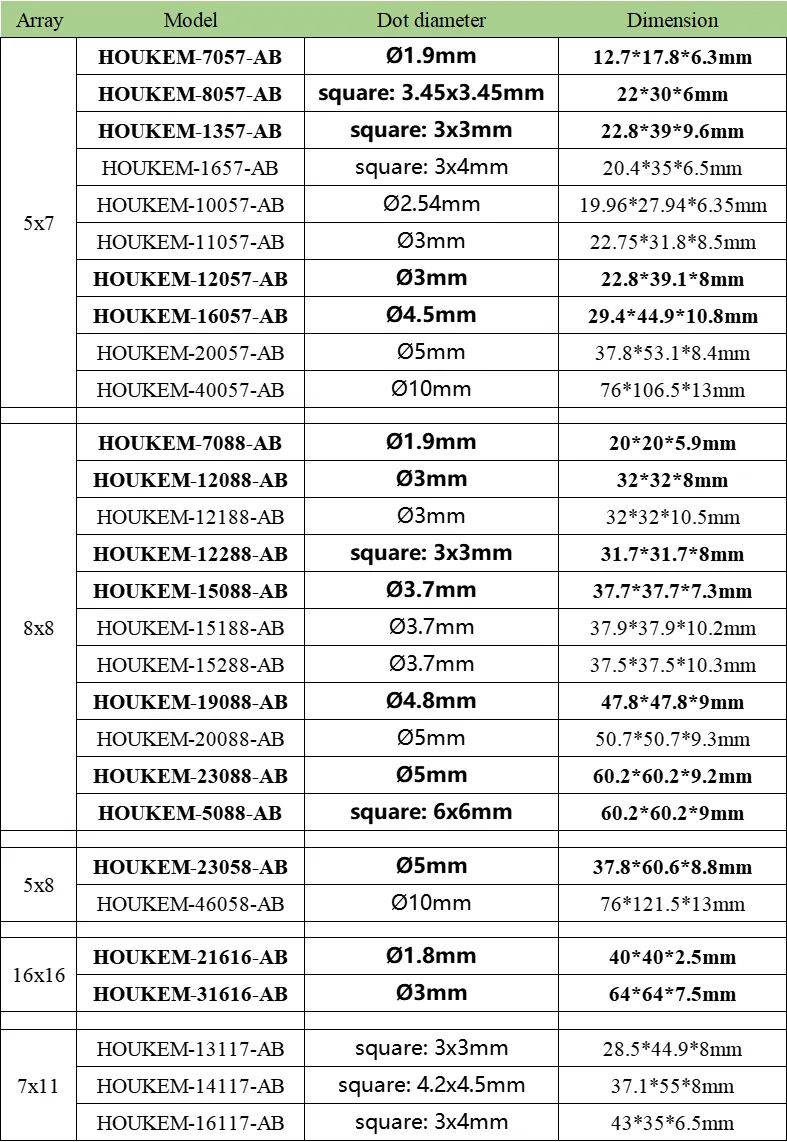

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display



7 segment LED display

1 digit0.2'',  0.28'',  0.3'',  0.36'',  0.39'',  0.4'',  0.5'',  0.52'',  0.56'',   0.6'',   0.8'',     1'',    1.2'',   1.5'',    1.8'',      2.3'',   3'',      4'',     5'',   6'',    7'',     8'',     10'',    12'',     16'',  20''
2 digit0.28'',   0.3'',   0.36'',   0.39'',   0.4'',  0.43'', 0.5'',   0.52'',   0.56'',   0.8'',  1'',   1.2'',   1.5''
3 digit0.25'',   0.28'',    0.3'',    0.4'',   0.52'',  0.56'',  0.8''
4 digit0.25'',   28'',   0.36'',    0.4'',    0.5'',     0.56'',  0.8'',   1.2''
5 digit0.28'',    0.36'',    0.56''
6 digit0.3'',    0.36''



14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39'', 0.54''



Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.



Custom LED display are available

paste-pic-dp_uuid_jfc9i

High power led: smd led, red, green, blue led, UV/ IR LED





Packaging & Shipping

packing & shipping

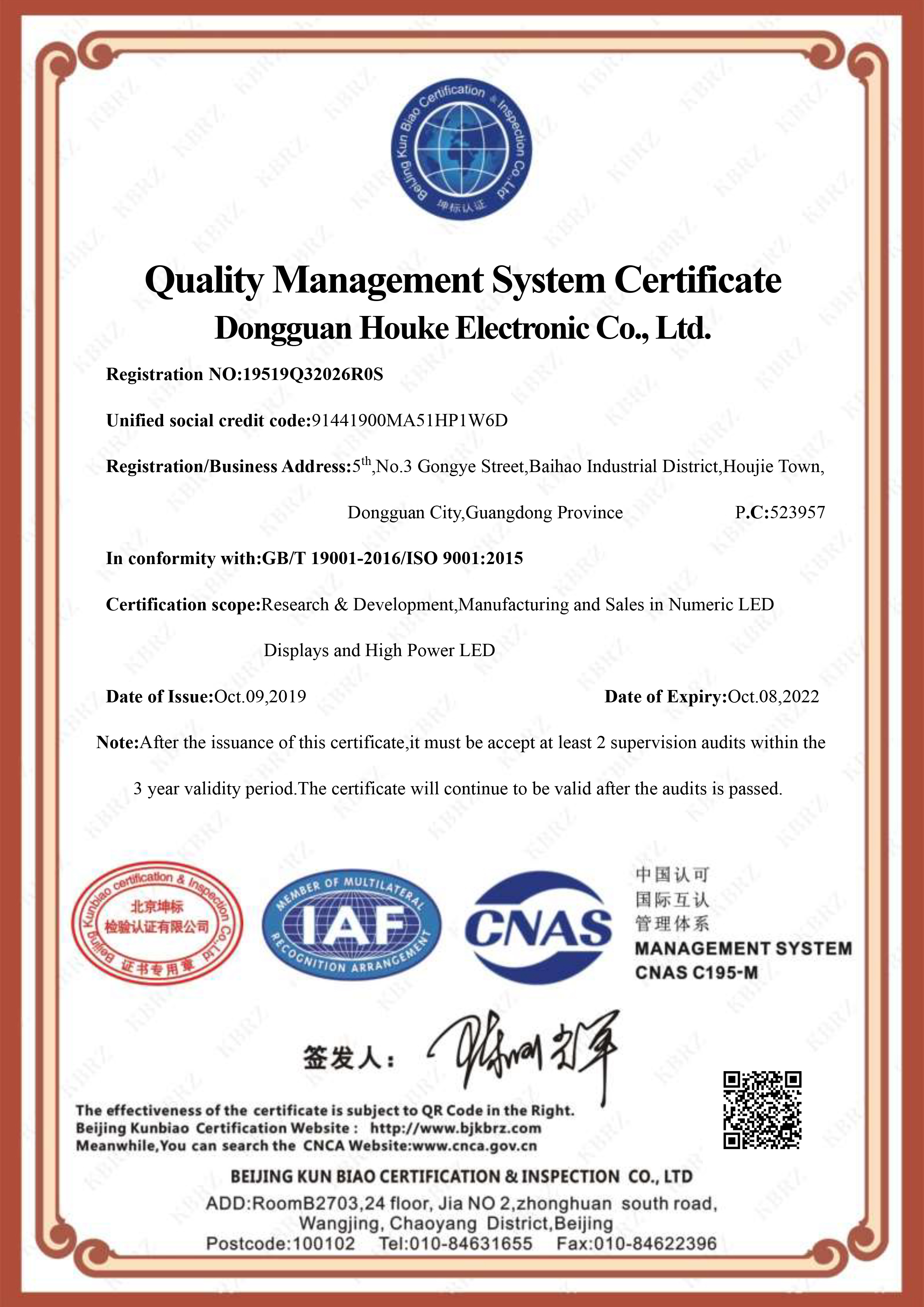

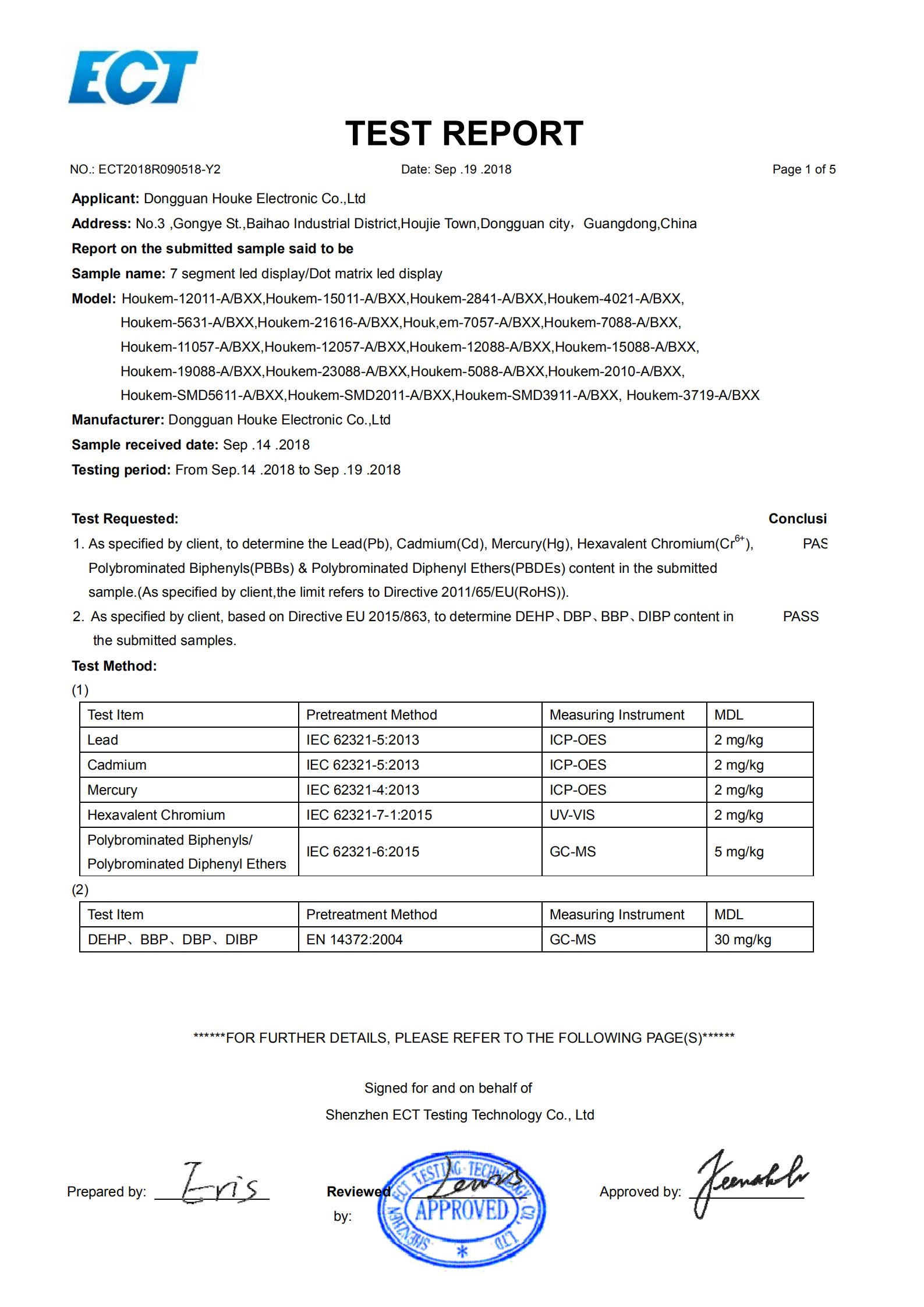

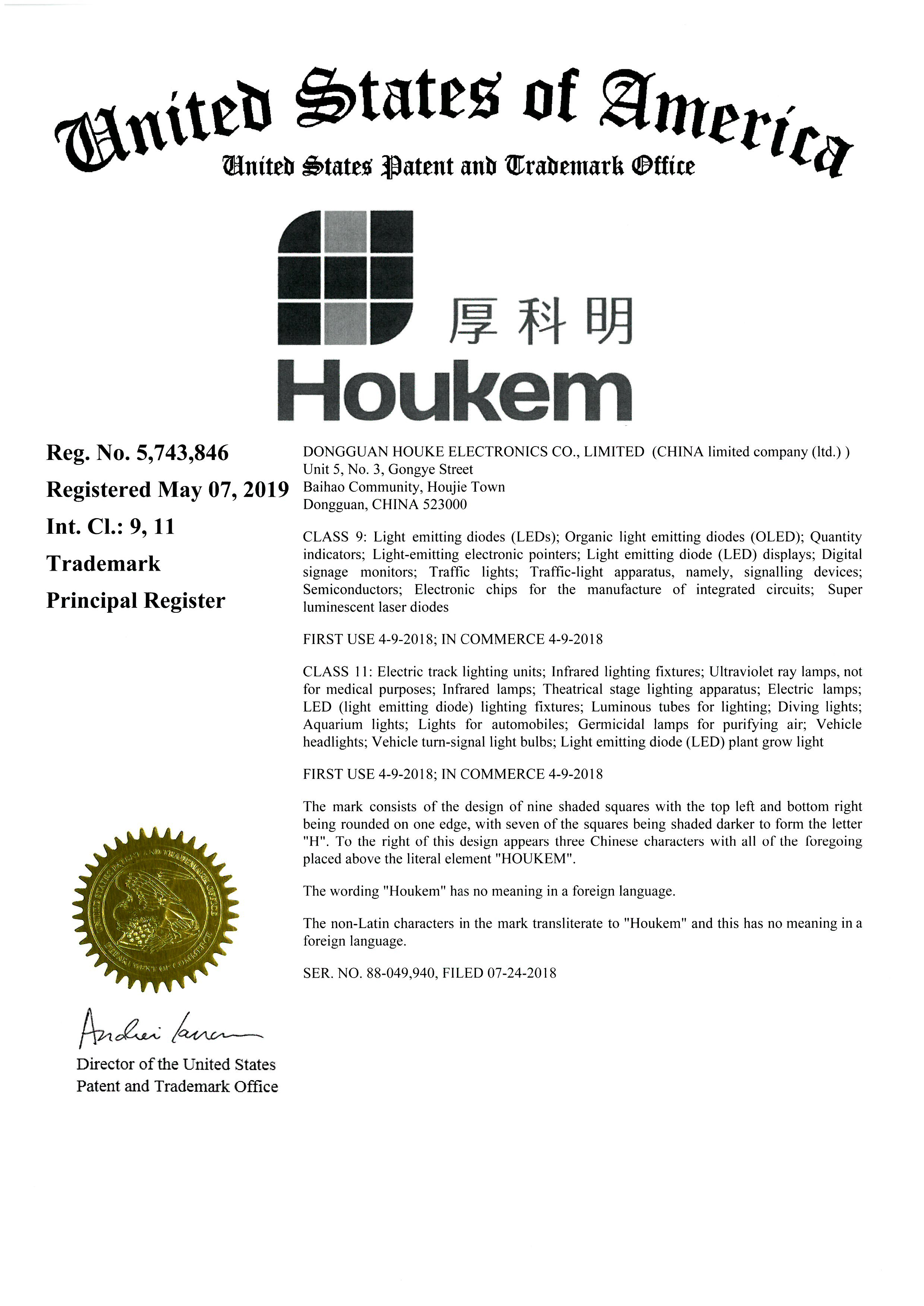

Certifications

 Houke-certifictes

Contact us



 Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.

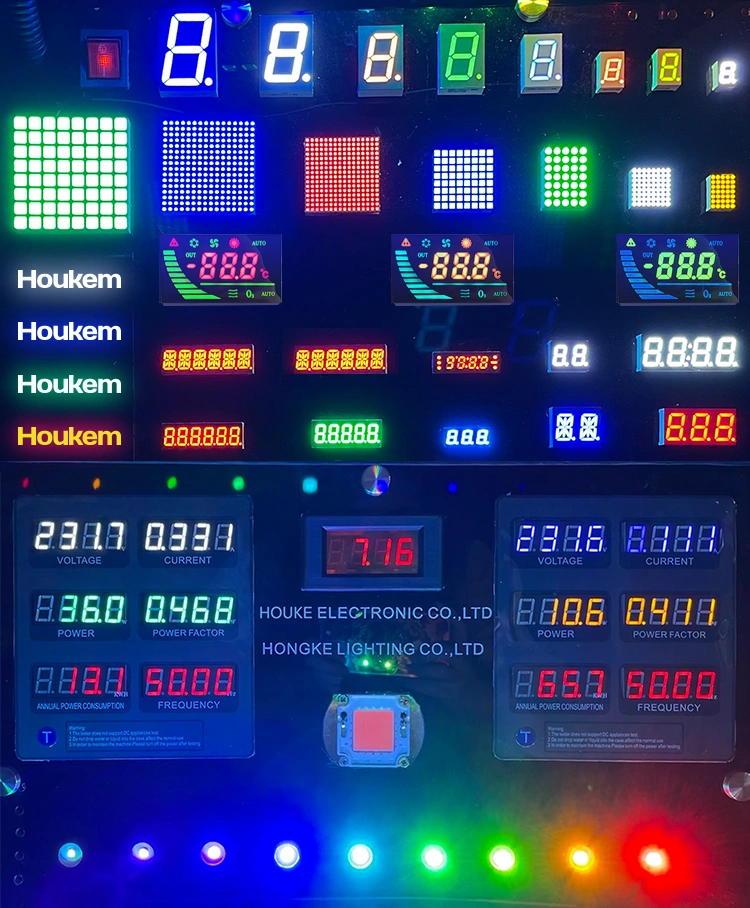

 factory
