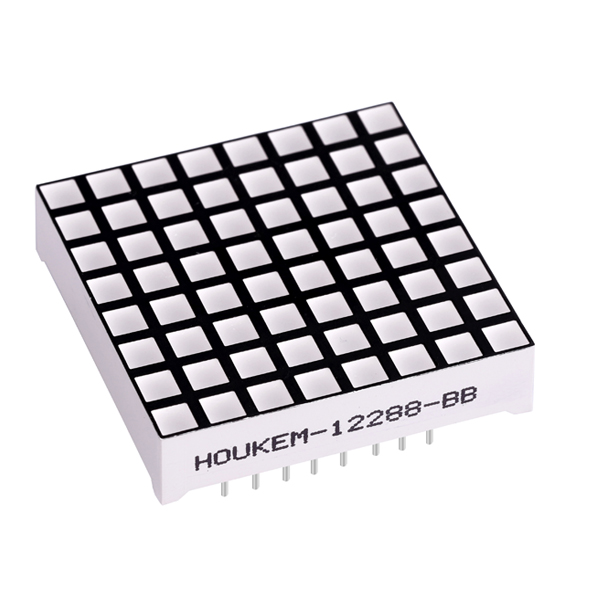

8x8 White LED Dot Matrix Display Module
8x8 White LED Dot Matrix Display Module for Industrial Applications
HOUKEM8x8 White LED Dot Matrix Display Module is a high-performance LED display component designed for industrial equipment, elevator displays, advertising systems, bus signs and other indoor visual applications. With a 32mm square module structure, high brightness white LED chips and reliable common cathode design, this LED matrix display provides stable performance for OEM and customized display solutions.
Manufactured by HOUKEM with more than 19 years of LED production experience, this 8x8 White LED Dot Matrix Display supports OEM customization, datasheet supply and professional technical support for global B2B customers.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | 8x8 White LED Dot Matrix Display |
| Model Number | HOUKEM-12288-AW |
| LED Type | Square LED Dot Matrix Display |
| Dot Matrix | 8x8 |
| Dimension | 31.7 × 31.7 × 8mm |
| Dot Size | 3 × 3mm |
| Emitting Color | White |
| Luminous Intensity | 150-200mcd |
| PCB Polarity | Common Cathode |
| Surface Color | Black / Grey |
| Segment Color | White / Clear |
| Forward Voltage | 2.8-2.9V |
| Operating Temperature | -35 ~ +50℃ |
| Warranty | 2 Years |
| Certification | CE / ROHS / ISO9001 / REACH |
| OEM / Customization | Available |
High Brightness 8x8 White LED Matrix Display Design
This8x8 White LED Dot Matrix Display adopts an 8×8 LED array structure, providing 64 individual LED points for clear and uniform graphic display. The 3mm square dot design delivers excellent visibility while maintaining low power consumption, making it suitable for compact display applications.
The module uses high-quality LED chips with stable luminous performance. The white LED emission color allows designers to create clean and high-contrast display interfaces for elevators, industrial equipment panels, digital signage and control systems.
The product supports both standard production and customized requirements, including different colors, specifications, PCB polarity and packaging solutions.
Product Features
Low Power Consumption
The optimized LED chip structure reduces operating current while maintaining stable brightness, helping customers improve energy efficiency in long-term applications.
High Brightness and Uniform Lighting
Each LED pixel provides consistent light output, ensuring clear information display without uneven brightness across the matrix area.
Common Cathode Configuration
The HOUKEM-12288-AW model features a common cathode design, providing flexible circuit integration for engineers developing electronic display products.
OEM and Custom LED Display Solutions
HOUKEM supports customized LED matrix displays according to customer requirements, including:
- Different LED colors
- Custom dimensions
- Alternative polarity designs
- Special packaging requirements
- Application-specific solutions
LED Chip Characteristics
Test Condition: IF=15mA
| Emitting Color | Wavelength (nm) | Forward Voltage (V) | Luminous Intensity (mcd) |
|---|---|---|---|
| Amber/Orange | 600-605 | 1.9-2.0 | 90-100 |
| Super Green | 565-575 | 1.9-2.0 | 48-55 |
| Super Red | 620-625 | 1.8-2.0 | 110-130 |
| Ultra Red 1 | 620-625 | 1.8-2.0 | 200-210 |
| Ultra Red 2 | 620-625 | 2.0-2.1 | 300-350 |
| High Red | 638-660 | 1.8-1.9 | 15-20 |
| Yellow Green | 570-580 | 1.9-2.0 | 43-50 |
| Yellow | 580-600 | 1.9-2.0 | 70-80 |
| Blue | 465-475 | 2.95-3.0 | 150-200 |
| Pure Green | 515-525 | 2.95-3.0 | 600-640 |
| White | - | 2.8-2.9 | 180-200 |
Applications of 8x8 White LED Dot Matrix Display
The compact design and reliable performance make this 8x8 LED Dot Matrix Display Module suitable for various professional applications:
Industrial Equipment Display
Used for status indicators, control panels and machine information displays requiring reliable LED visualization.
Elevator Display Systems
The 32mm square LED matrix module is suitable for elevator floor indicators and information panels.
Advertising and Digital Signage
The high brightness white LED output provides clear visual effects for indoor advertising and information boards.
Home Appliance Display
Suitable for electronic devices requiring compact numeric or graphic LED display solutions.
Why Choose HOUKEM LED Matrix Display Manufacturer?
Established in 2003, HOUKEM specializes in manufacturing LED display products, including:
- LED dot matrix displays
- 7 segment LED displays
- SMD LED displays
- Alphanumeric displays
- Custom LED solutions
- UV LED and IR LED products
With ISO9001 quality management certification and professional R&D capabilities, HOUKEM provides factory-direct pricing, customized production and reliable global shipment services.
All products are tested before shipment and supported with a 2-year quality warranty to ensure stable performance for industrial customers and OEM partners.
FAQ
What applications can use an 8x8 White LED Dot Matrix Display?
This LED matrix display is commonly used for elevators, industrial equipment, advertising signs and electronic control panels.
Can HOUKEM customize the LED matrix display?
Yes, HOUKEM provides OEM and ODM services including color, size, polarity and packaging customization.
What is the difference between common cathode and common anode LED matrix displays?
The difference is the internal circuit connection method, which affects PCB design and controller compatibility.
Does this 8x8 LED Dot Matrix Display support different LED colors?
Yes, HOUKEM can supply multiple colors including red, green, blue, yellow, white, amber, RGB and bicolor options.
What quality certifications does this LED display module have?
The product complies with CE, ROHS, ISO9001 and REACH requirements for international B2B applications.
Request Your Custom LED Display Solution
Looking for a reliable 8x8 White LED Dot Matrix Display manufacturer? Contact HOUKEM today for datasheets, samples, customized specifications and professional LED display solutions for your project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.

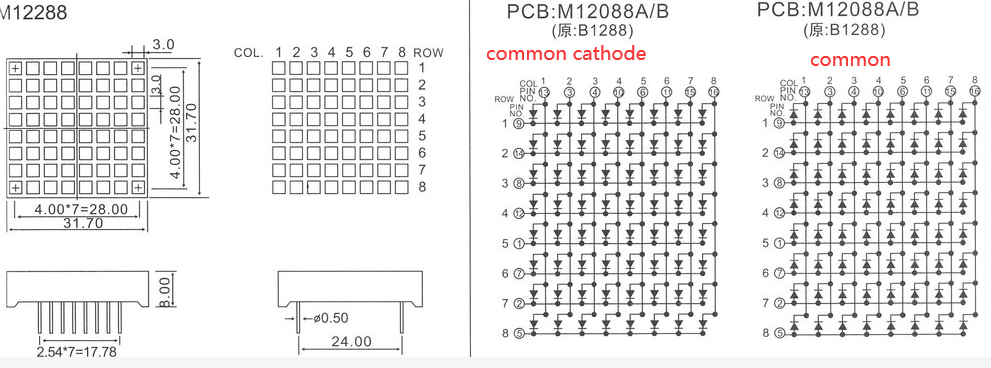

Package dimension & Internal circuit diagram
Two years quality warranty

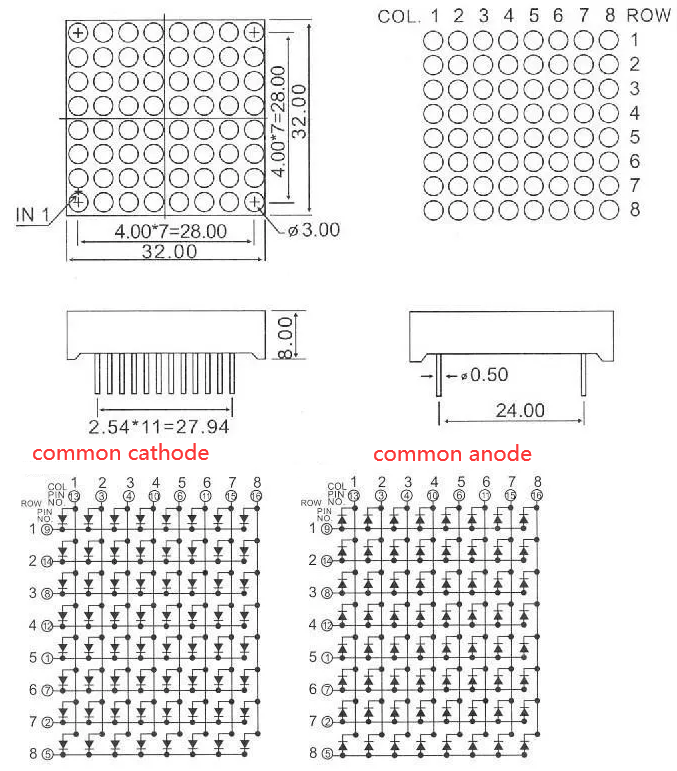

round dot matrix
Custom 7 segment display are available
