8x8 dot matrix display white
8x8 dot matrix display white
8x8 dot matrix display white
8x8 dot matrix display white
8x8 dot matrix display white
8x8 dot matrix display white
Model No: HOUKEM-12288-AW

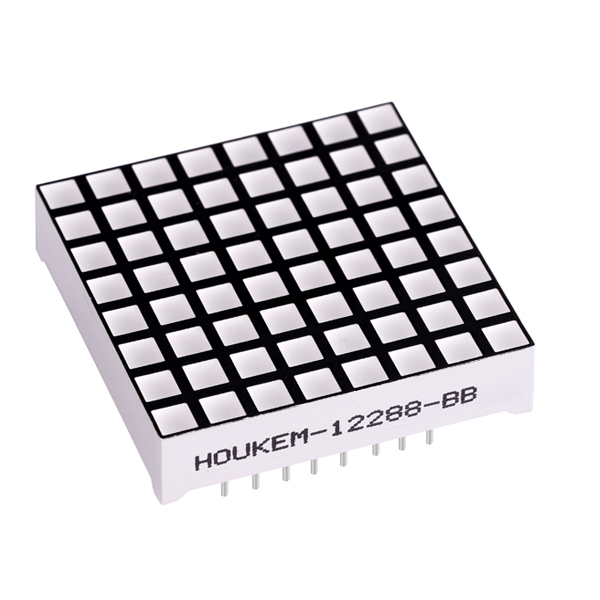

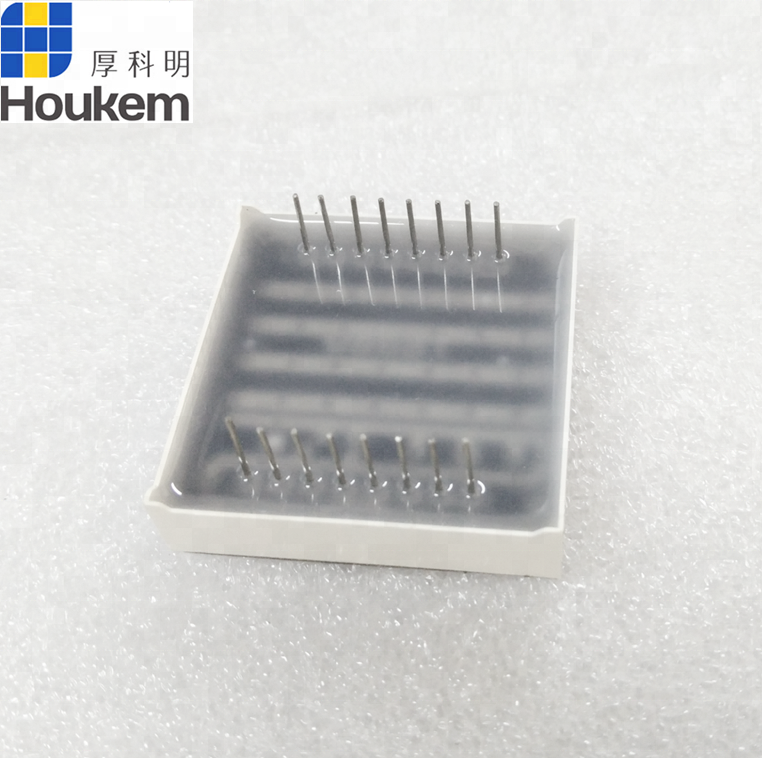

HOUKEM 12288 AW white square led matrix 8x8 common cathode led dot matrix display 3.0mm

dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.80 - $1.50 / piece
add to cart
Contact Now
  • Application:Indoor, elevator, bus sign, advertising sign, elevator
  • Color:white
  • Panel Size:32*32mm
  • Pixel Pitch:3
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-12288-AW
  • Brand Name:HOUKEM
  • use:advertising publish, shopping mall, exhibition hall, subway, elevator, Restaurant & Hotel Supplies
  • Pixels:2.54MM
  • Specification:--
  • Product name:8x8 square led dot matrix
  • Screen Dimension:31.7*31.7*8mm
  • Warranty:2Years
  • Luminous Intensity:150-200mcd
  • PCB Polarity:common cathode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE ROHS ISO9001
Product Describtion

CC 8x8 square dot matrix display white color 8x8 led matrix for elevator display

Features:

1, Low consumption

2, High brightness

Product details:

HOUKEM-12288-AW---------common cathode(CC)

HOUKEM-12288-BW---------common anode(CA)

Dual color, rgb are available

Item No.HOUKEM-12288-AW
Dimension31.7*31.7*8mm
square dot3*3mm
Surface color Black / Grey
Segment colorWhite /Clear
Emitting color white

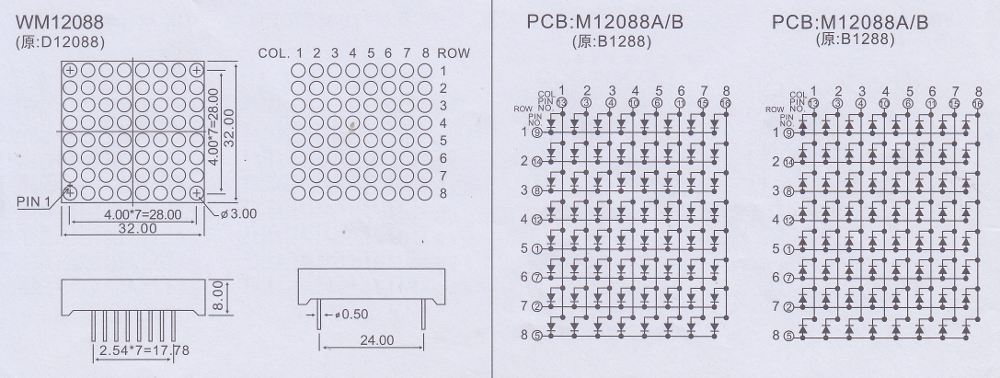

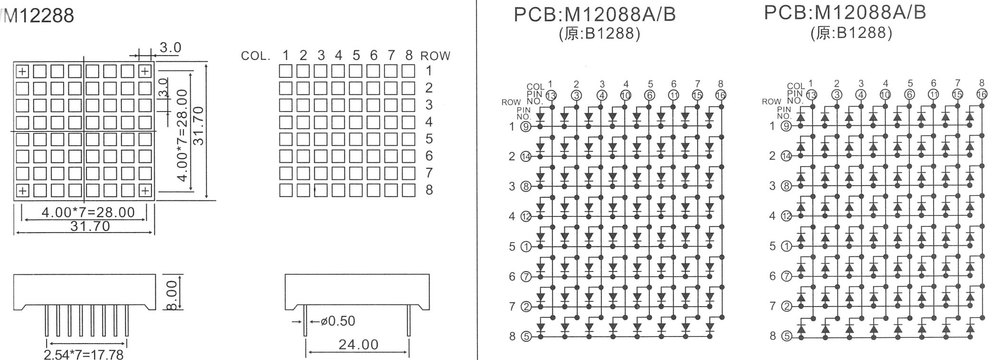

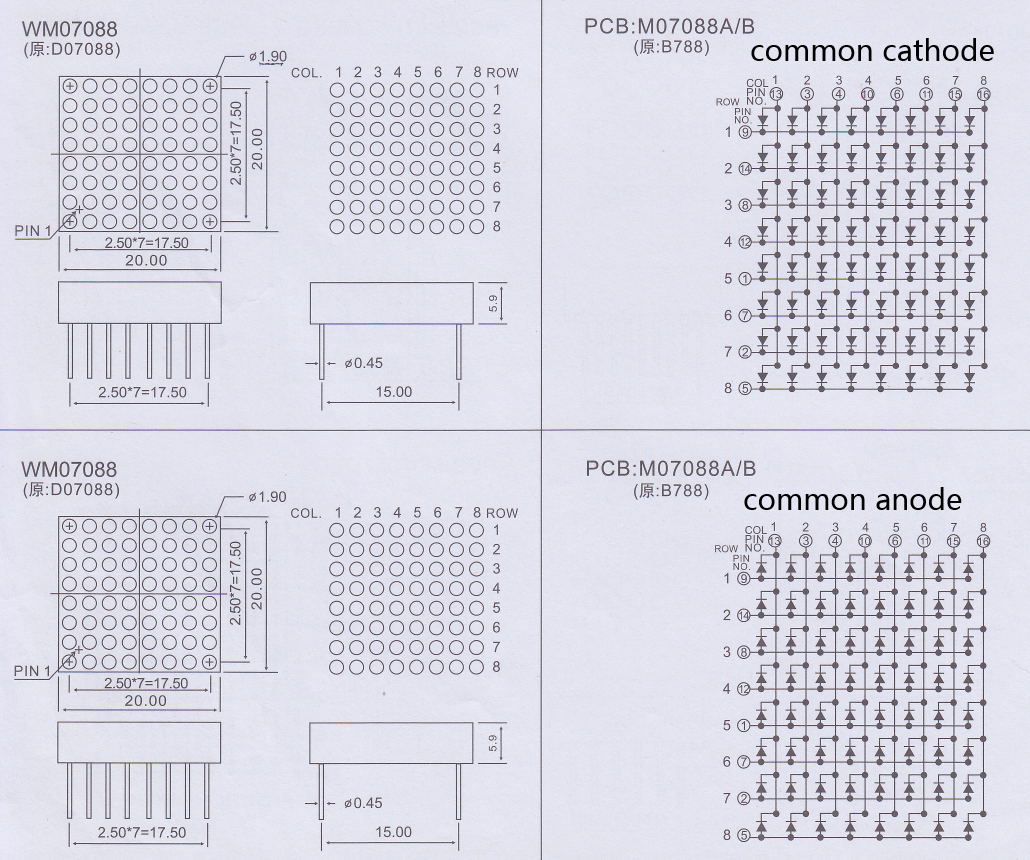

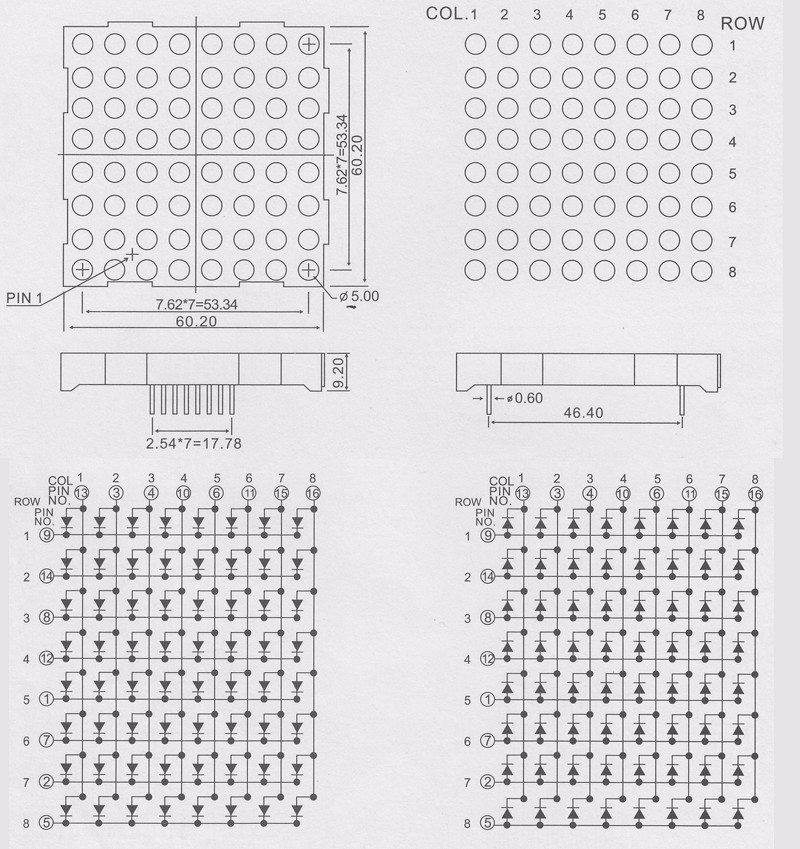

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber/orange

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

2

2.1

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.95

3.0

150

200

Pure green

IF=10-15mA

515-525

40

2.95

3.0

600

640

White

IF=10-15mA

-

-

2.8

2.9

180

200

Two years quality warranty
