8x8 3mm dot matrix red
8x8 3mm dot matrix red
8x8 3mm dot matrix red
8x8 3mm dot matrix red
8x8 3mm dot matrix red
8x8 3mm dot matrix red
Model No: HOUKEM-12088-BSR

3mm 8x8 dot matrix led display

dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.45 - $1.00 / piece
add to cart
Contact Now
  • Application:Indoor, Graphics, Household Appliances, elevator
  • Color:red
  • Panel Size:32*32*8mm
  • Pixel Pitch:20mm
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-12088-BSR
  • Brand Name:HOUKEM
  • use:advertising publish, exhibition hall, elevator, Restaurant & Hotel Supplies
  • Pixels:2.54mm
  • Specification:--
  • Usage:Indoor
  • Product name:8*8 led dot matrix display
  • Warranty:2Years
  • Forward Voltage:1.8-2V
  • PCB Polarity:common anode
  • operating temperature:-20 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE ROHS ISO9001
Product Describtion

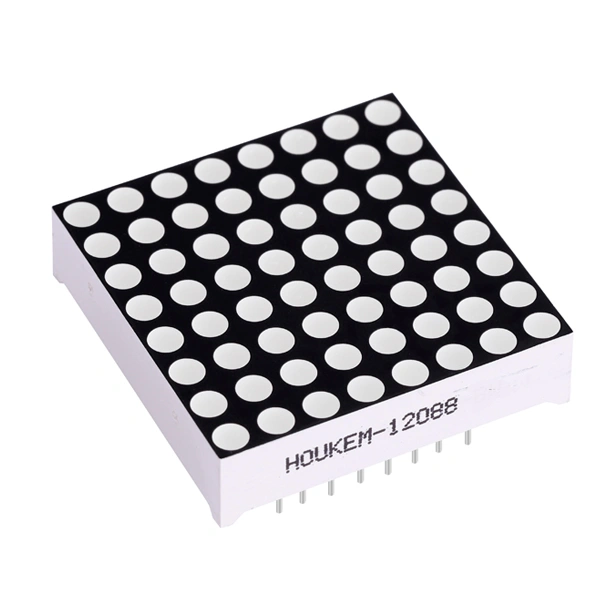

Red dot matrix module 8*8 led matrix 8x8 3mm

HOUKEM-12088-ASR----common cathode(CC)

HOUKEM-12088-BSR----common anode(CA)

1,Low consumption 2, High brightness

Item No.HOUKEM-12088-BSR
Dimension32*32*8mm
Surface color Black /Grey
epoxy colorwhite
common anode in row
Emitting color super red

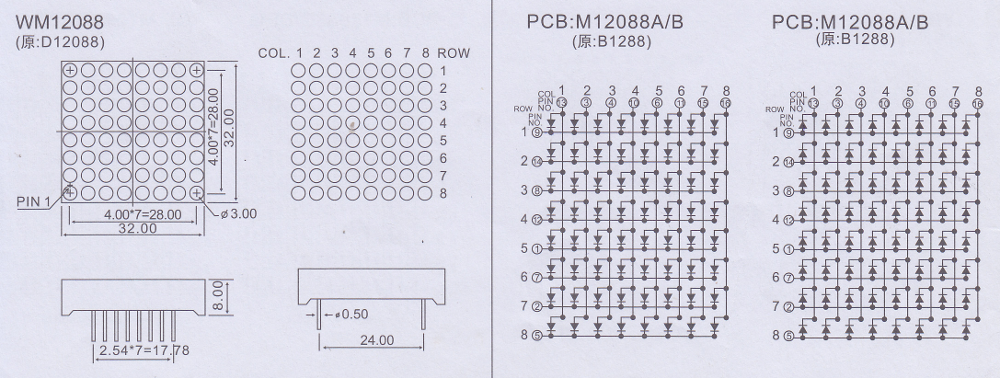

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

150

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.95

3.0

150

200

Pure green

IF=10-15mA

515-525

40

2.95

3.0

600

640

White

IF=10-15mA

-

-

2.8

2.9

180

200
