Model No: HOUKEM-80011-BUR
Hot Anode big 8 inch 7 segment display 1 digit ultra red color - Houke
7 segment display houkem is led 7 segment display professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $13.50 - US $15.00 / piece
- Application:Indoor
- Color:red
- Panel Size:142*230mm
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-80011-BUR
- Brand Name:HOUKEM
- use:advertising publish
- Pixels:2.54
- Specification:-
- Product name:8inch 1 digit 7segment led display
- Warranty:2Years
- Luminous Intensity:300-350mcd
- PCB Polarity:common anode
- operating temperature:-35 ~ +85 ℃
- OEM:YES
- Custom made:YES
- emitting color:ultra red2
Product Describtion

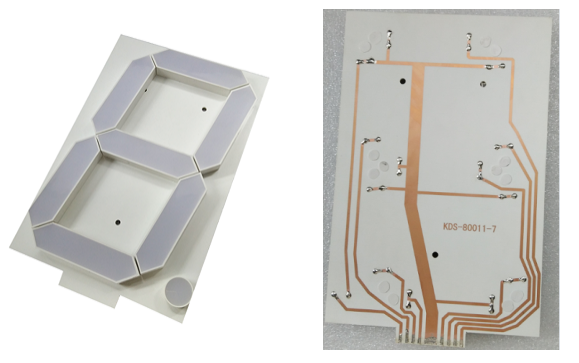

Anode big 8 inch 7 segment display 1 digit ultra red color
1,Low consumption
2, High brightness
| Item No. | KEM-80011-BUR2 |
| Dimension | 142*230mm |
| Surface color | Black /Grey |
| epoxy color | white |
| Emitting color | ultra red2 |

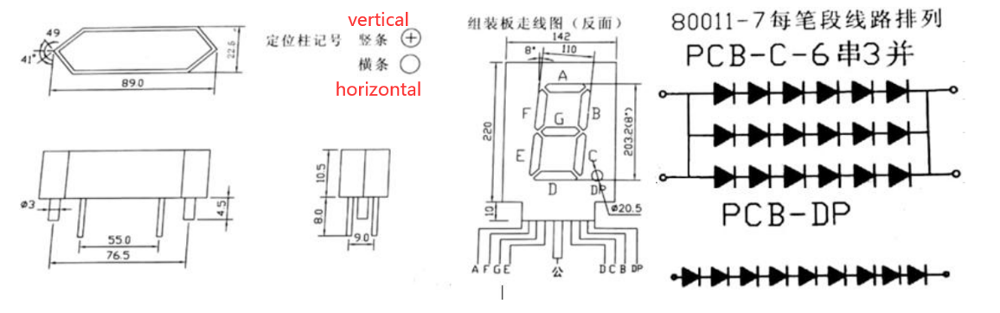

Package dimension & Internal circuit diagram
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=15mA | 625-640 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red2 | IF=15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=15mA | 515-525 | 40 | 2.8 | 3.0 | 600 | 600 |
White | IF=15mA | - | - | 2.8 | 3.0 | 180 | 200 |
Our Services
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offer---- SAMPLES for your test within 3-5 days.
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green,
blue, yellow, white, amber, Bi-color, RGB.
4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
