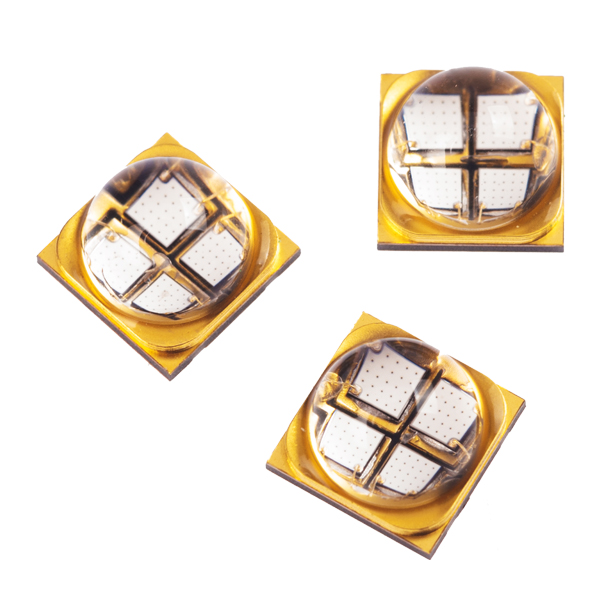

High optical output 3w 265nm sterilizing uvc led diode
- Color Temperature(CCT):2700K (Soft Warm White)
- Input Voltage(V):DC 6V
- Warranty(Year):2-Year
- Type:UV LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):0.5
- Lifespan (hours):10000
- Working Time (hours):10000
- Chip Material:INGAN
- Emitting Color:Purple
- Luminous Intensity:43-65mW
- Optical Attenuation(%):0.5
- Power:3W
- Power Dissipation:3
- Viewing Angle(°):60/120
- Color Rendering Index(Ra):80
- Color Temperature:265nm
- Operating Temperature(℃):-30 - 60
- Storage Temperature(℃):-50 - 90
- Place of Origin:Guangdong, China
- Brand Name:Houkem
- Radiant Intensity(mW/Sr):48
- Wavelength:265nm, 260-270
- Product name:265nm uvc led
- Size:6565
- Lifespan:10000 Hours
- LED chips:PW
- Voltage:5.5-6.2V
- Current:350-400mA
- Certification:ce, RoHS
High optical output 3w 265nm sterilizing uvc led diode
Items | Symbol | Maximum | Units |
DCForward Current | IF | 350-400 | mA |
DC Forward voltage | Uf | 5.5-6.2 | V |
Radiant power | Pr | 43-65 | mW |
Power consumption | PD | 3.0 | W |
Peak Wavelength | Wp | 265 | nm |
View angle | Vd | 60/90/120 | . |

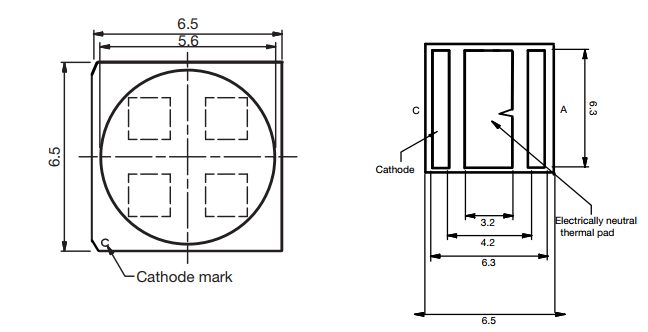

Drawing:
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
Q5: What's your quotation terms?
FOB, CIF, CFR, EXW are available.
Q6: How about your quality?

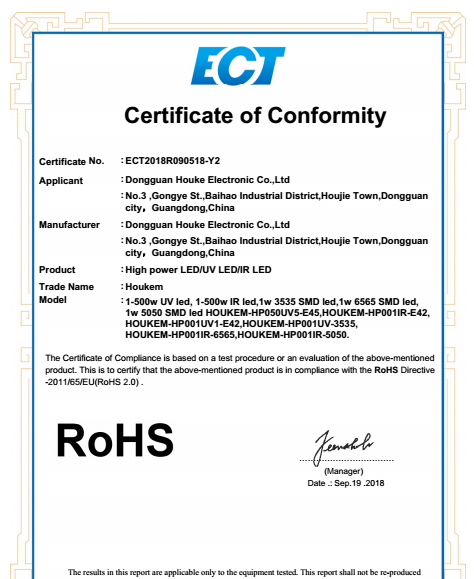

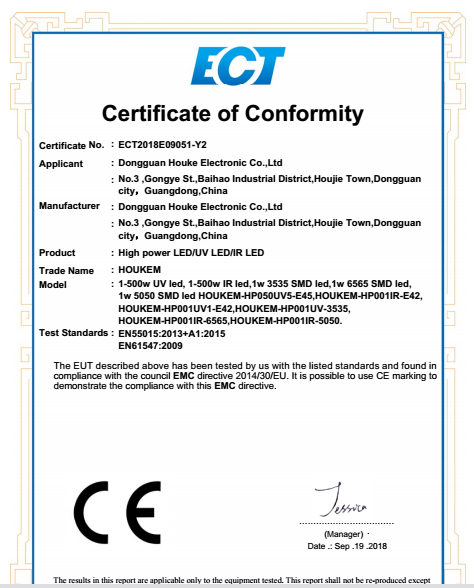

Our products are CE, Rose and ETL listed.

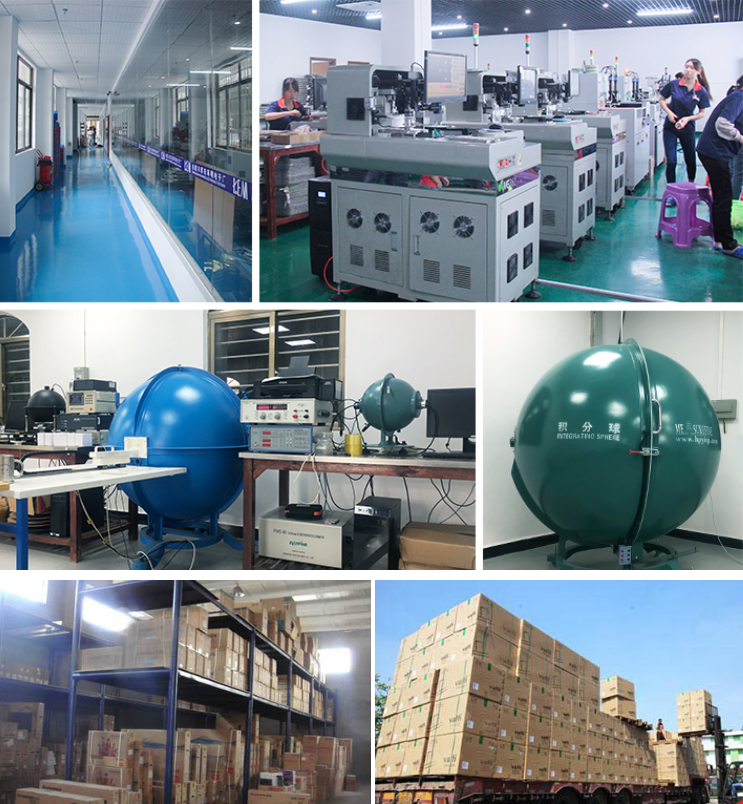

With over 16 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 2 years warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
