Price:
USD 1.80-2.00
Delivery:
FOB
Minimum order quantity:
10
Quantity:
  • Type:High Power LED
  • Chip Material:AlGaInP
  • Power:1-3W
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Emitting Color:UV
  • Luminous Intensity:70
  • Luminous Flux(lm):70
  • Optical Attenuation(%):1
  • Power Dissipation:1
  • Viewing Angle(°):60 or 120
  • Color Rendering Index(Ra):80
  • Color Temperature:standard
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:KEM


Product Description

 business

High quality 365nm 375nm 1w UV High Power Led Light epileds chip





Electeical Characteristics at 350mA,Ta=25°C

Color

Part No

Forward  Voltage

Units

Min

Typ

Max

UV

KEM-HP001UV365-E45

3.0

-

3.4

V





















Luminous Flux at 350mA,Ta=25°C





Color

Part No

Wavelength



CRI

Flux

Units

Min

Typ

Max



UV

KEM-HP001UV365-E45365-370nm

80

70



90

mw

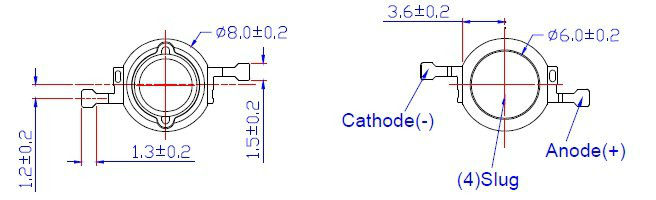

380nm 390nm 405nm 420nm 440nm 3W UV High Power Led Light

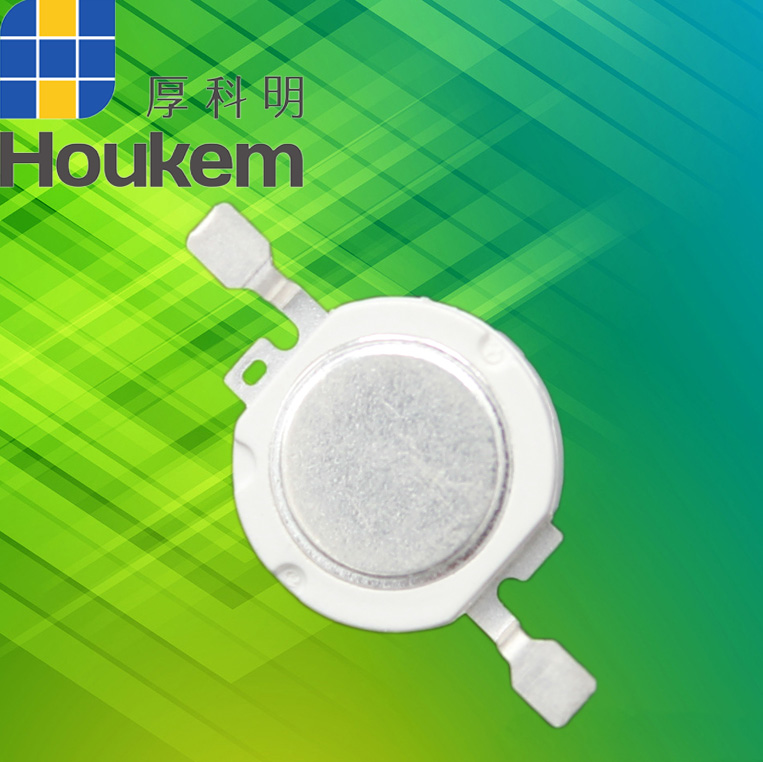

 1w back





Absolute Maximum Ratings



Parameter

Symbol

Rating

Unit

UV



DC Forward Current(mA)

If

350

mA

Peak Pulse Current(mA)

If

350

mA

Reverse Voltage

VR

5

V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-20--60

°C

Storage Temperature

Tstg

-20--80

°C

Soldening Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V







































 Series information:



Part Number           Chip MaterialEmitting Color               Forward voltageForward currentLuminousViewing angle (Deg)
KEM-HP003WW-E35InGan2500-4500K3.0-3.3V600mA100-110lm120
KEM-HP003PW-E35InGan4500-7000K3.0-3.3V600mA110-120lm120
KEM-HP003CW-E35InGan7000-15000K3.0-3.3V600mA110-120lm120
KEM-HP003RW-E35AIGainpRed 620-630nm2.0-2.4V600mA60-670lm120
KEM-HP003DR-E35AIGainpRed 650-670nm2.0-2.4V600mA40-50lm120
KEM-HP003GW-E35InGanGreen 530-540nm3.0-3.3V600mA80-90lm120
KEM-HP003BW-E35InGanBlue 460-470nm3.0-3.3V600mA100-120lm120
KEM-HP003YW-E35AIGainpYellow 590-595nm2.0-2.4V600mA40-50lm120
KEM-HP003UV-E45InGanUV 385-420nm3.0-3.3V600mA40-90mw120
KEM-HP003UV365-E45InGanUV 365nm3.4-3.8V600mA70-90mw120





Certifications
 Hongke-certificates

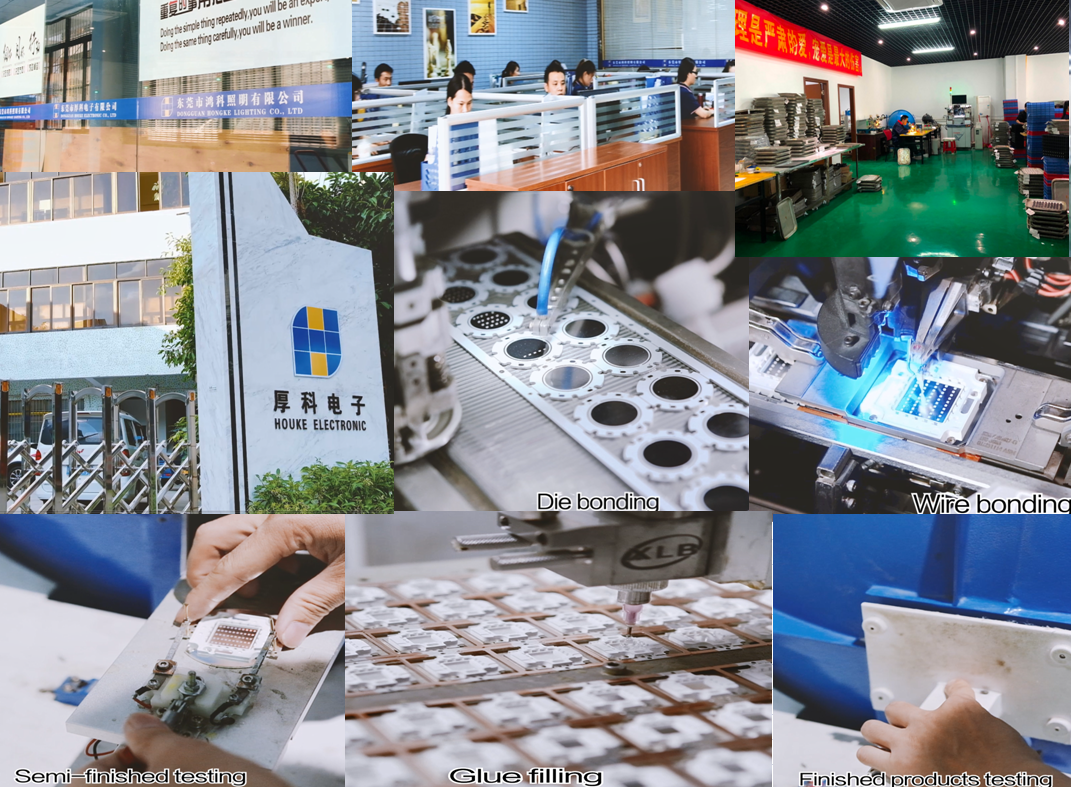

Factory pictures

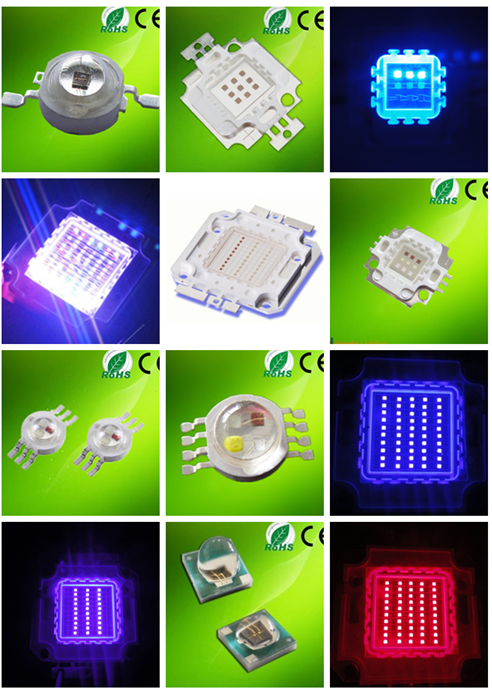

 factory-LED

Related Products

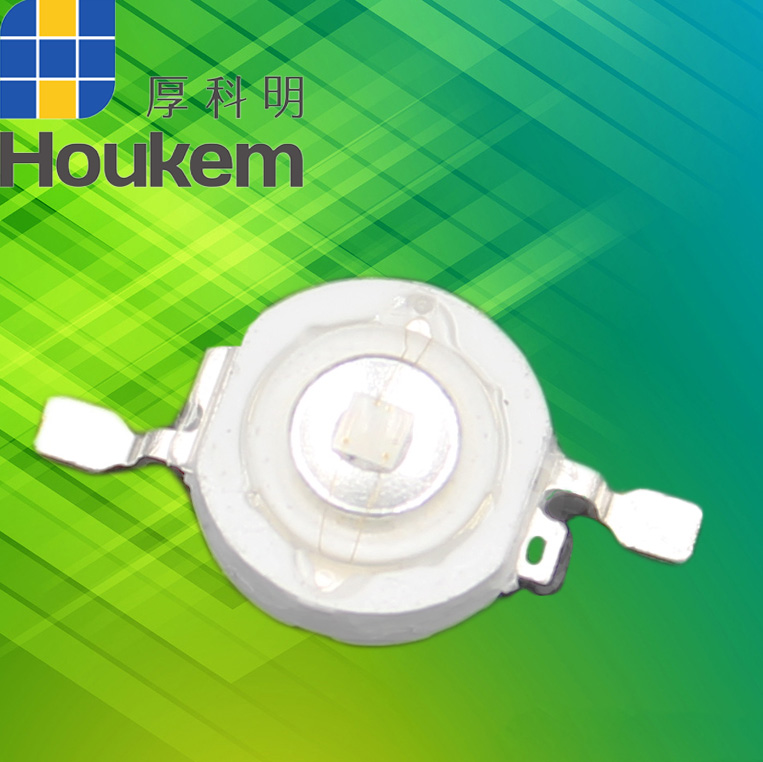

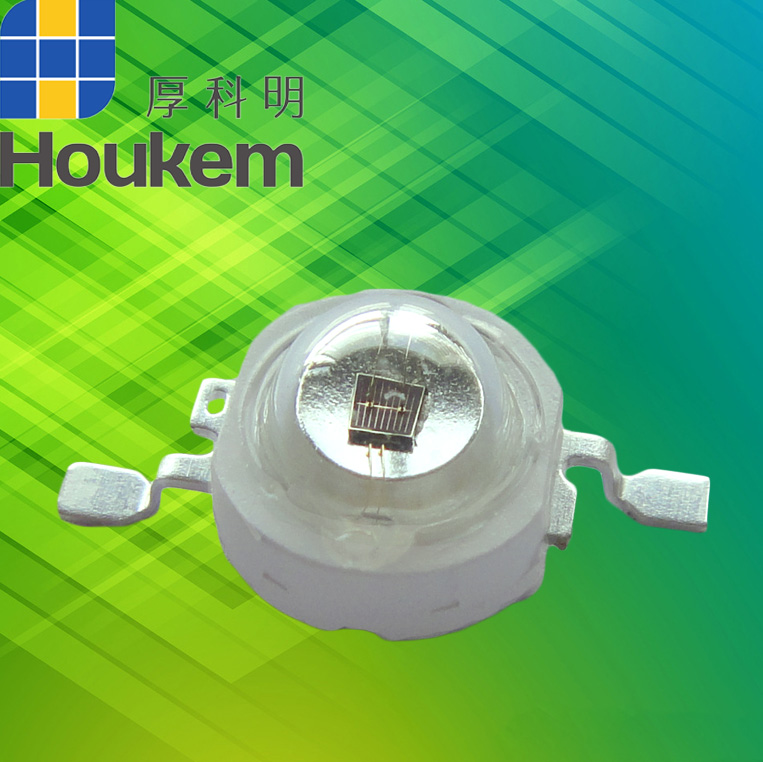

LED1w ir1w blue
