High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led
High quality 30 watt high power 1040nm 1050nm ir led

High quality 30 watt high power 1040nm 1050nm ir led

Price:
USD 100.00-960.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
Shenzhen
Quantity:
  • Type:High Power LED
  • Chip Material:InGaN
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Emitting Color:IR
  • Power:30W
  • Optical Attenuation(%):2
  • Viewing Angle(°):140 Degree
  • Color Rendering Index(Ra):80
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:HOUKEM


Product Description

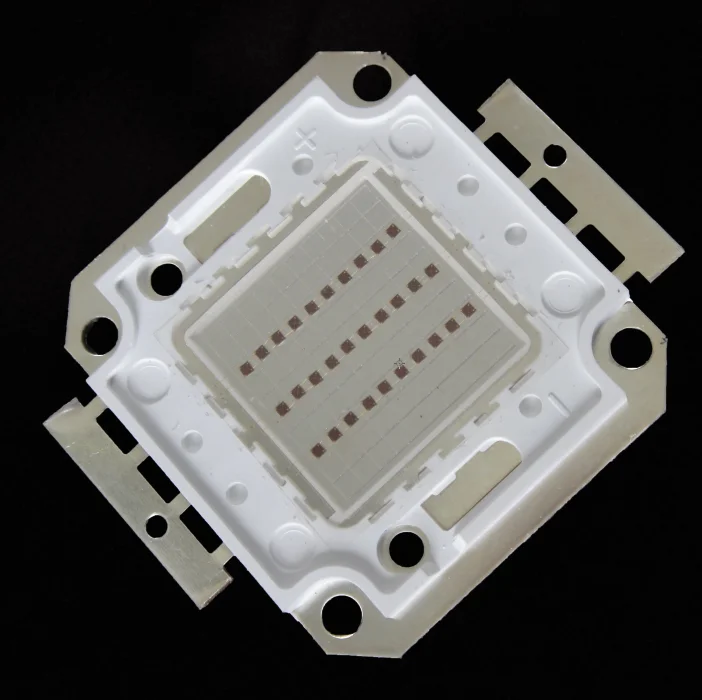

 30w high power ir led 1040nm 1050nm

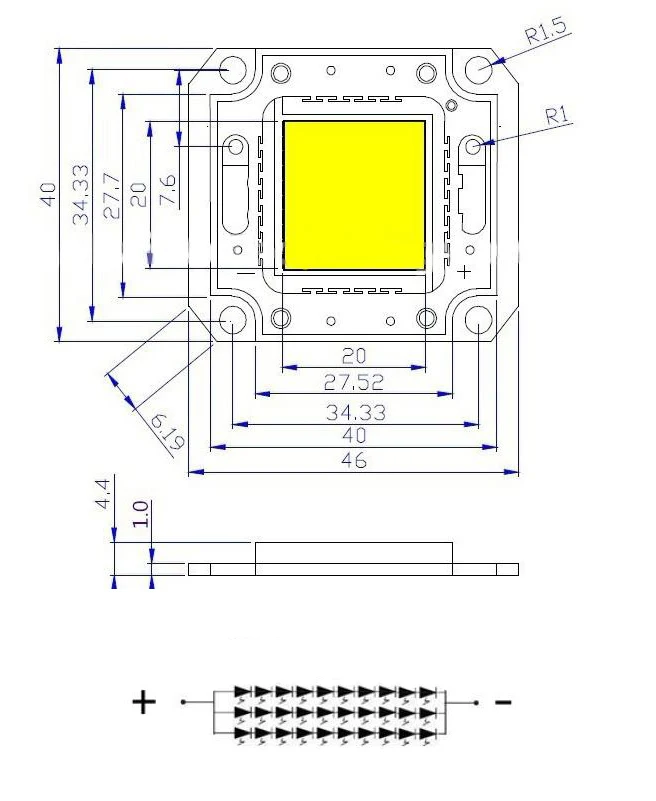

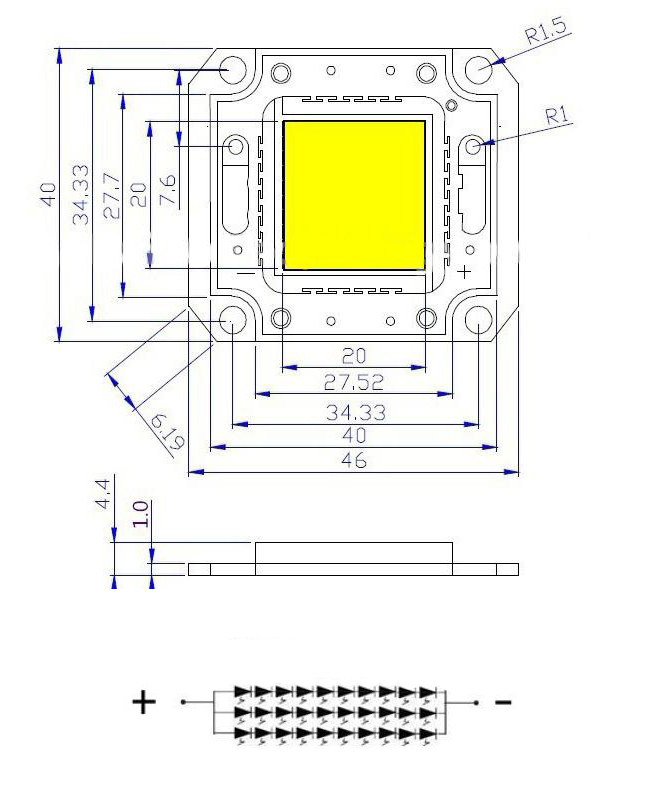

 30W







 Electeical Characteristics at 1050mA,Ta=25°C

Color

Part No

Forward  Voltage

Units

Min

Typ

Max

IR

KEM-HP30IR-E42-1050

11

-

13

V











Parameter

Symbol

Rating

Unit

IR



DC Forward Current(mA)

If

1050

mA

Peak Pulse Current(mA)

If

1050

mA

Reverse Voltage

VR

5

V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-20--60

°C

Storage Temperature

Tstg

-20--80

°C

Soldening Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V





















































 Luminous Flux at 1050mA,Ta=25°C

Color

Part No



Wavelength




IR

KEM-HP30IR-E42-10501040-1050nm















30w red

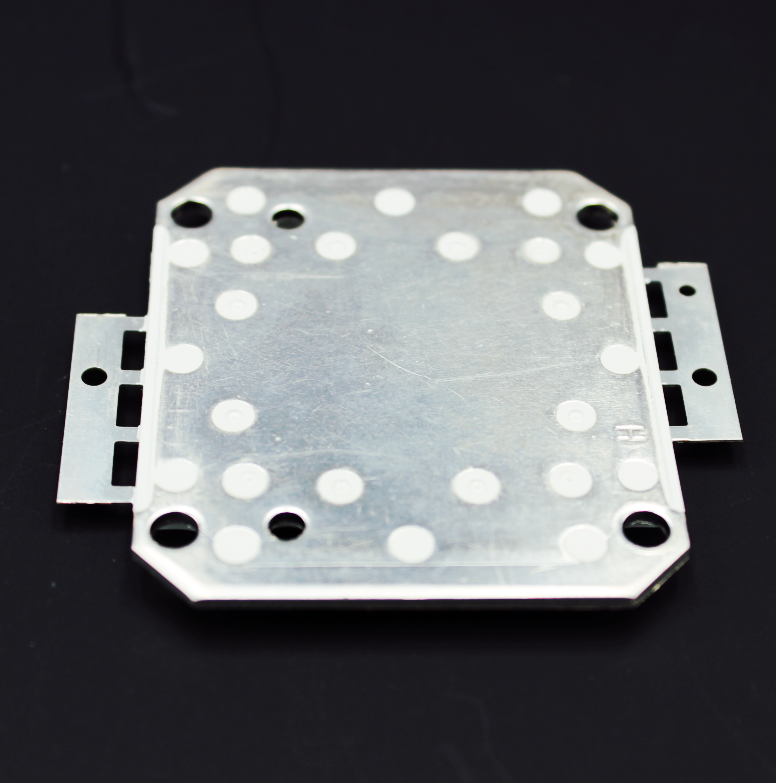

100W B









Certifications



Hongke-certificates

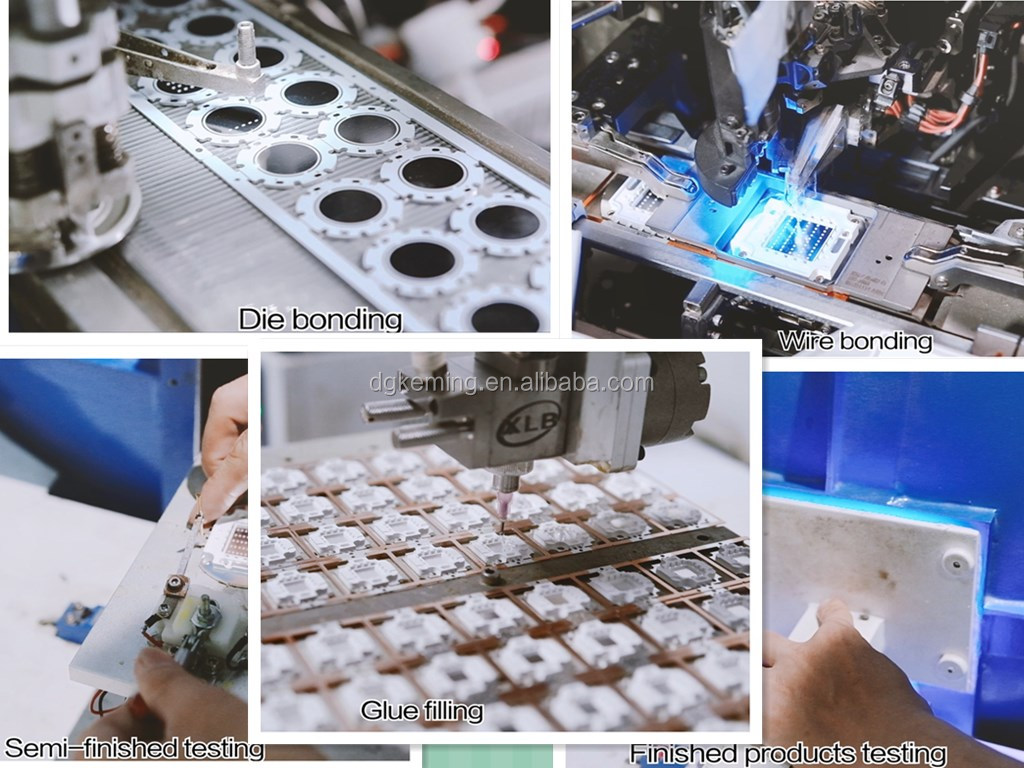

Factory pictures



process7 segment dot matrix LED









Packing





express-611
