Model No: HOUKEM-HP10W-460
High quality 10w 460nm 460 nm 465nm led high power blue led 465nm with ROHS certificate
uv led houkem is uv led professional manufacturer
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
1000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $1.90 - US $2.20 / pieces
- Input Voltage(V):DC 9-10V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:INGAN
- Emitting Color:blue
- Power:10w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:10W High Power blue LED 465nm
- Emitting Colour:blue
- Forward Current:900-1050mA
- Forward Voltage:9-10v
- Wave length:460-465nm
- Chip brand:Epileds
- Other Wavelength:460-465nm
- Chip Size:45mil
- Base material:Red Copper
- Certification:RoHS, CE
Product Description

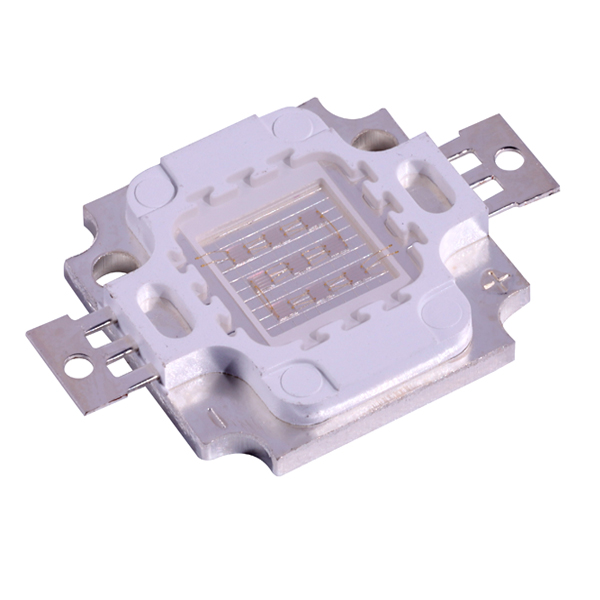

High power 10w 460nm blue led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 1050mA | 9 | 10 | 10 | V |
Radiant power Flux | Φv | IF = 1050mA | 4320 | 4500 | 4680 | mW |
Viewing Angle | 2θ1/2 | IF = 1050mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 1050mA | 460 | 460 | 465 | nm |

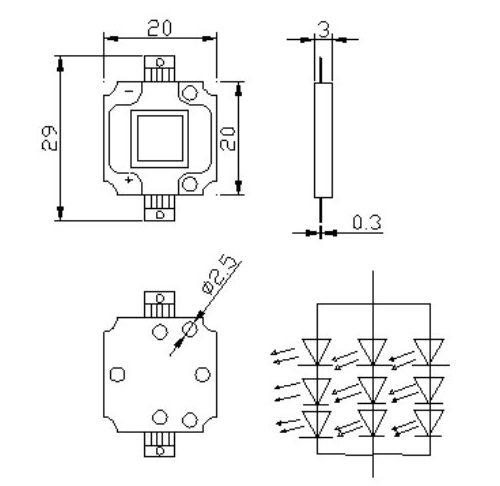

3 series& 3parallel
