Price:
USD 956.00-960.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
Shenzhen
Quantity:
  • Type:High Power LED
  • Chip Material:AlGaInP
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Emitting Color:IR
  • Power:100W
  • Optical Attenuation(%):2
  • Viewing Angle(°):140 Degree
  • Color Rendering Index(Ra):80
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:HOUKEM


Product Description



100w high power ir led 1040nm 1550nm

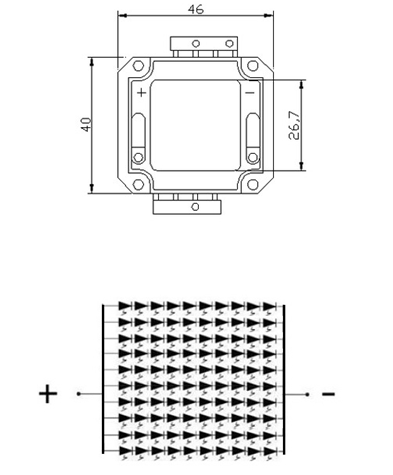

 100W dimension







 Electeical Characteristics at 3500mA,Ta=25°C

Color

Part No

Forward  Voltage

Units

Min

Typ

Max

IR

KEM-HP100IR-E42

11

-

13

V









Parameter

Symbol

Rating

Unit

IR



DC Forward Current(mA)

If

3500

mA

Peak Pulse Current(mA)

If

3500

mA

Reverse Voltage

VR

5

V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-20--60

°C

Storage Temperature

Tstg

-20--80

°C

Soldening Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V





















































 Luminous Flux at 3500mA,Ta=25°C

Color

Part No



Wavelength




IR

KEM-HP100IR-E421540-1550nm

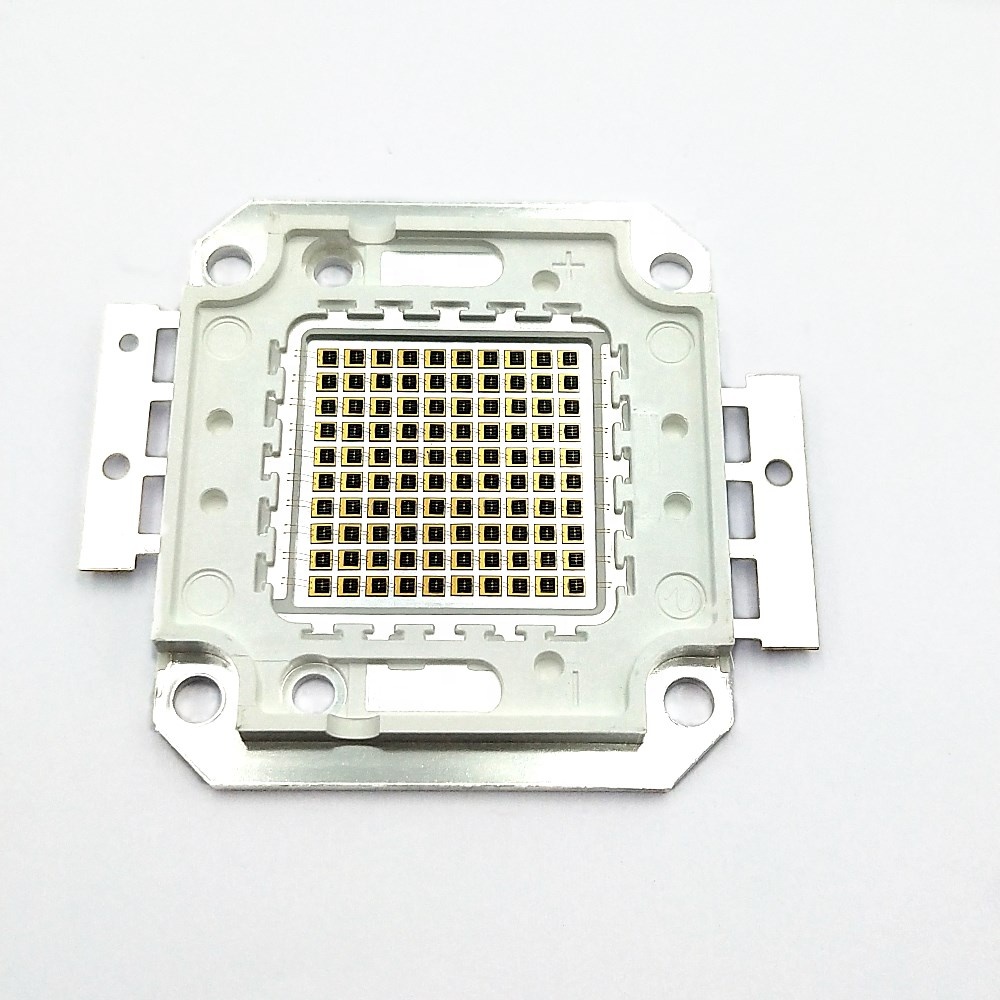

100w ir.jpg

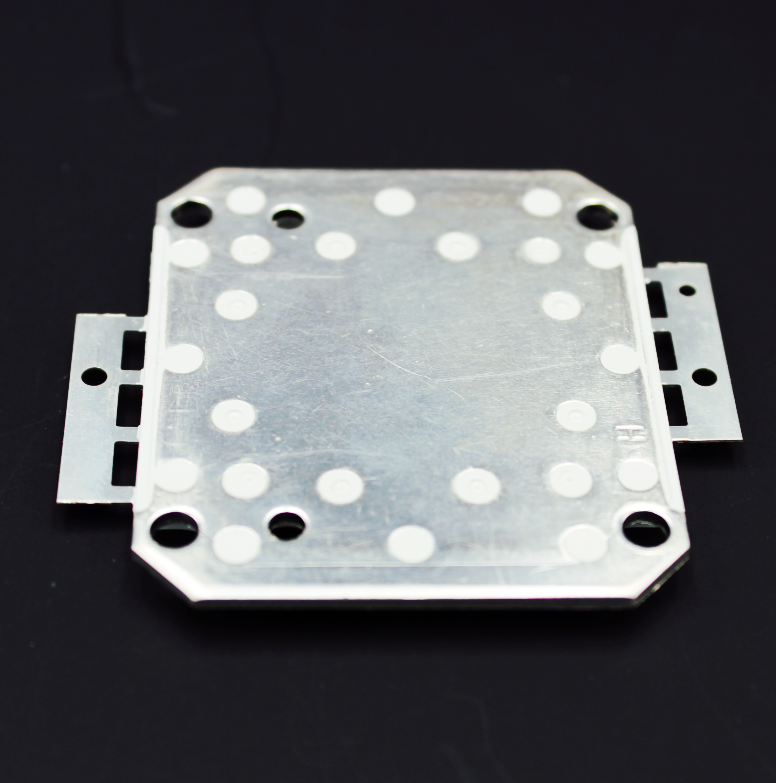

100W B









Certifications



Hongke-certificates

Factory pictures



process7 segment dot matrix LED









Packing





express-611
