Model No: Houkem-TO39-UV
high power 254nm uvc led TO39 0.2w 0.5w
TO39 254nm uv led houkem is uv led professional manufacturer
Delivery :
EXW
minimum order :
5 pieces
Supply Ability :
1000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $78.00 - US $100.00 / pieces
- Model Number:Houkem-TO39-UV
- Type:LED
- Place of Origin:Guangdong, China
- Brand Name:Houkem
- Package Type:Through Hole
- Application:Medical treatment
- Supplier Type:Original manufacturer, ODM
- Media Available:datasheet
- Max. Forward Voltage:5-6.5v
- Max. Reverse Voltage:5v
- Max. Forward Current:20-600mA
- Max. Reverse Current:10uA
- Brand:TO39
- Diode Type:LED
- Technology:TH
- Voltage - Peak Reverse (Max):5v
- Current - Average Rectified (Io):100mA
- Voltage - Forward (Vf) (Max) @ If:6v
- Current - Reverse Leakage @ Vr:10uA
- Operating Temperature:-30-55℃
- Q @ Vr, F:160 @ 4V, 50MHz
- Power - Max:3W
- Product name:uv led TO39
- Wavelength:uva uvb uvc
- power:0.2-0.6w
- Forward Current:20-600mA
- Warranty:5000 hours
- Radiant flux:2mw-20mw
- Voltage:5-6.5v
ProductDetails:
high power led to39 uv photodiode 0.2w 0.5w 1w 2w 3w
Wavelength: | 250-260nm | Forward current: | 20-100mA | |||
Radiant power: | 2-20mw | Forward voltage: | 5-6.5v | |||
Power: | 0.2-0.6w | Lens Viewing angle: | 7 degree | |||
For customized services, please kindly contact our sales for support. | ||||||
Images Details:

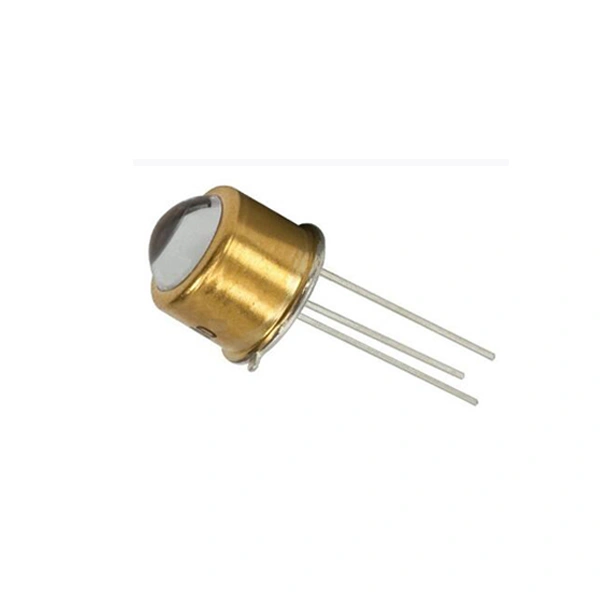

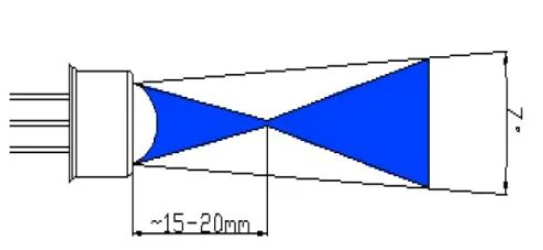

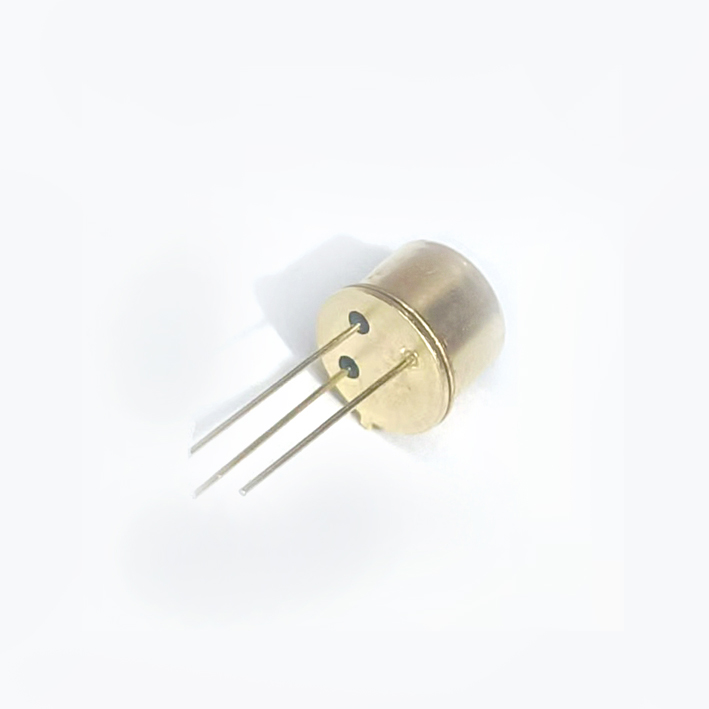

For TO39 LED, super narrow viewing angle of 7 degree with hemispherical quarts lens, standard metal can package, 3 leads,9mm through hole dip LED. Houkem TO39 LED chips cover UVC UVB UVA, such as TO39 , 255nm, 265nm, 275nm,305nm, 310nm, 340nm,365nm, 420nm, 2mW-60mw, widely used for biogical, chemical analysis, optical sensing, fluorescent spectroscopy, sterilizing, etc.
Features:
1.Brand chips
2.Mercury-free
3.Ozone free
4. Long Life time:5000hours
5.narrow viewing angle
6.Stable high quality
7.ISO 9001 Factory
2.Mercury-free
3.Ozone free
4. Long Life time:5000hours
5.narrow viewing angle
6.Stable high quality
7.ISO 9001 Factory

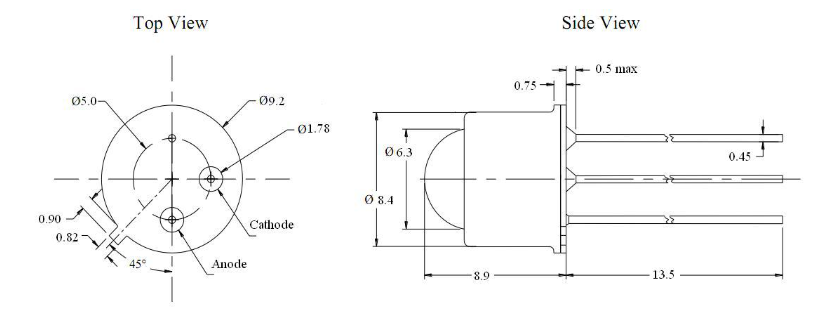

Dimension and internal circuit diagram:

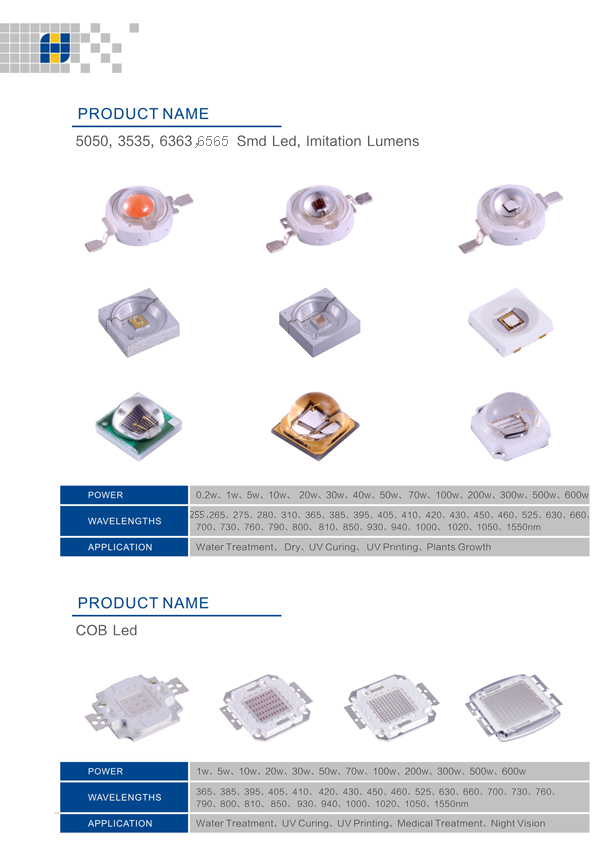

Relative products:
Certificate:

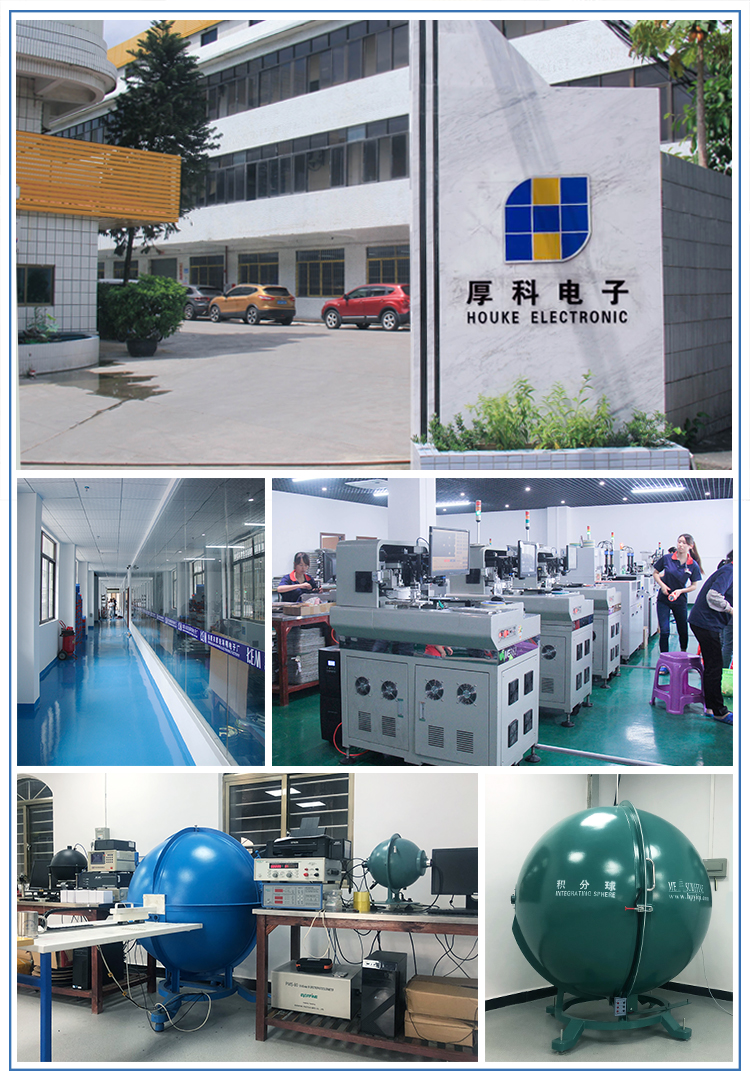

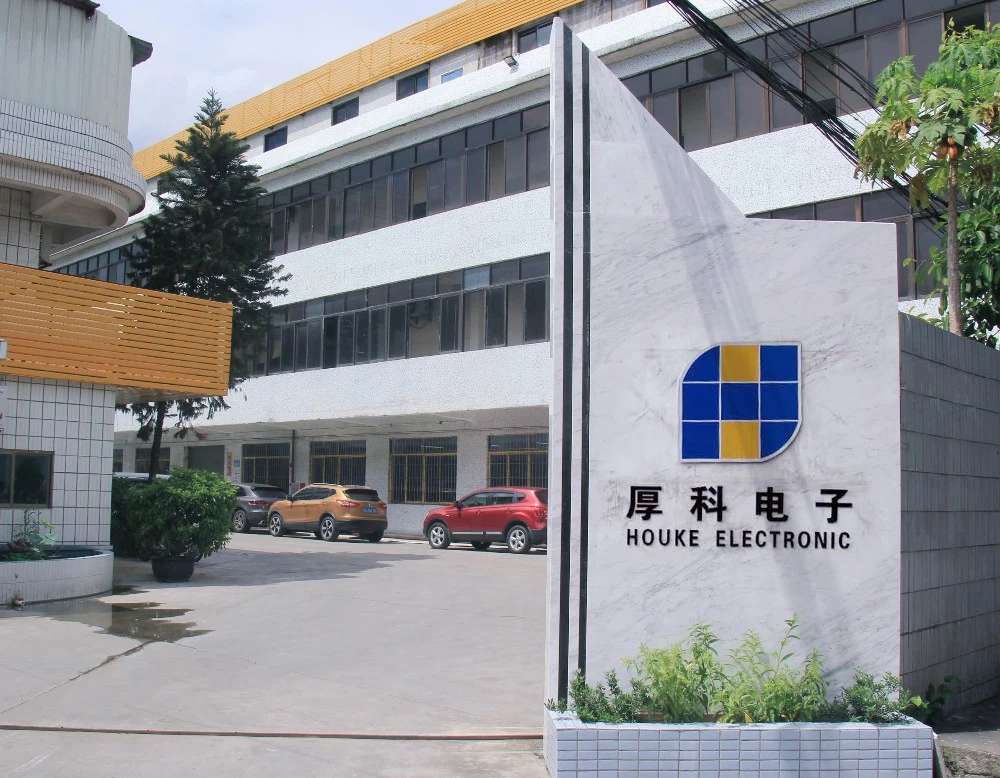

Our company:
Houkem
has 19 years professionalmanufacturer experience, development, production, sale and service of led grow lamp and high
power led. Also provide some solutions for the customers to grow Melons, greens, fruits and flowers, Brings good economic benefit
to them. In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and
Spectrum Test Machine. The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
power led. Also provide some solutions for the customers to grow Melons, greens, fruits and flowers, Brings good economic benefit
to them. In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and
Spectrum Test Machine. The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
FAQ:
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course The logo can be made according to your requirements once you reach our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 15-30 days for mass production.
Q5: What's your quotation terms?
FOB, CIF, CFR, EXW are available.
Q6: How about your quality?
Our products are CE, Rohs and ETL listed.
Q7: What's your warranty?
With over 19 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment.uvc:5000hours.other:50000hours.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), more easier to transport.
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course The logo can be made according to your requirements once you reach our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 15-30 days for mass production.
Q5: What's your quotation terms?
FOB, CIF, CFR, EXW are available.
Q6: How about your quality?
Our products are CE, Rohs and ETL listed.
Q7: What's your warranty?
With over 19 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment.uvc:5000hours.other:50000hours.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), more easier to transport.
