0.6W 254nm 3535 SMD UVC LED
254nm UV LED

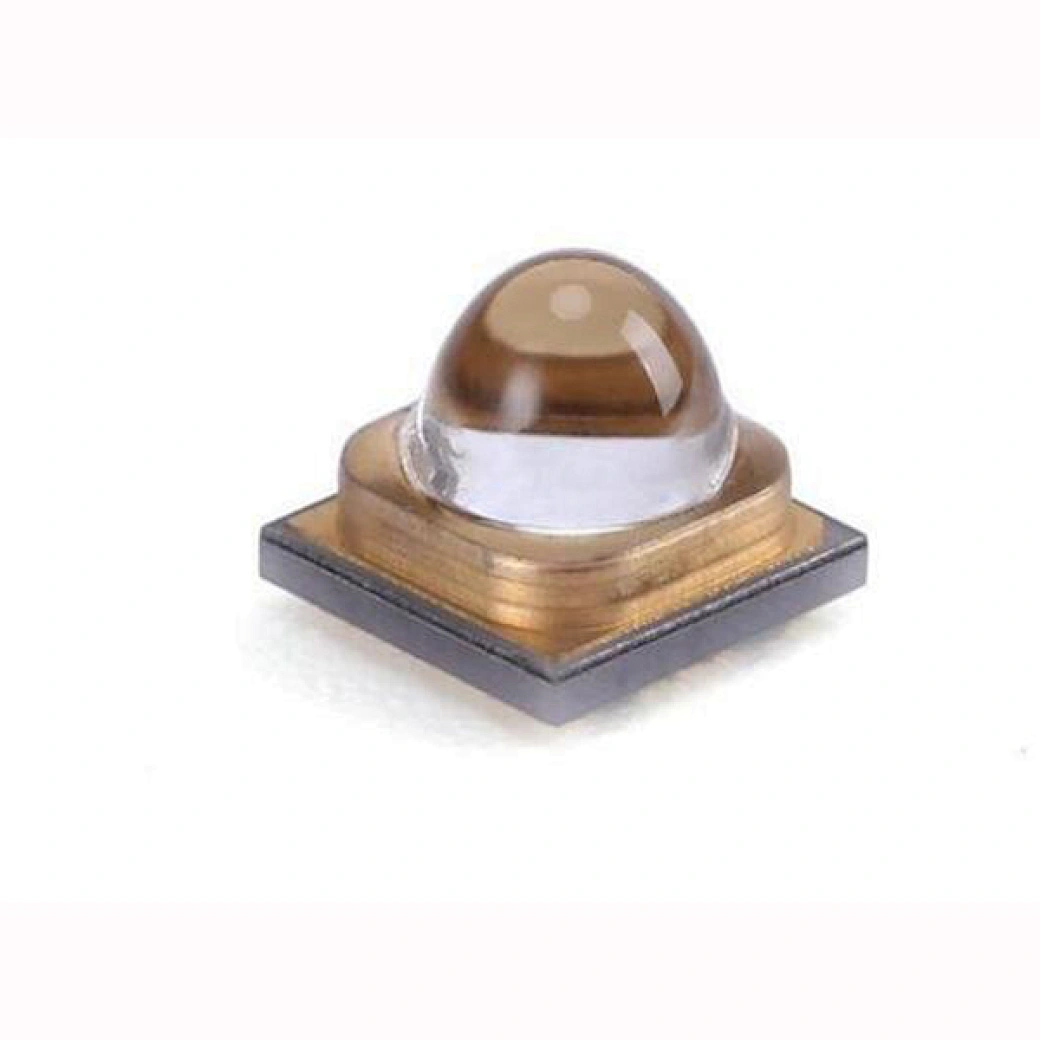

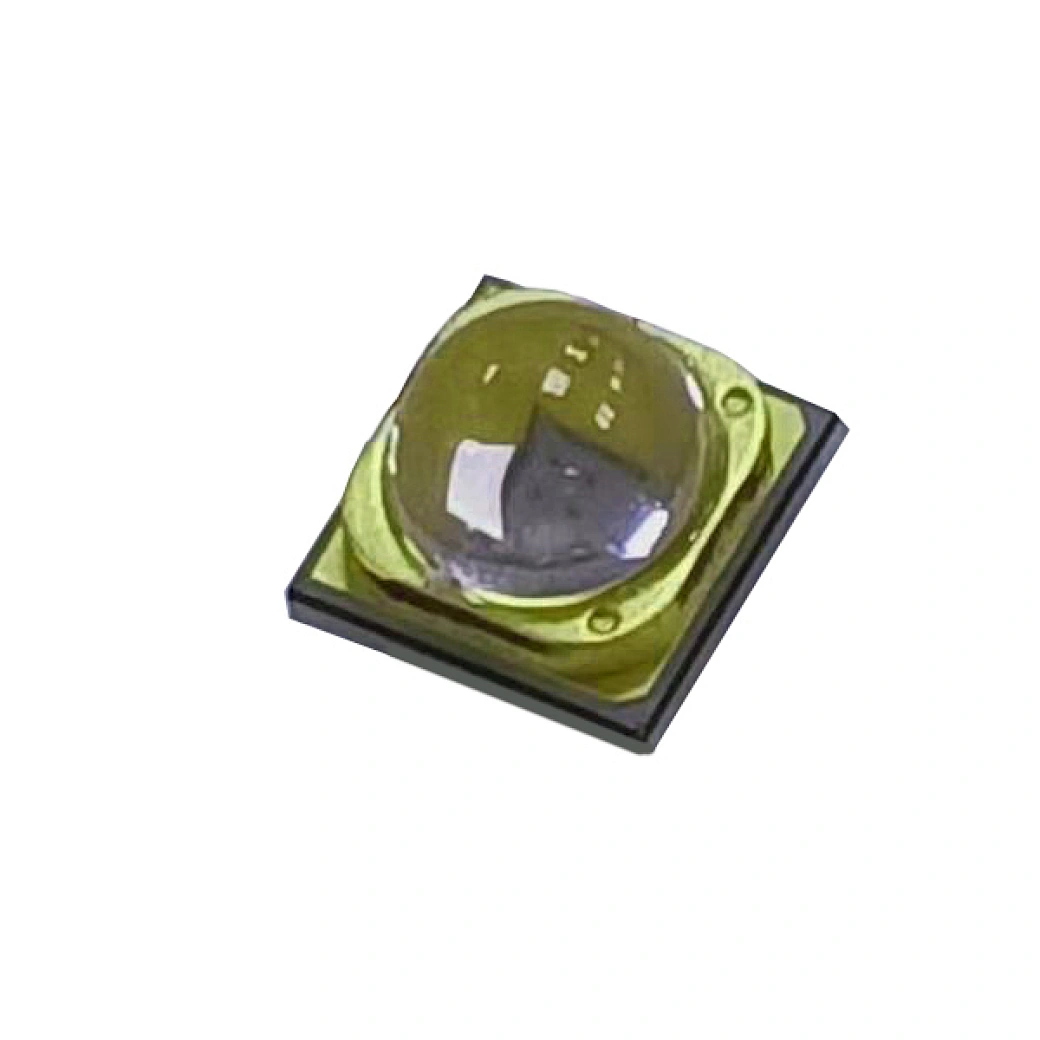

HOUKEM 0.6W 254nm UV LED is a compact 3535 SMD UVC LED designed for professional UV equipment and customized OEM applications. Model Houkem-03UVC255 features a 255nm wavelength within the 250–260nm range, 100mA forward current, 8–15mW output power, and a 90° viewing angle. Its 3.5 × 3.5mm surface-mount package provides a compact UV light source for equipment manufacturers and electronic component buyers.
This 254nm UV LED is suitable for UV sterilization equipment, industrial UV systems, and other applications requiring a compact deep-UV LED source. HOUKEM supports OEM customization, sample orders, factory-direct supply, and technical assistance for professional B2B projects.
Key Specifications of the 254nm UVC LED
| Parameter | Specification |
|---|---|
| Product Name | 254nm UV LED / UVC LED |
| Model Number | Houkem-03UVC255 |
| LED Type | UVC LED |
| Package Type | 3535 SMD Package |
| Power | 0.6W |
| Forward Current | 100mA |
| Forward Voltage | 5–7V |
| Wavelength | 255nm / 250–260nm |
| Output Power | 8–15mW |
| Viewing Angle | 90° |
| Lens Material | Quartz |
| Dimension | 3.5 × 3.5mm |
| Operating Temperature | -25°C to +50°C |
| Storage Temperature | -25°C to +50°C |
| Application | UV Sterilization |
| MOQ | 10 pieces |
| Supply Ability | 200 pieces/week |
| Sample Lead Time | 3–7 days |
| Mass Production Lead Time | 25–30 days |
| Delivery Terms | FOB, CIF, CFR, EXW |
| Customization | OEM / Customization Available |
The product is manufactured by Dongguan Houke Electronic Co., Limited, a manufacturer focused on UV LED, IR LED and high-power LED products. The company provides R&D support, customization, quality control, pre-sales consultation and after-sales service for international B2B customers.

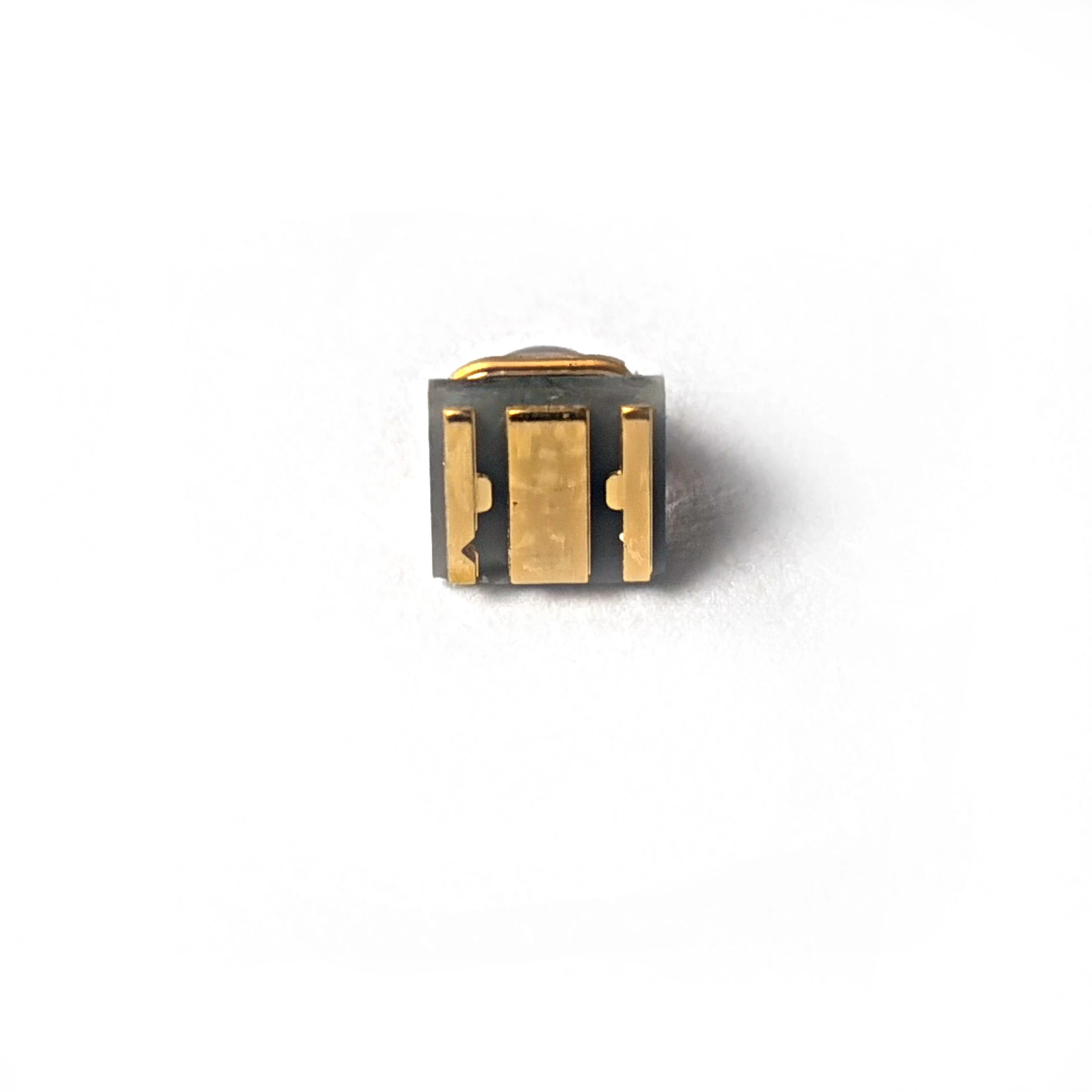

3535 SMD UV LED for Compact UV Equipment

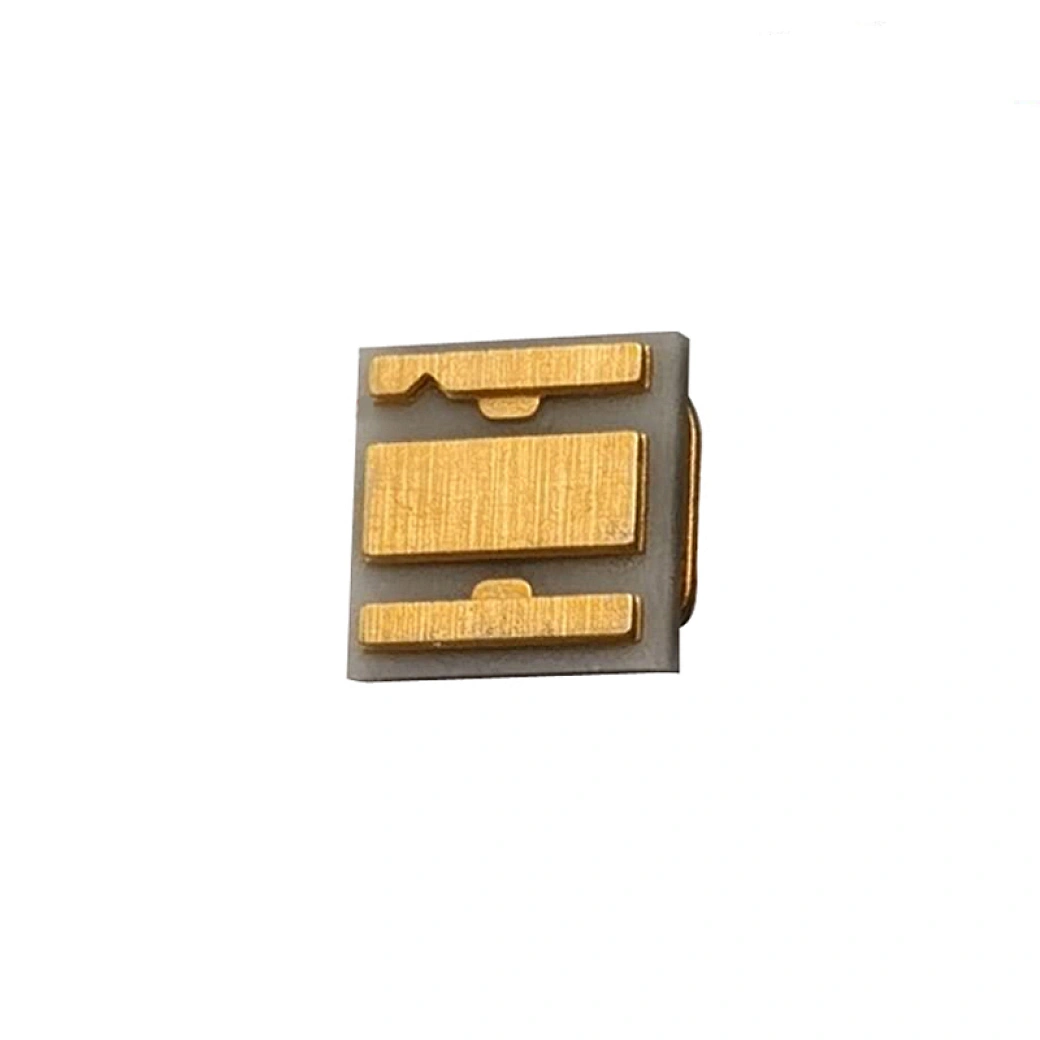

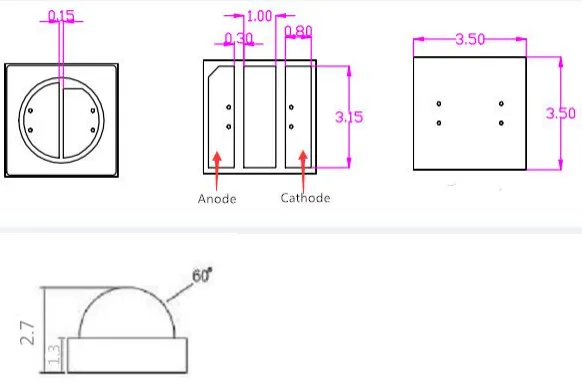

The 3535 SMD package is designed for applications where PCB space and component integration are important. With a 3.5 × 3.5mm package, this 254nm UV LED can be integrated into compact UV modules and electronic equipment.

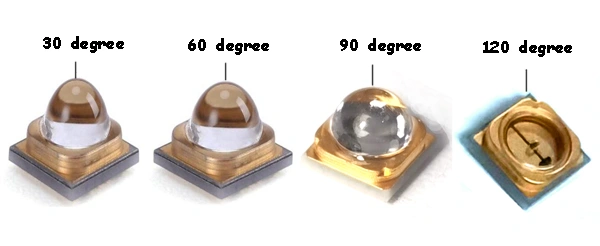

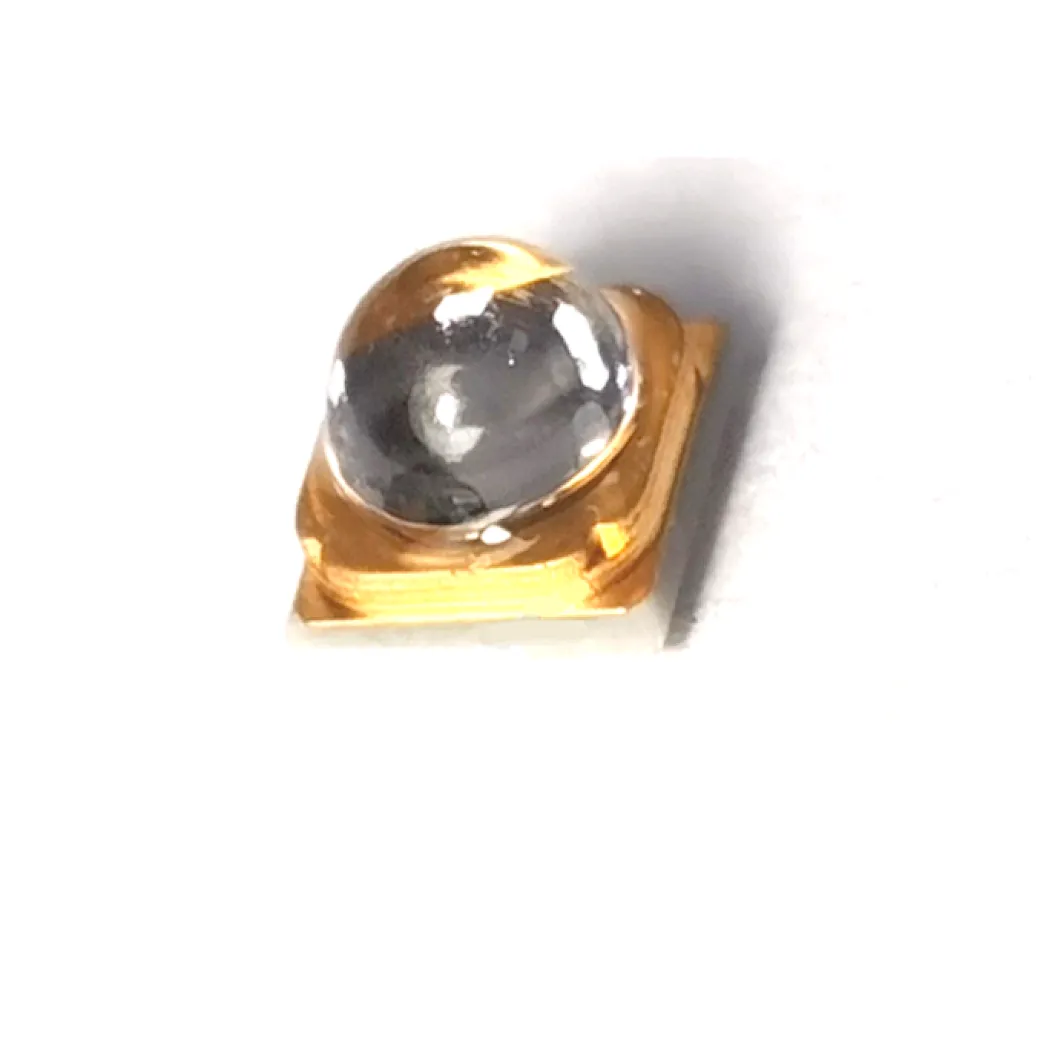

The 0.6W design operates at 100mA with a 5–7V forward voltage and provides 8–15mW output power. The 90° viewing angle and quartz lens are suitable for equipment designs that require a defined UV emission area.
For projects requiring different optical or electrical configurations, HOUKEM can discuss customized LED specifications, package requirements and application conditions with engineering and purchasing teams.
Applications of the 254nm UV LED
This 254nm UV LED is intended for professional equipment rather than general consumer lighting. Typical B2B applications include:
UV sterilization equipment
Industrial UV systems
UV disinfection equipment
Water treatment equipment
Air treatment and purification equipment

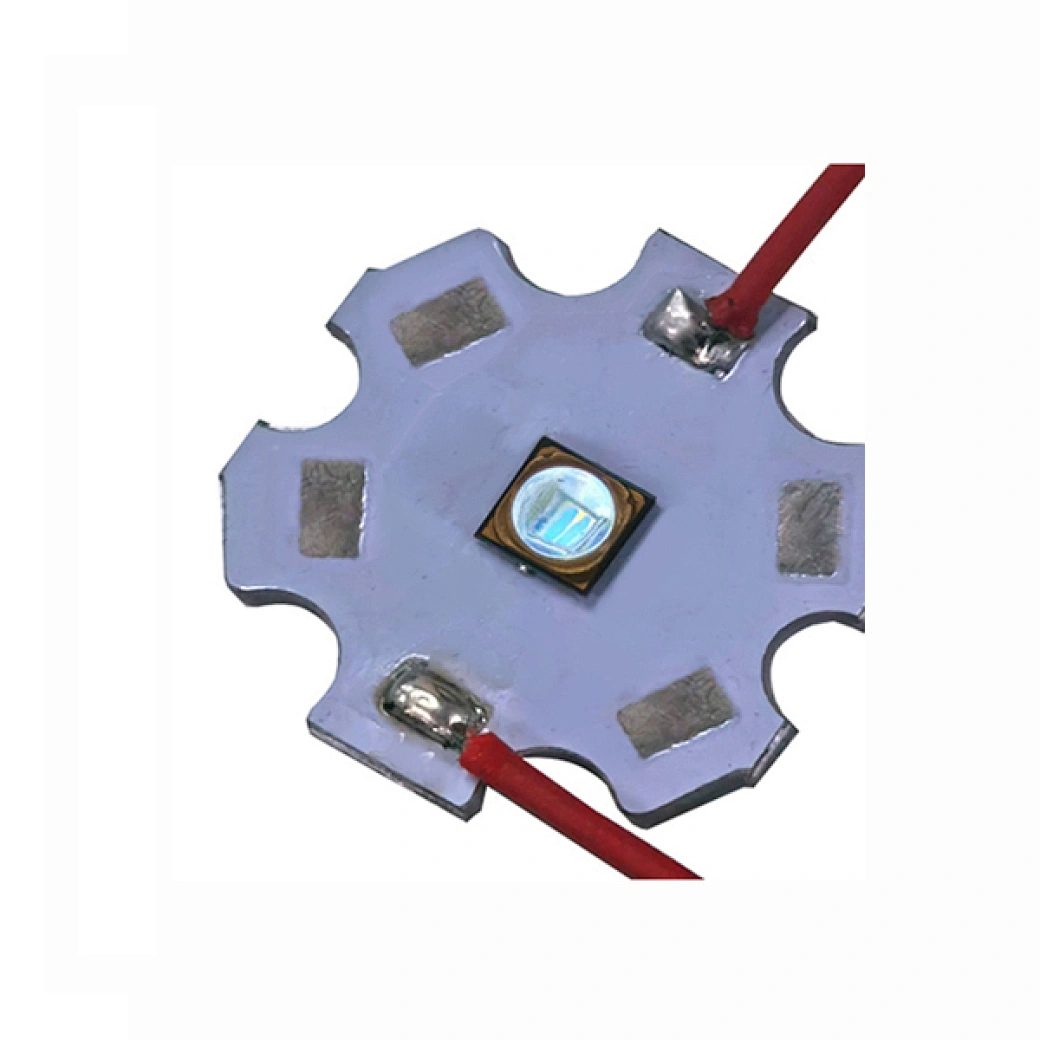

Customized UV LED modules
Electronic equipment requiring compact UVC light sources
Actual UV performance depends on system design, optical arrangement, irradiation distance, exposure time and operating conditions. Customers should evaluate the complete UV system according to their specific application requirements.
OEM and B2B Supply Support
HOUKEM accepts sample orders for testing and evaluation before mass production. Sample orders are normally available within 3–7 days when products are in stock, while mass production generally takes 25–30 days.
OEM customization is available according to project requirements, including product configuration and logo customization subject to MOQ. HOUKEM also provides factory-direct pricing and can support FOB, CIF, CFR and EXW trade terms.
Products are tested before shipment, and the company states CE, RoHS and ETL-related quality support on the product page. For certification, warranty and application-specific requirements, buyers should confirm the applicable documentation with HOUKEM before placing an order.
FAQ
Can I order samples of the 254nm UV LED before mass production?
Yes. HOUKEM accepts sample orders, allowing B2B customers to evaluate the LED's optical and electrical performance before a production order.
Can the wavelength or package be customized?
OEM customization can be discussed for different project requirements, including UV LED configuration, package requirements and other technical specifications.
What information should I provide for a UV LED quotation?
For an accurate quotation, provide your required wavelength, power, forward current, viewing angle, quantity, package requirements and intended application.
What is the MOQ and production lead time?
The listed MOQ is 10 pieces, with sample orders typically taking 3–7 days and mass production generally requiring 25–30 days.
Can HOUKEM provide technical support for UV LED integration?
Yes. HOUKEM provides pre-sales and after-sales support and can discuss LED selection, customized requirements and integration conditions for professional UV equipment projects.
Request a 254nm UV LED Quote
If you are sourcing a 254nm UV LED,254nm UVC LEDor3535 SMD UV LED for an OEM or industrial project, contact HOUKEM with your target quantity, wavelength, electrical requirements and application details. Our team can provide product specifications, samples and a quotation based on your project requirements.
