High power led 5w red color 620nm/630/nm/ 650nm/660nm
High power led 5w red color 620nm/630/nm/ 650nm/660nm
High power led 5w red color 620nm/630/nm/ 650nm/660nm
High power led 5w red color 620nm/630/nm/ 650nm/660nm
High power led 5w red color 620nm/630/nm/ 650nm/660nm
High power led 5w red color 620nm/630/nm/ 650nm/660nm
High power led 5w red color 620nm/630/nm/ 650nm/660nm

High power led 5w red color 620nm/630/nm/ 650nm/660nm

Model NO.
KEM-HP005RW-E30
Price:
USD 2.80-2.80
Delivery:
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Package Type:Surface Mount
  • Model Number:KEM-HP005RW-E30
  • Brand Name:KEM
  • Max. Forward Current:300-350mA
  • Max. Forward Voltage:8.0-9.0V
  • Type:LED

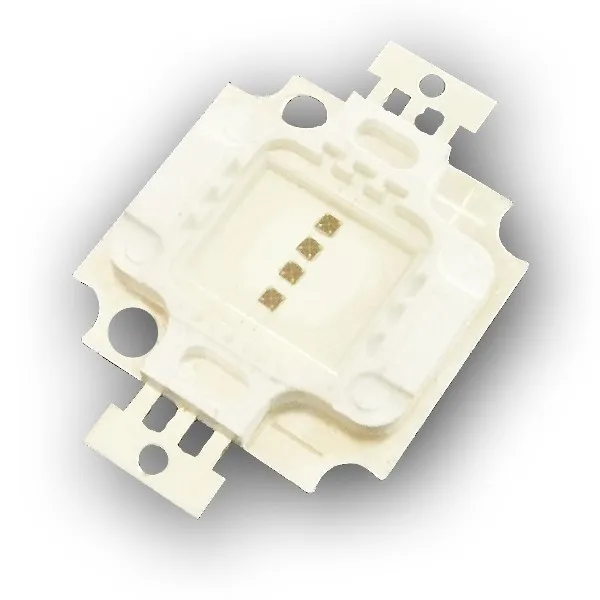

 High  power led 5w red color 620nm/630/nm/ 650nm/660nm





Different emitting(620nm/660nm) and light ratio!(3:1,4:1,5:1,8;1,etc,) for your customizing!

Professional encapsulated manufacturer for high power LED

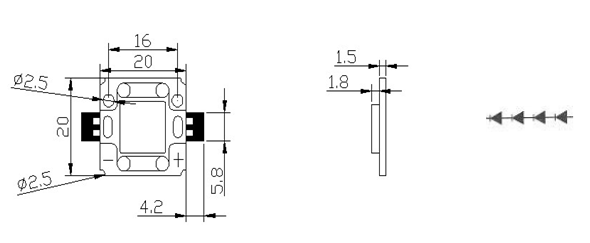

Dimension




5WRW

Packing of 5w red bright led



led 10w

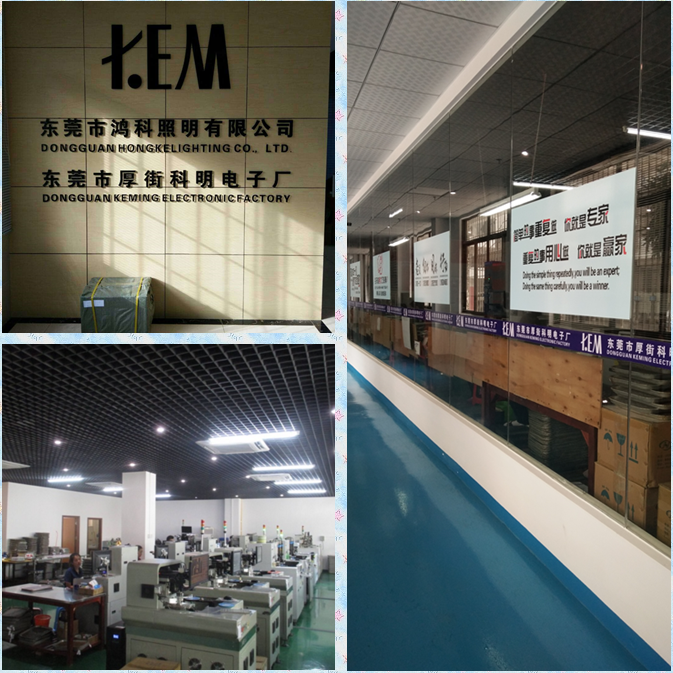

Factory information

Factory



Parameter of china produce 5w red bright led

VoltageCurrentPowerwavelengthColorsluminous fluxChip Size

DC6V-18V

0.35-1.05A10W

630-660nm

red

 150-200lm

35mil Epistar

45mil Epistar

35mil bridgelux

45mil bridgelux



Emitting ColorPower Dissipation(W)Forward current(mA)Drive Voltage (v)      Wavelength(nm)/TC(K)
Red-73.503508.0620/650

9.0630/660
Yellow-73.503508.0585

9.0595
Orange-73.503508.0600

9.0610
Blue-112.0035012.0460

13.0470
Green-112.00350012.0520

13.0530
White 2800k-15000k350012.02500

13.020000



Features:



1)Use high efficient integrated LED as the light source,



2)Wide beam angle: 140 degree (larger lighting area) or customized



3)Smart appearance: built-in power supply, no need ballast, reflector, it can work independently



4)Unique heat dissipation device: thermostatically controlled fans to keep LED light cool



5)Small light decay, long lifespan more than 50,000hours



6)Can be combined with fluorescent lighting



7)Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant



8)Energy-saving: emitting light fully absorbed by plant, much efficiency compared o HID grow lights to produce the same result



9)Ratio of Red, Blue and Orange is R&B&O 7:1:1; we also could change the ratio according to your special requirements



10)This one also can be used as LED ceiling light, very suitable for the large size of the illumination, such as the hotel hobby, warehouse, workshop, station etc .



11)You can choose the wavelength and color ratio which is most suitable for your plant



12)Available: 10W 20W 30W 50W 70W 100W (Can follow the customer's request )

13)Sample order acceptable



Advantages:



1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%;



2, long life: product life of up to 50,000 hours;



3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;



4, a large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;



5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;



6, color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.



Attention-Handwork Soldering:



1. During the soldering, the electronic soldering iron must be kept under the tempetature of 300°C and the soldering time must not be beyond 3 seconds. No touch between the electronic slodering iron and colloid.



2. Handwork soldering is only allowed once. We won't take responsibility for more than that.



3. void using sharp objects to compress products colloidal part directly.



4. Please put on the antistatic hand loop during the use. The worktable should be with antistatic finish. The equipments must be contacted with ground.





Our Service



1 We have our own independent R&D department, On existing products for better maintenance, we still continue to develop high-tech products, We have our own patented products.

2 Our products must pass strict quality control procedures.

3 We have advanced production equipment

4 We use the raw materials are from domestic and foreign well-known brand manufacturers.

5 After repeated tests before shipment.



Buyer Reading:



1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution



2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be



♦Why is blue light important for plants?



Blue light stimulates Chlorophyll production more than any other color, encouraging thick leaves, strong stems and compact vegetative growth;

Blue color is good for leaf and root growing.The wavelength have 450nm and 470nm, if your botany only leaf ,we recommend us 470nm, if you wanna it is good for root, so we recommend use 450nm



♦Why is red lightimportant for plants?



Red light is very important to plant reproduction. Phytochrome pigments absorb the red and far red portions of the light spectrum and regulate seed germination, root development, tuber and bulb formation, dormancy, flowering and fruit production;

red is good for blooming ,the wavelength is 660nm and 630nm, if you plant flower,we recommend you use 630nm, if you plant blossom and yield fruit,we recommend you choose 660nm
