high power led 45mw 3535 smd uv 2w 340nm uv led
- Color Temperature(CCT):340nm
- Input Voltage(V):DC 4.3V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:2w
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:2W High Power LED 340nm
- Emitting Colour:puple
- Forward Voltage:4-4.3v
- Application:medical treatment, curing
- Warranty:2 Years
- Wave length:340-350nm
- Current:500mA
- Chip brand:Seoul

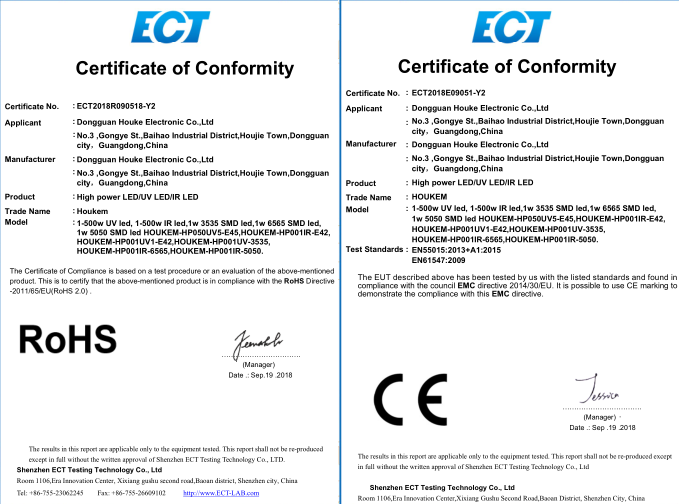

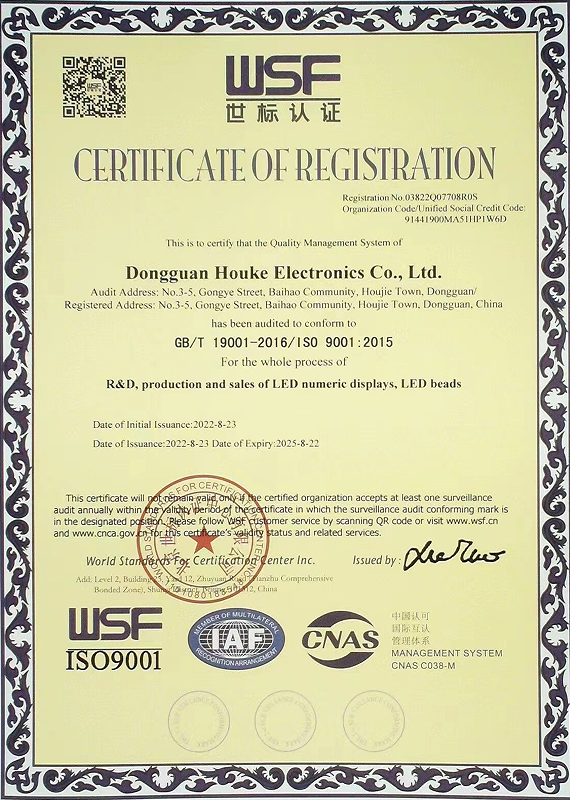

- Certification:RoHS,CE,ISO9001
- Other Wavelength:255-1550nm
Highpower uvb LED 2w UV 340nm 345nm led SMD 3535
| Item | 2w 4.3V 500mA 45mW 340nm 3535 SMD UV LED |
| Power | 2w |
| Color | Purple |
| Chip Brand | seoul |
| viewing angle | 120degree |
| Diode Type | 3535SMD |
| Radiation Flux | 40-50mW |
| Wavelength | 340-350nm |
| Working Current | 500mA |
| Forward Voltage | 4.3v |
| Certification | CE, RoHS |
| Warranty | 2 years |
| other wavelength | 255nm-1550nm |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization

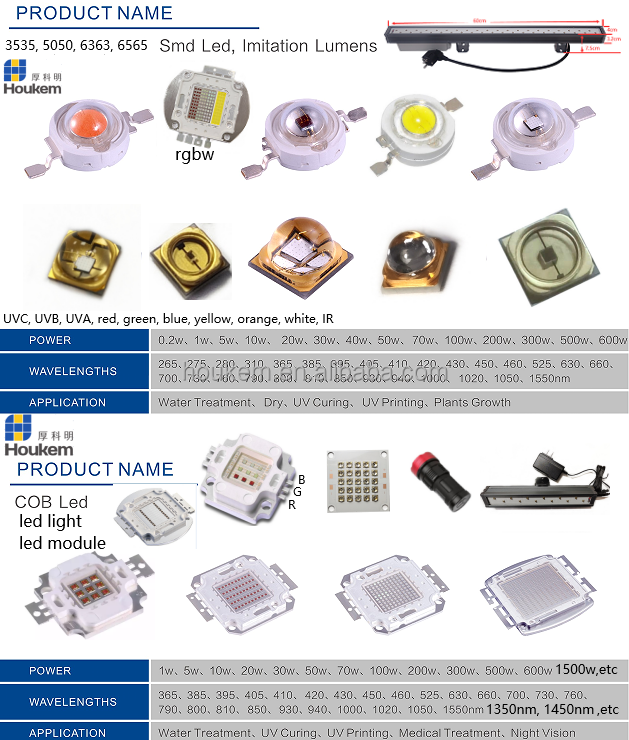

Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..

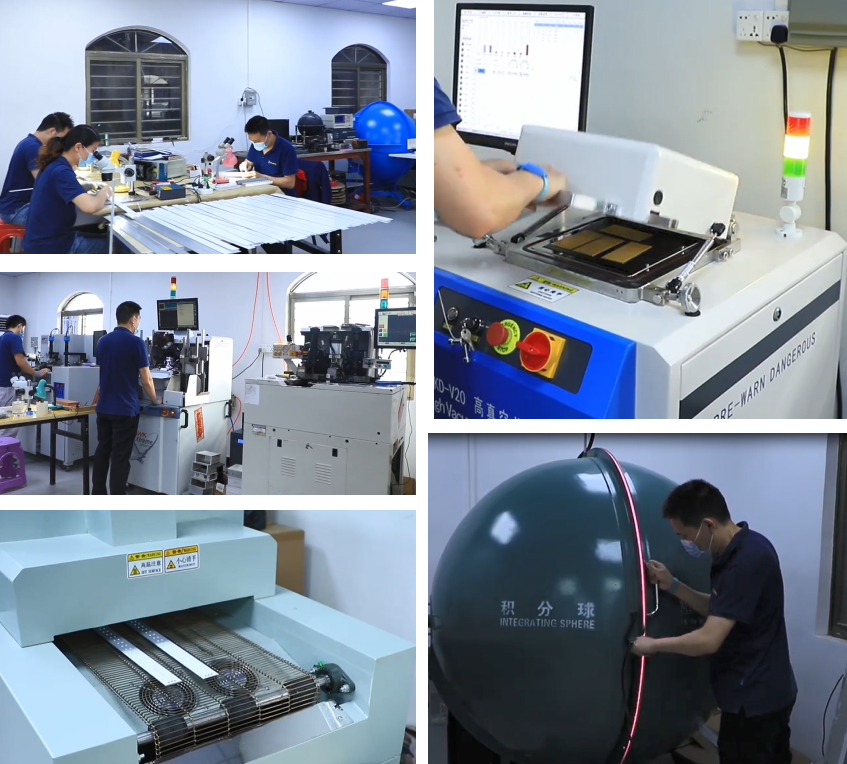

In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
