High Power LED 3W IR 740nm 760nm 850nm 940nm Infrared LED Chip Far Red Emitter
High Power LED 3W IR 740nm 760nm 850nm 940nm Infrared LED Chip Far Red Emitter

High Power LED 3W IR 740nm 760nm 850nm 940nm Infrared LED Chip Far Red Emitter

USD 0.20-1.20 / piece
Minimum order quantity:
1 piece
Supply Ability:
1000000 piece / Month
Country of Origin:
  • Type:High Power LED
  • Chip Material:GaAs
  • Emitting Color:Red
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Power:100W
  • Luminous Intensity:Distance
  • Luminous Flux(lm):1-20lm/w
  • Optical Attenuation(%):1
  • Power Dissipation:100
  • Viewing Angle(°):160
  • Color Rendering Index(Ra):80
  • Color Temperature:730-950nm
  • Operating Temperature(℃):-40 - 100
  • Storage Temperature(℃):-40 - 100
  • Brand Name:HNK
We are a professional LED factory in Dongguan,China which is specialized in 1w-500w different C.C.T and Wavelength high power led light source.
Once you need 1w-500w high power led,pls send email to me.
Just give us watt and wavelength,we can do samples for you.Wish we can grow up with your esteemed company.A
Packaging & Shipping

Packaging Detail:               6pieces/tray,10 trays/box,4boxes/carton    480pcs/carton

                                                 Tray size:20cm×15cm×1cm

                                                 Box size:25cm×20cm×10cm

                                                 Carton size:55cm×45cm×15cm

                                                 Or as per customer's request

Shipping Detail:                  1-3 for sample, 7-15 days for normal order according to quantity.

                                         Can be delivered by sea,air and express.



Product Description

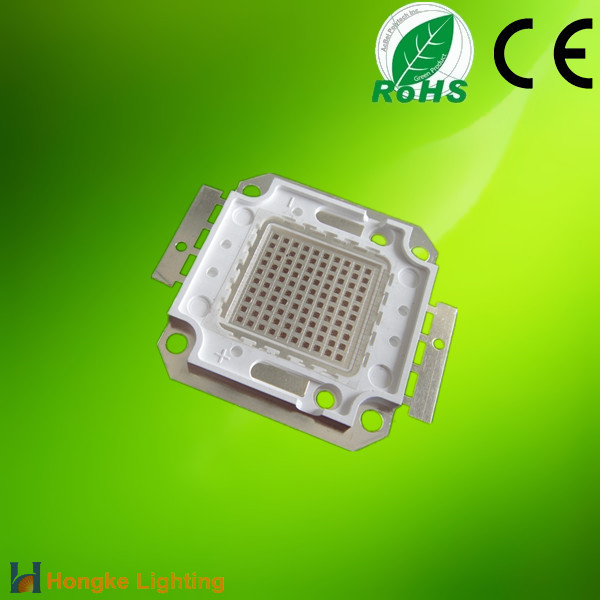

100w 850nm Infrared Power LED Diode


100w 850nm Infrared Power LED Diode


Detail information for 100w high power LED

Item100w led chip
Product name100w 850nm Infrared Power LED Diode
Model NoHNK-HP100IR-E35
Chip MaterialInGaN
Luminous Flux(lm)1-20LM/W
Color Temperature(NM/K)730-950nm
Working temperature-40 °C-+100 °C
Forward Voltage20-24V
CertificationCE, RoHS
Warranty2 years
Place of OriginDongguan,Guangdong,China


100w 850nm Infrared Power LED Diode



1. Bridgelux, Epistar, Epileds Chips

2. Japanese Dow Corning Silicon packing, in accordance with environmental protection

3. Intematix fluorescent powder, quality assurance

4. Gold wire: 1.25mil huge diameter

5. High brightness,low light attenuation,less power, Long lifespan.

6. Lights attenuation: less than 1%

7. Reasonable prices, fast delivery(3-5 days)

8. CE & RoHS

9. MOQ: 1 piece


100w 850nm Infrared Power LED Diode


1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%

2, long life: product life of up to 50,000 hours

3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control

4, Individualized design: can be designed by your picturers or mind

5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation

6, color: different wavelengths produce different colored light, can control red, green and blue primary colors to form a variety of colors

7,2 years warranty

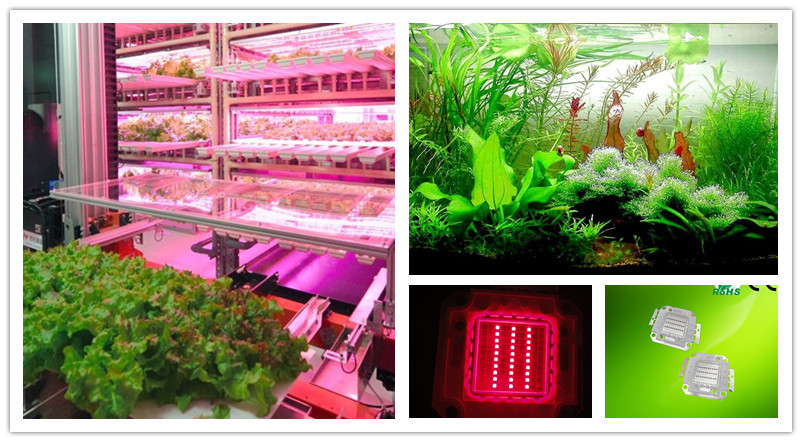

Applications for 100w high power led light source

>>Tracking light for shop and supermarket

>>Flood light,Spot light for ourdoor

>>Growing light for plant,vegetable,flower

>>Advertising light for ads.


100w 850nm Infrared Power LED Diode

The LED CHIPS of our products

100w 850nm Infrared Power LED Diode


The PACKAGE of cargoes


6pieces/tray,10 trays/box,4boxes/carton

Tray size:20cm×15cm×1cm

Box size:25cm×20cm×10cm

Carton size:55cm×45cm×15cm

100w 850nm Infrared Power LED Diode



1.Trade terms

Price can be FOB, CIF ,EXW, or With taxes

2.What will be the delivery time and what will be the mode of payment?

Our delivery time will be 3-10days

The payment can be T/T transaction,Letter of credit,Paypal,Western Union


Usually ,we ship the products by express since the products isn’t too heavy for the transportation.

We can also arrange Air or LCL shipments if you need.

4.Could you please send me thesample for the same.So that i could see and analyze its quality?

Yes.We can send samples first,samples will be free charged if the value is lower.



Our Services

1,all the raw materials for above products are from domestic and foreign well-known brand manufactures.

2,all products will be with strict tested before shipping.

3,choosing the best logistics services for all shipments.

4,2 years warranty for our products


The CE&RoHS certificated of our products


100w 850nm Infrared Power LED Diode

Our company

Hongke Lighting is a branch company of Dongguan Houjie Keming Electronic(established in 2003) which is a 5 years Gold supplier in Alibaba Website.

Hongke Lighting focus on producing High Power LED or COB LED.

Hongke Lighting will continue the quality and service concept of Keming Electronic,will still provide our best products for all our clients.

Hongke Lighting can provide 1w,3w,5w,10,20w,30w,50w,70w,100w high power LED or COB LED.

The products of Hongke Lighting have obtained CE&RoHS certification.

All led products will get 2 years warranty.
