Model NO.
500w-LED
Price:
USD 160.00-161.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Month
Country of Origin:
shenzhen
Quantity:
  • Type:High Power LED
  • Chip Material:InGaN
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Emitting Color:purple
  • Power:500W
  • Optical Attenuation(%):2
  • Power Dissipation:60
  • Viewing Angle(°):140
  • Color Rendering Index(Ra):80
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:KEM

Product Description

High power 500w uv led 395nm 400nm 405nm epileds chip

ItemHigh Power 500w uv LED
Power500w
Coloruv
Wavelength

395-400nm, 400-405nm

Forward Current7500-8750mA
Forward Voltage60-68v
CertificationCE, RoHS
PCB Material2.0mm Red copper plate
The Features of Our Product
1. Use high efficient integrated LED as the light source
2. Wide beam angle: 140 degree (larger lighting area) or customized
3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently
4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool
5. Can be combined with fluorescent lighting
6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
Advantage
1. We have our own independent R&D department on existing products for better maintenance,
we still continue to develop high-tech products. We have our own patented products.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.

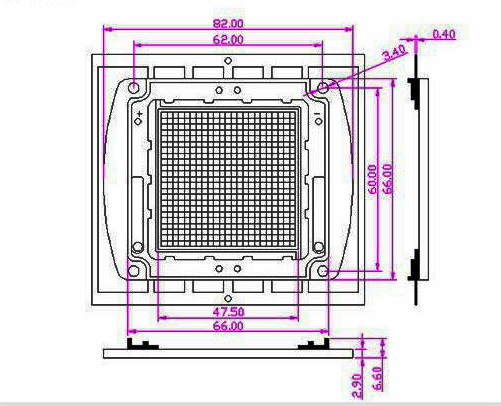

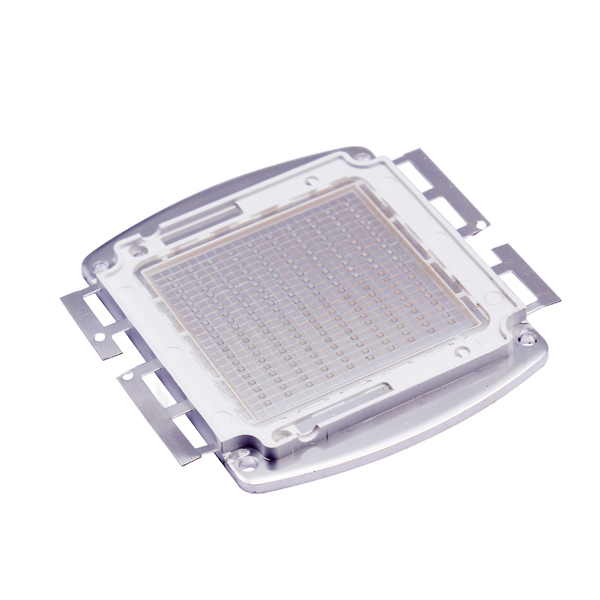

500w
20 series 25 parallel(60-68v)
22 series 22 parallel (66-75v)
500w

10 series 50 parallel( 30-36v)

UV application

255-430nm

uv application1

Packaging & Shipping

packing

shipping

Certifications

Hongke-certificates

Company Information

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,

dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm to 1550nm LED arrays,

COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light,and all LED lighting application solution, etc.

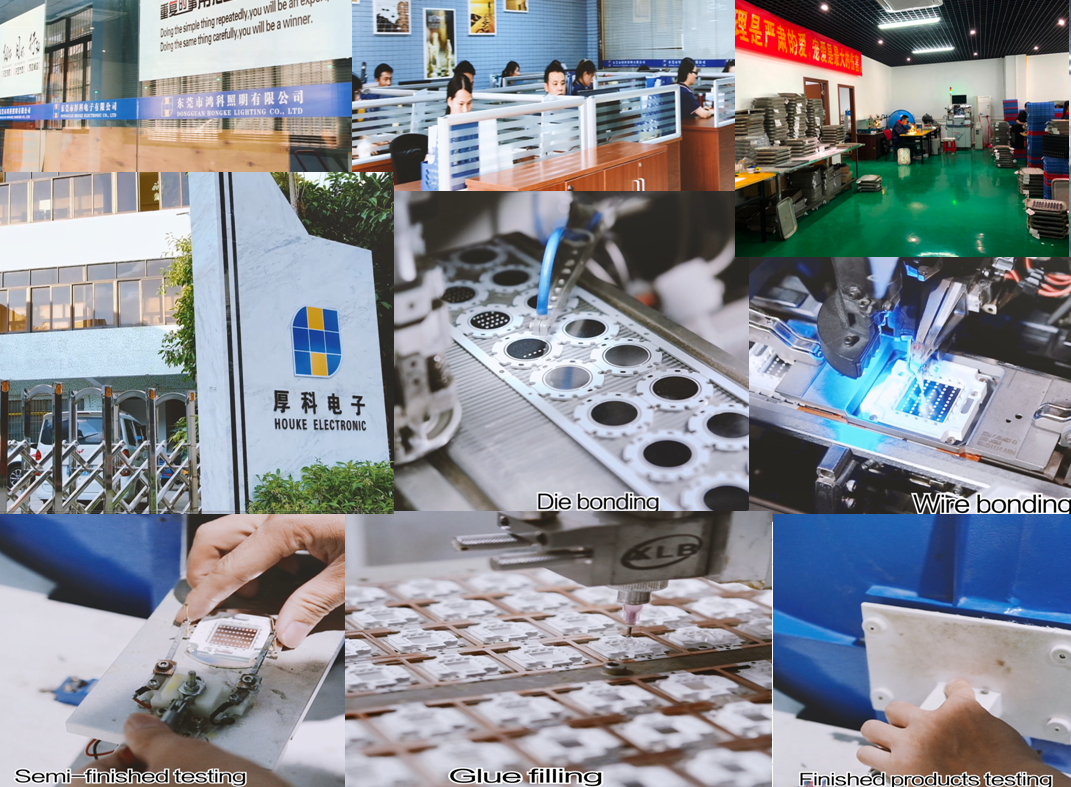

factory-LED

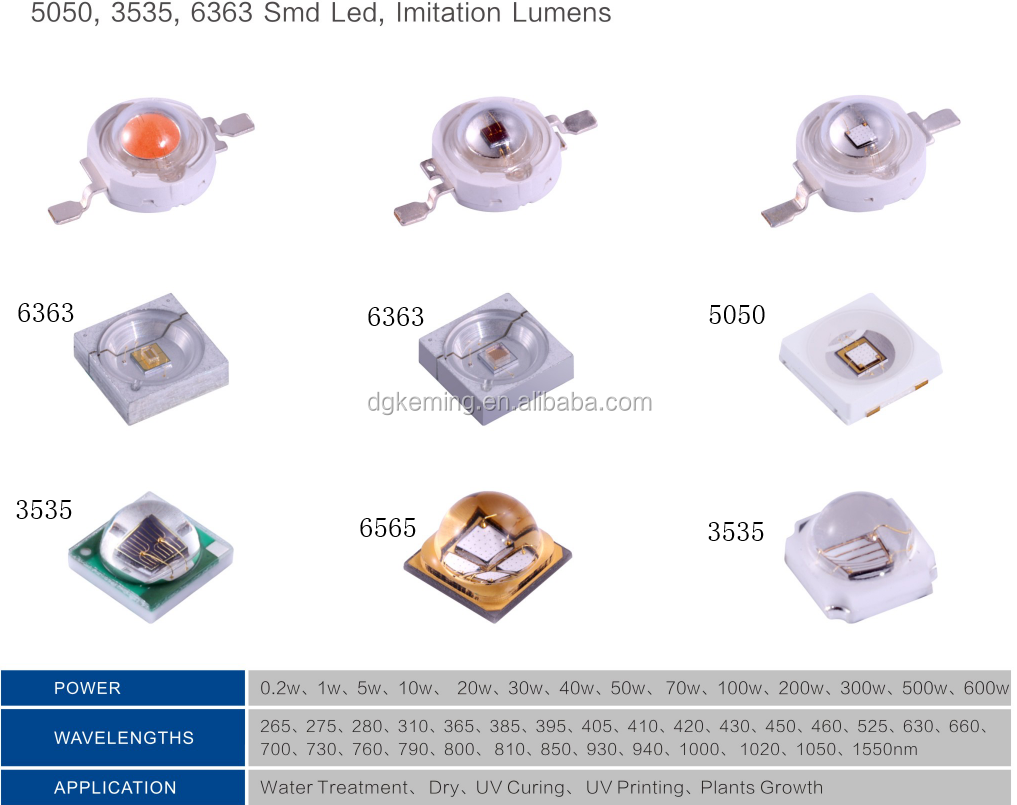

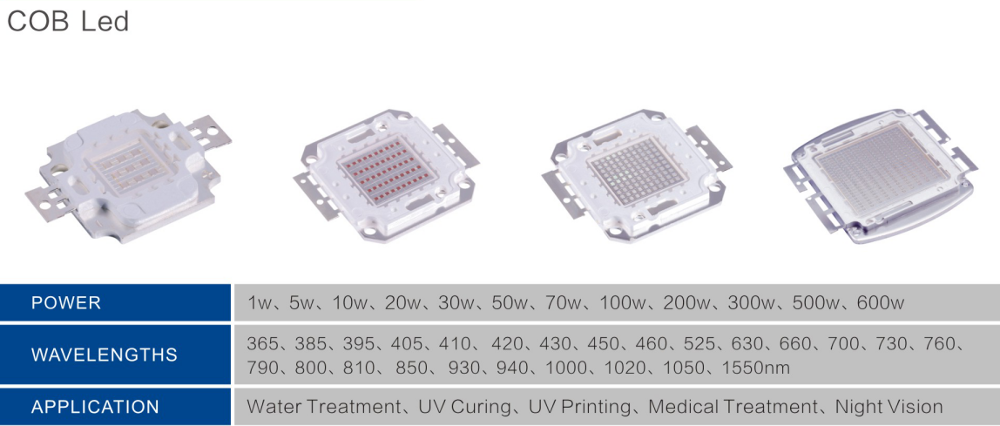

high power cob ledhigh power led

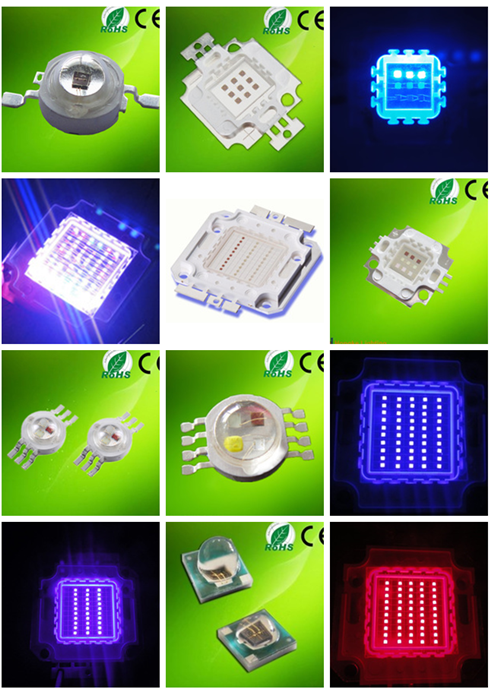

LED

FAQ

1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.

2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.

3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.

4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
