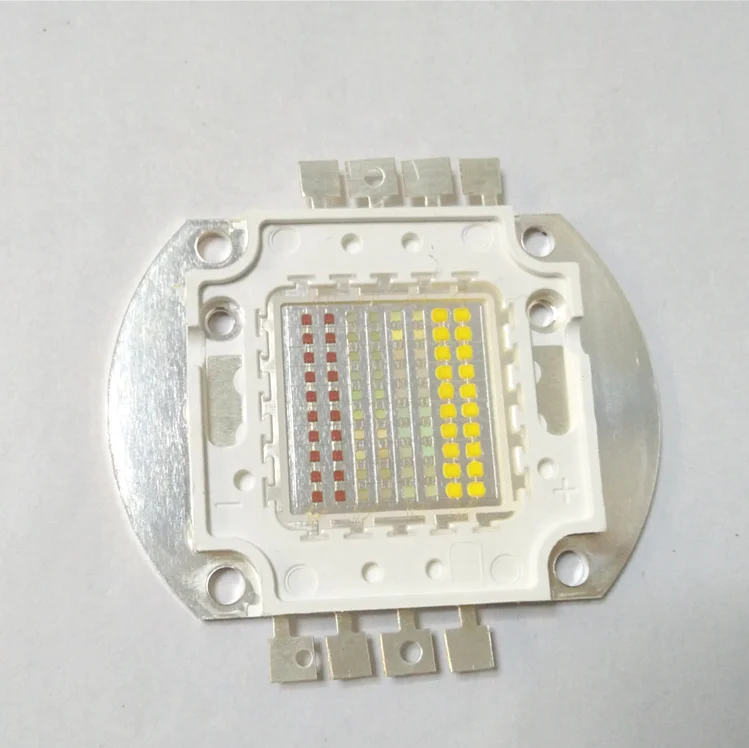

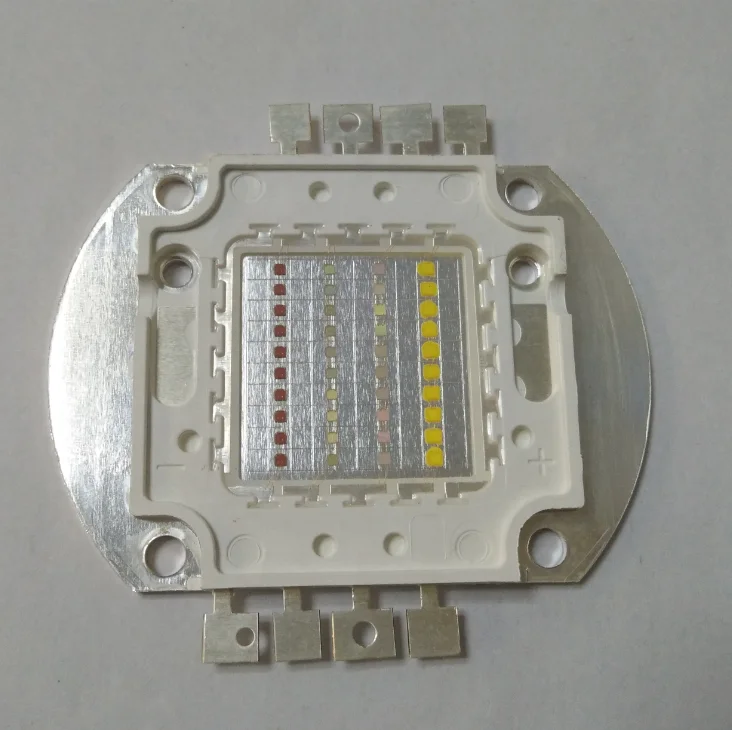

High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip
High power 40 watt led rgbw bridgelux chip 45mil Epileds chip

High power 40 watt led rgbw bridgelux chip 45mil Epileds chip

Price:
USD 16.00-18.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
Shenzhen
Quantity:
  • Type:High Power LED
  • Chip Material:AlGaInP
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Emitting Color:red, green, blue, white
  • Power:40w
  • Viewing Angle(°):140 Degree
  • Color Rendering Index(Ra):80
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:KEM


Product Description

 High power 40 watt led rgbw bridgelux chip 45mil Epileds chip








Absolute Maximum Ratings



Parameter

Symbol

Rating

Unit

uv



DC Forward Current(mA)

If

1200

mA

Peak Pulse Current(mA)

If

1400

mA

Reverse Voltage

VR



V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-20--60

°C

Storage Temperature

Tstg

-20--80

°C

Soldening Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V











































Luminous Flux at 350mA,Ta=25°C

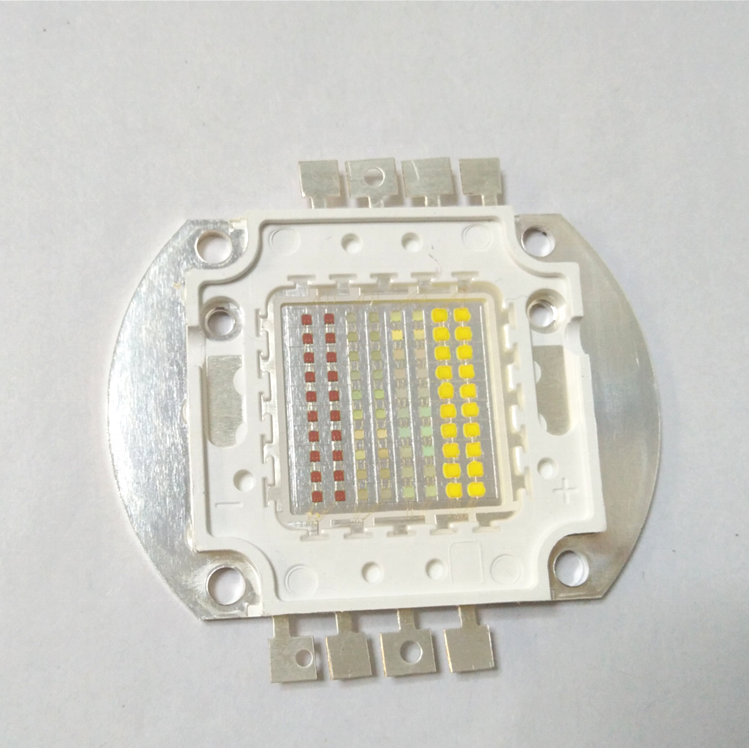

Part no: KEM-HP080W-RGBW

Color

Wavelength



CRI

Flux

Min

Typ

Max

RED620-625nm

80

 40



 50

GREEN520-525nm

80

60



70

BLUE460-465nm8050 60
WHITE2800-15000K80110 130

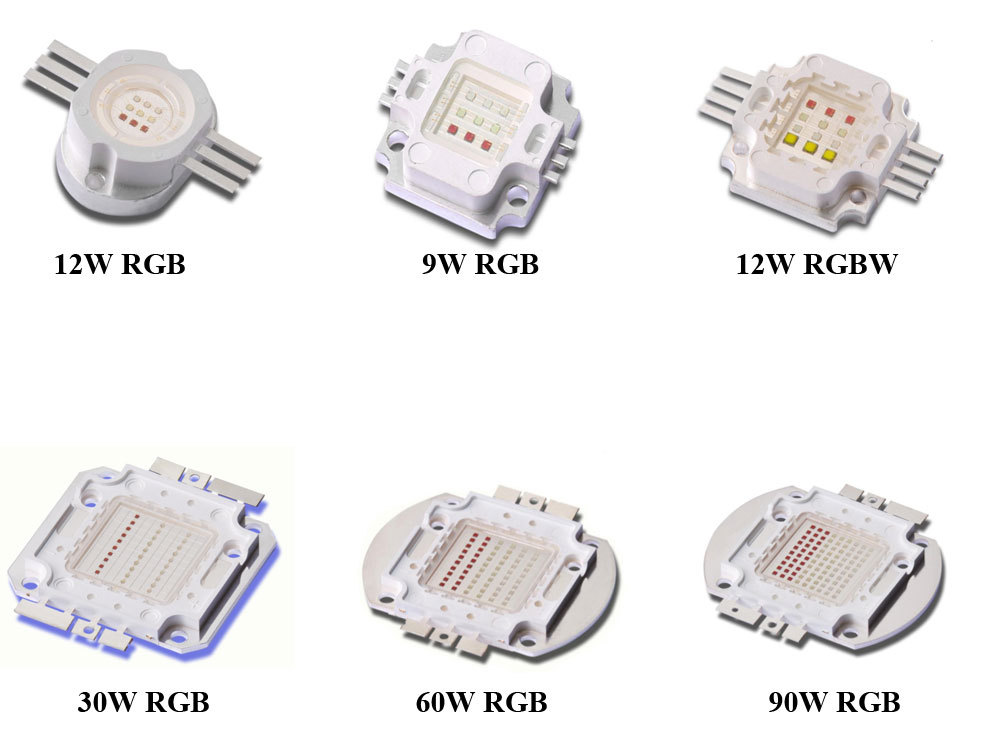

RGB-series






Advantages:

1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%



2, long life: product life of up to 50,000 hours



3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control



4, Individualized design: can be designed by your picturers or mind



5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation



6, color: different wavelengths produce different colored light, can control red, green and blue primary colors to form a variety of colors

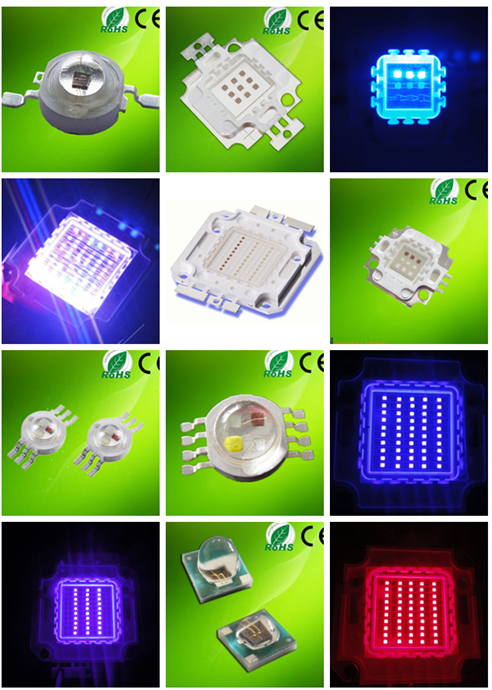

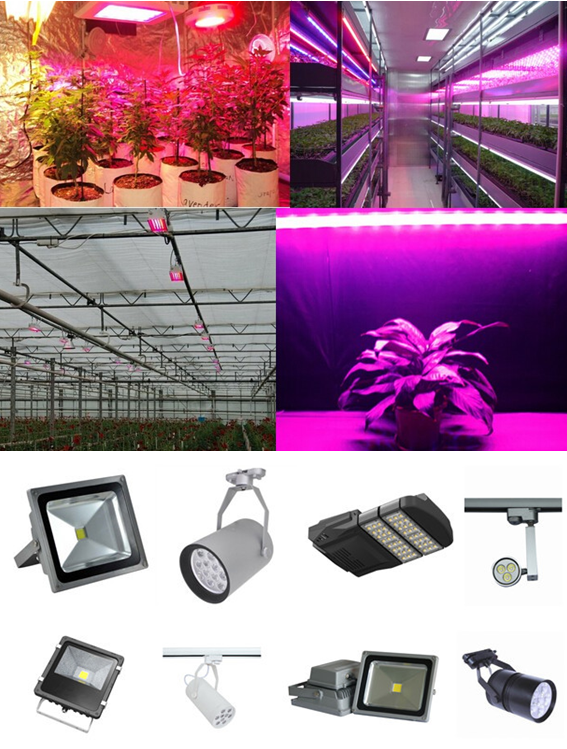

 Lighting and application pictures



  a

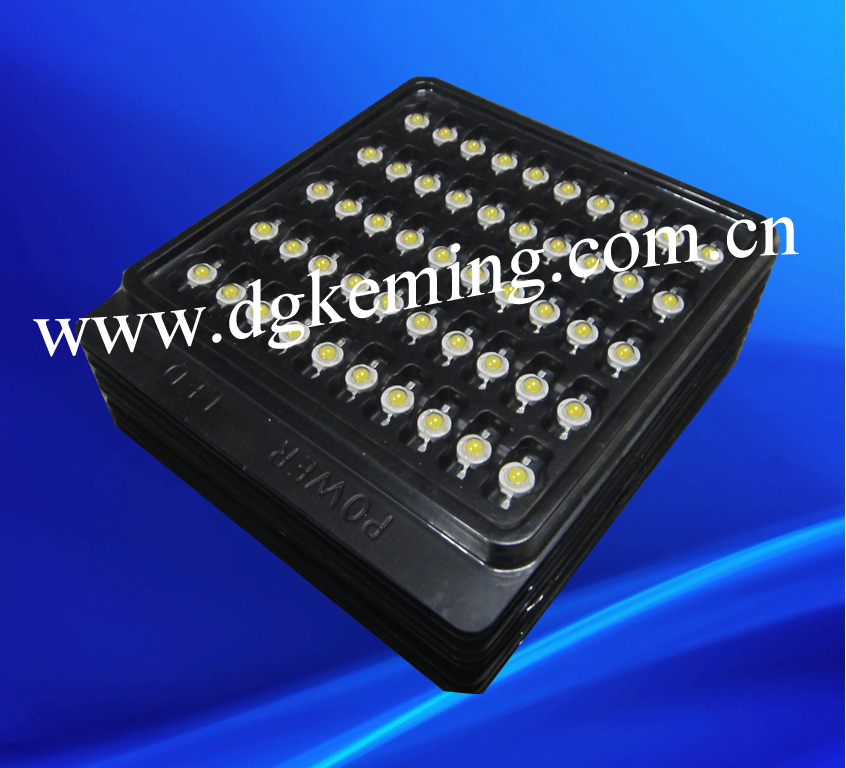

Package



380nm 390nm 405nm 420nm 440nm 3W UV High Power Led Light





 packing

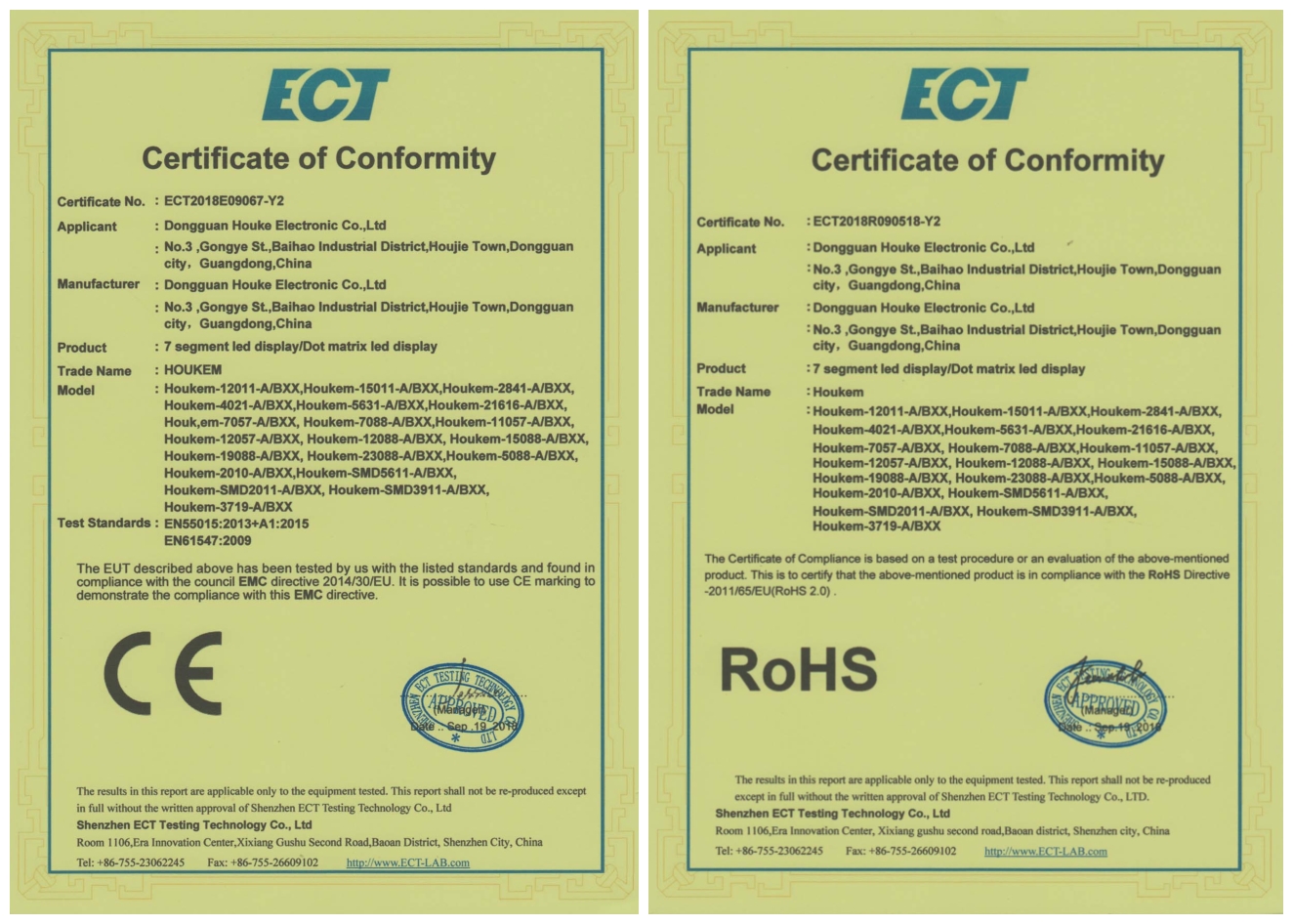

Certificates

Houke-certifictes

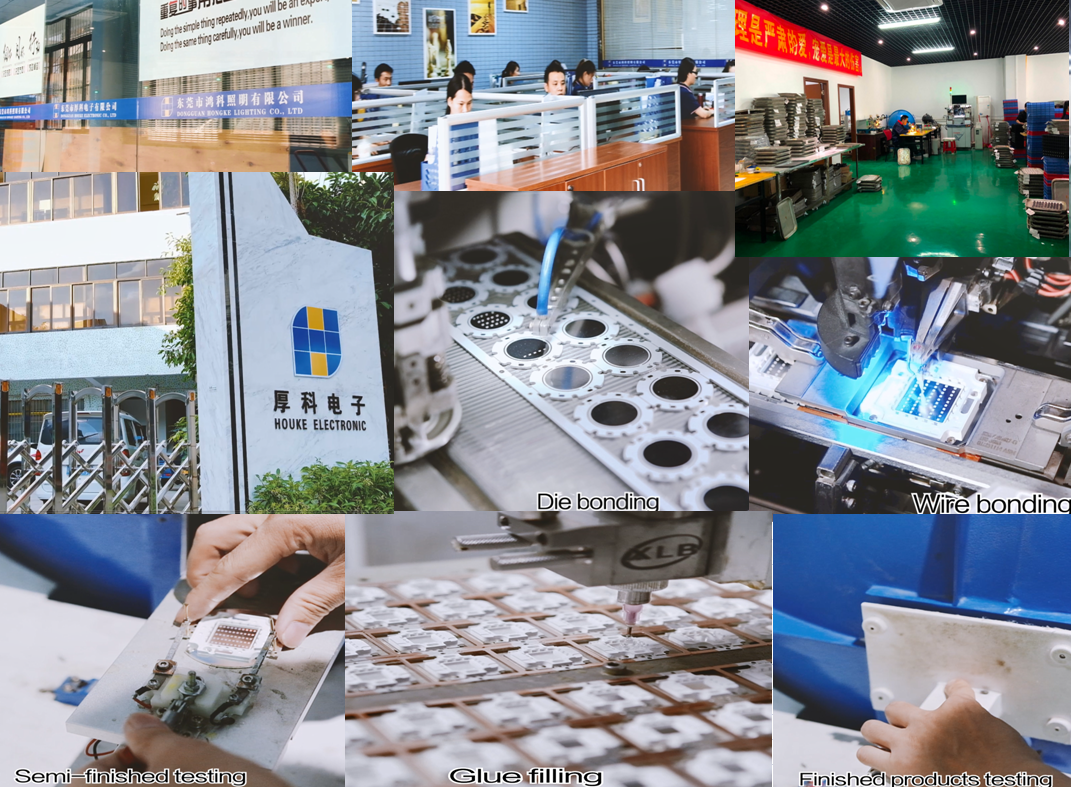

Factory pictures





Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,

dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 260nm to 1050nm LED arrays,

COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light,and all LED lighting application solution, etc.
