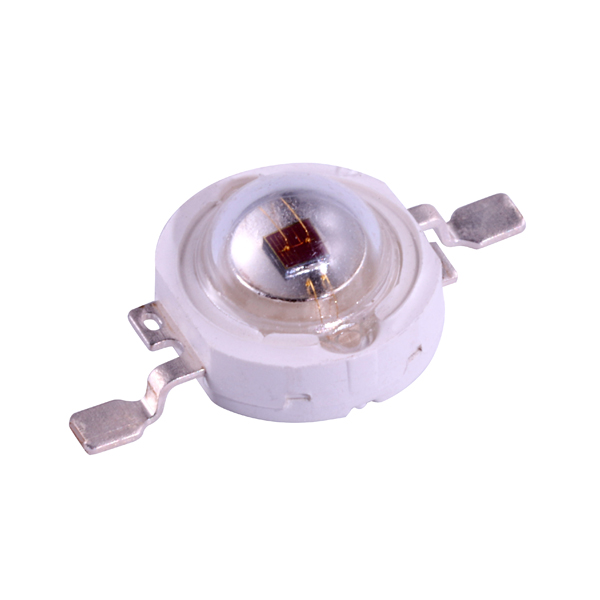

High power 3Watt 1watt 1060nm infrared led invisible light 1050nm 1055nm 1060nm ir led
- Input Voltage(V):DC 1.2-1.4V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:1-3W
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:3W High Power ir LED 1060nm
- Forward Current:500-600mA
- Forward Voltage:1-1.1v
- Application:laser light
- Wave length:1050-1060nm
- Chip Size:42mil
- Certification:RoHS, CE
- Chip brand:Epileds 42mil
- Keyword:High Power ir Led 3w
- Other Wavelength:255-1550nm
High power 1w 1050nm 1055nm 1060nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 350mA | 1.2 | 1.3 | 1.4 | V |
Luminous Flux | Φv | IF = 350mA | 15 | -- | 25 | mw |
Viewing Angle | 2θ1/2 | IF = 350mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 350mA | 1050 | --- | 1060 | nm |
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
