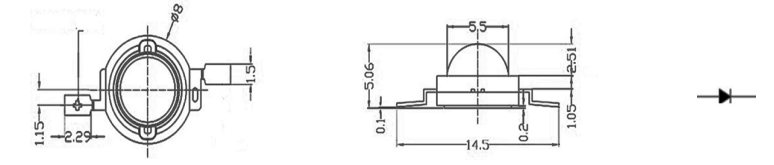

High power 1w ir led 808nm 805nm 810nm with star pcb board
- Model Number:HOUKEM-HP1W-850
- Type:LED
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Package Type:Surface Mount
- Supplier Type:Original manufacturer
- Media Available:datasheet, Photo
- Product name:1W High Power IR LED 810nm
- Emitting Colour:red
- Forward Current:350mA
- Forward Voltage:1.5-1.6v
- Application:Indoor Light, laser light,medical treatment
- Warranty:2 Years
- Wave length:808-810nm
- Certification:CE/ROHS/ISO9001
- other wavelength:255-1550nm
- Chip size:Epileds 42mil

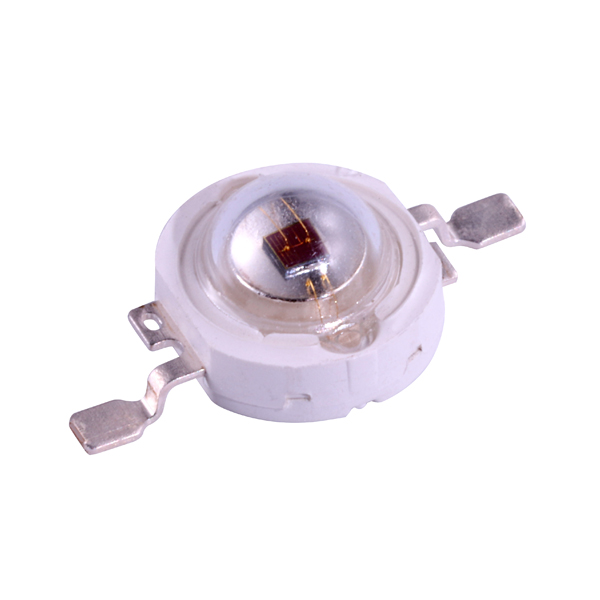

High power 1W 810nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 350mA | 1.5 | 1.5 | 1.6 | V |
Luminous Flux | Φv | IF = 350mA | 75 | 77 | 80 | mw |
Viewing Angle | 2θ1/2 | IF = 350mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 350mA | 805 | 808 | 810 | nm |
| other IR LED Wavelength | 700-710nm, 730-735nm, 740-745nm, 760-765nm, 780-785nm, 800-805nm,805-810nm, 830-840nm,850-855nm, 880-890nm, 910-920nm, 930-940nm, 940-945nm, 970-980nm, 980-990nm, 995-1000nm, 1010-1020nm, 1040-1050nm, 1030-1035nm, 1345-1350nm,1450nm |

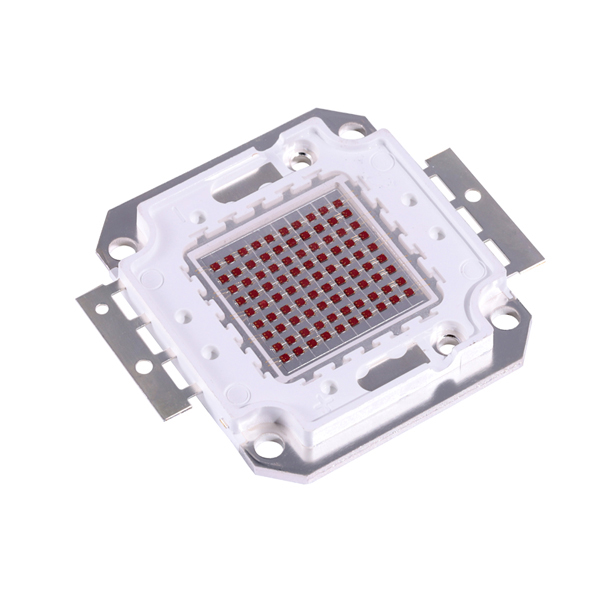

100w

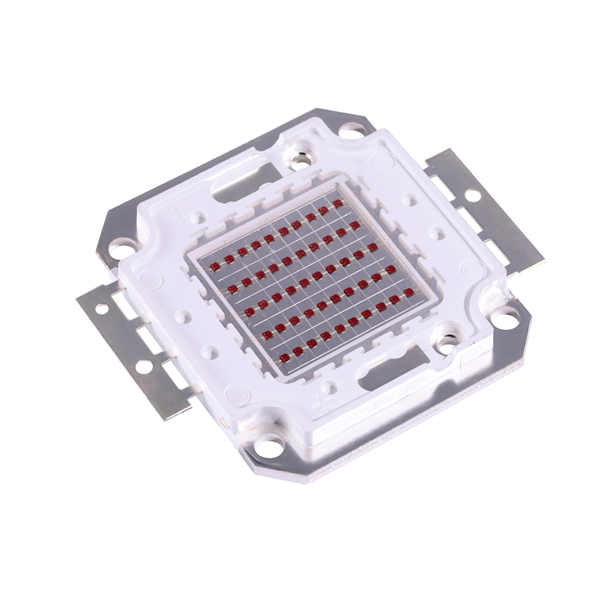

50w

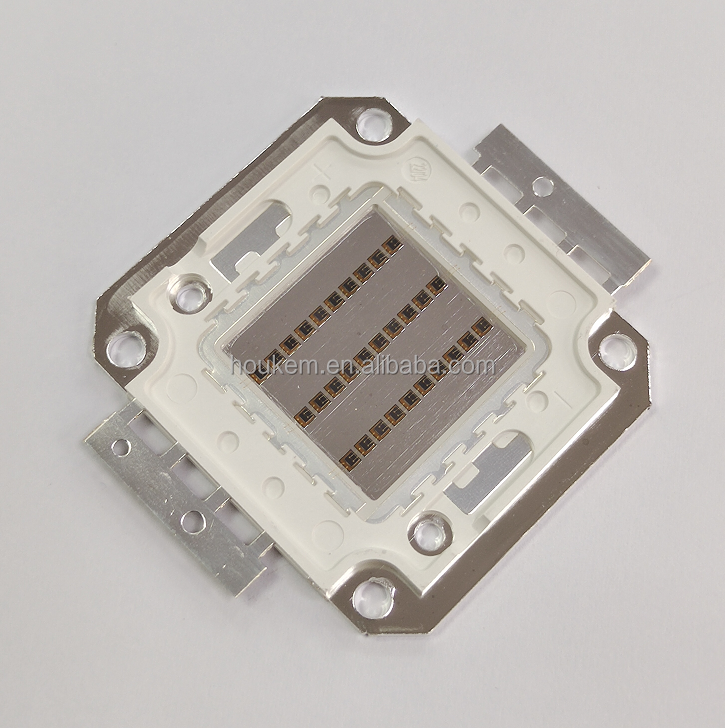

30w

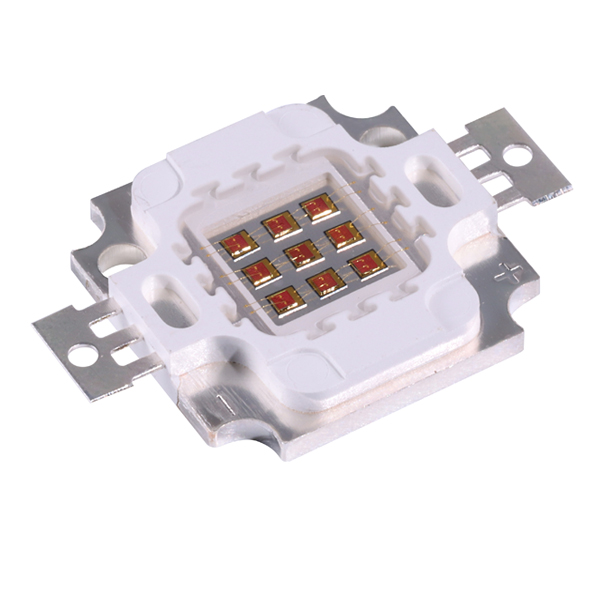

10w

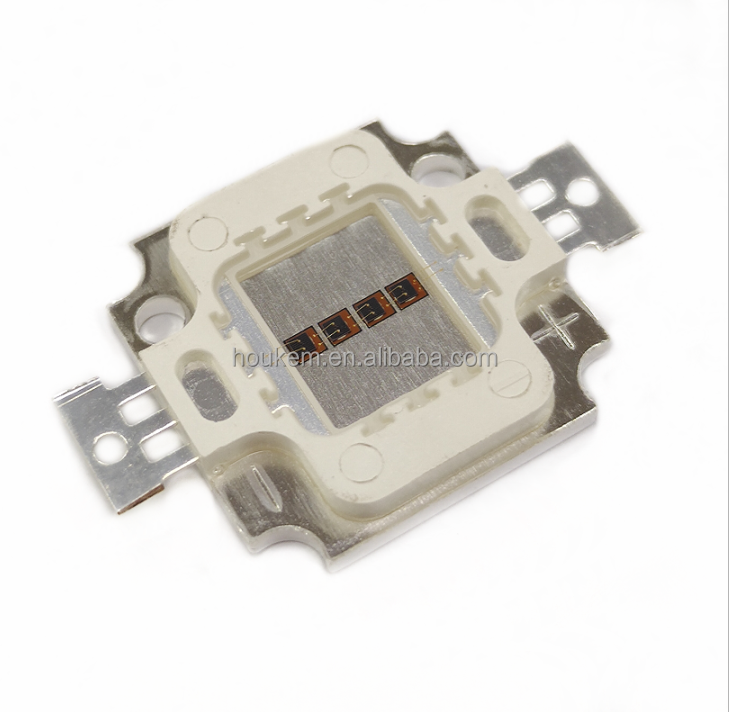

5w
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..

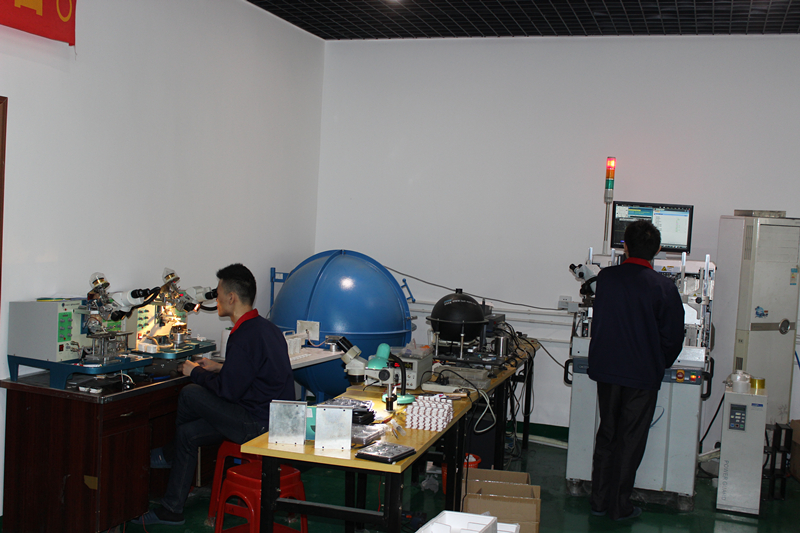

In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
