High power 1w ir led 700nm 730nm 740nm 750nm 790nm 800nm 808nm 810nm 850nm 1000nm 1450nm 1550nm
- Type:High Power LED
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:1-3W
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:1W High Power LED 810nm
- Emitting Colour:red
- Forward Current:300-600mA
- Forward Voltage:1.5-1.6v
- Lifespan:50000 Hours
- Application:Indoor Light, grow light
- Warranty:2 Years
- Wave length:810-815nm
- Certification:ce,rohs

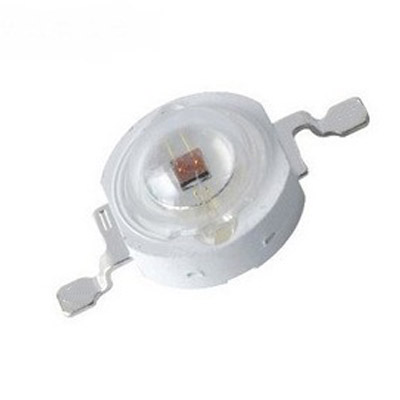

High power 1w 810nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 350mA | 1.5 | 1.5 | 1.6 | V |
Luminous Flux | Φv | IF = 350mA | 110 | 115 | 120 | mw |
Viewing Angle | 2θ1/2 | IF = 350mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 350mA | 810 | 810 | 812 | nm |
