Model No: HOUKEM-HP1W-690
High power 1w far red led 680nm 685nm 690nm ir infrared led diode
high power ir led houkem is led infrared professional manufacturer
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
500pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.28 - US $0.70 / pieces
- Warranty(Year):1-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):1
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:1-3W
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:1W High Power LED 690nm
- Emitting Colour:red
- Forward Current:300-600mA
- Forward Voltage:1.9-2.2v
- Lifespan:50000 Hours
- Application:Indoor Light, grow light
- Warranty:2 Years
- Wave length:680-690nm
- Chip brand:Epileds chip 42mil
- Certification:ce, RoHS
Product Description

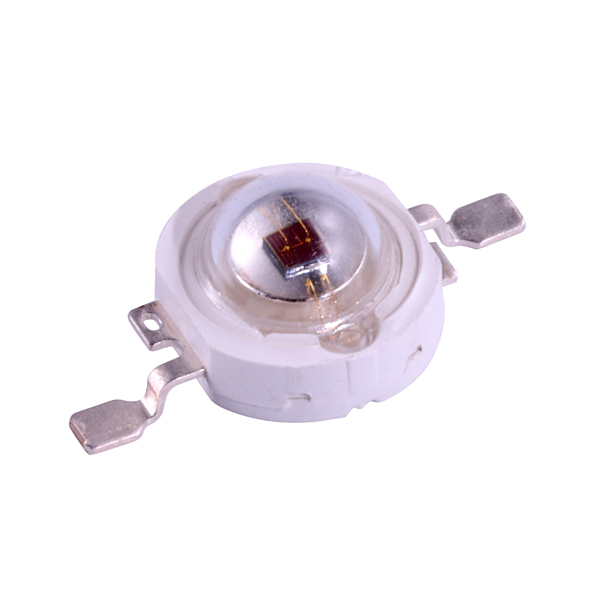

High power 1w 690nm red led Epileds chip 42mil
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 350mA | 1.8 | 1.9 | 2.0 | V |
Luminous Flux | Φv | IF = 350mA | 10 | -- | 12 | mw |
Viewing Angle | 2θ1/2 | IF = 350mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 350mA | 687 | 688 | 690 | nm |
255-1550nm are available.
Factory pictures

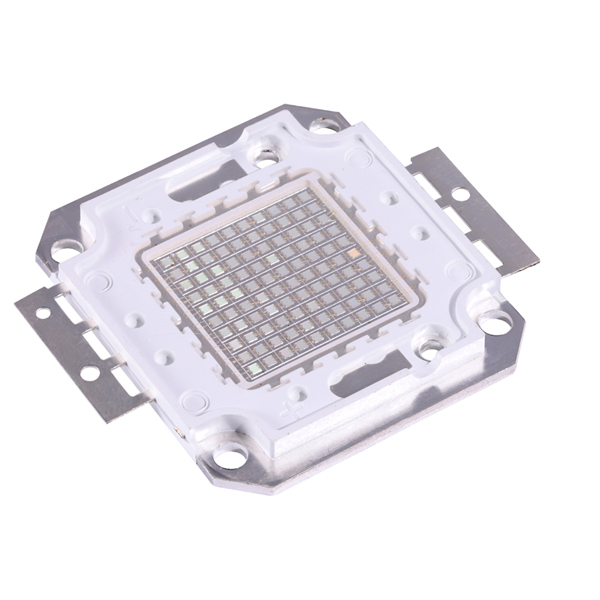

We are the LED professional manufacturer, we off led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, 50w-1000w LED grow light, 10w-200w led flood light, and all LED lighting application solution.

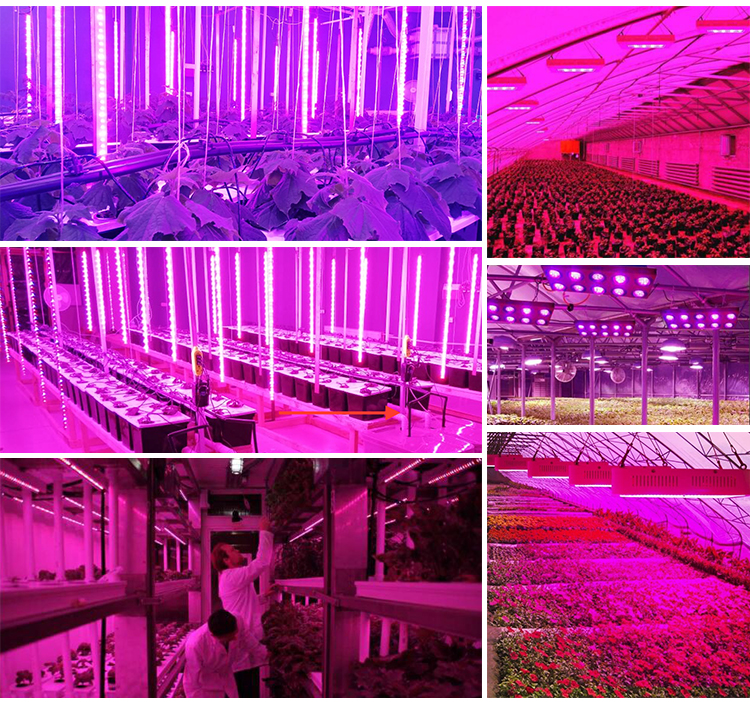

Application
Related Products
Certifications
