Model No: HOUKEM-HP3W-810
High power 1w 3w ir led 810nm 808nm 815nm
ir led houkem is led infrared professional manufacturer
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
500pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.34 - US $0.80 / pieces
- Warranty(Year):1-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):114
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:1-3W
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:3W High Power LED 810nm
- Emitting Colour:red
- Forward Current:500-600mA
- Forward Voltage:1.5-1.6v
- Wave length:805-810nm
- Application:Medical Treatment
- Chip brand:Epileds
- Chip Size:42*42mil
- Certification:ce, rohs
Product Description

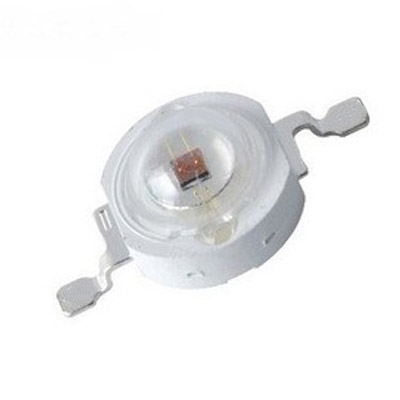

High power 1w 3w 805nm 808nm 810nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 350mA | 1.5 | 1.54 | 1.6 | V |
Luminous Flux | Φv | IF=350mA | 110 | 114 | 120 | mw |
Viewing Angle | 2θ1/2 | IF = 350mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 350mA | 805 | 808 | 810 | nm |

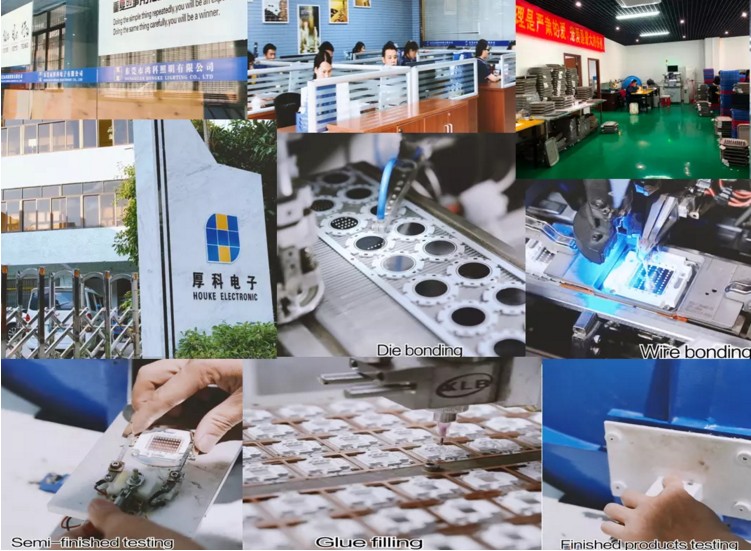

Factory pictures
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,
dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm to 1550nm LED arrays,
COB LEDs, SMD LEDs, street light LED, and all LED lighting application solution, etc.
Certifications
Application
