High power 1W 3W ir led 1550nm 1500nm 1600nm IR LED
- Model Number:HOUKEM-HP3W-1550
- Type:LED
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Package Type:Surface Mount
- Supplier Type:Original manufacturer
- Media Available:datasheet, Photo
- Product name:3W High Power LED 1550nm
- Emitting Colour:red
- Forward Current:500mA
- Forward Voltage:1.2-1.4v
- Application:laser light
- Warranty:2 Years
- Wave length:1500-1600nm

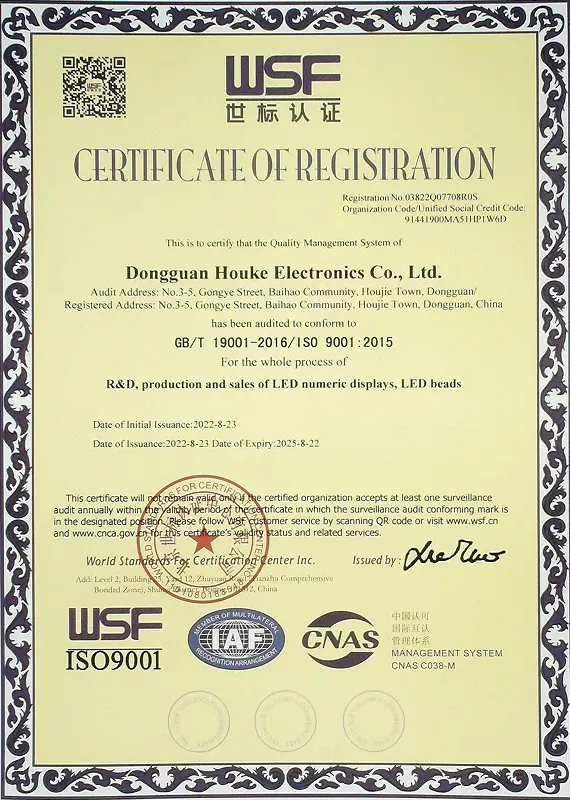

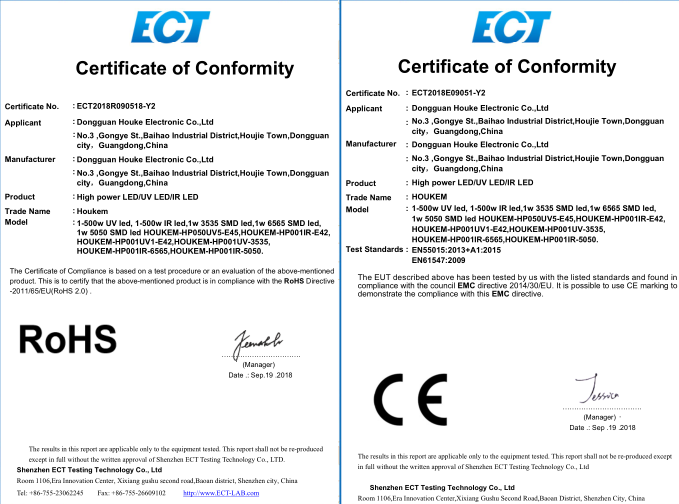

- Certification:CE/ROHS/ISO9001
- other wavelength:255-1550nm
- Chip size:Epileds 42mil

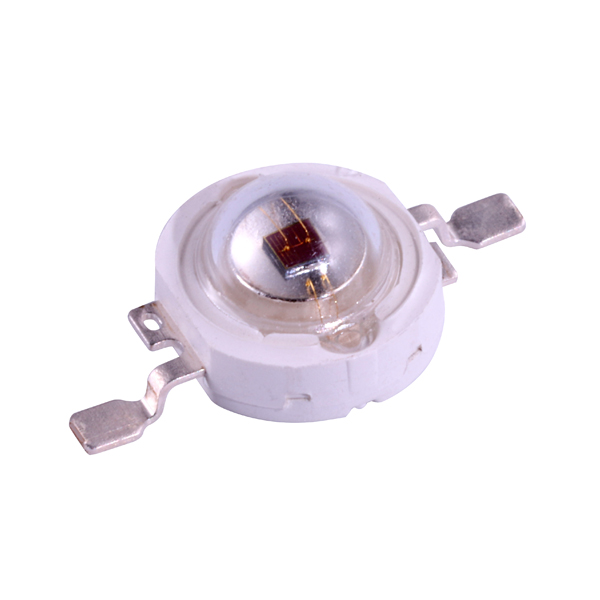

High power 1W 3W 1500nm 1550nm 1600nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 500mA | 1.2 | 1.2 | 1.4 | V |
Luminous Flux | Φv | IF = 500mA | 40 | -- | 50 | mw |
Viewing Angle | 2θ1/2 | IF = 500mA | ---- | 140 | ---- | Deg. |

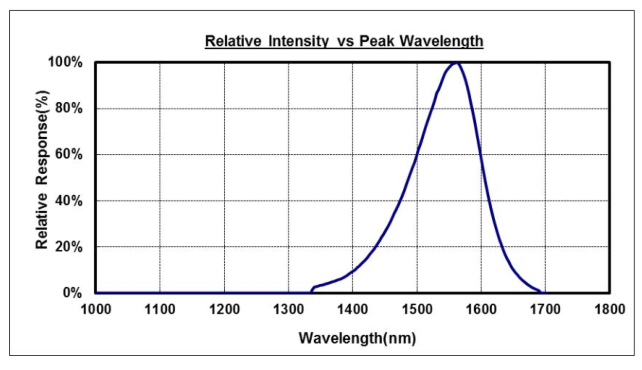

Dominate Wavelength | λd | IF = 500mA | 1500 | 1550 | 1600 | nm |
| other IR LED Wavelength | 700-710nm, 730-735nm, 740-745nm, 760-765nm, 780-785nm, 800-805nm,805-810nm, 830-840nm,850-855nm, 880-890nm, 910-920nm, 930-940nm, 940-945nm, 970-980nm, 980-990nm, 995-1000nm, 1010-1020nm, 1040-1050nm, 1030-1035nm, 1345-1350nm,1450nm |

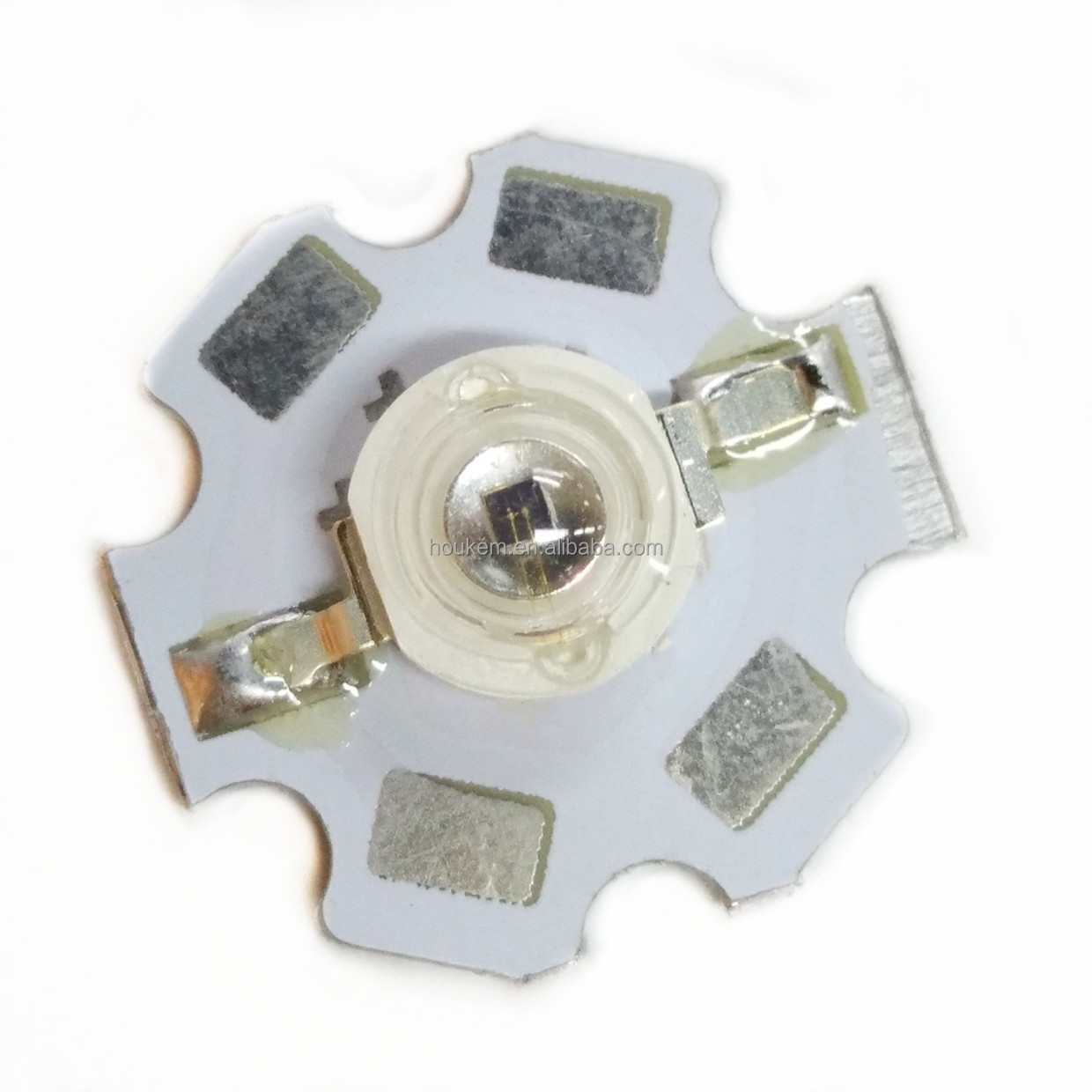

with star pcb board is available.
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..

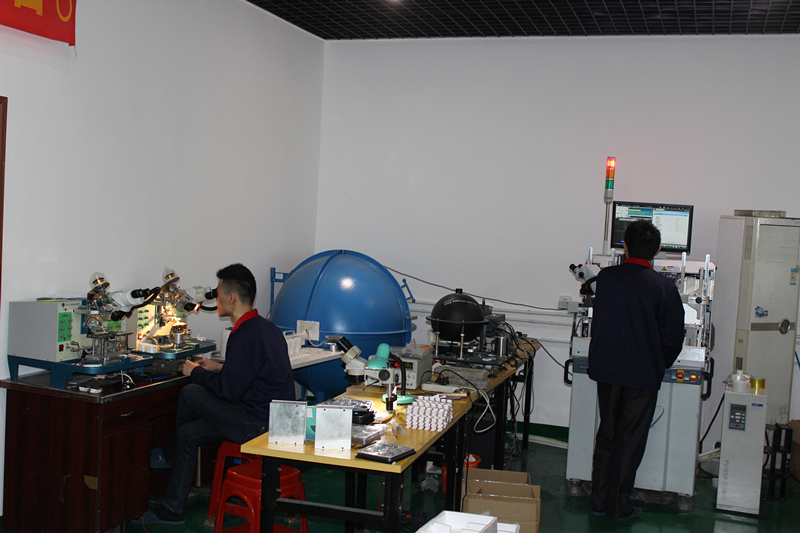

In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
