High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm
High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm
High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm

High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm

Model NO.
HNK-HP100UV-E45
Price:
USD 38.98-325.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
1000000 piece / Month
Country of Origin:
Shenzhen, China
Stock Time:
Shipped in 5 days after payment Day
Quantity:
  • Type:COB LED
  • Place of Origin:CN;GUA
  • Brand Name:HNK
  • Storage Temperature(℃):-40 - 100
  • Operating Temperature(℃):-20 - 80
  • Viewing Angle(°):140
  • Certification:CE
  • Certification:RoHS
  • Model Number:HNK-HP100UV-E45
  • Chip Material:InGaN
  • Power:100W
  • Emitting Color:UV

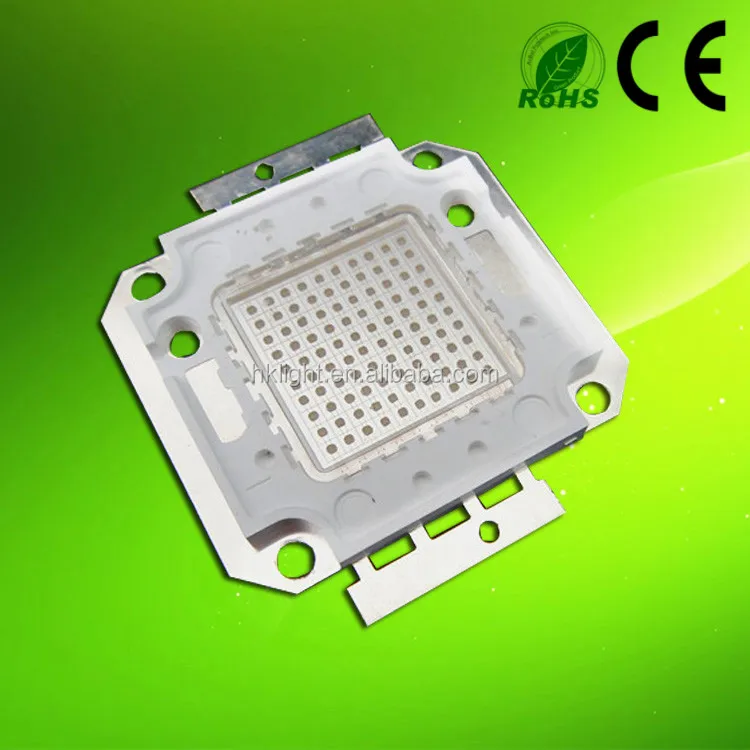

High Power 100W COB UV Curing LED Module



Product Model:HNK-HP100UV-E45

Warranty

Regard Warranty, if the product is used in normal circumstances, we give two years guarantee. If the LED have such similar issue of not bright, we will provide you a new one for replacement and bear the freight cost.

Product Description

Order Instruction

ItemHigh Power 100W COB UV Curing LED Module
Power100W
ColorUV
Chip Brand
Epileds, LG
Chip Size45mil
Luminous Flux2500-3500lm
Wavelength

365-440nm

Radiation Power

30000-50000mW

Working Current3000-3500mA
Forward Voltage30-34v
CertificationCE, RoHS
Wire Material
Pure Gold
Wire Diameter1.25mil
Warranty2 years
Place of OriginDongguan, Guangdong, China



The Structure Design Picture



High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm



 High Power 100W COB UV Curing LED ModulePicture



High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm



The Features of Our Product

1. Use high efficient integrated LED as the light source

2. Wide beam angle: 160 degree (larger lighting area) or customized

3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently

4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool

5. Can be combined with fluorescent lighting

6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant

Our Services

1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech products. We have our own patented products.

2. Our products must pass strict quality control procedures.

3. We have advanced production equipment.

4. We use the raw materials are from domestic and foreign well-known brand manufacturers.

5. After repeated tests before shipment.

Advantages



1. Less power consumption: light effects to 40 lm/w of the LED power consumption than equivalent incandescent brightness reduced by 80%;

2. Long life: product life of up to 50,000 hours;

3. Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;

4. A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;

5. Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;

6, color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.

Packaging & Shipping

High Power 100W COB UV Curing LED ModuleInner Packing



High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm



Inner Packng: 6pcs with an antic-static plastic box

Outer Packing: Carton box

Samples in stock,we can send them in 2 days, and orders normally is sent out by 5-7days, or according to the quantity.



The Logistics Partner of Our Company



High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm

Company Information

We are the LED professional manufacturer, have over 14 years experience on LEDs. We can offer you 260nm to 1050nm high power LED arrays, COB LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light, and all LED lighting application solution.



 View of Our Factory









FAQ

1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.



2. What will be the delivery time and what will be the mode of payment ?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes

The payment can be T/T transaction, Letter of credit,Western Union.



3. Shipment will be over sea or by air ?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation.



4. Could you please send me the sample for the same . So that i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher.



5. Will there be any contract for this business or trade ?

Yes, there is a normal contract before the order is placed.



6. How will invoice be generated ?

Invoice can be generated with formal contract with company seals.

Certifications


The Certifications of our products



 High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm





High Power 100W COB UV Curing LED Module 365nm 375nm 385nm 395nm 405nm



Please contact us with no hesitate if you have any unclear or questions!
