High power 100 watt 810nm infrared led 100w 805nm 810nm 808nm ir led
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:INGAN
- Emitting Color:Red
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power IR LED 810nm
- Forward Current:3000-3500mA
- Forward Voltage:15-16v
- Application:laser light, medical treatment, camera
- Wave length:805-810nm
- Chip Size:42mil
- Chip brand:Epileds
- Certification:ce, rohs, ISO9001
- Color:RED
- Frame Material:Red Copper Base

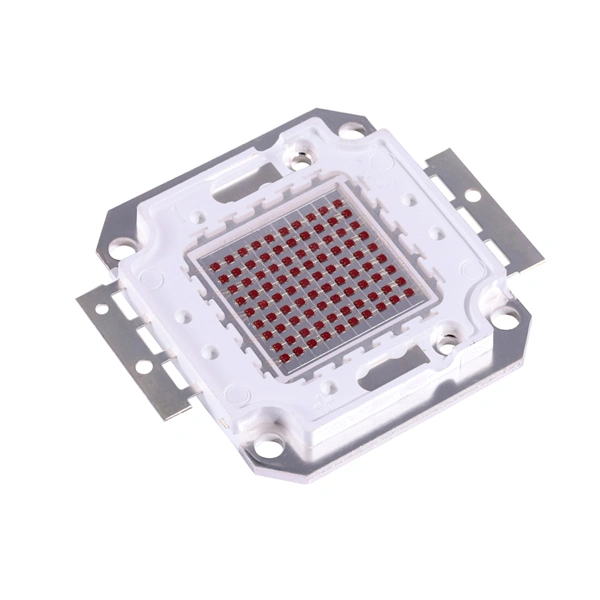

High power 100w 808nm 810nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 3500mA | 15 | 16 | 16 | V |
Luminous Flux | Φv | IF = 3500mA | 10000 | 10800 | 11000 | mw |
Viewing Angle | 2θ1/2 | IF = 3500mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 3500mA | 805 | 810 | 810 | nm |

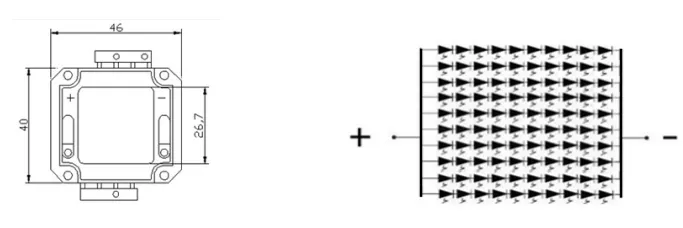

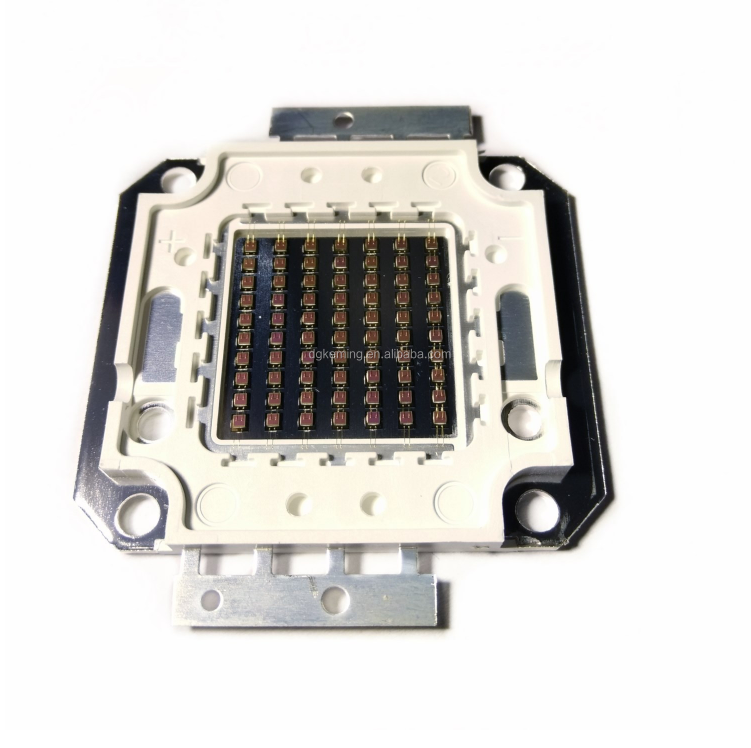

100W, 10 series 10 parallel

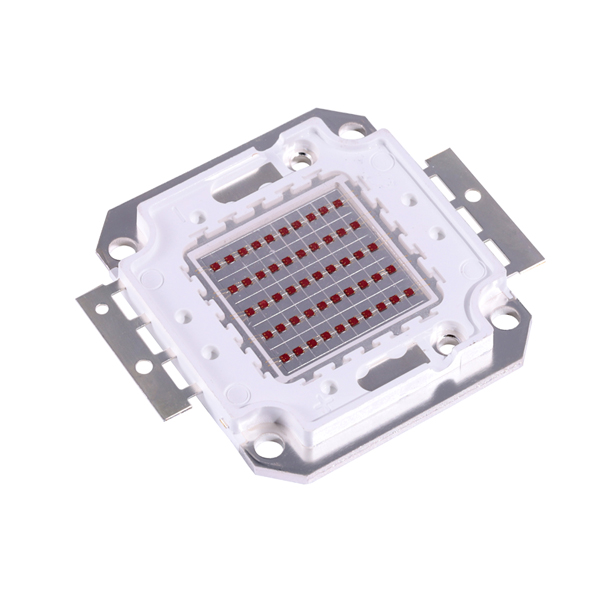

50w, 10series 5 parallel
70w, 10series 7 parallel

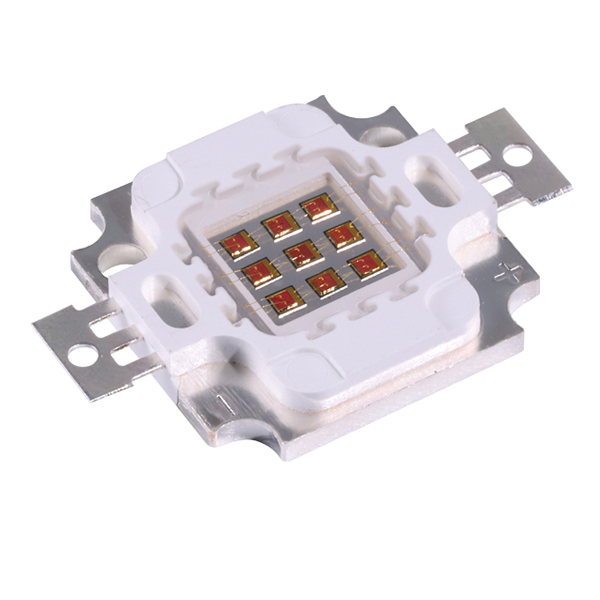

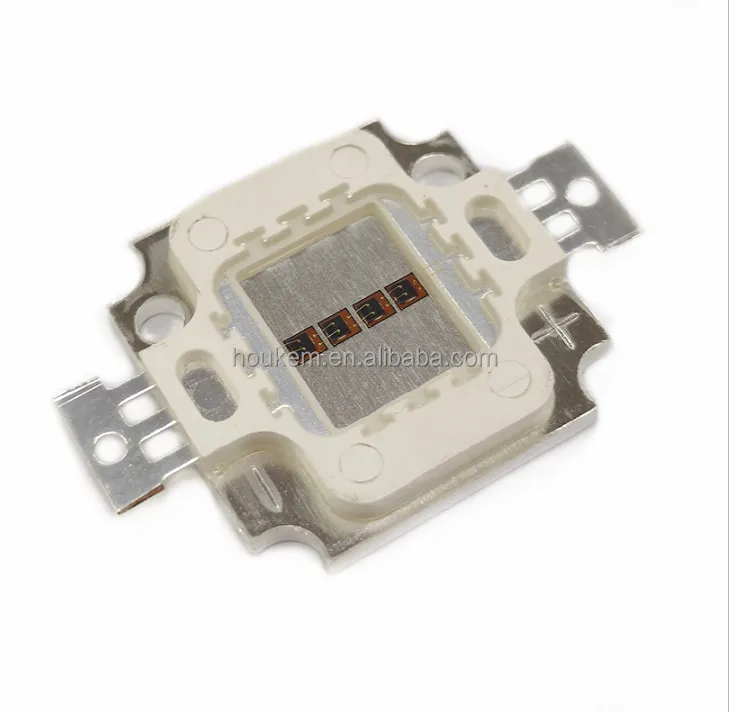

10w: 3series 3 parallel
5w 4 series 1 parallel

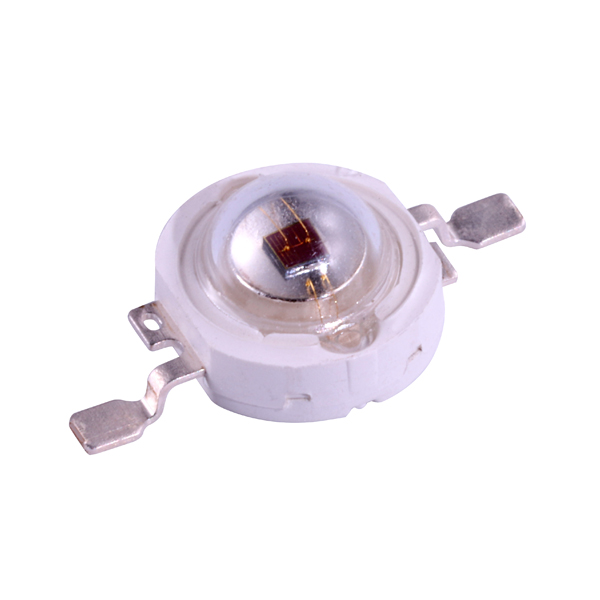

1w , 1 series 1 parallel

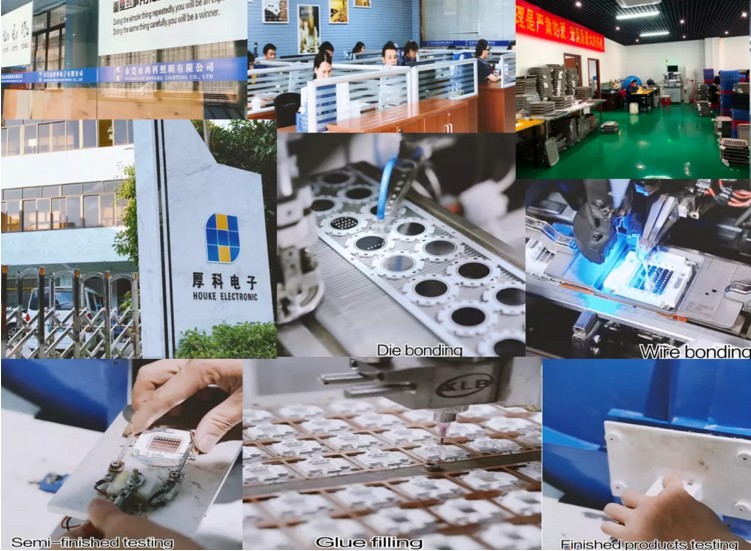

Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,

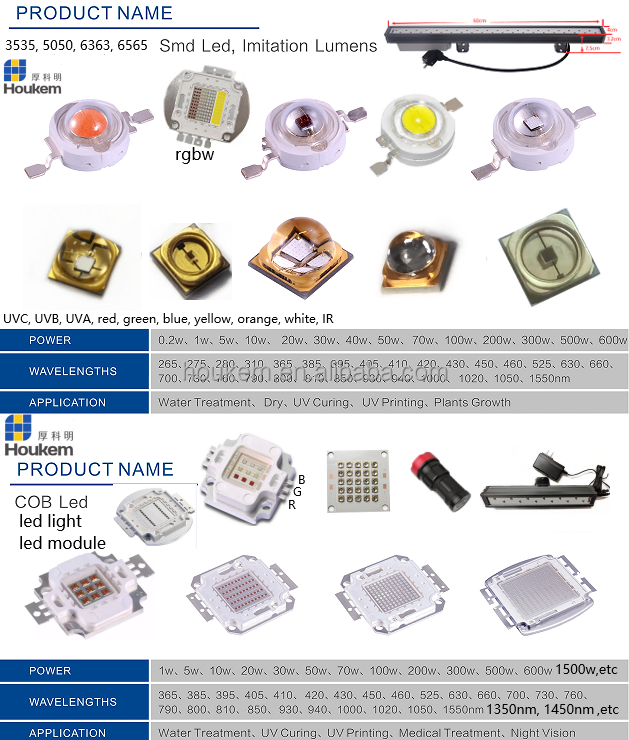

including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1450nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..

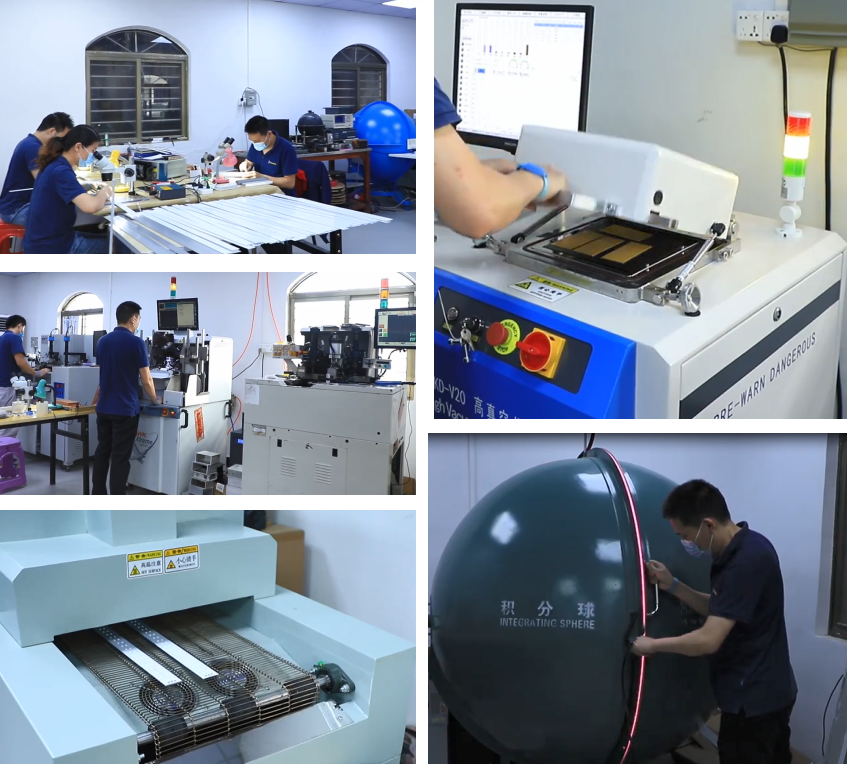

In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 3-7 work days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.what payment method can you accept?
A:we accept :T/T,paypal,Western Union,Credit card.
Q6. How to proceed an order ?
A: Firstly let us know your requirements or application.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2 years quality warranty to our products.
