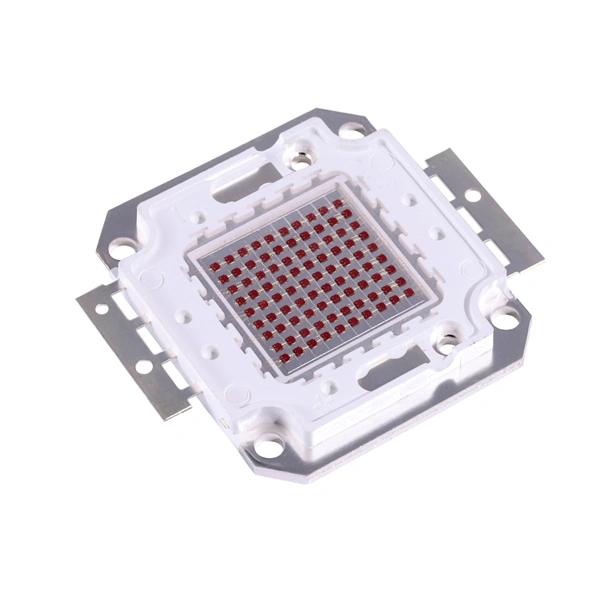

High power 100 watt 650nm led 100w 655nm 650nm red led
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:INGAN
- Emitting Color:Red
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power IR LED 650nm
- Forward Current:3000-3500mA
- Forward Voltage:20-24v
- Lifespan:50000 Hours
- Application:stage light
- Wave length:650-655nm
- Chip Size:42mil
- Chip brand:Epileds
- Certification:ce, rohs
High power 100w 650nm red led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 3500mA | 20 | 22 | 24 | V |
Luminous Flux | Φv | IF = 3500mA | 400 | --- | 500 | mw |
Viewing Angle | 2θ1/2 | IF = 3500mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 3500mA | 650 | -- | 655 | nm |

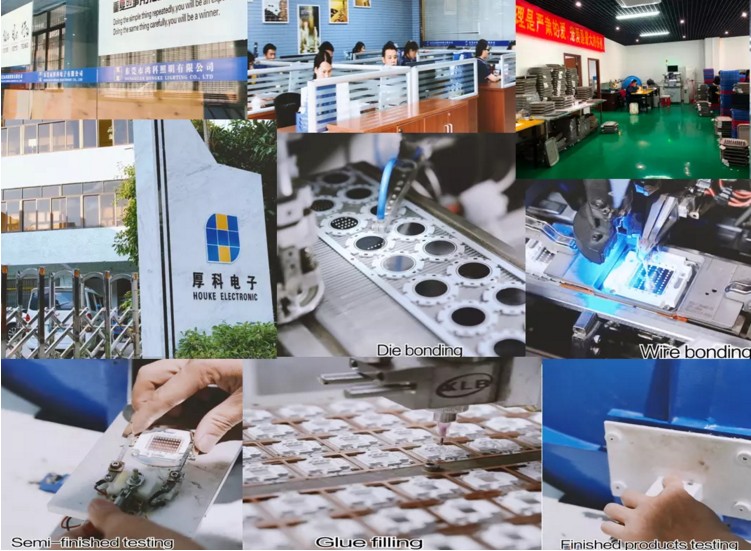

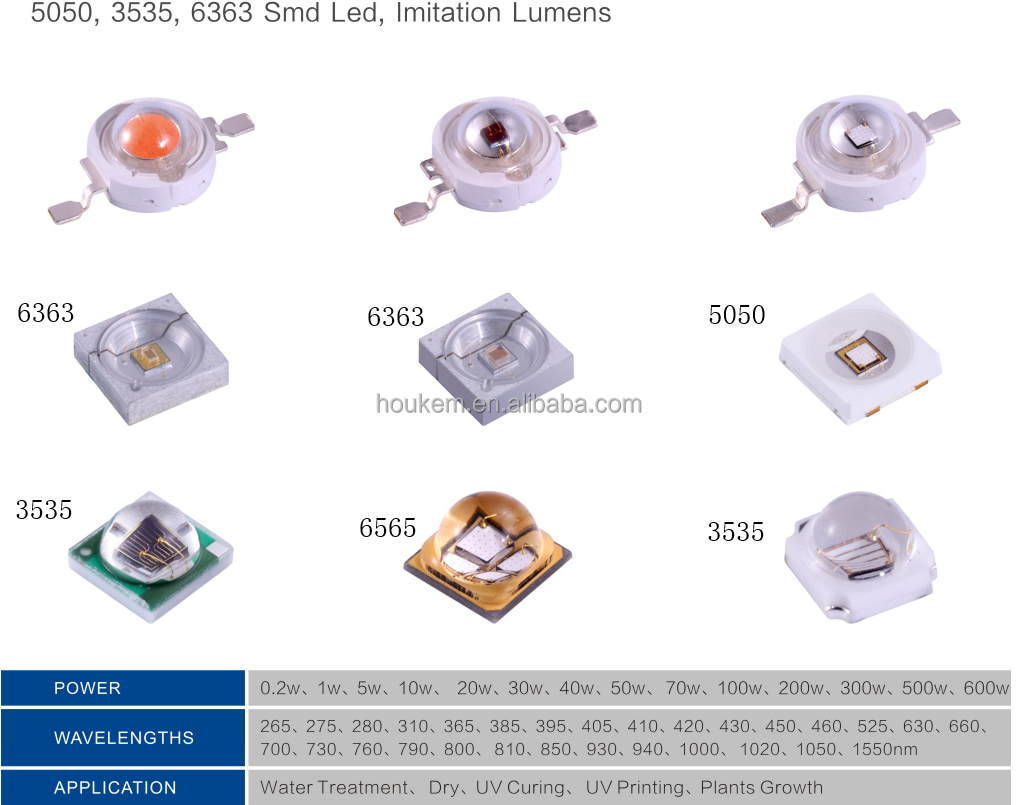

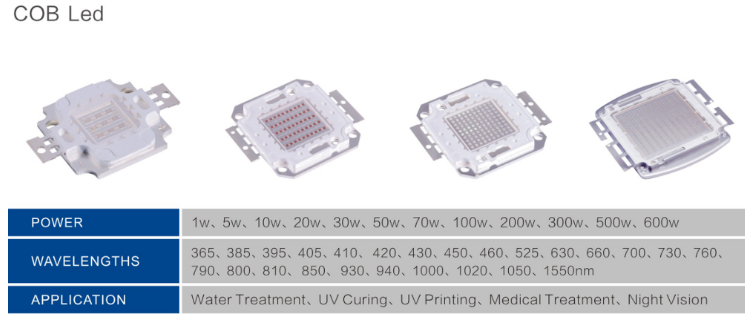

Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, 10w-200w led flood light, UVC led sterilizer light, and all LED lighting application solution.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 3-7 work days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.what payment method can you accept?
A:we accept :T/T,paypal,Western Union,Credit card.
Q6. How to proceed an order ?
A: Firstly let us know your requirements or application.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2 years quality warranty to our products.
Q9: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide service door to door (China to your warehouse), much easy transaction.
