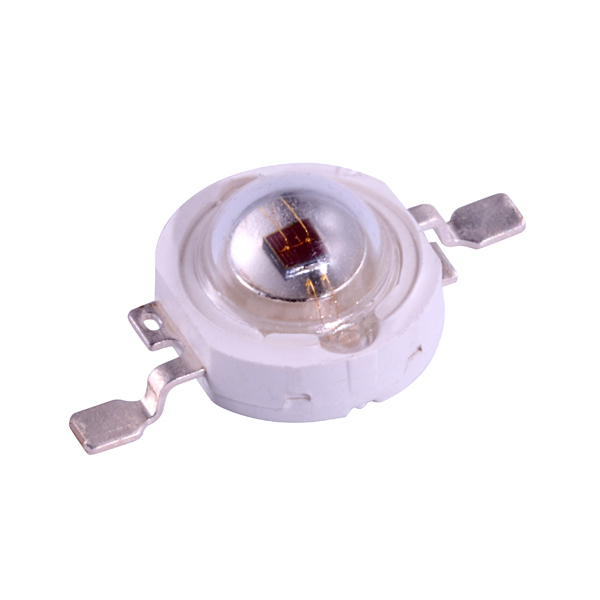

High power 1 watt 1050nm infrared led invisible 1w 1050nm 1045nm ir led
- Input Voltage(V):DC 1.2-1.4V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:1-3W
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:1W High Power LED 1050nm
- Emitting Colour:red
- Forward Current:300-600mA
- Forward Voltage:1.2-1.4v
- Lifespan:50000 Hours
- Application:laser light
- Wave length:1045-1050m
- Chip Size:42mil
- Certification:RoHS, CE, ISO9001
High power 1w 1045nm 1050nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 350mA | 1.2 | 1.3 | 1.4 | V |
Luminous Flux | Φv | IF = 350mA | 12 | 13 | 14 | mw |
Viewing Angle | 2θ1/2 | IF = 350mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 350mA | 1045 | 1046 | 1050 | nm |
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
