Model No: HOUKEM-12257-BA
high brightness orange square dot matrix 5x7 led display
dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.52 - $0.52 / piece
- Application:Indoor, dot matrix
- Color:orange
- Panel Size:22.8*39.1*8mm
- Pixel Pitch:4.6mm
- Supplier Type:Original manufacturer, ODM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-12257-BA
- Brand Name:HOUKEM
- use:advertising publish, retail store
- Pixels:3mm
- Specification:Digital Poster
- Rohs:yes
- Face color:Black or Gray
- Working current:20mA
- Working voltage:1.8-2V
- OEM:Yes
- Manufature:China factory
- Package:EPE+carton
- Module size:22.8x39.1mm
- Part NO.:HOUKEM-12257-BA
Products Description

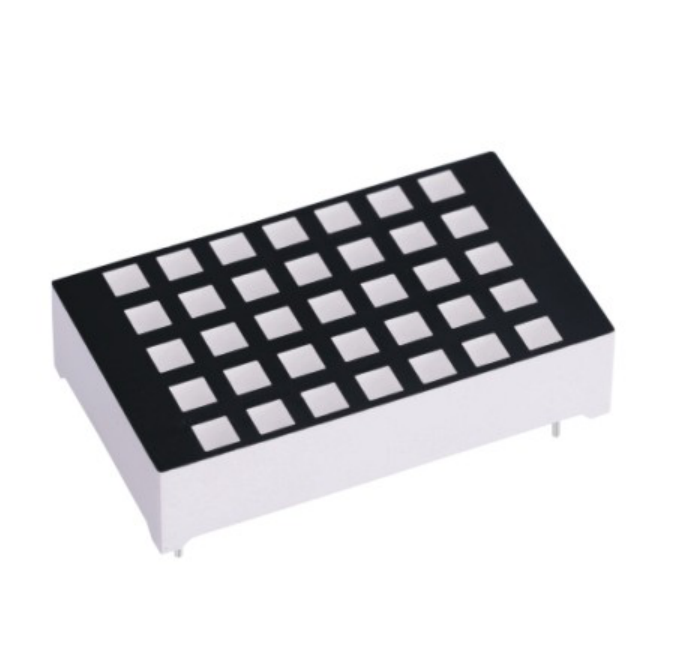

high brightness orange square dot matrix 5x7 led display
Part No. | HOUKEM-12257-BA | Dimension | 20.3*28.6*10.3mm | |||
Pixel | 3.0mm | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | orange | |||
Luminous intensity | 100-130mcd/chip | Polarity | Common anode/cathode | |||
If need other specifications, Please contact with our sales to get what you want. | ||||||
Details Images
Features:
1. 1.2inch(mm) 5x7 square dot matrix
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

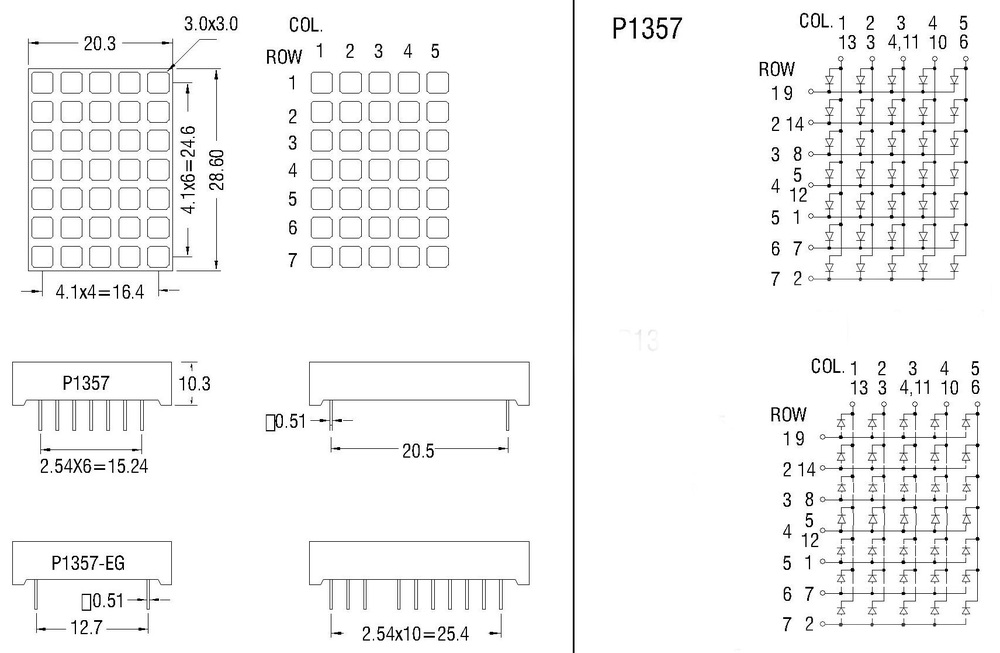

Dimension and Internal Circuit Diagram
Relative Products:
All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
