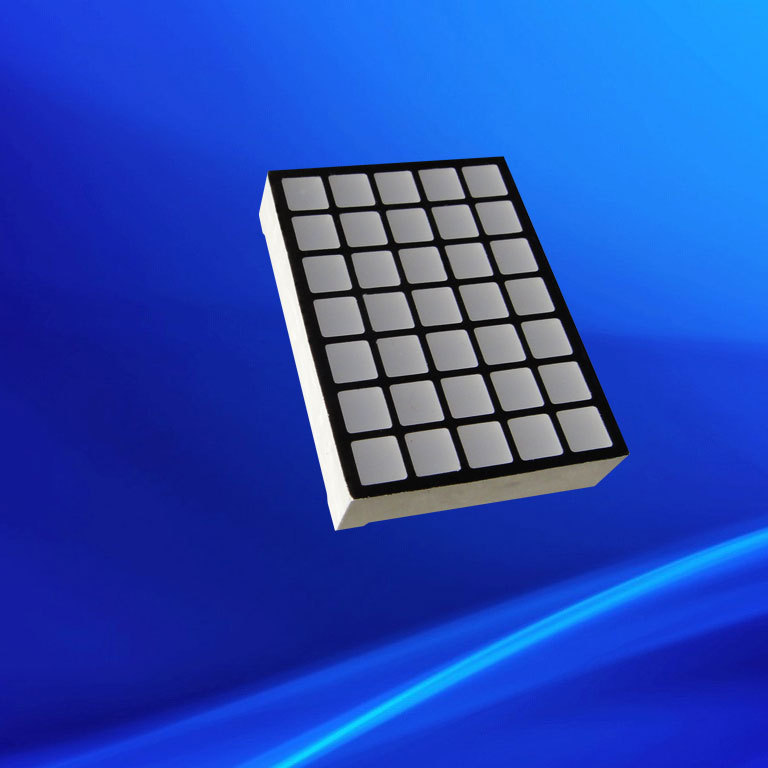

high bright 5x7 super red Square LED Dot-Matrix Display
high bright 5x7 super red Square LED Dot-Matrix Display
high bright 5x7 super red Square LED Dot-Matrix Display
high bright 5x7 super red Square LED Dot-Matrix Display
high bright 5x7 super red Square LED Dot-Matrix Display
high bright 5x7 super red Square LED Dot-Matrix Display
high bright 5x7 super red Square LED Dot-Matrix Display

high bright 5x7 super red Square LED Dot-Matrix Display

Model NO.
KEM-8057S
Price:
USD 0.56-0.80 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
SZ/GZ (LED square dot)
Quantity:
  • Place of Origin:CN;GUA
  • Usage:OUTDOOR
  • Tube Chip Color:Green
  • Display Function:Graphics
  • Pixels:16mm
  • Brand Name:KEM
  • Model Number:KEM-8057S
  • Screen Dimension:30*22*6mm(5x7 square dot)


high bright 5x7 super red Square LED Dot-Matrix Display

We can provide different sizes & color as per your request.

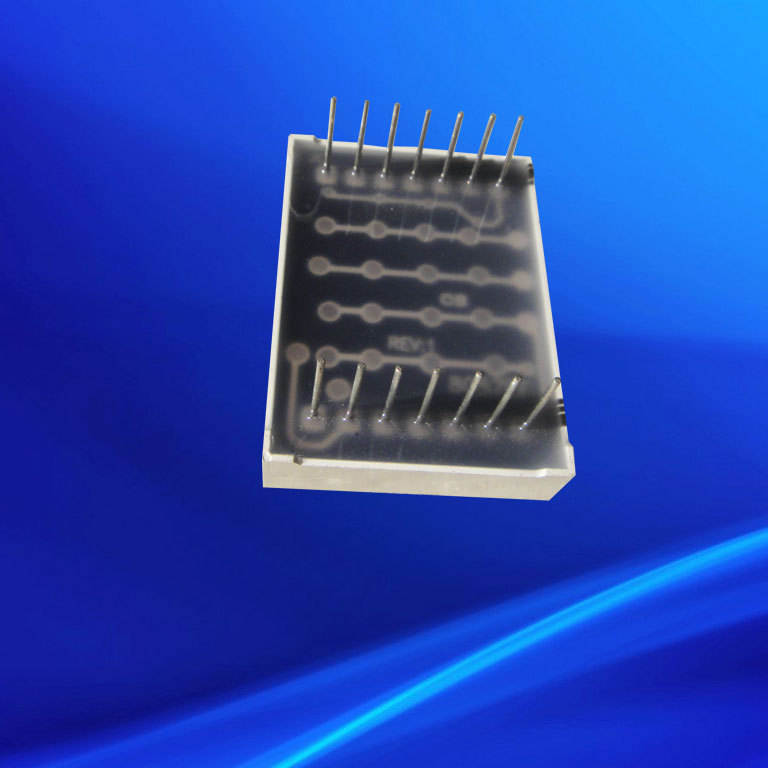

More Pictures of led character matrix display for your easy ref


led character matrix display

Features of  led character matrix display  :

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB .
  • Face color : black / gray .
  • Surface dot type : epoxy diffusion / clear lens .





Part details  led character matrix display  :



Part name

: led character matrix display



Model.

:KEM-8057S



Description

:3.45mm 5x7 square dot led display(30*22mm)



Surface color

:Black / gray



Emitting color

:Super Green



Wavelength

565-575 nm



Luminous intensity

70-90mcd



Voltage/ Current

1.8-2.3v  / 20mA



PCB Polarity

:Common Cathode or Common Anode

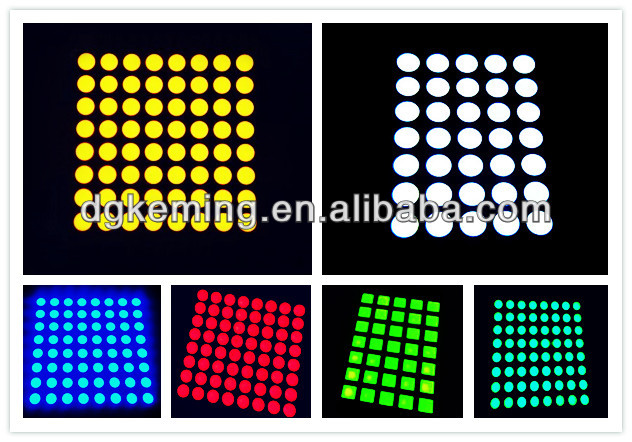

Various color available for  led character matrix display  :

Dominant Wavelength                    Luminous Intensity

Red: 620 - 630nm                                     Red: 70-90 mcd                         (1.8-2.3v / 20mA)

High red: 635 - 640 nm                             High red: 50-70 mcd                  (1.8-2.3v / 20mA)

Green: 565 - 575 nm                                Green: 70-90 mcd                      (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm                                Yellow: 40-50 mcd                     (1.8-2.3v / 20mA)

Amber: 600 - 605nm                                 Amber: 30 mcd                          (1.8-2.3v / 20mA)

Blue: 460 - 475nm                                    Blue: 40-50 mcd                     (3.0-3.3v / 20mA)

Pure green: 515 - 525nm                         Pure green: 180-250 mcd       (3.0-3.3v / 20mA)

White : 450-460 nm                                 White: 100-180 mcd                (3.0-3.3v / 20mA)

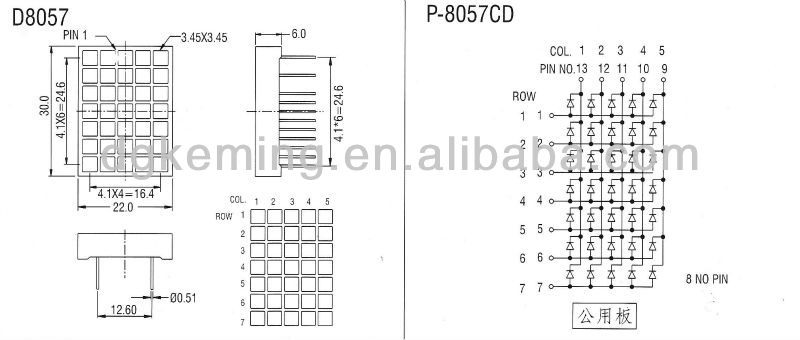

Dimension and Internal Curcuit of led character matrix display :

5x7 LED Dot Matrix Display /SQUARE DOT

led character matrix display

If the PCB curcuit can not meet your need, pls contact me for other choices.

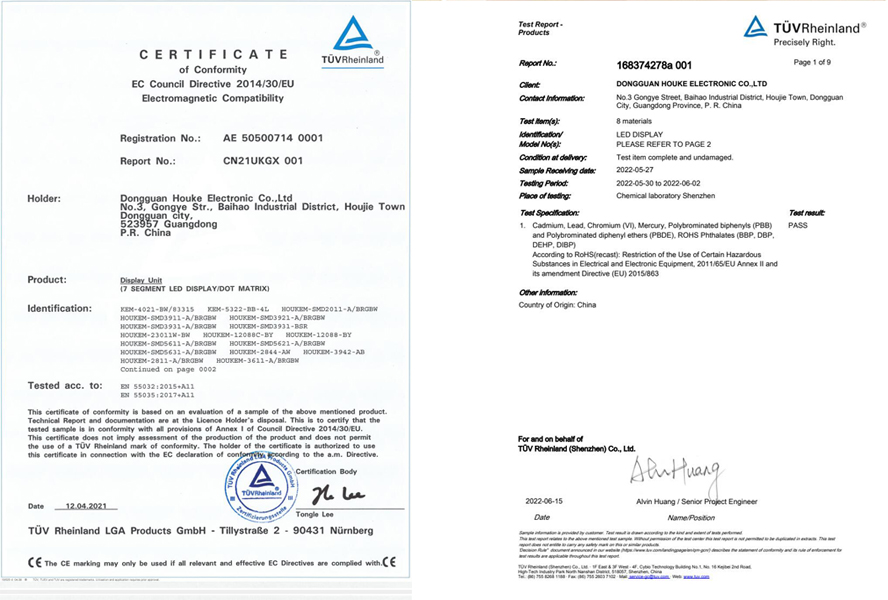

Certifications

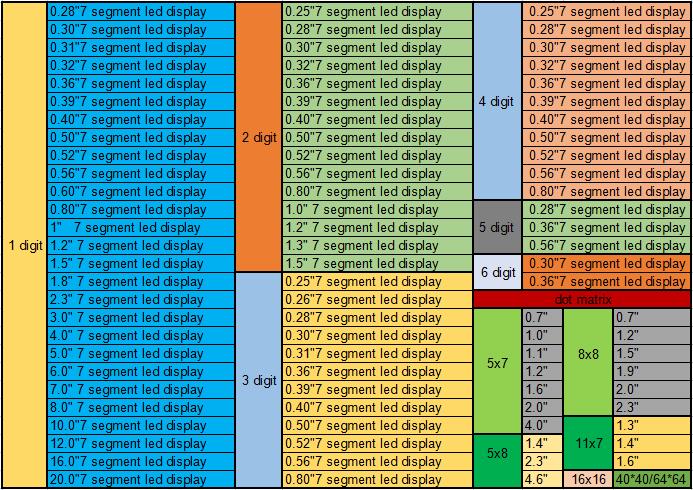

All of our products


7 segment dot matrix LED

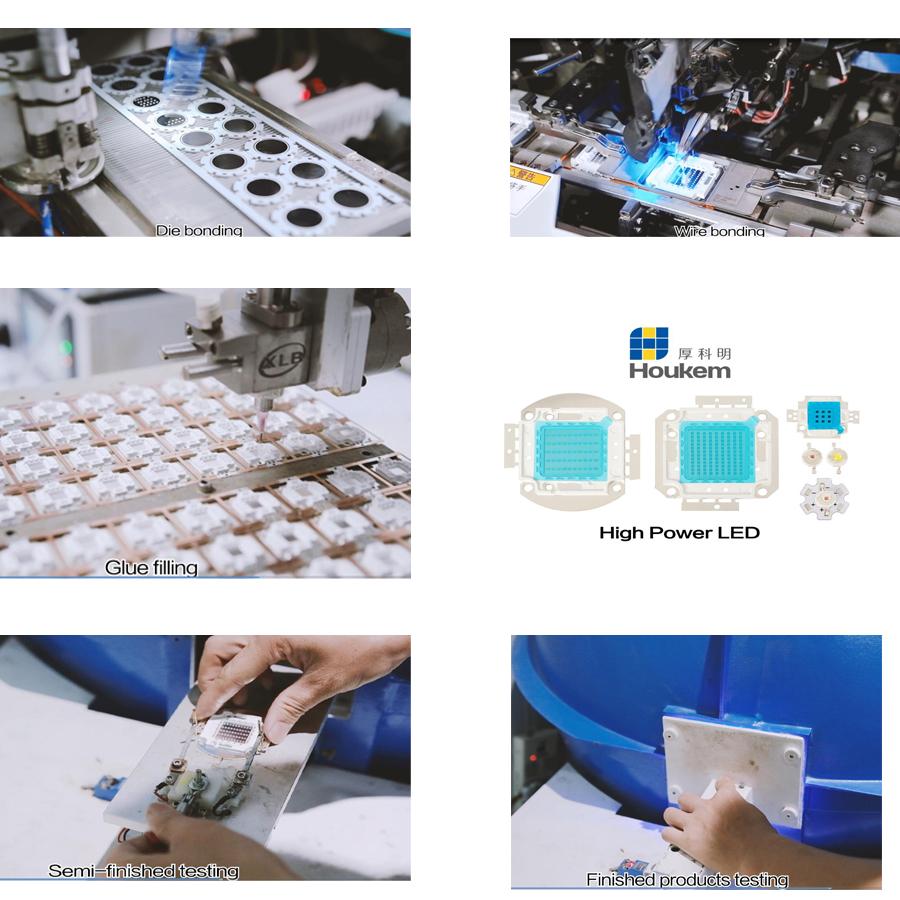

Company Information

Established in 2003,Dongguan city,our factory specializes in LED products,

including 7 segment LED/SMD displays, dot-matrix,

high power led(IR & UV led).etc.







FAQ

Q1. Can I have a sample order for your products?

A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-7 days, mass production time needs 1-3 weeks .

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc for sample checking is available for most types.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5.what payment method can you accept?

A:we accept :T/T,paypal,Western Union,Credit card.

Q6. How to proceed an order ?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q7. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q8: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q9: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will  resend them to you or we can discuss the solution

including re-call according to real situation.
