green 4 digit 0.28'' 7 segment led display

Model No: Houkem-2841-ASG

Green 7 segment 4 digit .28inches led numeric display for air conditioner

Delivery :

FOB

minimum order :

1 piece

Supply Ability :

50000piece / Day

Country of Origin :

shenzhen guangzhou

Quantity :

USD0.26 - USD0.50 / piece

add to cart

Contact Now

Place of Origin:CN;GUA
Usage:Indoor
Tube Chip Color:Green
Display Function:Graphics
Pixels:25mm
Brand Name:KEM
Model Number:Houkem-2841-ASG
Screen Dimension:32.1*10mm

Product Describtion

12 PIN 4 digit 0.28 inch seven segment led display red

1,Low consumption

2, High brightness

Item No.	Houkem-2841-ASG
PG	32.1105.8mm
Surface color	Black /Grey
epoxy color	white
Emitting color	super green

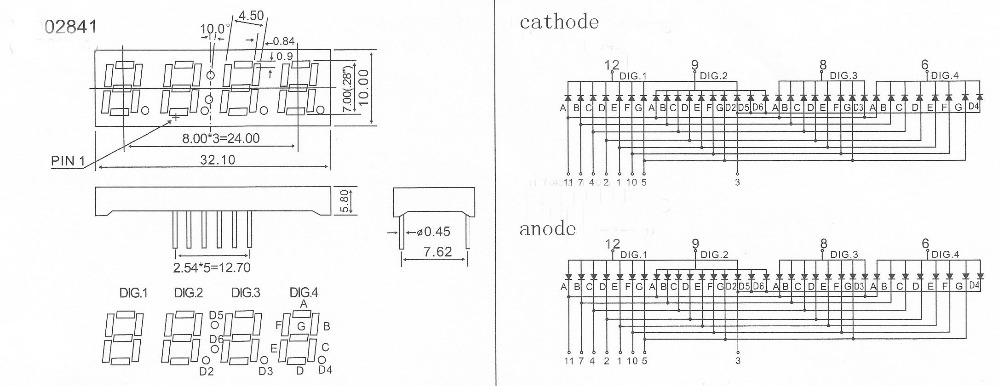

Package dimension & Internal circuit diagram

2841

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Two years quality warranty

2841-1

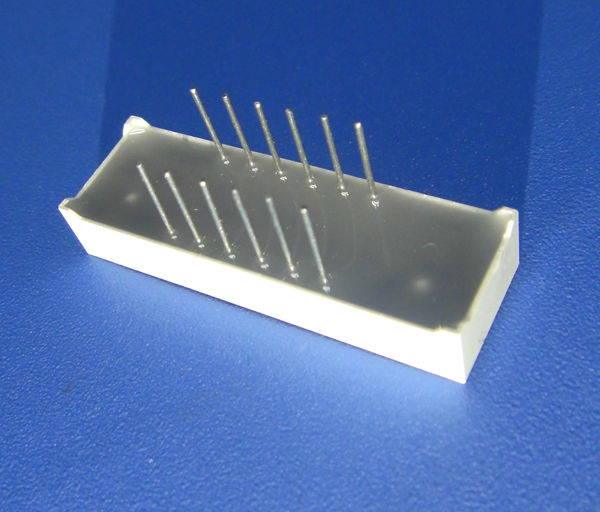

2841-b

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=18mA	600-605	30	1.9	2.0	90	100
Super green	IF=18mA	565-575	30	1.9	2.0	48	55
Super red	IF=18mA	620-625	20	1.8	2.0	110	130
Ultra red	IF=18mA	620-625	20	2	2.1	300	350
High red	IF=18mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=18mA	570-580	30	1.9	2.0	43	50
Yellow	IF=18mA	580-600	35	1.9	2.0	70	80
Blue	IF=20mA	465-475	40	2.8	3.0	150	200
Pure green	IF=20mA	515-525	40	2.8	3.0	180	250
^White	^IF=20mA	^-	^-	^2.8	^3.0	¹⁸⁰	²⁰⁰

Our Services

Customized products are available

Our service:

Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer---- SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

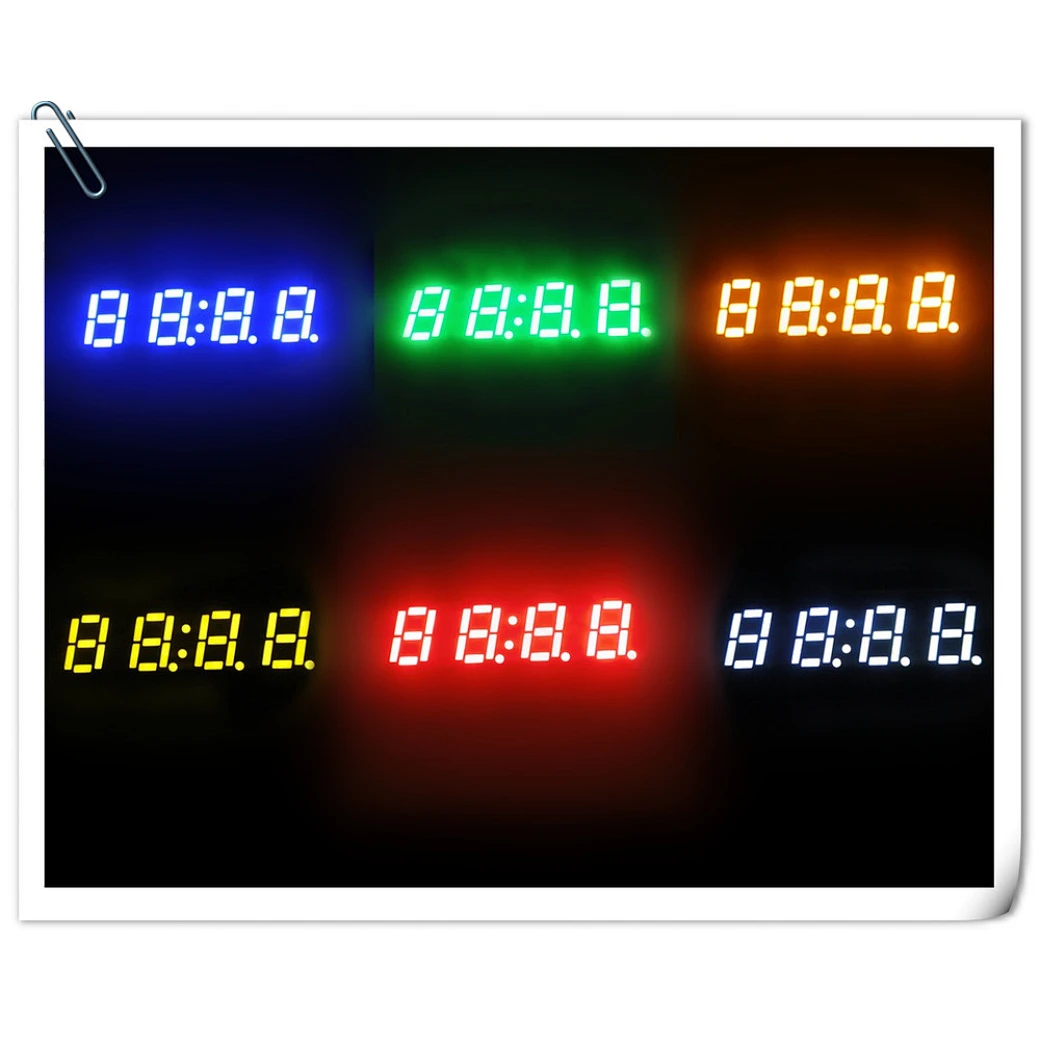

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.
