- Application:Indoor
- Color:red 16x16 led matrix
- Panel Size:64*64mm
- Pixel Pitch:4mm
- Supplier Type:Original manufacturer, ODM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-31616-BSR
- Brand Name:HOUKEM
- use:advertising publish, welcome display, subway
- Pixels:3mm
- Specification:Digital Poster
- Screen Dimension:64x64x7.5mm
- Light Source:Epistar
- Dot Diameter:3 mm
- Apply:LED display screen indoor
- Emitting Color:super red
- Warranty:2 years
- Product name:3mm 16x16 led matrix
- Wavelength:620-625nm
- Brightness:100-150mcd
- Voltage:1.8-1.9v
Products Description

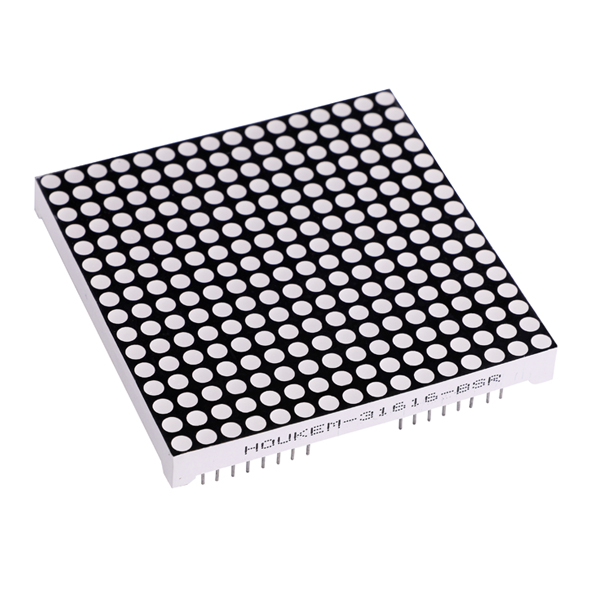

Houkem-31616-BSR high bright red 3mm 16x16 led matrix 64*64mm matrix dot display
Part No. | Houkem-31616-BSR | Dimension | 64x64xmm | |||
Pixel | 3 mm | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | super red | |||
Luminous intensity | 100-150mcd/chip | Polarity | Common anode on row | |||
If need other specifications, Please contact with our sales. | ||||||

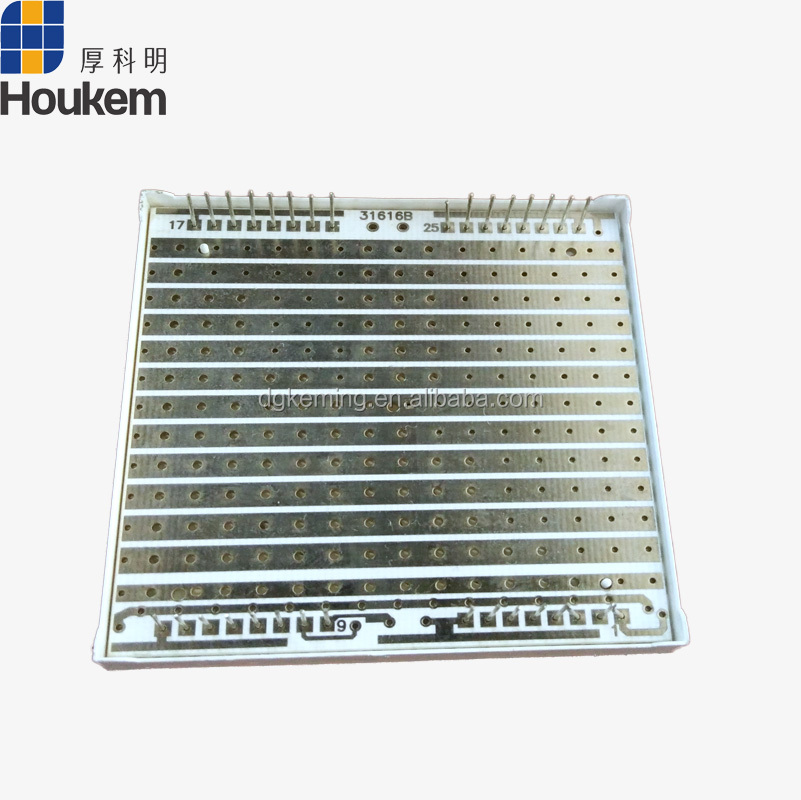

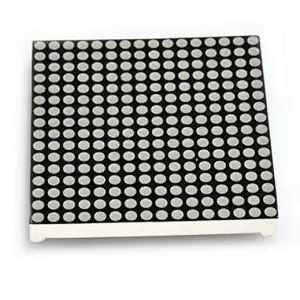

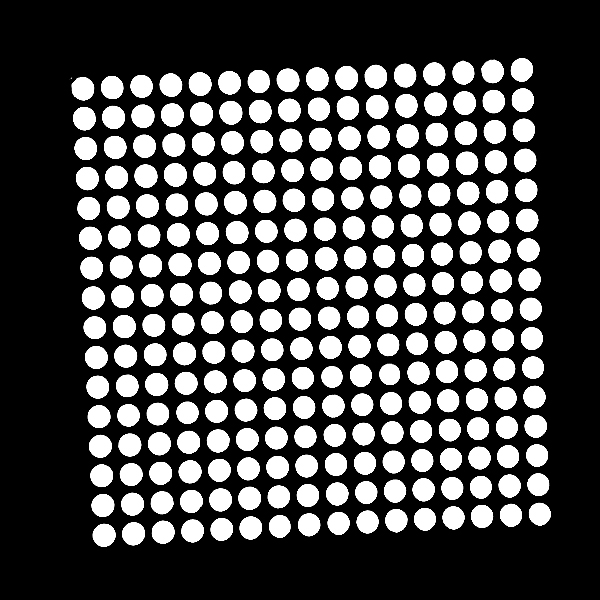

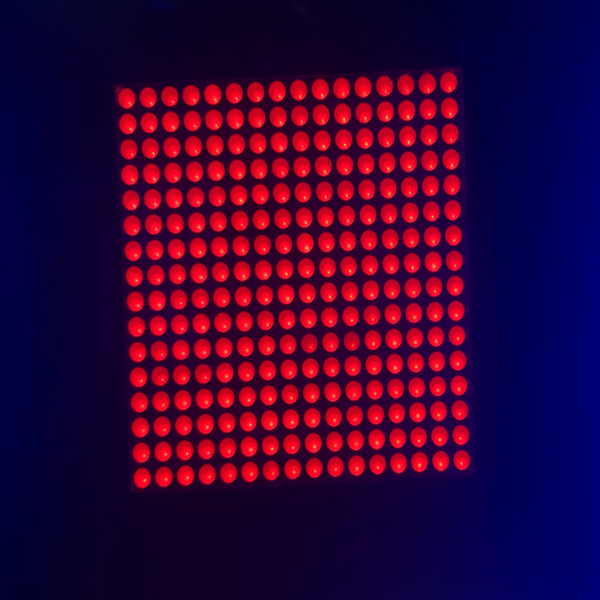

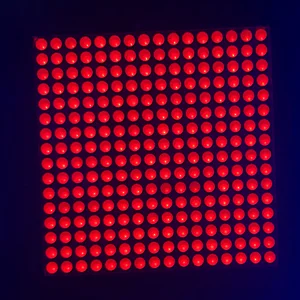

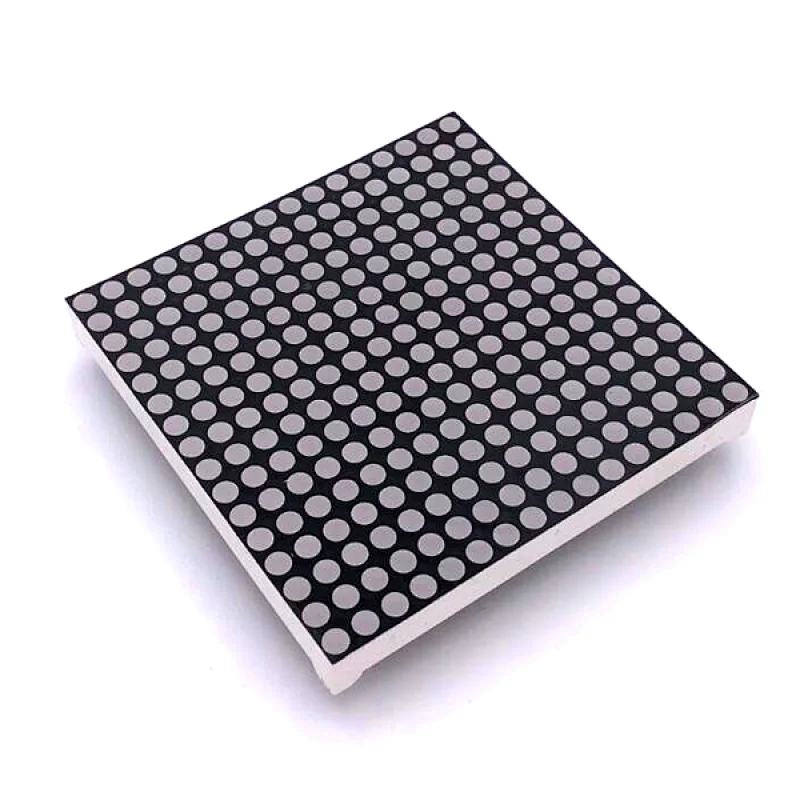

Details Images
Features:
* Red 16x16 dot matrix led display
* Uniform glow.
* Low current consumption.
* 2 years of warranty.
* Rohs & CE compliant.

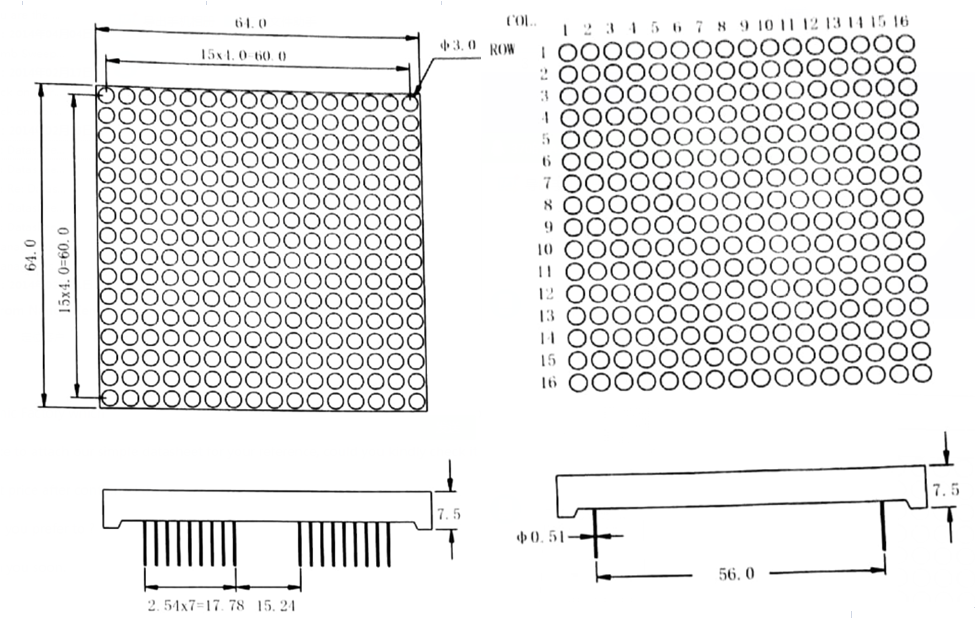

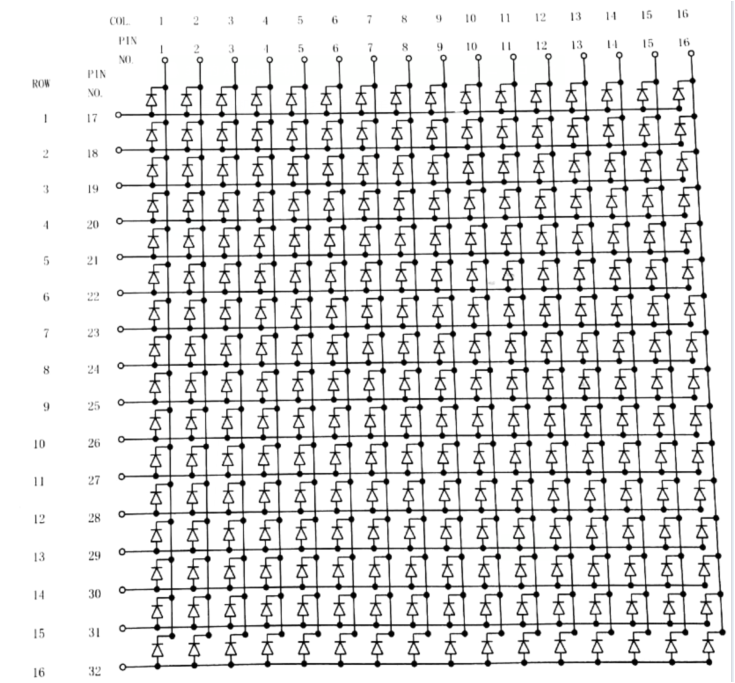

Dimension and Internal Circuit Diagram

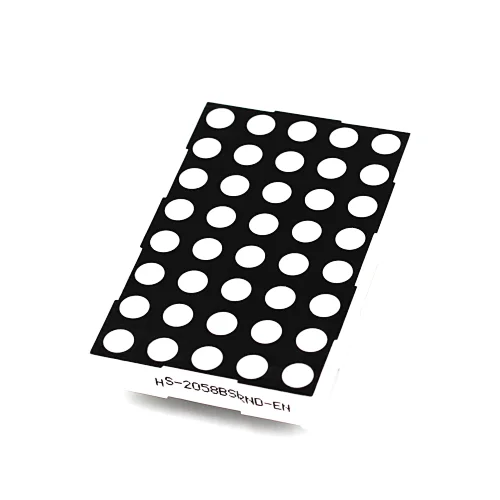

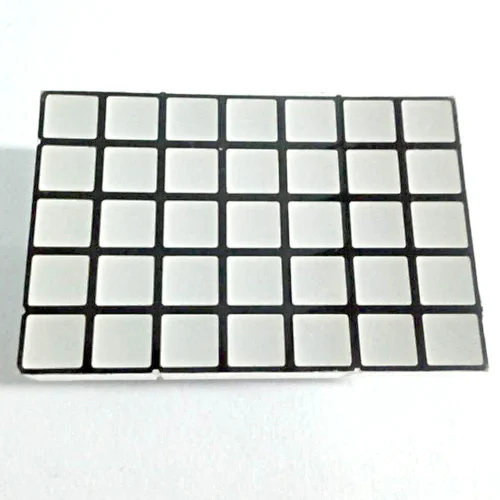

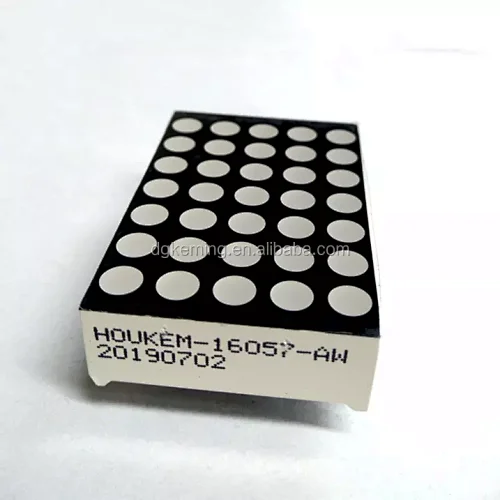

Relative Products:
All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 620-625 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 515-525 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

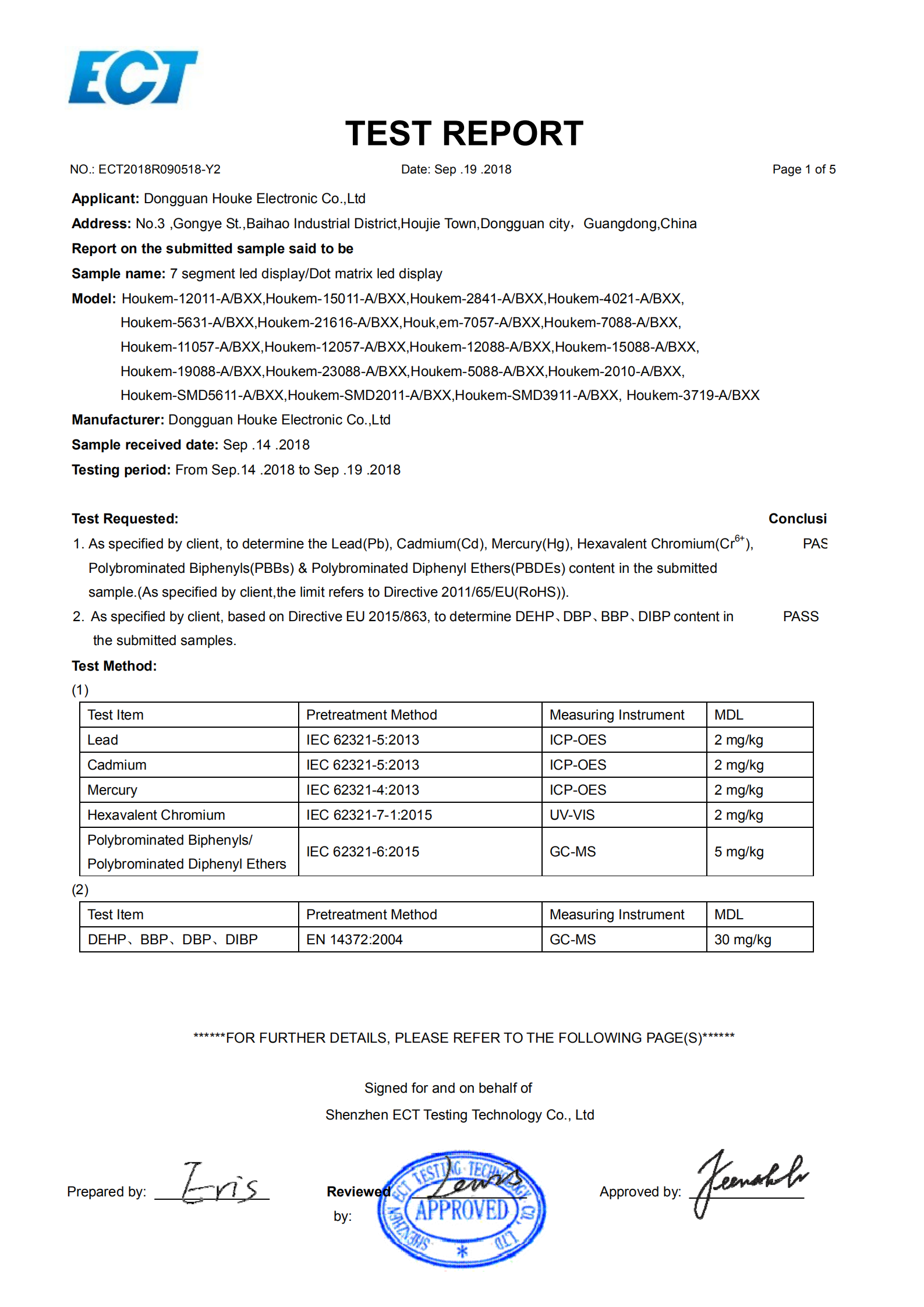

Certifications
Exhibition
FAQ
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.
Q5: What's your quotation terms?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.
Q5: What's your quotation terms?
EXW.
Q6: How about your quality?
Our products are CE, Rohs listed.
Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
Q6: How about your quality?
Our products are CE, Rohs listed.
Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
