64x64mm 16x16 RGB LED Matrix Display
64x64mm 16x16 RGB LED Matrix Display

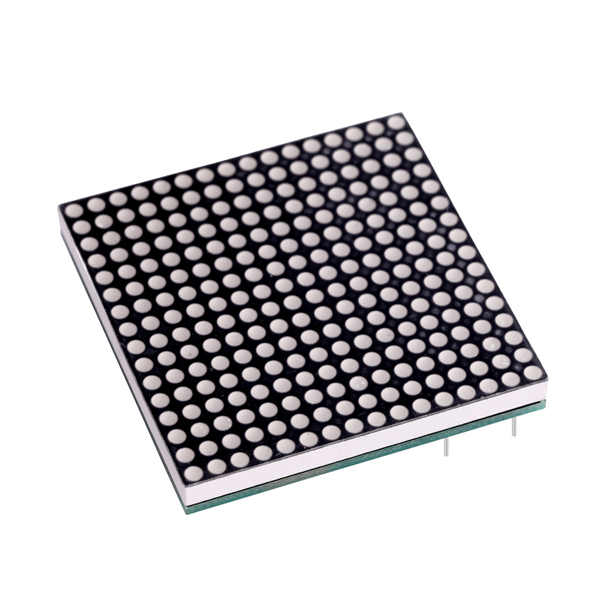

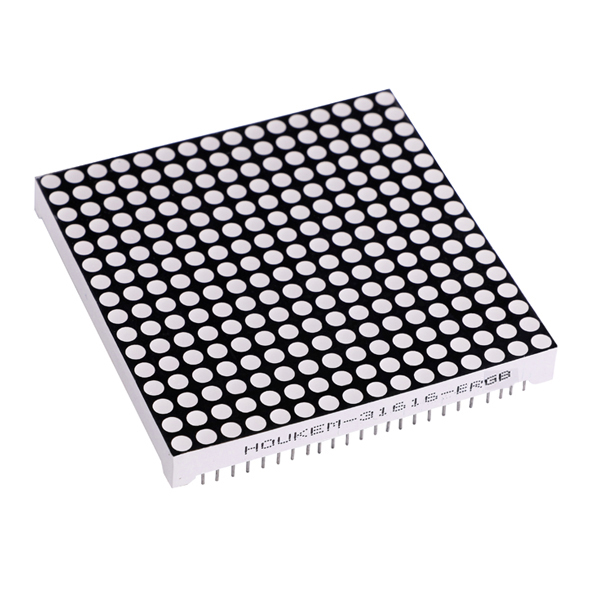

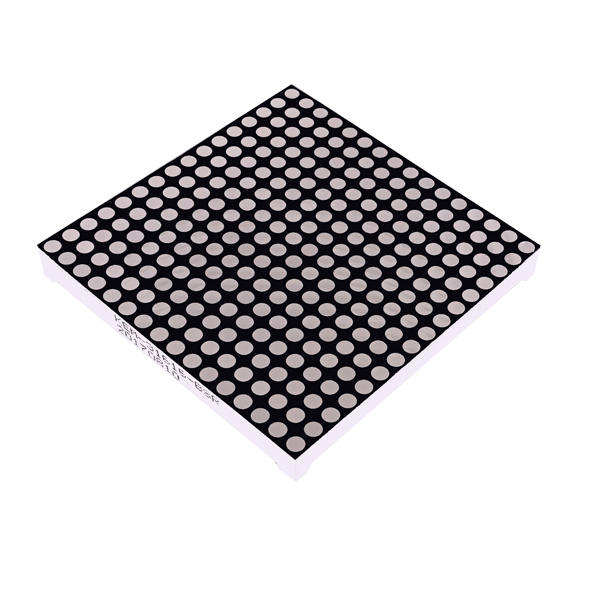

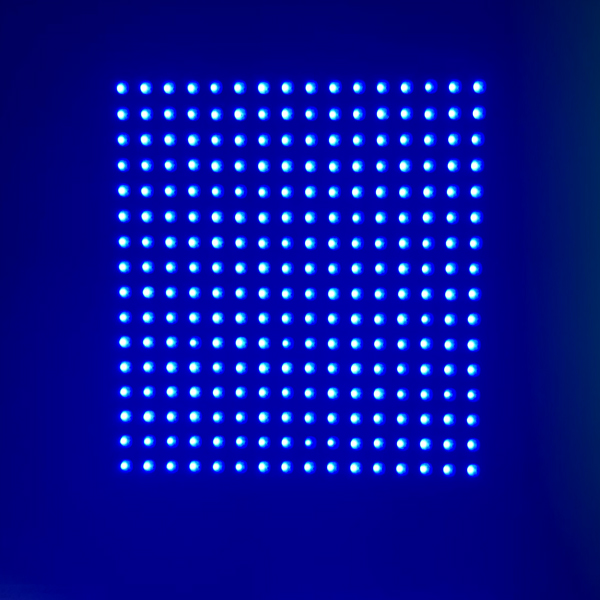

The HOUKEM-31616-BRGB is a 64x64mm 16x16 RGB LED Matrix designed for professional electronic display applications, advertising equipment, and digital signage. With a 16×16 dot array, 3mm pixel pitch, RGB emission, and common-anode polarity, this LED matrix provides a compact solution for multi-color visual indication and display integration.
16x16 RGB LED Matrix for Professional Applications
This16x16 RGB LED Dot Matrix features a 64 × 64mm panel with 256 LED pixels arranged in a 16×16 configuration. The 3mm pixel pitch provides a compact dot arrangement for equipment that requires multi-color visual information within a defined panel size.

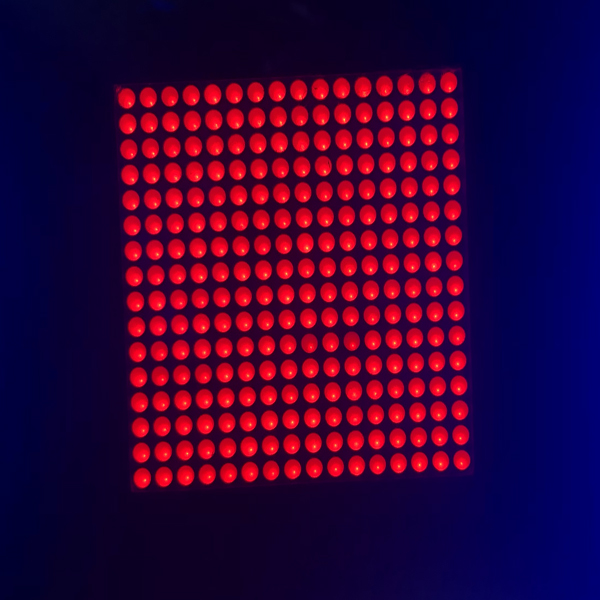

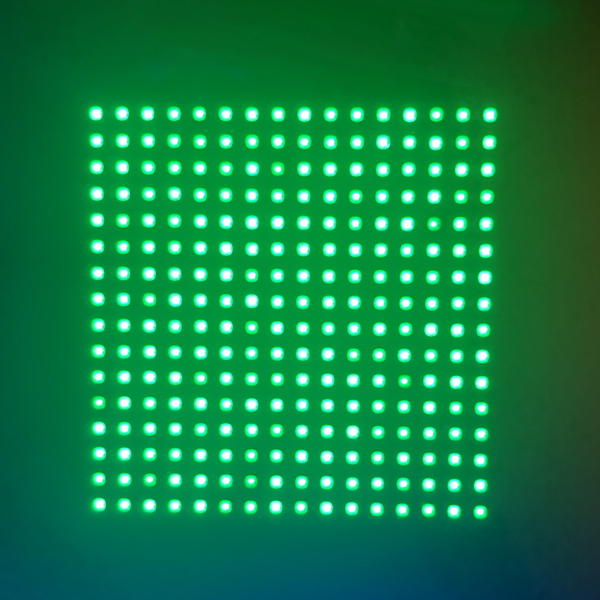

The RGB configuration supports red, green, and blue emission, making the display suitable for applications where different colors are used to communicate information, status, or visual content. The product uses common-anode polarity, with a specified working current of 15–20mA and working voltage of 1.8–2.1V.
Unlike addressable RGB modules that use integrated control ICs, this product should be specified and integrated according to its supplied electrical configuration and customer circuit design.
Product Specifications
| Parameter | Specification |
|---|---|
| Part Number | Houkem-31616-BRGB |
| Brand Name | Houkem |
| Product Type | RGB LED Matrix |
| Dot Array | 16 × 16 |
| Panel Size | 64 × 64mm |
| Screen Dimension | 64 × 64mm |
| Pixel Pitch | 3mm |
| Pixels | 5mm |
| Emitting Color | RGB |
| Polarity | Common Anode |
| Working Current | 15–20mA |
| Working Voltage | 1.8–2.1V |
| Epoxy Color | White |
| Surface Color | Black |
| Face Color | Black, Gray or Red |
| Supplier Type | Original Manufacturer |
| Application | RGB Dot Matrix Display |
| Use | Advertising |
| OEM | Yes |
| Manufacturer | China Factory |
| Package | EPE |
| Place of Origin | Guangdong, China |
Compact RGB Display with 3mm Pixel Pitch
The64x64mm RGB LED Matrix combines a standardized 16×16 array with a 3mm pixel pitch, making it suitable for equipment designers who need a compact RGB display component rather than a complete programmable display module.
Itscommon-anode configuration is an important specification for engineers selecting the matrix for a particular PCB or control circuit. Buyers should confirm the required electrical configuration and driving method before production integration.
The surface color can be supplied in black, gray, or red, providing flexibility for different equipment designs and front-panel requirements.
Application and Integration Options
This3mm Pixel Pitch RGB LED Matrix is suitable for professional applications where multiple colors and matrix-based visual indication are required.
Typical applications include:
- Digital signage
- Advertising displays
- Electronic information displays
- Commercial display equipment
- Indoor visual indicators
- Electronic control panels
- Customized OEM display equipment
Multiple LED matrix components can also be incorporated into larger display assemblies when a greater display area or more complex visual arrangement is required.
OEM Manufacturing Support

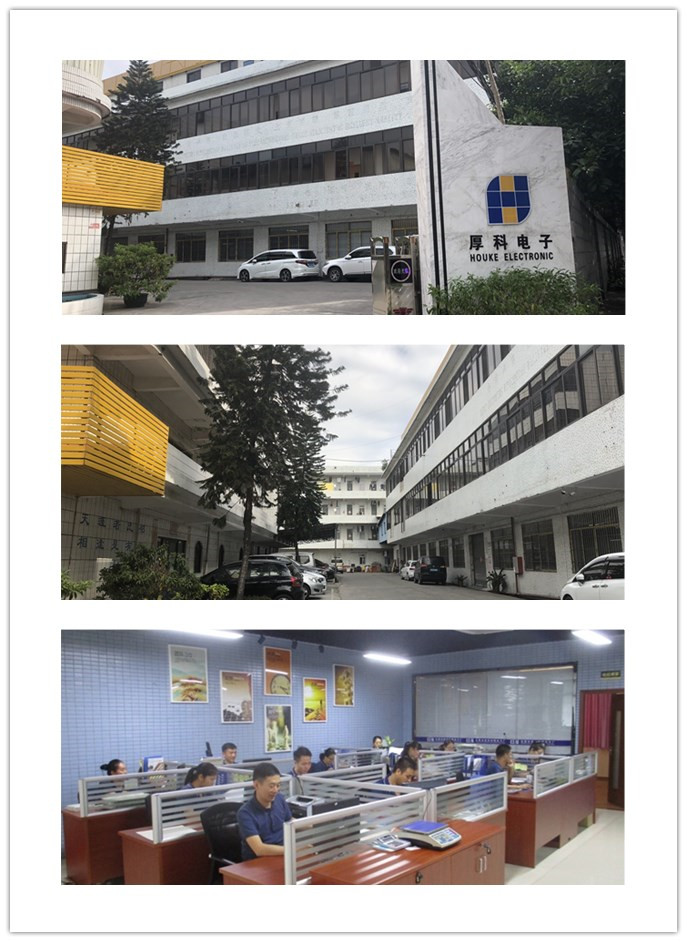

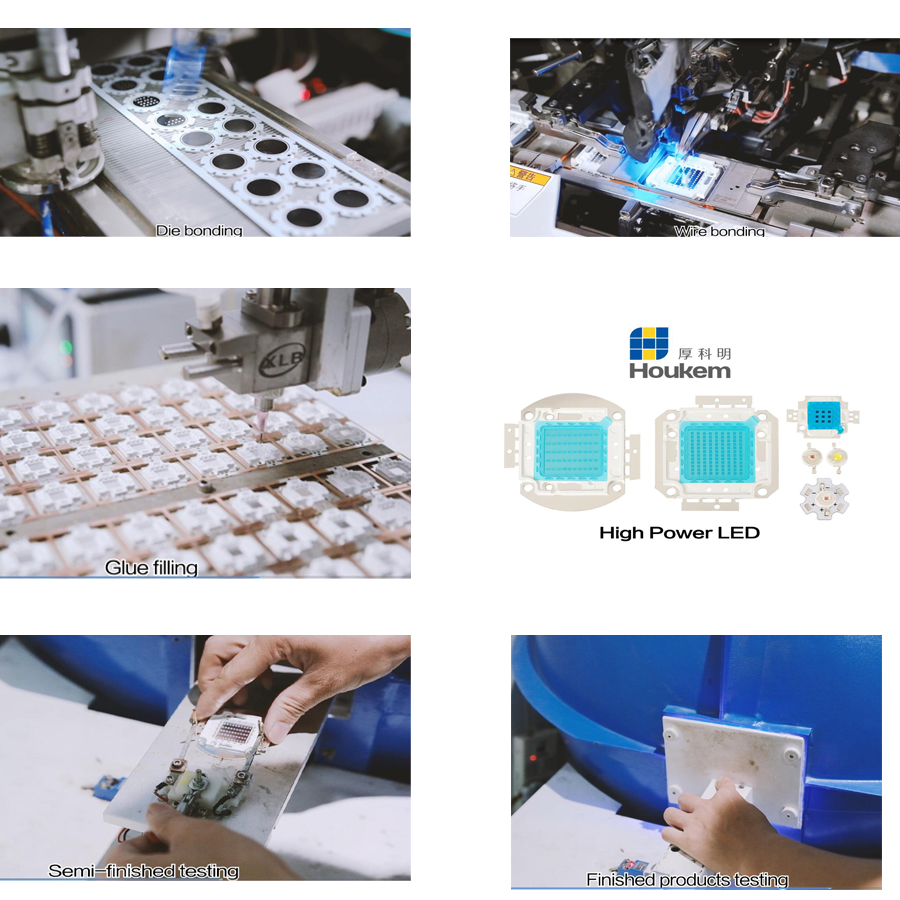

HOUKEM is an original LED display manufacturer based in Guangdong, China, with experience producing LED/SMD displays, dot-matrix displays, and high-power LEDs.
The HOUKEM-31616-BRGB supports OEM requirements for professional B2B customers. When requesting a quotation, buyers can provide their required quantity, application, circuit configuration, display arrangement, and other technical requirements for evaluation.
For projects requiring different dimensions, colors, dot arrangements, or electrical configurations, customers can also discuss customized LED matrix requirements with HOUKEM.
FAQ
Is this an addressable RGB LED matrix?
No addressable control IC is specified for this model.
The HOUKEM-31616-BRGB is a common-anode RGB LED matrix that should be integrated with the customer's control circuit.
What is the pixel pitch of this RGB LED matrix?
The specified pixel pitch is 3mm.
The complete matrix has a 64 × 64mm panel size and a 16 × 16 dot array.
How many dots does the 16x16 RGB LED Matrix contain?
A 16 × 16 configuration contains 256 dot positions.
Each position forms part of the RGB matrix display structure.
Can HOUKEM provide OEM customization?
Yes, HOUKEM supports OEM requirements for professional B2B projects.
Customers can submit application and technical specifications for product evaluation.
What information should I provide when requesting a quotation?
Provide the required quantity, application, electrical requirements, and desired display configuration.
HOUKEM can then evaluate the project and provide suitable product and quotation information.
Request an RGB LED Matrix Quote
Looking for a 64x64mm 16x16 RGB LED Matrix for advertising equipment, digital signage, or an OEM electronic product?
Contact HOUKEM with your application, required quantity, and technical requirements to discuss samples, specifications, customization, and B2B pricing.
Request a quotation from HOUKEM today for your RGB LED matrix project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
