Germicidal UVC led module 255nm 265nm 275nm 280nm uvc led sterilizer for air system
- Warranty(Year):2-Year
- Lifespan (hours):50000
- Place of Origin:Guangdong, China
- Brand Name:houkem
- Power Supply:AC
- Portable:NO
- Light Source:LED
- wavelength(nm):275
- UV Optiical Power(μW/cm2):90
- Rated Power:20w
- Product name:High Power uvc led module
- Emitting Colour:puple
- Forward Voltage:25-30v
- Lifespan:50000 Hours
- Application:sterilization
- Warranty:2 Years
- Wave length:270-280nm
- warranty:2 Years
| Item | High Power 20w uvc LED module |
| Power | 20w |
| chip quantity | 25pcs |
| Color | purple |
| Diode type | 275nm 3535 smd type (6565, 5050 are available) |
| material | aluminum , ( copper are available) |
| size | 40*40*1.5mm, 235*36mm*1.5mm, 585*36*1.5mm, 985*36*1.5mm, 23.5*23.5*1.5mm( customized size are avilable) |
| Radiant flux | 120-144mw |
| View Angle of the Lens | 60 degree/120degree |
| Wavelength | 270-280nm |
| other wavelength | 255-340nm, 365-430nm, 440-1550nm |
| Forward Voltage | 25-30v |
| Application | Toilet , Bedding , Crawling mat ,Crib ,Pet items,Pet environmental ,etc Object disinfection |

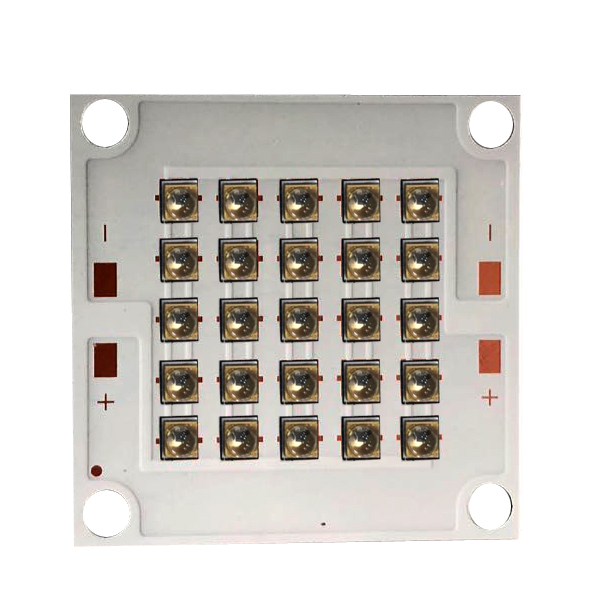

40*40*1.5mm aluminum pcb board
5 series 5 parallel

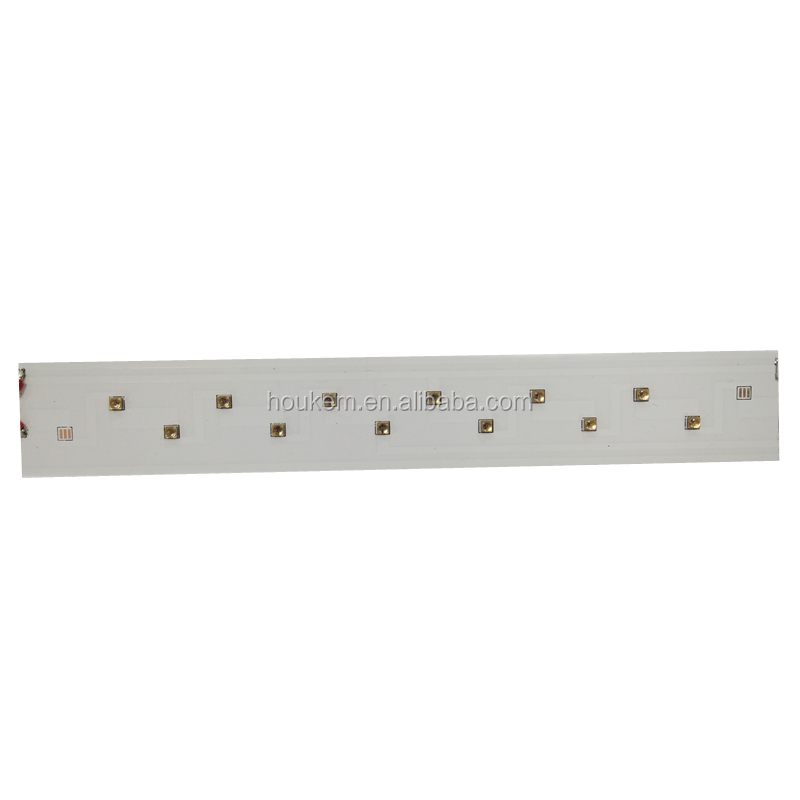

235*36*1.5mm
2 series 6 parallel
585*36*1.5mm
5 series 8 parallel
UVC LED sterilizer light
Establish in 2003, Houkem is a professional manufacturer, have much experience about development, production, sale, and service of led grow lamp and high power led, uvc led light.
Also provide some solutions for the customers to grow Melons, greens, fruits, and flowers, Brings good economic benefit to them. In recent years,
our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in such countries and regions as the USA, Germany, Japan, Korea,
etc. Welcome OEM and ODM orders.
Q1. Can I have a sample order for LED light?
Yes, we welcome sample order for your testing.
Q2. What about the lead time?
2~20 Days (sample needs 3-5 work days).
Q3. Is there any MOQ limit for orders?
Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
1. let us know your requirements or application;
2. we quote according to your requirements or our suggestions;
3. customer confirms the samples and places deposit for formal order;
4. we arrange the production.
Q6. Why choose us?
1) We provide factory direct price.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
